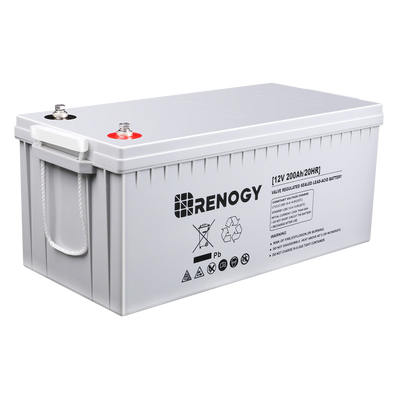

Renogy RNG-BATT-AGM12-200-US Deep Cycle AGM Battery 12 Volt 200Ah New
Manufacturer: Renogy
SKU: RNG-BATT-AGM12-200-US
QTY
(888) 999-1522
$ 372.59
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Please allow 1-3 business days for processing
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Renogy RNG-BATT-AGM12-200-US Deep Cycle AGM Battery 12 Volt 200Ah New
Product Overview
Renogy’s 12V Deep Cycle AGM Battery is an excellent choice for standby or daily power needs. Built tough with a leak-proof design, this maintenance-free battery was designed with solar energy storage applications in mind and provides optimum performance even at freezing temperatures.
2 year factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features
- Maintenance Free- Manufactured with thick absorbent glass mat (AGM) separators and advanced valve regulated technology, Renogy Deep Cycle AGM Batteries save you from acid leakage and frequent maintenance
- Excellent Discharge Performance- Proprietary quinary alloy plates and specially treated plate grids enable low internal resistance and high discharge currents of up to 10 times the battery rated capacity
- Long Shelf Life- Made of high purity materials, Renogy Deep Cycle AGM Batteries reduce the monthly self-discharge rate below 3% at 77°F (25°C), which is 5 times lower than their flooded counterparts
- Wide Operation Temperature Range- Improved electrolyte formula ensures stable battery capacity and outstanding discharge performance at low temperatures below 32°F (0°C).
Specifications
| Storage Temperature Range | -4°F~140°F / -20°C~60°C |
| Self Discharge Rate | ≤3% / month (25°C / 77°F) |
| Terminal Bolt Size | M8 x 1.25 x 16 mm |
| Container Material | ABS |
| Dimension | 20.6 x 9.4 x 8.8 inch / 522 x 240 x 224 mm |
| Weight | 127.9 lb. / 58 kg |
| Recommended Terminal Torque | 88.5~106.2 inch·lb / 10~12 N·m |
| Nominal Voltage | 12V |
| Rated Capacity | 200Ah@20hr-rate to 10.5V (25°C / 77°F) |
| Reference Capacity | C3 |
| Float Charging Voltage | 13.6V~13.8V (25°C / 77°F); Temperature Compensation |
| Cycle Use Voltage | 14.4V~14.8V (25°C / 77°F); Temperature Compensation |
| Equalization Voltage | 14.2V (25°C / 77°F) |
| Max Discharge Current | 2000A (5 seconds) |
| Max Charge Current | 60A |
| Normal Operating Temperature | 77°F±9°F / 25°C±5°C |
| Operating Temperature Range Discharge | -4°F~140°F / -20°C~60°C; Charge |
Package Contents
Renogy Deep Cycle AGM Battery 12V 200Ah
User Manual
Warranty
As an authorized Renogy dealer, this item comes with a 2 year material and workmanship warranty.
