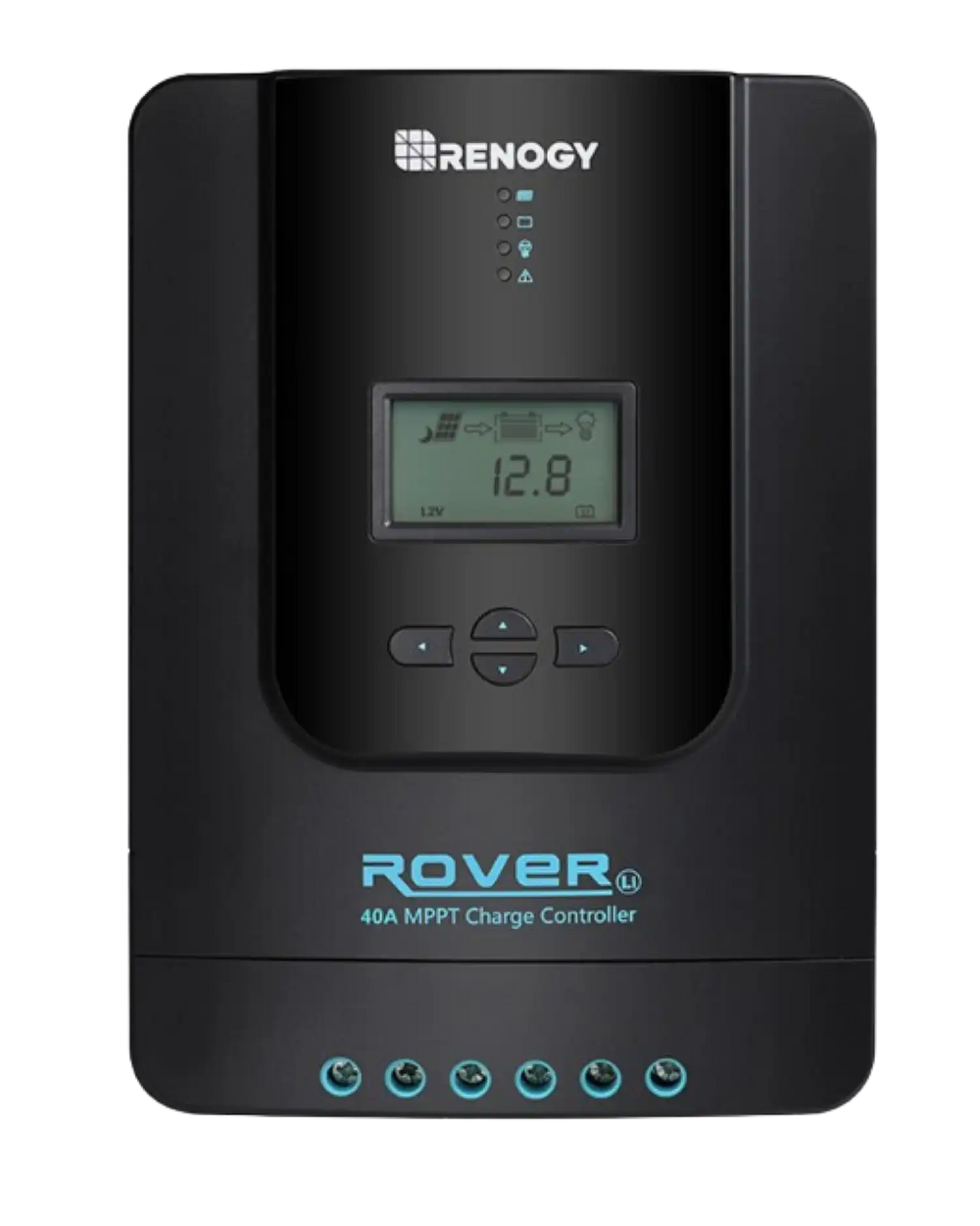

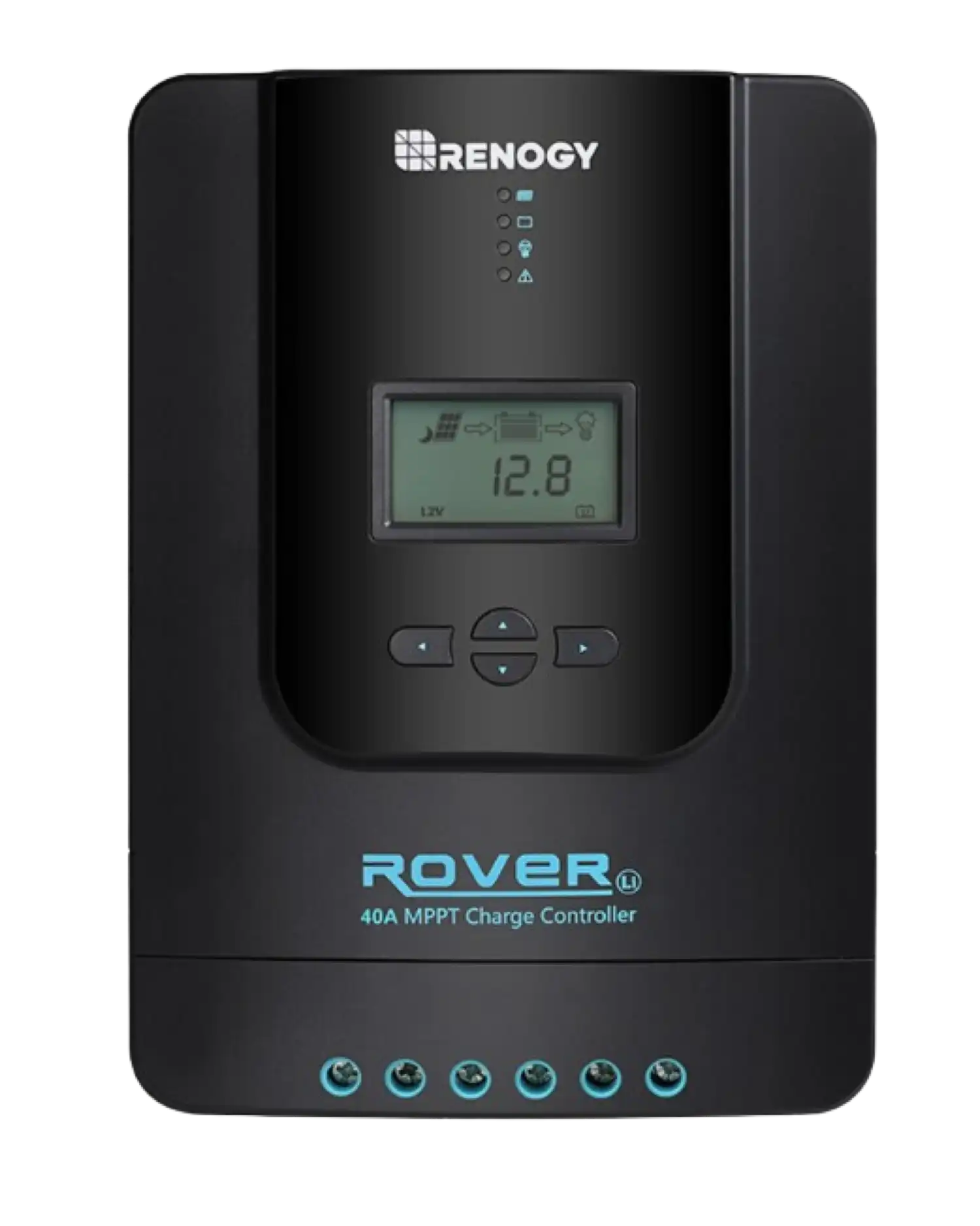

Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New

Manufacturer: Renogy

SKU: RNG-CTRL-RVR40-US

Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New
Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New
Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New
Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New
Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New
Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New
Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New
Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New
Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New
Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New
Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New
Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New
Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New
Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New

QTY

(888) 999-1522

$ 179.99

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

divider
in stock checkmark

In Stock

truck icon

Please allow 1-3 business days for processing

Manufacturer Direct Shipping

Extended Warranty

×

Factory Warranty

  • This item comes with a 2 year material and workmanship warranty.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • This item comes with a 2 year material and workmanship warranty.

$27.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees
  • Brand NewFull parts and labor warranty

$37.00

(Details)

  • WarrantyExtends factory warranty to 3 total years
  • WarrantyCovers functionality issues for 3 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

$79.00

(Details)

  • WarrantyExtends factory warranty to 5 total years
  • WarrantyCovers functionality issues for 5 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New

Renogy RNG-CTRL-RVR40-US Rover Li 40 Amp MPPT Solar Charge Controller New

Product Overview

The Renogy 40A Rover MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, the Rover ensures maximum power point solar charging that gets more energy to your battery bank.



When paired with the Renogy BT-1 Module and DC Home app you can view system performance in real-time and make parameter changes without having to get up.

vendor logo
divider
authorized dealer
checkmark

2 year factory warranty

checkmark

Brand new in box

checkmark

Ships directly from Renogy out of CA

checkmark

Authorized Renogy dealer

Features

  • Max. Solar Input Power 12V/520W, 24V/1040W: The Rover MPPT charge controller can work with standard off-grid 12/24V solar panels with high voltage or multiple panels with voltage up to 100V. In particular, this controller will significantly increase the efficiency of a solar system where the solar panel voltage is much higher than the battery voltage.

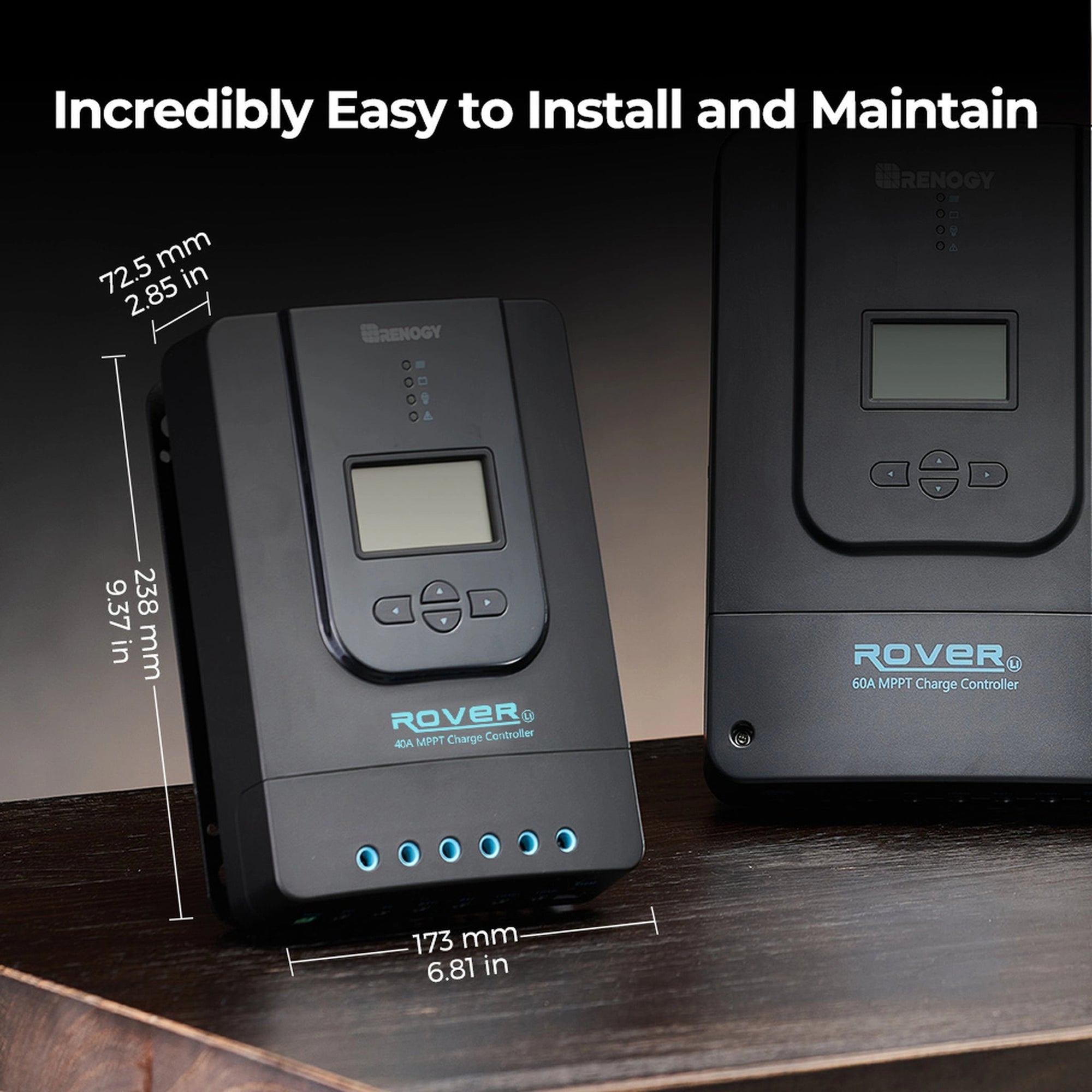

  • Incredibly Easy to Install and Maintain: Mounting Brackets is in the package and the RS232 communication port allows the Renogy Rover to communicate with the Renogy BT-1 Bluetooth module (highly recommend to add-on ) that will enable you to monitor the status and productivity of your panels through the Renogy DC Home App.

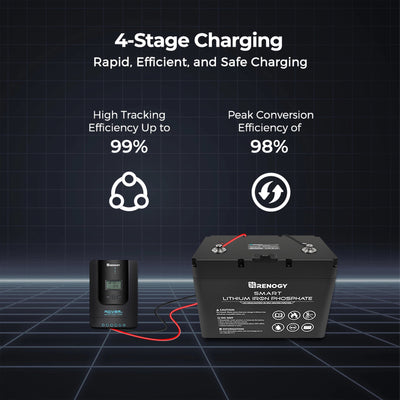

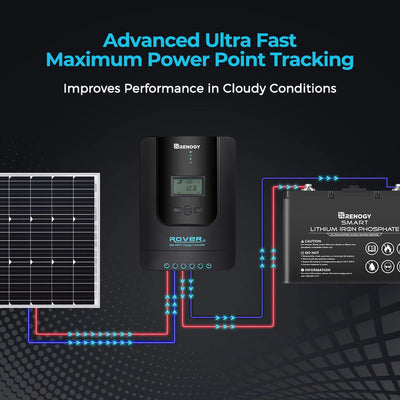

  • Advanced Ultra Fast Maximum Power Point Tracking: Renogy Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day.

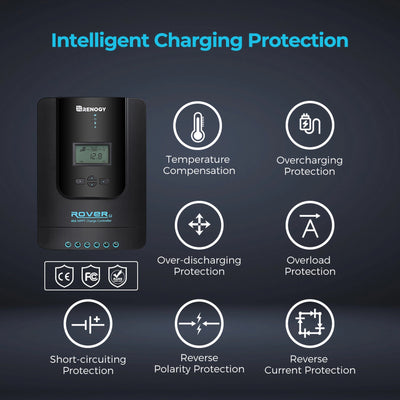

  • Intelligent Charging Protection: Renogy Rover MPPT provides 4-stage charging (Bulk, Absorption, Float, and Equalization) and features a comprehensive set of electronic protection functions such as stopping reverse current at night (from the battery back to the solar panel), automatic cut off to prevent over-charging and deep discharge, solar panel over voltage, over load, short circuit and reverse polarity protection.
  • Temperature Monitor and Compensation: Die-cast aluminum design ensures excellent heat dissipation. Fitted with a Remote Temperature Sensor, the Rover MPPT Charge Controller can measure battery temperature in real-time and use this data for very accurate temperature compensation, assuring stable and constant charging.

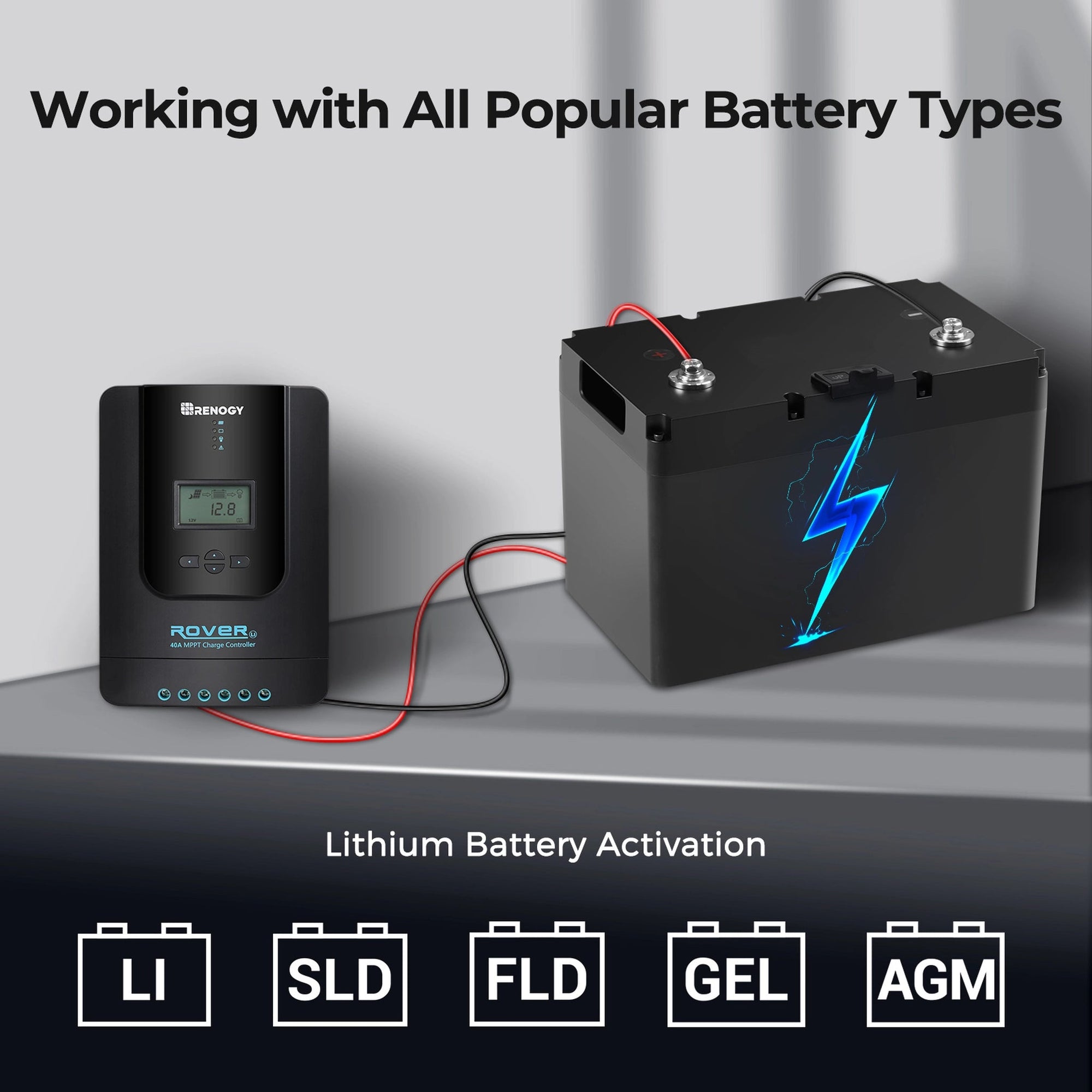

  • 12V/24V System Voltage Automatic Identify: The Renogy Rover 40A MPPT Charge Controller supports both 12V and 24V systems and can automatically identify system voltage once connected to a Sealed, Gel, AGM, and Flooded battery (manual setting is required for 24V Lithium battery).

Specifications

Compatible MPPT Charge Controller RNG-CTRL-RVR20/RNG-CTRL-RVR30/RNG-CTRL-RVR40/ RNG-CTRL-RVR60S/RNG-CTRL-RVR100
Compatible App Renogy DC Home App available in both the App Store and Google Play
Input Voltage 5V
Protection Grade IP54
Standby Power Consumption 0.04W
Operating Power Consumption 0.05W
Communication Range ≤82ft (25m)
Serial Baud Rate Fixed Baud Rate 9600bps
Cable Length 16.4 ft (5.00m )
Dimensions 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
FCC Class B Part 15 Compliant YES
Weight 4.58oz (130g )
Operation Temperature -4°F to 185°F ('-20℃ ~ 85℃)
Nominal System Voltage 12/24V Auto-Detect
Protection Level IP32
Rated Charge Current 40A
Operating Temperature Range -35°C to 45°C; -31°F to 113°F
Max. PV Input Voltage 100 VDC
Storage Temperature Range -35°C to 75°C; -31°F to 167°F
Max. PV Input Power 12V/520W, 24V/1040W
Operating / Storage Humidity ≤ 90%, No Condensation
Power Consumption <100mA/12V; <58mA/24V
Temperature Compensation -3mV/°C/2V
Max Battery Voltage 32V
Ground Type Negative
Temperature Sensor 9.8ft cable length
Electrical Protection Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.
CE YES
Dimensions 238 x 173 x 72.5 mm; 9.37 x 6.81 x 2.85 in
FCC Class B Part 15 Compliant YES
Weight 2.0kg / 4.41 lb
Max. Terminals Size 8 AWG 10mm2
Compatible PWM Charge Controller RNG-CTRL-WND10/RNG-CTRL-WND30-LI/RNG-CTRL-ADV30-LI
Communication Protocol RS232
Port Type RJ12

Package Contents

Rover Li 40 Amp MPPT Charge Controller

Remote Temperature Sensor

Mounting Brackets

User Manual
