Renogy RNG-DCC1212-20-US 12V 20A DC to DC On-Board Battery Charger New
Manufacturer: Renogy
SKU: RNG-DCC1212-20-US
QTY
(888) 999-1522
$ 107.51
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer

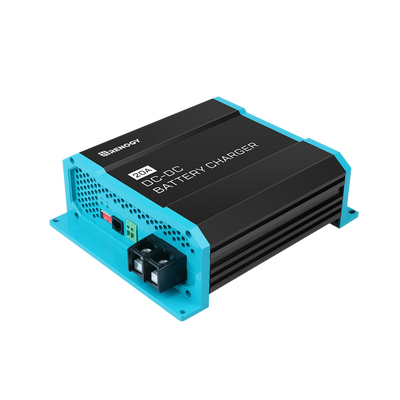

Renogy RNG-DCC1212-20-US 12V 20A DC to DC On-Board Battery Charger New
Product Overview
The DCC12 Series battery chargers are the most effective way to charge your auxiliary or house batteries from the alternator/starter battery. Compatible with a multitude of alternator types, the DCC12 offers correct charging for AGM, Flooded, Gel, and even Lithium deep cycle batteries.
Â
Featuring a 3-stage battery charger and multiple electronic protections. For added safety to personnel, the DCC12 isolates the input from the output preventing incorrect voltage transmission. Easily install the compact yet sturdy DC1212 on RV’s, commercial vehicles, boats, yachts and many more applications.
1 year factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features
- Multi-Chemistry Battery Types: AGM, Flooded, Gel, and Lithium
- Smart Protection Features: Over-voltage safety, Overheat protection, and Reverse polarity protection
- Battery Input and Output Isolation
- 3-phase Charging: Bulk, Boost, and Float
- Compact, sturdy design, built tough for all conditions
- Increases run time of loads, such as fridges and lights
- Overcomes voltage drop caused by long cable runs
- Prolongs Battery Life
Specifications
| Boost Voltage | 14.1-14.7v |
| Operating Temperature | -20°C to +50°C |
| Dimensions | 8.31 x 6.89 x 2.68 inches |
| Certification | CE ROHS |
| Nominal Voltage | 12V |
| Rated Charge Current | 20A |
| Output | 250W |
| Idle Power Consumption | <0.4A |
| Input Voltage Range | 8V-16V |
| Weight | 2.93lbs |
| Equalization Voltage | N/A |
| Float Voltage | 13.2-13.8v |
Package Contents
Renogy 20A DC to DC Battery Charger
User Manual
Warranty
As an authorized Renogy dealer, this item comes with a 1 year material and workmanship warranty.
