Renogy RNG-KIT-PREMIUM400D-RVR40-US 400 Watt 12 Volt Solar Premium Kit New
Manufacturer: Renogy
SKU: RNG-KIT-PREMIUM400D-RVR40-US
Share
Email
QTY
$ 819.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Please allow 1-3 business days for processing
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- As an authorized Renogy dealer, this item comes with a 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate5-year material and workmanship warranty and 1 year material and workmanship warranty
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- As an authorized Renogy dealer, this item comes with a 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate5-year material and workmanship warranty and 1 year material and workmanship warranty
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
Exceptional Customer Service
Manufacturer Direct
Similar Products
Sort:
Filter:
Price
Brand
Wattage
Fuel
Type
Condition
Features
Includes Transfer Switch
-
SALEDuroMax XP13000EH 10500W/13000W Electric Start Dual Fuel Generator New
Features
Features that match current product are highlighted in
green.
-
SALECummins P4500i 3700W/4500W Onan A058U955 Remote Start Portable Gas Inverter Generator New
Features
Features that match current product are highlighted in
green.
-
Generac 7210 Guardian 24kW Standby Generator WiFi w/ 200 Amp Automatic Transfer Switch New
Features
Features that match current product are highlighted in
green.
Product Overview

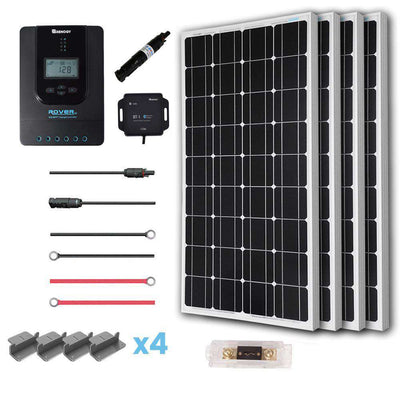

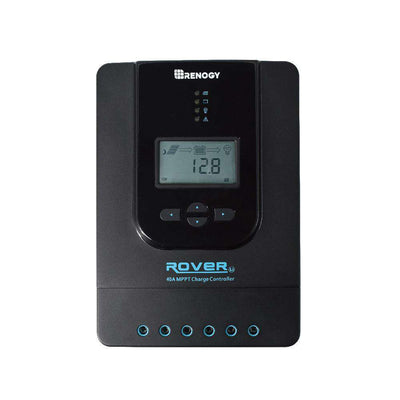

The Renogy 400W 12V Premium Kit is the most economical choice for the off-grid adventurer. With the ability to access energy wherever there is sun, the options for your journey are limitless. The Rover Li 40A MPPT Charge Controller included in this kit features multi-phase synchronous rectification and Maximum Power Point Tracking technologies, which increase charging efficiency.

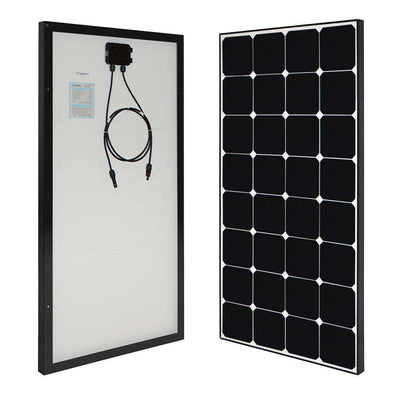

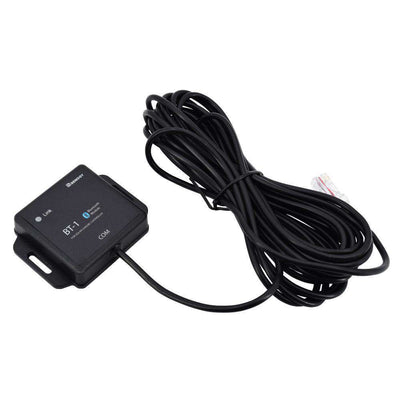

This kit includes the new 100W Eclipse/mono Solar Panel which is not only sleek in size, weight, and color but are made of the highest efficiency solar cells that Renogy has to offer. Our new Bluetooth module is also included which can be paired to the Renogy BT APP. The Renogy BT APP allows users to remotely monitor and change their photovoltaic system's parameters with a few simple swipes on their smartphone or tablet. For convenience, this kit also consists of four sets of mounting Z-Brackets, one 20ft 10AWG MC4 Adaptor Kit, one 8ft 8AWG Tray Cable, fusing components for your controller and battery.
This Premium Kit is perfect for installation on an RV, boat, or camper. It can also be installed in a ground mount system next to an off-grid campsite, making it an ideal choice for many off-grid applications.
5 year limited factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features
- Monocrystalline panels come with high-efficiency cells that help increase module efficiency. Module efficiency: Eclipse 100W Monocrystalline: 18.35%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- Rover charge controller brings peak conversion efficiency of 98%, high Tracking efficiency of 99%
- Extra thick anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- RS-232 port compatible for extra features
- Compatible with Renogy Bluetooth Module and Renogy BT APP for remote monitoring
- Pre-drilled holes on the back of the panel allow for fast mounting and securing
Specifications
| Renogy 100W Eclipse Panel | |
| Maximum Power | 100W |
| Maximum System Voltage | 600V DC |
| Open-Circuit Voltage (Voc) | 21.2V |
| Short-Circuit Current (Isc) | 6.10A |
| Optimum Operating Voltage (Vmp) | 17.7V |
| Optimum Operating Current (Imp) | 5.70A |
| Weight | 15.0lbs |
| Dimensions | 40.8 X 20.7 X 1.4 inches |
| BT-1 Bluetooth Module | |
| Input Voltage | 5V-12V |
| Communication Range | ≤15m |
| Compatible Models | All Renogy Controllers with RJ12 port |
| Operation Temperature | -20℃ to 75℃ (-4 F to 167 F) |
| Mounting Z Brackets (Set) | 8x long bolts w/ cap 4x short bolts 4x washers 4x nuts |
| Renogy 8AWG cables | |
| Rating Voltage | 600/1000v |
| Length | 8ft |
| Temp | -40 F to 185 F |
| Rover Li 40A MPPT Charge Controller | |
| Nominal System Voltage | 12V/24V Auto Recognition |
| Rated Battery Current | 40A |
| Rated Load Current | 20A |
| Max. PV Input Short Current | 50A |
| Max. Solar Input Power | 520W (12V), 1040W (24V) |

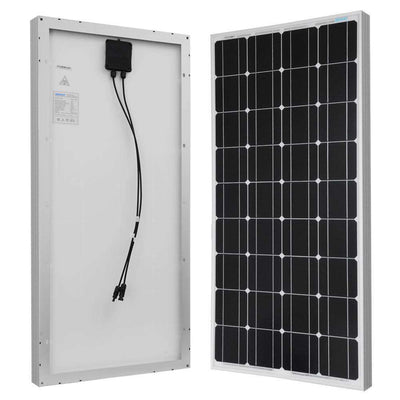

| Renogy 100W Monocrystalline Panel | |
| Maximum Power | 100W |
| Maximum System Voltage | 600V DC |
| Open-Circuit Voltage (Voc) | 22.5V |
| Short-Circuit Current (Isc) | 5.75A |
| Optimum Operating Voltage (Vmp) | 18.9V |
| Optimum Operating Current (Imp) | 5.29A |
| Weight | 16.5lbs |
| Dimensions | 47.0 X 21.3 X 1.4 inches |
| Renogy 10A MC4 Fuse Holder w/Fuse | |
| Rated Current | 10A |
| Rated Voltage | 1000 V DC |
| Contact Material | Copper, Silver Plated |
| Replaceable Fuse | Cylindrical PV Fuse (10x38mm) |
Package Contents
Renogy Eclipse or Mono Panel
Charge Controller
20ft 10AWG AK
2ft 8AWG Fuse Cable
8ft 8AWG Tray Cable
Mounting Brackets
Bluetooth Module
Fuses
User Manual
Warranty
As an authorized Renogy dealer, this item comes with a 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate5-year material and workmanship warranty and 1 year material and workmanship warranty
