Renogy RNG-KIT-STARTER200D-WND30-US 200 Watt 12 Volt Solar Starter Kit New
Manufacturer: Renogy
SKU: RNG-KIT-STARTER200D-WND30-US
Share
Email
QTY
$ 365.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Please allow 1-3 business days for processing
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- As an authorized Renogy dealer, this item comes with a 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate5-year material and workmanship warranty and 1 year material and workmanship warranty
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- As an authorized Renogy dealer, this item comes with a 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate5-year material and workmanship warranty and 1 year material and workmanship warranty
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Product Overview
The Renogy 200W Monocrystalline Starter Kit is ideal for several off-grid applications, including RVs, trailers, boats, sheds, and cabins - providing many benefits, including, but not limited to, quiet power production and grid independence.
Incorporating a small off-grid system can give you greater travel independence, as you can charge your most important small electronics without having to resort to a noisy gas generator or electrical outlet.
5 year limited factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features
- With the Renogy Wanderer Li 30A PWM Charge Controller, you can expand your system up to a maximum of 400W. The Renogy 100W Monocrystalline Expansion Kit Expansion Kit is the perfect solution for future expansion
- High solar cell efficiency : Monocrystalline 21%
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time
- Sealed, Gel Flooded and Lithium charging algorithm ready
- 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- The Renogy Wanderer is equipped with multiple electronic protections; overcharging, overload, short-circuit and reversed polarity
- Pre-drilled holes on the back of the panel allow for fast and secure mounting
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
Specifications
| Renogy Tray Cables (a pair) | Length |
| Renogy Tray Cables (a pair) | AWG |
| Renogy Tray Cables (a pair) | Rating Voltage |
| Renogy Tray Cables (a pair) | Temperature |
| Renogy Wanderer Li- 30A PWM Negative- Ground Charge Controller | Nominal Voltage |
| Renogy Wanderer Li- 30A PWM Negative- Ground Charge Controller | Rated Charge Current |
| Renogy Wanderer Li- 30A PWM Negative- Ground Charge Controller | Max. PV Input Voltage |
| Renogy Wanderer Li- 30A PWM Negative- Ground Charge Controller | Max. PV Input Power |
| Maximum Power | 100W |
| Maximum System Voltage | 600V DC (UL) |
| Open-Circuit Voltage (Voc) | 21.6V |
| Short-Circuit Current (Isc) | 6.24A |
| Optimum Operating Voltage (Vmp) | 17.9V |
| Optimum Operating Current (Imp) | 5.72A |
| Weight | 14.3lbs |
| Dimensions | 42.2 X 19.6 X 1.38 inches |
| Withstanding Voltage | 1000V DC(TUV), 600V(UL) |
| Protection Degree | IP67, mated |
| Wiring Size Range | 10, 12, 14 AWG |
| Temperature | -40°F to +195°F |

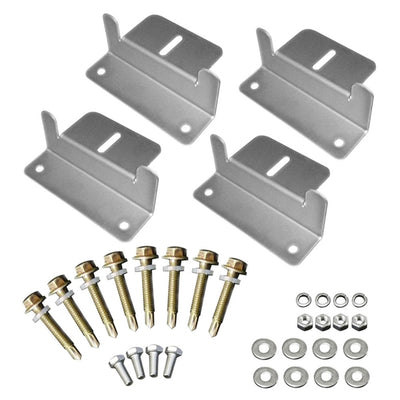

| Mounting Z Brackets (set) | Eight Long Cap Bolts and Four Short Bolts |
| Mounting Z Brackets (set) | Four Spring Washers and Four Washers |
| Mounting Z Brackets (set) | Four Z Shape Solar Panel Brackets |
| Mounting Z Brackets (set) | Four Nuts |
| Renogy Solar Adaptor Kit (set) | Length |
| Renogy Solar Adaptor Kit (set) | AWG |
| Renogy Solar Adaptor Kit (set) | Rating Voltage |
| Renogy Solar Adaptor Kit (set) | Temperature |

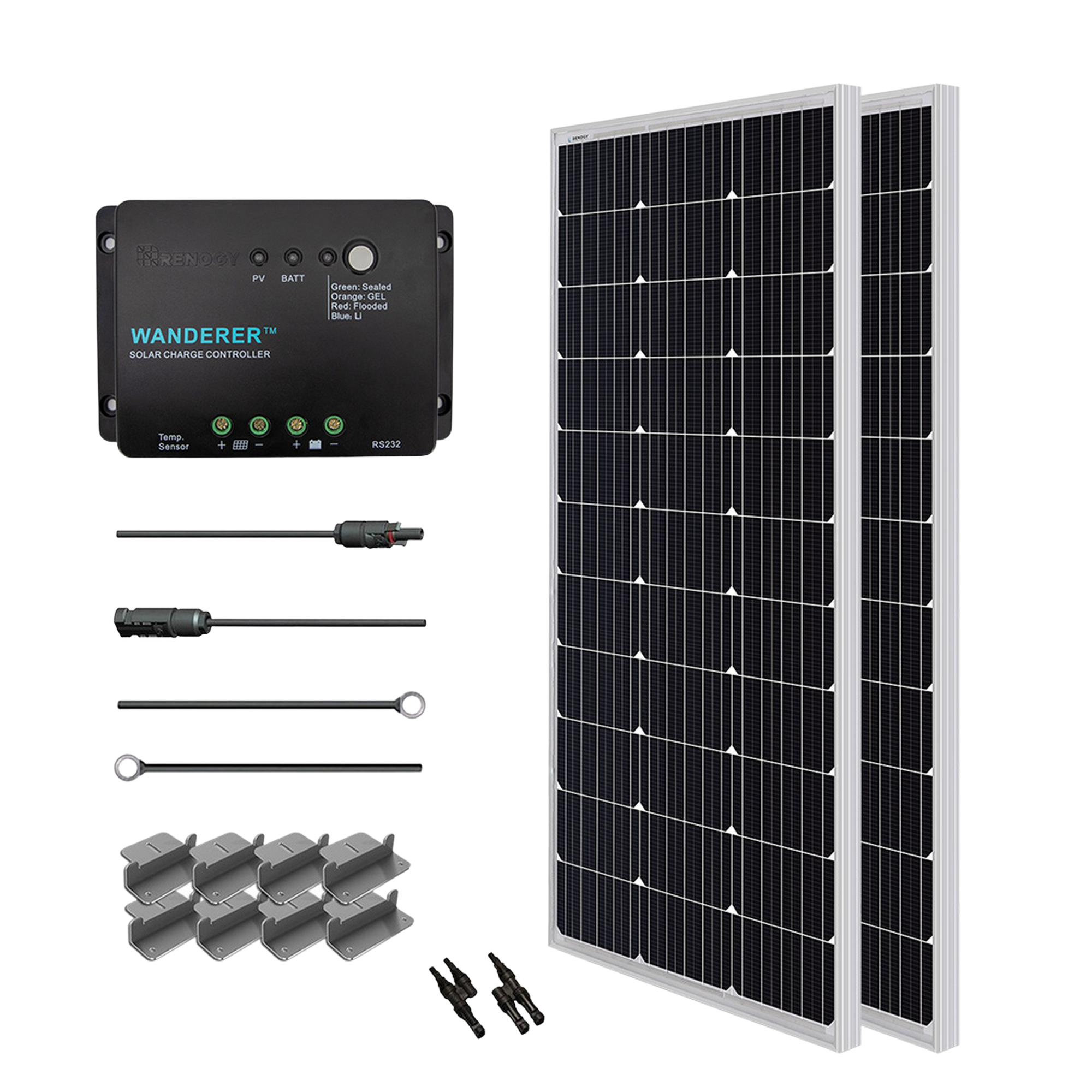

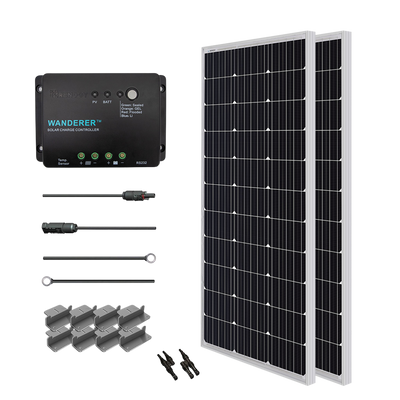

Package Contents

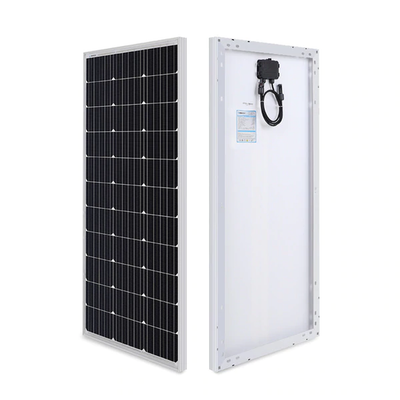

2x 100W Mono Panel

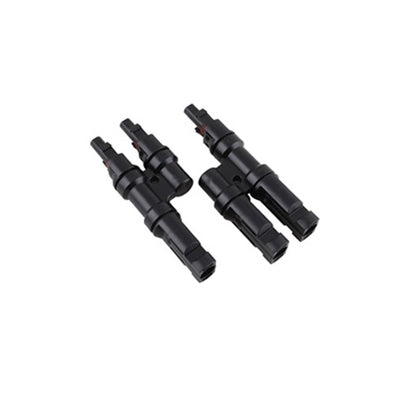

1x Renogy Solar Y Branch Connectors
2x Mounting Z Brackets

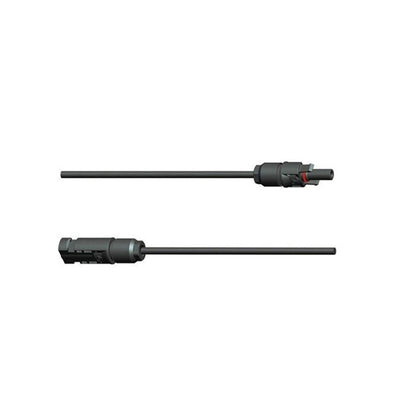

1x Renogy 20ft 10AWG Solar Adaptor Kit (A pair)
1x Renogy 8ft 10AWG Tray Cables (A pair)

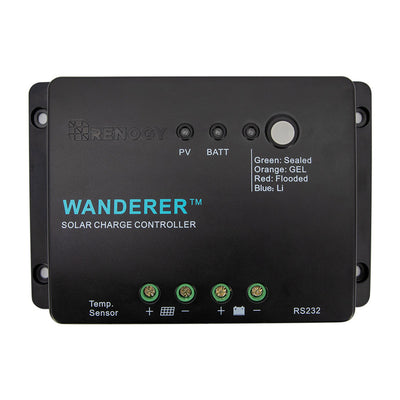

1x Renogy Wanderer Li 30A PWM Charge Controller
User Manual
Warranty
As an authorized Renogy dealer, this item comes with a 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate5-year material and workmanship warranty and 1 year material and workmanship warranty
