Renogy RNG-KIT-STARTER400D-WND30-US Watt 12 Volt Solar Starter Kit New
Manufacturer: Renogy
SKU: RNG-KIT-STARTER400D-WND30-US
Share
Email
QTY
$ 619.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Please allow 1-3 business days for processing
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- As an authorized Renogy dealer, this item comes with a 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate5-year material and workmanship warranty and 1 year material and workmanship warranty
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- As an authorized Renogy dealer, this item comes with a 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate5-year material and workmanship warranty and 1 year material and workmanship warranty
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Product Overview
Renogy Solar Kits can be used for several different purposes, from trickle charging batteries to acting as an emergency power backup system.
The Starter Kit is also ideal for several off-grid applications, including RVs, trailers, boats, sheds, and cabins - providing many benefits, including, but not limited to, quiet power production and grid independence.
5 year limited factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features
- High solar cell efficiency : Monocrystalline 21%
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- Sealed, Gel Flooded and Lithium charging algorithm ready
- 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- The Renogy Wanderer Li is equipped with multiple electronic protections; overcharging, overload, short-circuit and reversed polarity
- Pre-drilled holes on the back of the panel allow for fast and secure mounting
Specifications
| Adaptor Kit (SET) Rating Voltage | 600/1000V |
| Adaptor Kit (SET) Temperature | -40°F to +185°F |
| 8FT 10AWG Tray Cables (A PAIR) Length | 8ft |
| 8FT 10AWG Tray Cables (A PAIR) AWG | 10 |
| 8FT 10AWG Tray Cables (A PAIR) Rating Voltage | 600/1000V |
| 8FT 10AWG Tray Cables (A PAIR) Temperature | -40°F to +185°F |
| WANDERER LI - 30A PWM Negative-Ground Charge Controller Nominal Voltage | 12 VDC |
| WANDERER LI - 30A PWM Negative-Ground Charge Controller Rated Charge Current | 30A |
| WANDERER LI - 30A PWM Negative-Ground Charge Controller Max. PV Input Voltage | 25 VDC |
| WANDERER LI - 30A PWM Negative-Ground Charge Controller Max. PV Input Power | 400W (12V) |
| 100W Monocrystalline Solar Panel Maximum Power | 100W |
| 100W Monocrystalline Solar Panel Maximum System Voltage | 600V DC (UL) |
| 100W Monocrystalline Solar Panel Open-Circuit Voltage (Voc) | 21.6V |
| 100W Monocrystalline Solar Panel Short-Circuit Current (Isc) | 6.24A |
| 100W Monocrystalline Solar Panel Optimum Operating Voltage (Vmp) | 17.9V |
| 100W Monocrystalline Solar Panel Optimum Operating Current (Imp) | 5.72A |
| 100W Monocrystalline Solar Panel Dimensions | 42.2 X 19.6 X 1.38 inches |
| 100W Monocrystalline Solar Panel Weight | 14.3lbs |
| Solar Y Branch Connectors Withstanding Voltage | 1000V DC(TUV), 600V(UL) |
| Solar Y Branch Connectors Protection Degree | IP67, mated |
| Solar Y Branch Connectors Wiring Size Range | 10, 12, 14 AWG |
| Solar Y Branch Connectors Temperature | -40°F to +195°F |

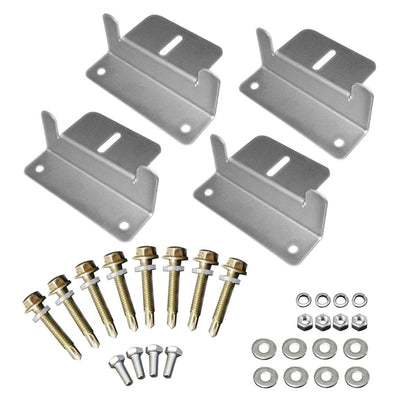

| Mounting Z Brackets (SET) | Eight Long Cap Bolts and Four Short Bolts |
| Mounting Z Brackets (SET) | Four Spring Washers and Four Washers |
| Mounting Z Brackets (SET) | Four Z Shape Solar Panel Brackets |
| Mounting Z Brackets (SET) | Four Nuts |
| Adaptor Kit (SET) Length | 20ft |
| Adaptor Kit (SET) AWG | 10 |

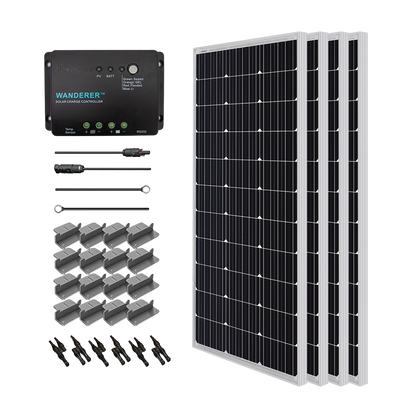

Package Contents
4x 100W Mono Panel

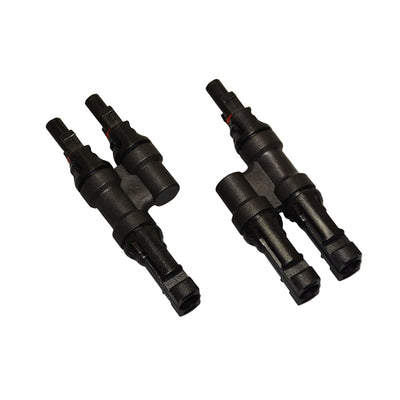

3x Renogy Solar Y Branch Connectors
4x Mounting Z Brackets
1x Renogy 20ft 10AWG Solar Adaptor Kit (A pair)
1x Renogy 8ft 10AWG Tray Cables (A pair)

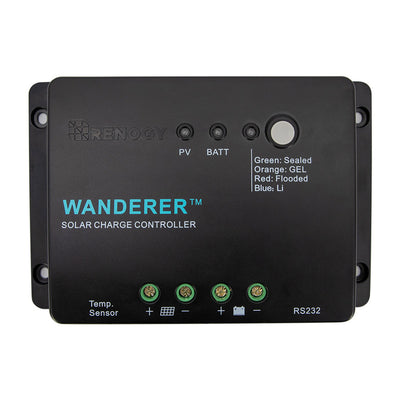

1x Renogy Wanderer Li 30A PWM Charge Controller
User Manual
Warranty
As an authorized Renogy dealer, this item comes with a 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate5-year material and workmanship warranty and 1 year material and workmanship warranty
Manuals & Documentation
