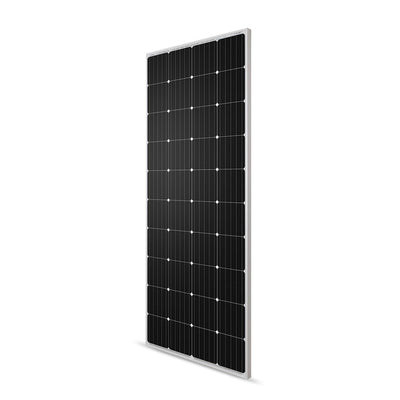

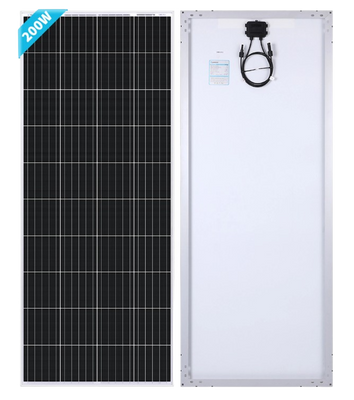

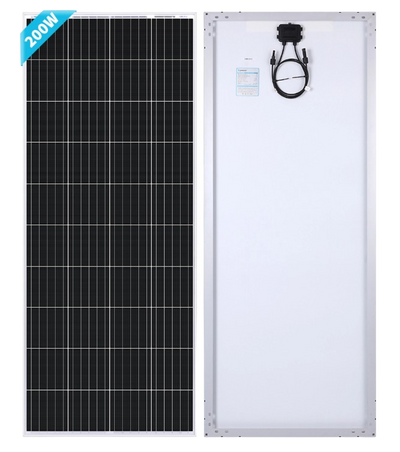

Renogy RSP200D-US 200 Watt 12 Volt Monocrystalline Solar Panel New
Manufacturer: Renogy
SKU: RSP200D-US
QTY
(888) 999-1522
$ 199.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Renogy RSP200D-US 200 Watt 12 Volt Monocrystalline Solar Panel New
Product Overview
Renogy 200W Monocrystalline Solar Panel can provide about 1000 Watt-hours of electricity per day under 5-6 hours of direct sunlight, with a guaranteed positive output tolerance of 0%-3%.
Grade A+ quality panel maximizes overall efficiency through improved conductivity of 9 busbars and enhanced light reflection of PERC technology.
Half-cut cells and bypass diodes help protect the panel from hotspot overheating, enabling it to operate even in the presence of accidental shading.
5 year factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features
- High module conversion efficiency
- Top ranked PTC rating
- Quick and inexpensive mounting
- 100% EL testing on all Renogy modules
- No hot spots guaranteed
Specifications
| Maximum Power at STC* | 200W |
| Optimum Operating Voltage (Vmp) | 19.2V |
| Optimum Operating Current (Imp) | 10.42A |
| Open Circuit Voltage (Voc) | 23V |
| Short Circuit Current (Isc) | 11.05A |
| Maximum System Voltage | 600VDC |
| Maximum Series Fuse Rating | 20A |
| Solar Cell Type | Monocrystalline (6.5 x 3.3 in) |
| Number of Cells | 68 (4 x 7) |
| Dimensions | 1491 x 699 x 35 mm ( 58.7 x 27.5 x 1.4 in) |
| Weight | 12 kg ( 26.5 lbs) |
| Front Glass | Tempered Glass 0.13 in (3.2 mm) |
| Frame | Anodized Aluminum Alloy |
| Connectors | MC4 Connectors |
| Fire Performance | Type 1 |
Package Contents
Monocrystalline Solar Panel
User Manual
Warranty
This product comes with a 5 year material and workmanship warranty.
