Rich Solar RS-M150 150 Watt 12V Mono Solar Panel New
Manufacturer: Rich Solar
SKU: RS-M150
Share
Email
QTY
$ 165.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Product Overview

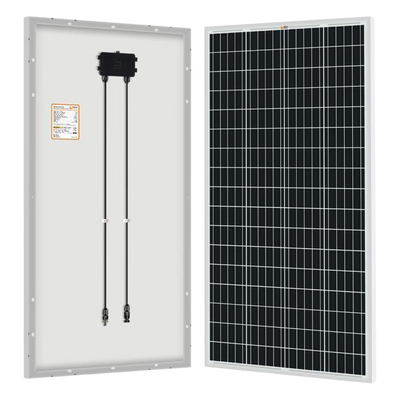

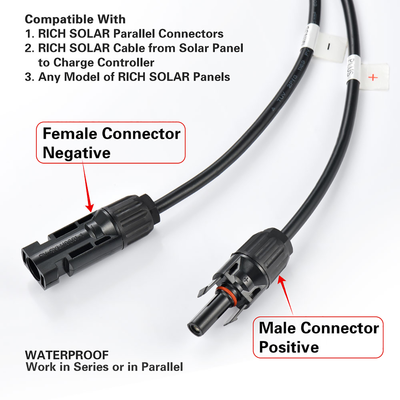

The 150-watt waterproof Mono Solar Panel works in Series or in Parallel. Compatible with Rich Solar Parallel Connectors, Rich Solar Cable from Solar Panel to charge Controller and any Model of Rich Solar panels.

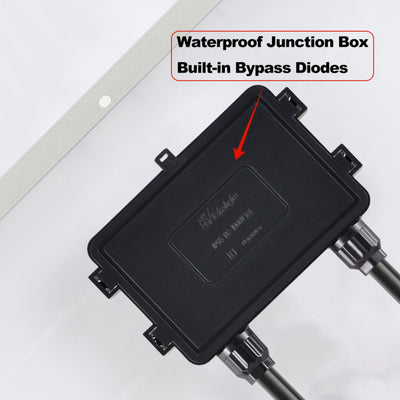

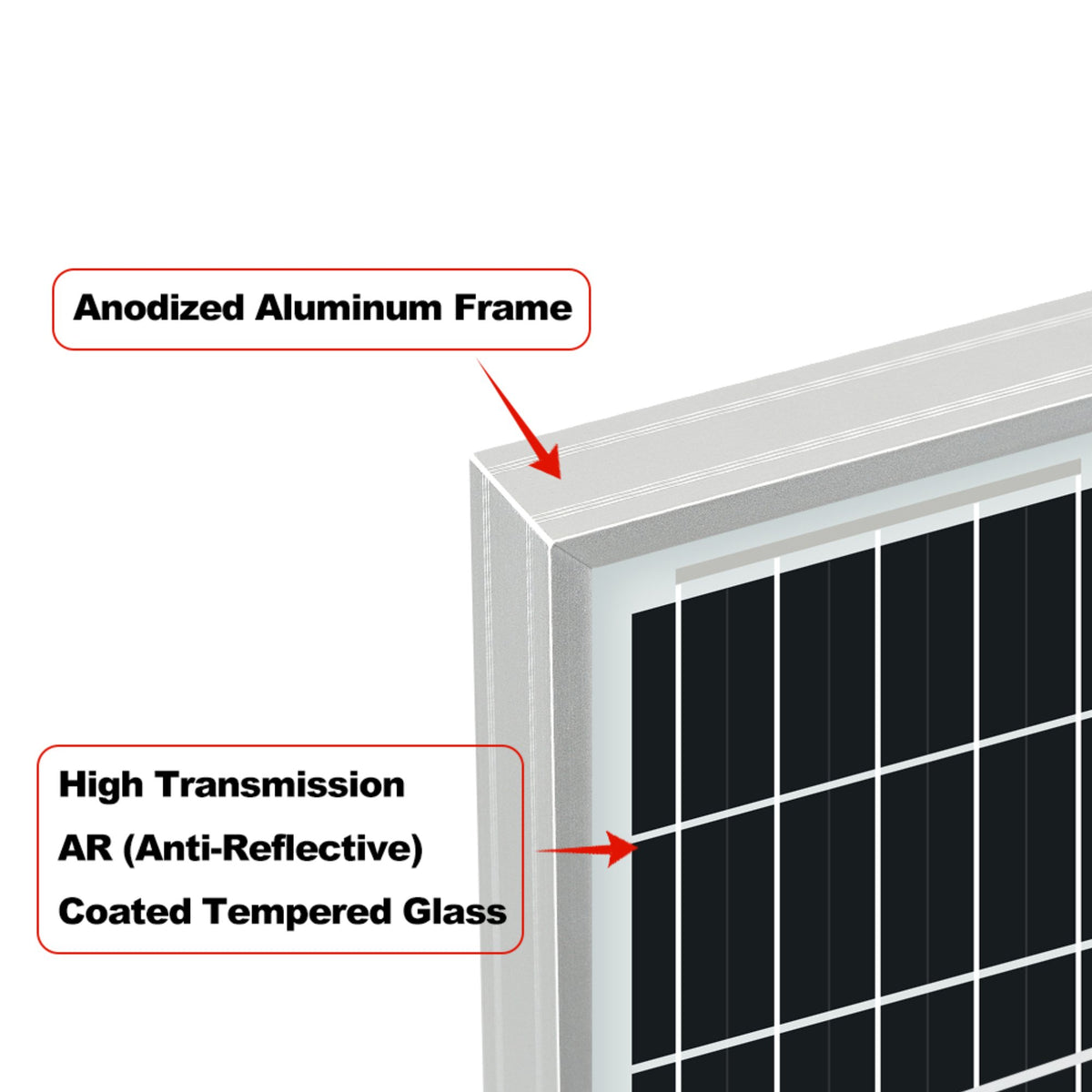

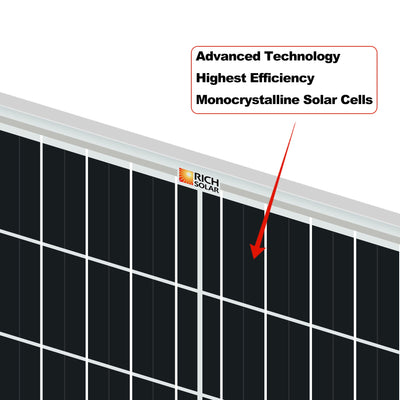

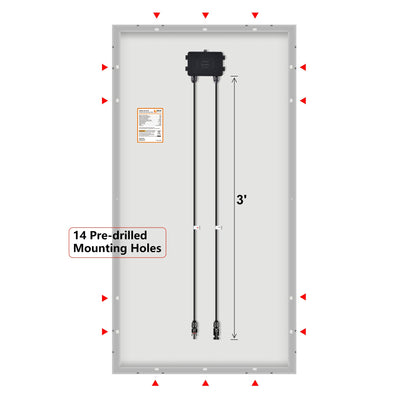

With 14 Pre-drilled Mounting holes for easier installation and high Transmission AR (Anti-Reflective) Coated Tempered Glass and Ionized Aluminum Frame. Has a waterproof Junction Box with built-in Bypass Diodes with advanced technology and the highest efficiency Monocrystalline Solar Cells.
Brand new in box
Manufacturer direct shipping from CA
25 year limited manufacturer's warranty
Authorized Rich Solar dealer
Rich Solar RS-M150 150 Watt 12V Mono Solar Panel New
Share
Email
Share
Share
Features
- 5 buss bar solar cell configuration
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug and play junction box
- Industry-standard quick-connect cables work in series or in parallel
- Certified to withstand challenging environmental conditions
- Excellent low light performance on cloudy days, mornings, and evenings
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
- Rich Solar 150 watt monocrystalline solar panel
- Panel leads (pair): 3 feet each
- IP65 rated waterproof junction box
- IP67 rated waterproof solar connectors
- Bypass diodes built-in the junction box

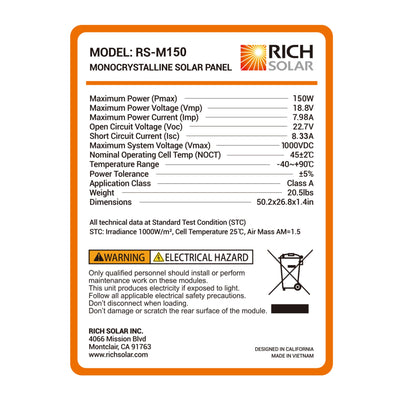

Specifications
| Weight | 20.5 lbs |

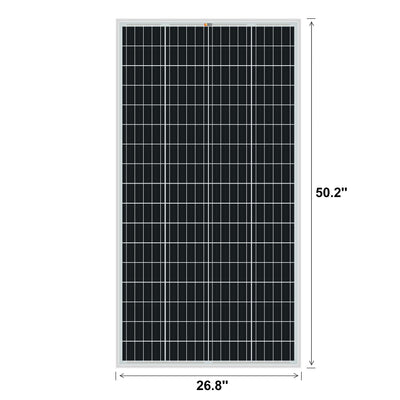

| Dimensions | 50.2 x 26.8 x 1.4 in |
| Maximum Power(Pmax) | 150W |
| Maximum Power Voltage(Vmp) | 18.8V |
| Maximum Power Current(Imp) | 7.98A |
| Open Circuit Voltage(Voc) | 22.7V |
| Short Circuit Current(Isc) | 8.33A |
| Maximum System Voltage(Vmax) | 1000VDC |
| Temperature Range | -40°C ~ 90°C |
Package Contents
150 Watt Solar Panel
User Manual
Warranty
The manufacturer warranties this product with a 25 years limited power output.
