Rich Solar RS-M170 100 Watt 12 Volt Solar Panel New
Share
Product Overview

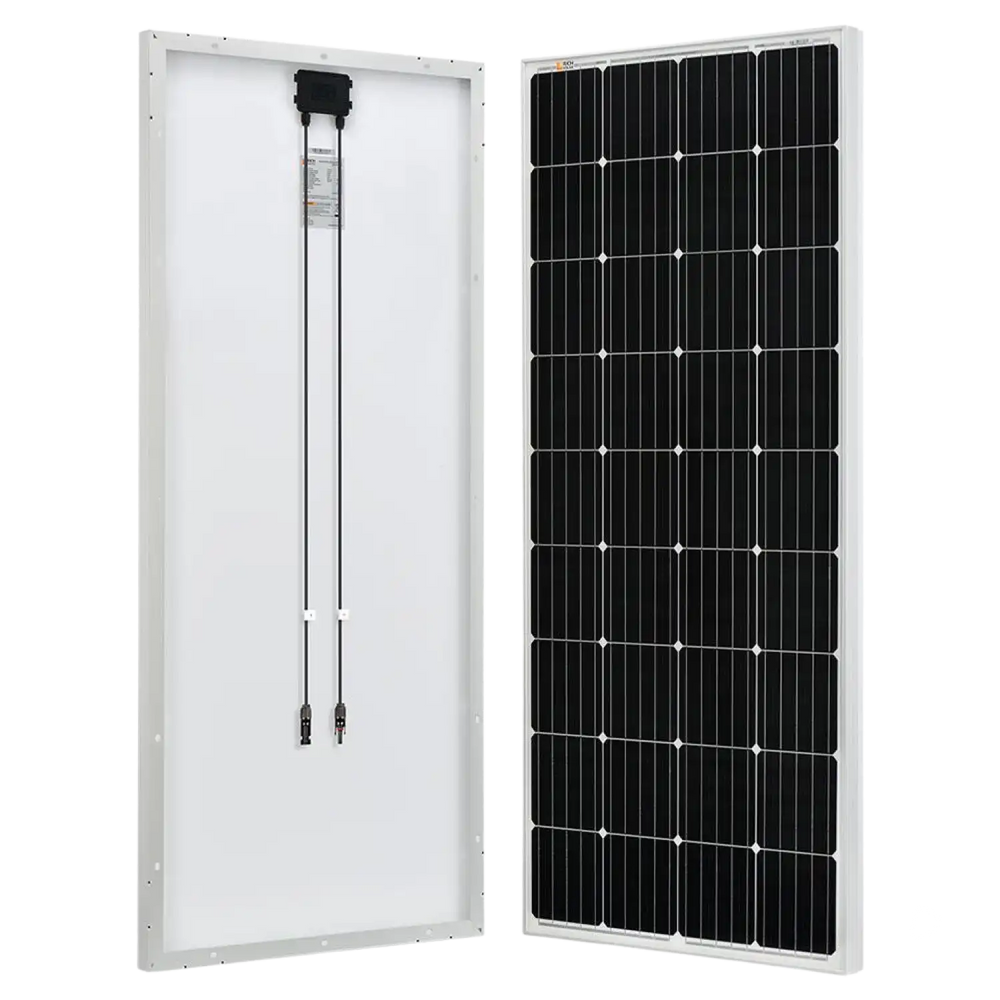

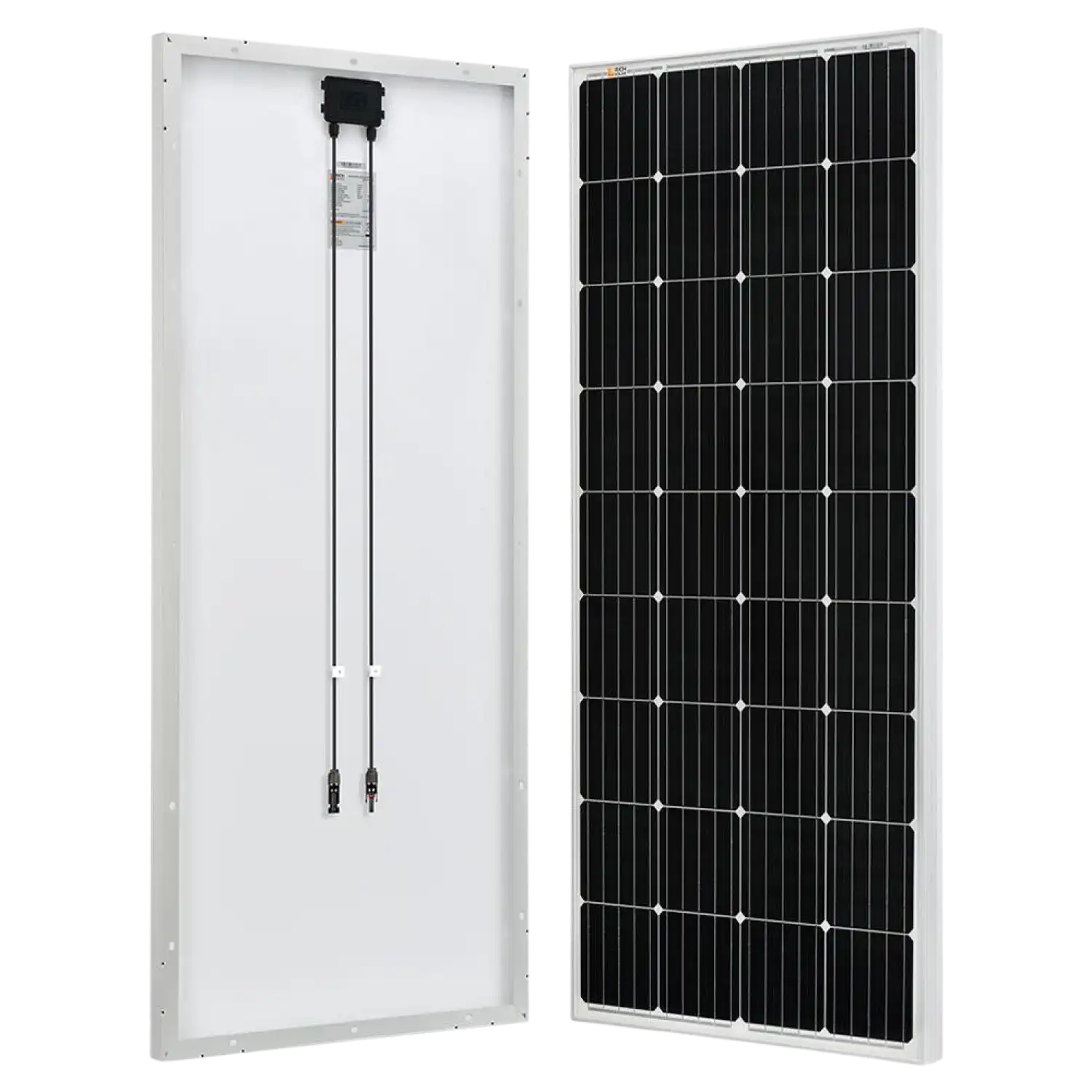

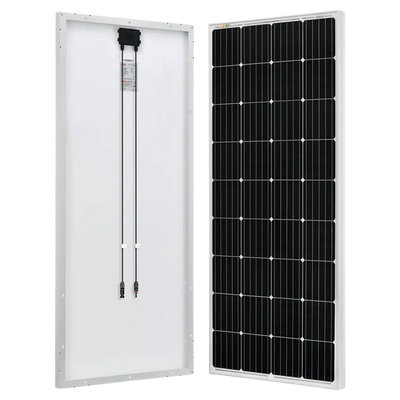

The Rich Solar RS-M170 100 Watt Solar Panel has easy installation and handling for various applications. The panel comes with pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts. Panel also is compatible with on-grid and off-grid inverters.
Brand new in box
Manufacturer direct shipping from CA
5 year manufacturer's warranty
Authorized Rich Solar dealer
Features
- 5 buss bar solar cell configuration
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug and play junction box
- Industry standard quick connect cables work in series or in parallel
- Certified to withstand challenging environmental conditions
- Rich Solar 170 watt monocrystalline solar panel
- Excellent low light performance on cloudy days, mornings and evenings
- Panel leads (pair): 3 feet each
- IP65 rated waterproof junction box
- IP67 rated waterproof solar connectors
- Bypass diodes built-in the junction box
Specifications
| Weight | 26.5 lbs |
| Dimensions | 58.7 x 26.8 x 1.4 in |
| Maximum Power(Pmax) | 170W |
| Maximum Power Voltage(Vmp) | 18.6V |
| Maximum Power Current(Imp) | 9.14A |
| Open Circuit Voltage(Voc) | 22.8V |
| Short Circuit Current(Isc) | 9.73A |
| Maximum System Voltage(Vmax) | 1000VDC |
| Temperature Range | -40°C ~ 85°C |
| Max Series Fuse Rating | 15A |
Package Contents
100 Watt Solar Panel
User Manual
Warranty
The manufacturer warranties this product for 5 years on workmanship and materials; 25 years 80% output power.
