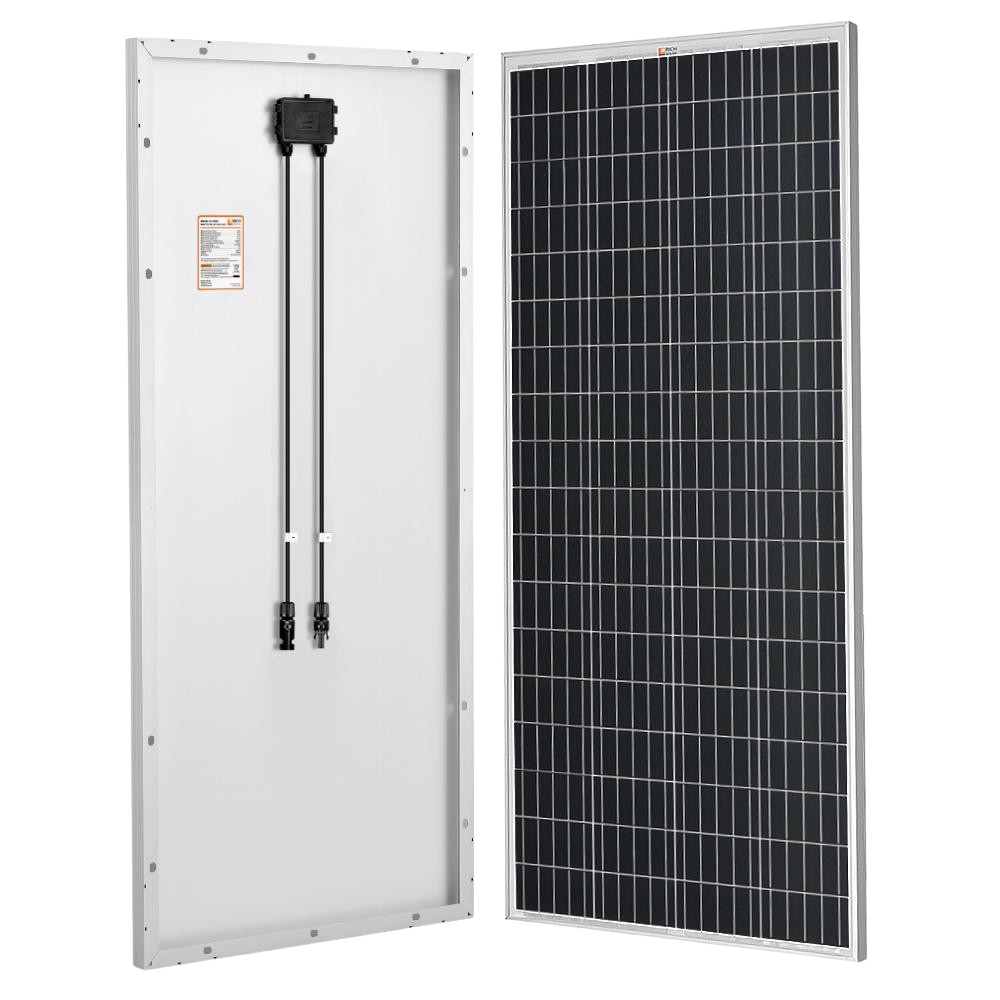

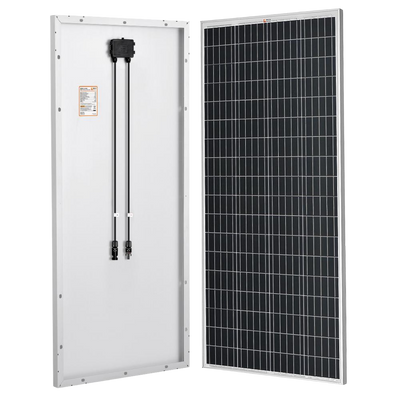

Rich Solar RS-M200D 200 Watt 24 Volt Solar Panel New
Manufacturer: Rich Solar
SKU: RS-M200D
Share
Email
QTY
$ 264.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Please allow 3-5 business days for processing
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- The manufacturer warranties this product for a 25 year limited power output.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- The manufacturer warranties this product for a 25 year limited power output.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Product Overview

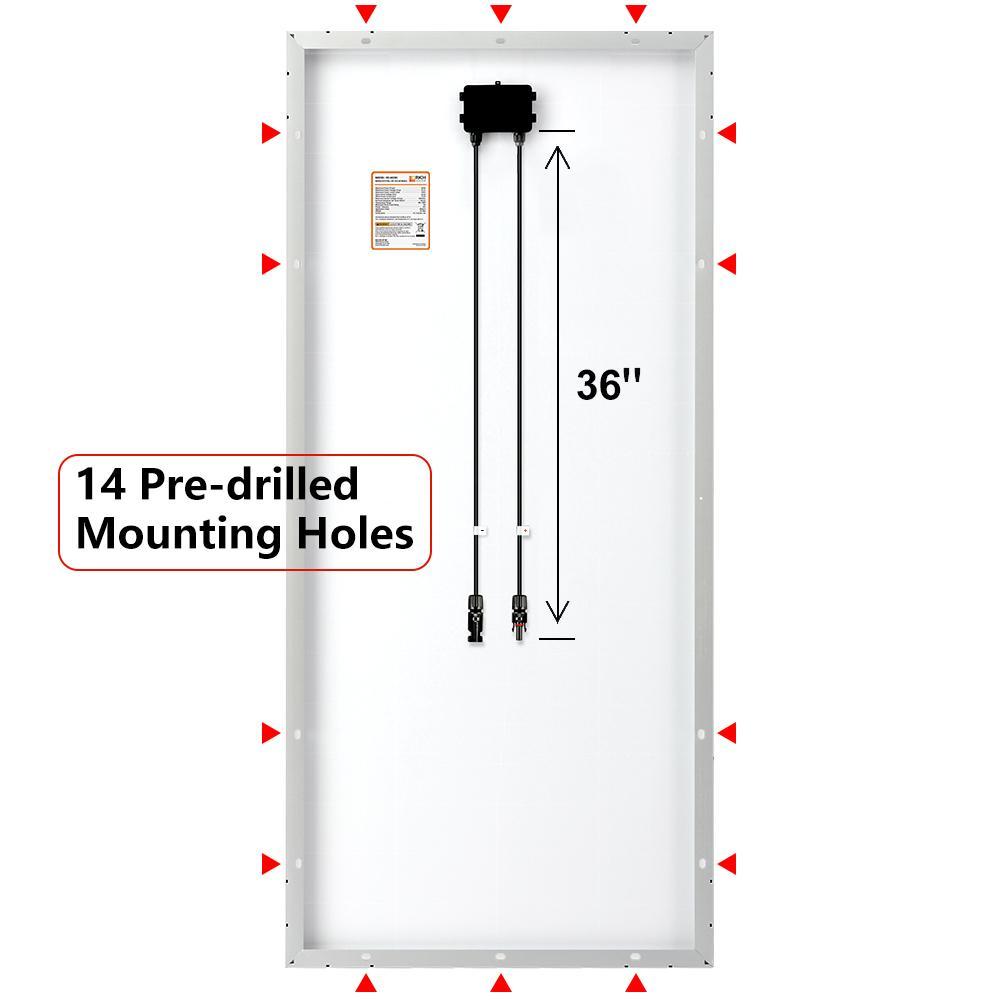

The Rich Solar RS-M200D 200 Watt 24 Volt Solar Panel has easy installation and handling for various applications. The panel comes with pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts. Panel also is compatible with on-grid and off-grid inverters.
Brand new in box
Manufacturer direct shipping from CA
25 year limited manufacturer's warranty
Authorized Rich Solar dealer
Rich Solar RS-M200D 200 Watt 24 Volt Solar Panel New
Share
Email
Share
Share
Features
- 5 buss bar solar cell configuration

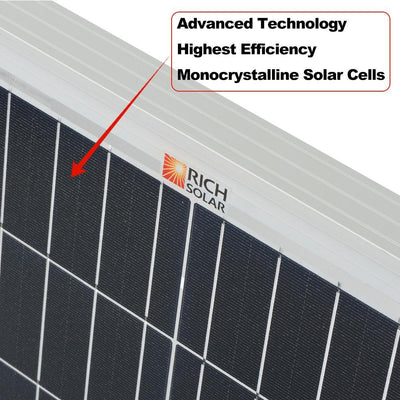

- Mono PERC Technology

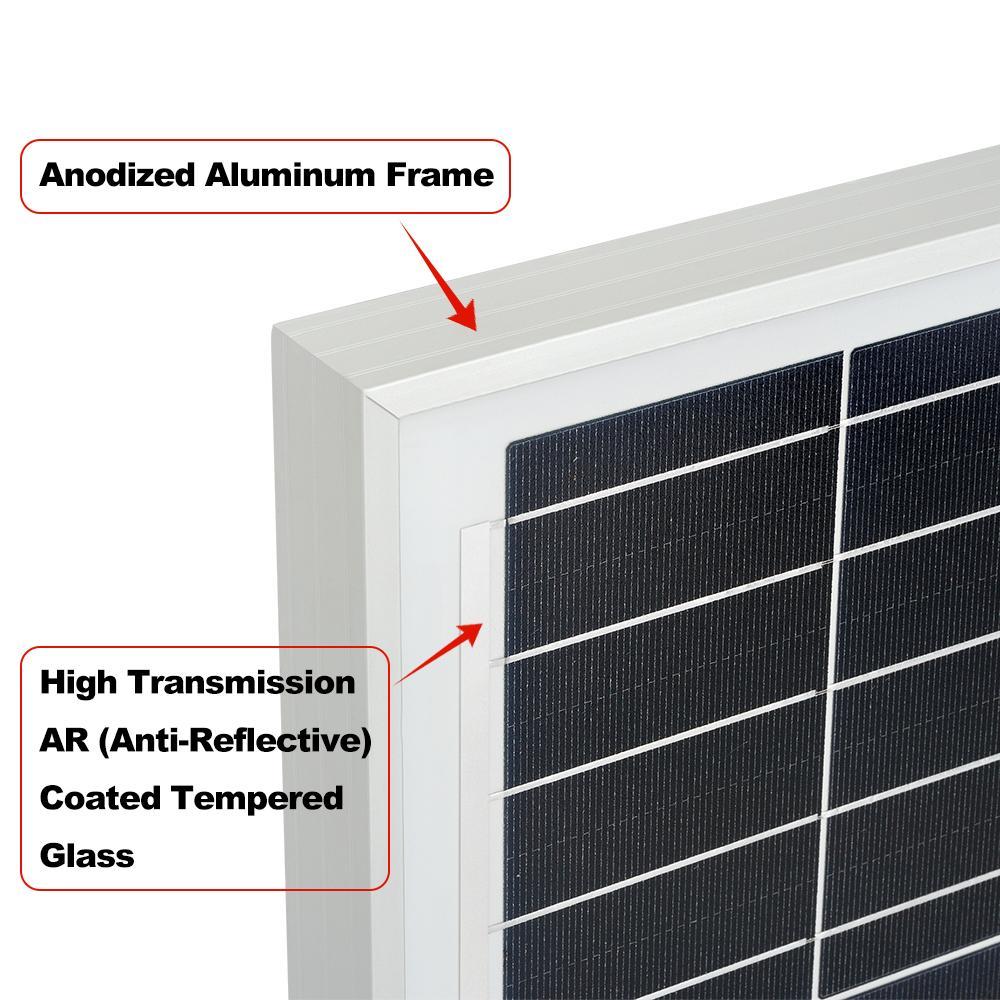

- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug and play junction box
- Industry standard quick connect cables work in series or in parallel
- Certified to withstand challenging environmental conditions
- Excellent low light performance on cloudy days, mornings and evenings
- Rich Solar 200 watt monocrystalline solar panel
- Panel leads (pair): 3 feet each

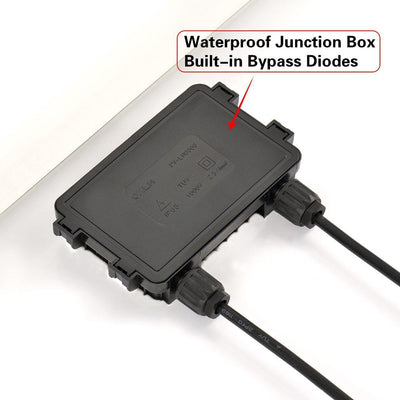

- IP65 rated waterproof junction box
- IP67 rated waterproof connectors
- Bypass diodes built-in the junction box

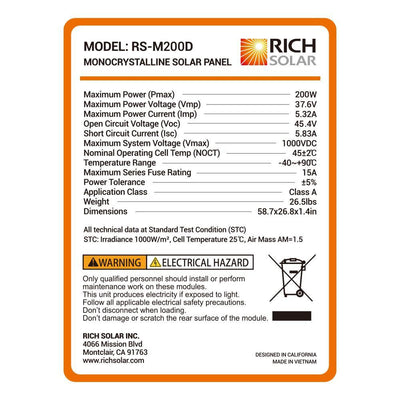

Specifications

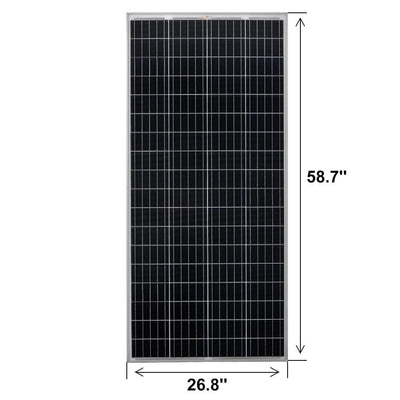

| Dimensions | 58.7 x 26.8 x 1.4 in |
| Maximum Power(Pmax) | 200W |
| Maximum Power Voltage(Vmp) | 37.6V |
| Maximum Power Current(Imp) | 5.36A |
| Open Circuit Voltage(Voc) | 45.4V |
| Short Circuit Current(Isc) | 5.83A |
| Maximum System Voltage(Vmax) | 1000VDC |
| Temperature Range | -40°C ~ 90°C |
| Max Series Fuse Rating | 15A |
| Weight | 26.5 lbs |
Package Contents
200 Watt 24 Volt Solar Panel
User Manual
Warranty
The manufacturer warranties this product for a 25 year limited power output.
