Rikon 10-326DVR 14" Deluxe Bandsaw 1.75HP Motor with Smart Motor DVR New
Share
Product Overview
 |
Brand new & manufacturer direct |
|
5 year manufacturer's warranty |
|
Authorized Rikon dealer |
|
Free shipping |
OVERVIEW

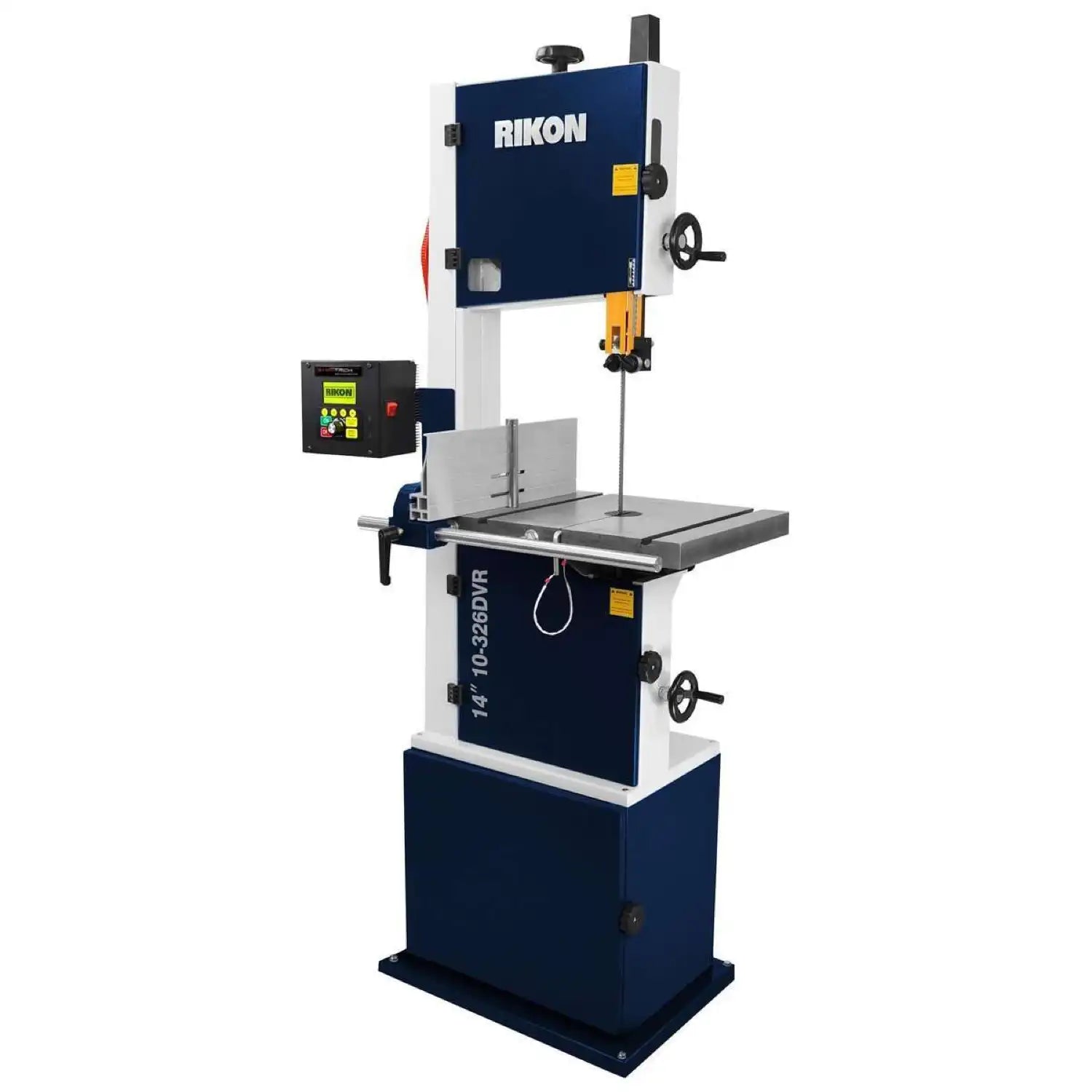

Rikon 14” Deluxe Bandsaw with Smart Motor DVR Control, model
10-326DVR has the newest technology available in today’s market. With all the

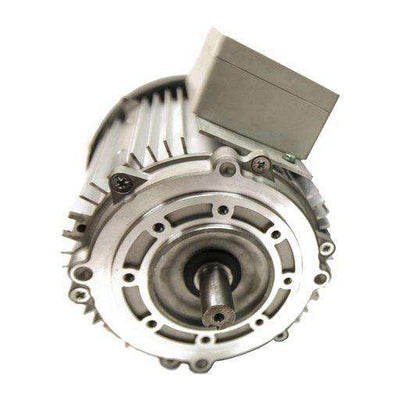

features of the 10-326, it now has Striatech’s smart switched reluctance motor.
Unlike conventional bandsaw motors, the Striatech motor has infinite variable
speeds and offers continuous torque. Allowing for a consistent and beautiful
finish cut on the workpiece and a much easier user experience. With improved
energy efficiency and quiet, vibrations-free operation are some added bonuses
when upgrading your bandsaw with this new high-tech and innovative motor

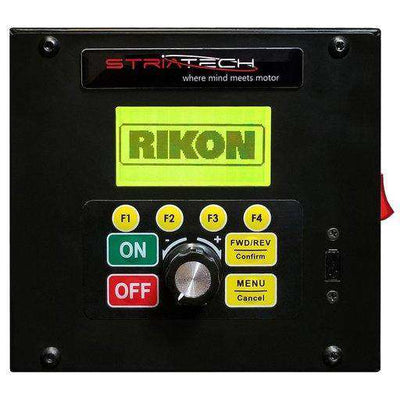

control system. With an easy-to-read screen and DVR controller, this technology
adds much-needed features to the bandsaw.
FEATURES:
- Blade Speed – Variable from 100 RPM (45 SFPM) to 2,375 RPM (4400 SFPM)
- Continuous Torque – 1.75 HP will never slow down producing a beautiful/smooth cut
- Safer Operation – Fast electronic braking and load spike detection

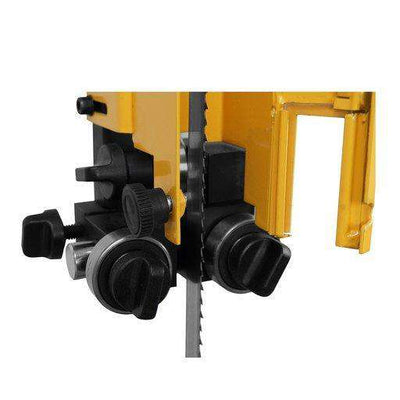

- Patent Pending – Spring Loaded Tool-less Guide System
- Effortless Cutting – Fifteen suggested speed settings for wood/metal/plastic plus one custom range
SPECS:
Motor: 1.75HP Single Phase·
Amps: 15
Volts: 110V or 220V
Blade Speed: 100 RPM/45 SFPM to 2375 RPM/4400 SFPM
Cutting Height: 13”
Blade: 111” – Accepts 3/16” to 3/4"
Table Size: 21.5 x 15.7

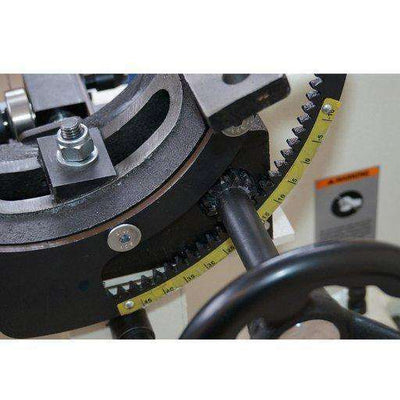

Left Tilt: -7 degree
Right Tilt: 45 degree
Miter Gauge T-Slot: .75 x .375
Height Floor to Table: 41.5”

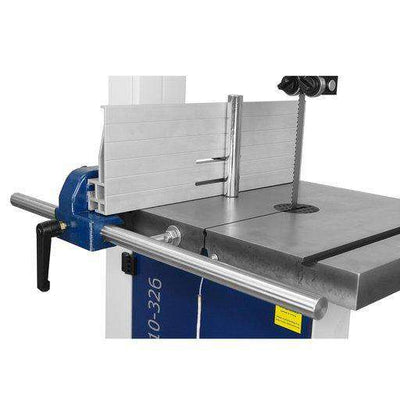

Fence Size: 18.75” x 1.75” x 6”
Height: 76”
Width: 33.75”
Depth: 25 “

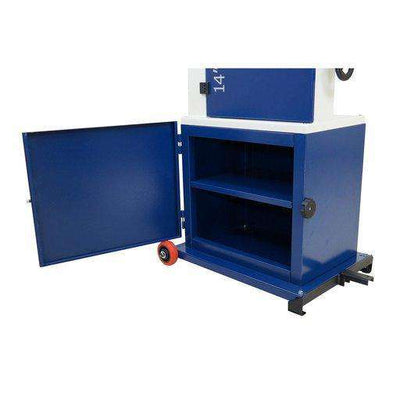

Base: 24” X 17.625”
Net Weight: 285lbx
Specifications for DVR Smart Motor DVR Controller
SFPM = Speeds in Feet per Minute Specifications·
Motor: 1.75hp Single Phase
Amps: 15
Electrical 110V or 220V
Blade Speed: 100 RPM (45 SFPM) to 2375 RPM (4400 SFPM)
Preset Functions
4 Wood Presets
Resaw: 4,000 SFPM (2,160 RPM) /Variable from
2,000 SFPM to 4,400 SFPM (1080 to 2,375 RPM)
Bowl Blank: 3,000 SFPM (1,620 RPM)/ Variable
from 1,500 SFPM to 3,600 SFPM (810 to 1,945 RPM)
Rip/Cross Cut: 2,500 SFPM (1,350 RPM) /Variable
from 1,250 SFPM to 3,600 SFPM (675 to 1,620 RPM)
Scroll/Pattern: 2,000 SFPM (1,080 RPM) /Variable
from 1,000 SFPM to 2,400 SFPM (540 to 1,295 RPM)
4 Metal Presets
Must change belt to slow pulley range
Carbon Steel: 250 SFPM (135 RPM) /Variable from
175 SFPM to 350 SFPM (195 to 395 RPM)
Stainless Steel: 100 SFPM (110 RPM) /Variable
from 70 SFPM to 150 SFPM (100* to 170 RPM)
Titanium: 75 SFPM (100* RPM) / Variable from 65
SFPM to 85 SFPM (100* to 100* RPM)
Cast Iron: 160 SFPM (180 RPM)/Variable from 95
SFPM to 225 SFPM (105 to 255 RPM)
4 Non-Ferrous Metal Presets
Aluminum: 400 SFPM (445 RPM) / Variable from 300
SFPM to 440 SFPM (340 to 500 RPM)
Brass: 250 SFPM (280 RPM)/Variable from 150 SFPM
to 315 SFPM (170 to 355 RPM)
Bronze: 220 SFPM (250 RPM)/Variable from 80 SFPM
to 260 SFPM (100 to 295 RPM)
Copper: 200 SFPM (225 RPM) / Variable from 160
SFPM to 220 SFPM (180 to 250 RPM)
3 Plastic Preset Functions
Acrylic: 2500 SFPM (2,845 RPM)/Variable from
1,500 SFPM to 4,000 SFPM (1,705 to 3,500 RPM)
Nylon: 1500 SFPM (1,705 RPM)/Variable from 900
SFPM to 2,100 SFPM (1,025 to 2,390 RPM)
HDPE: 2000 SFPM (2,275 RPM)/Variable from 1,800
SFPM to 3,000 SFPM (2,050 to 3,415 RPM)
1 Custom Preset Function
Custom: 2,000 SFPM (2,275 RPM)/Variable from 45
SFPM allowed up to 4000 SFPM (100 to 3,500 RPM)
Bandsaw Warranty: 5 years - Smart DVR Motor
Warranty: 2 years
