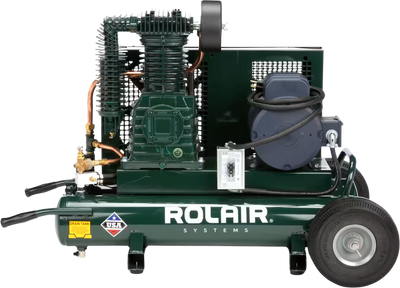

Rolair 5230K30CS Air Compressor Wheelbarrow Electric 5 HP 9 gal. Two-Stage 230V 1-Phase with Regulator and Gauge Set New
Manufacturer: Rolair
SKU: 5230K30CS-0001
QTY
(888) 999-1522
$ 2,152.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est.) 4-6 Weeks
Manufacturer Direct Built to Order
Extended Warranty
Factory Warranty
- This item comes with a 1 year from the date of purchase or 18 months from the date it was built.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year from the date of purchase or 18 months from the date it was built.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Rolair 5230K30CS Air Compressor Wheelbarrow Electric 5 HP 9 gal. Two-Stage 230V 1-Phase with Regulator and Gauge Set New
Product Overview
The Rolair Model 5230K30CS - the biggest electric portable available - delivers 18.8 CFM @ 90 PSI. The two-stage pump allows for cooler and more efficient operation. Because of the high CFM output and for the protection of the motor, this unit is built for constant-run operation.
Brand new
1 year warranty
Manufacturer direct shipping from WI
Authorized Rolair dealer
Features
- On/Off Switch
- Pressure Gauge 0-200 in 5 lb. Graduations
- Pilot Unloader Valve
- Accessory Support Clip
- Intake Filter with Silencer and Replaceable Element
- Multi-Finned Intercoolers
- Air-Cooled Aftercooler
- Totally Enclosed Steel Belt Guard
- Safety Relief Valve
- Constant Speed Operation
Specifications
| Unit Model | 5230K30CS |
| Installed Accessory | Regulator and Gauge Set (Part# 38RG) |
| Power Type | Electric |
| Horse Power | 5 HP |
| Voltage | 230V |
| Phase | Single |
| CFM Displaced | 23.1 CFM |
| CFM Delivered | 18.8 CFM @ 90 PSI |
| Pump/Motor RPM | 1740 RPM |
| Overload Protection | Yes (Manual Reset Standard) |
| Lubrication Type | Splash Lubrication |
| Pump Type | Two-Stage |
| Pump Oil Capacity | 47 oz. |
| Reed Valve System | Yes (Standard) |
| Tank Capacity | 9 gal. |
| Tank Configuration | Horizontal |
| Compressor Design | Wheelbarrow/Wheeled |
| Shipping Dimensions | 47 x 28 x 36 in. |
| Shipping Weight | 315 lbs. |
Package Contents
Rolair 5230K30CS Air Compressor with Regulator and Gauge Set
User Manual
Warranty
This item comes with a 1 year from the date of purchase or 18 months from the date it was built.
