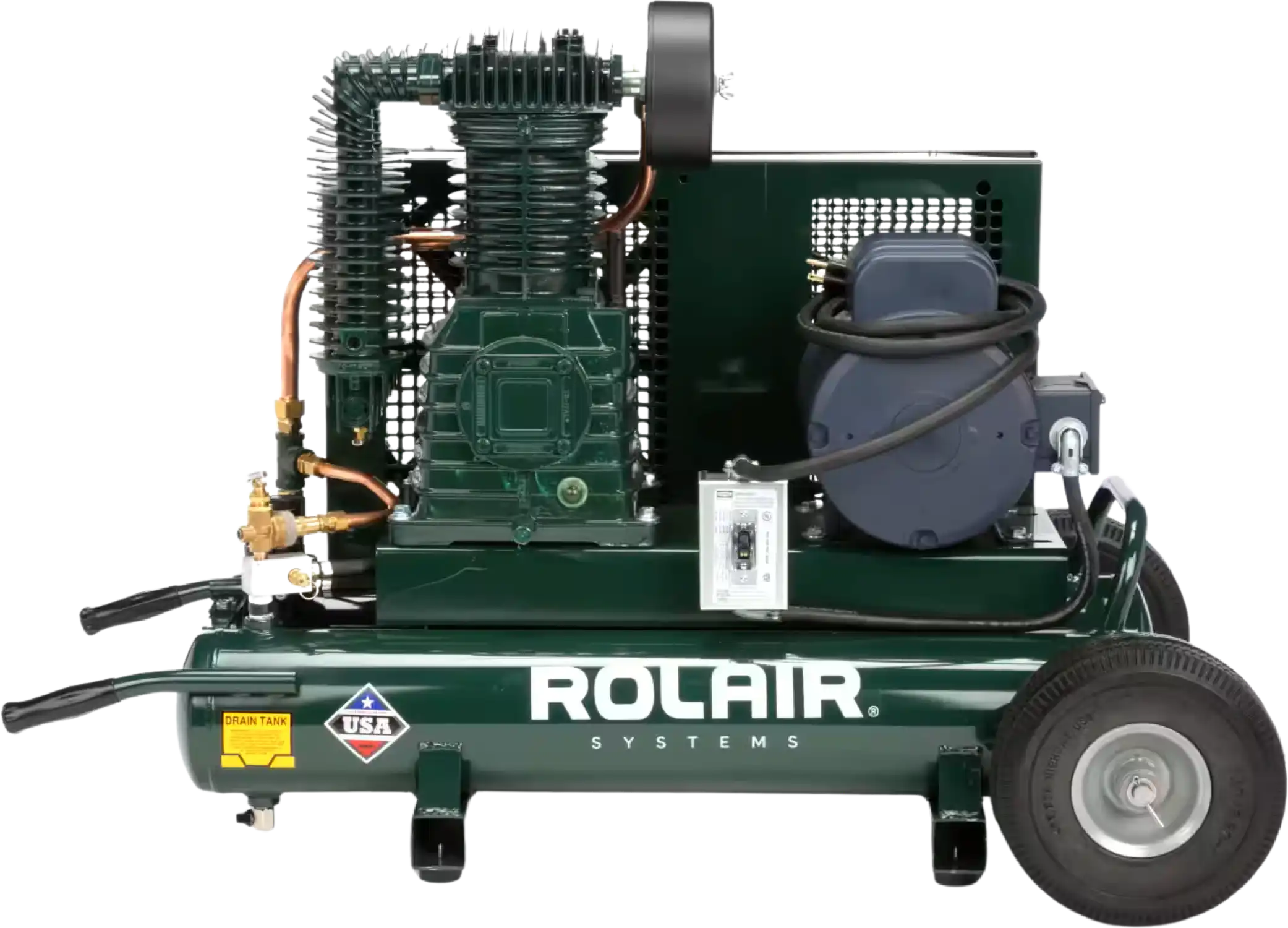

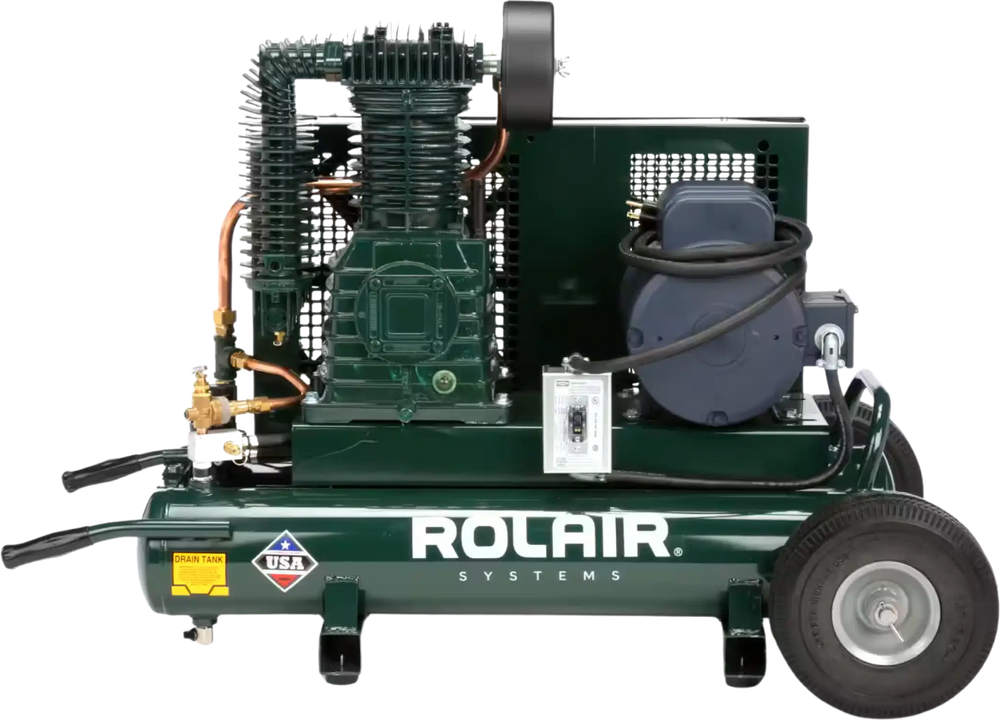

Rolair 5230K30CS Air Compressor Wheelbarrow Electric 5 HP 9 gal. Two-Stage 230V 1-Phase with Regulator & Gauge Set Manufacturer RFB
Manufacturer: Rolair
SKU: 5230K30CSR
QTY
(888) 999-1522
$ 1,889.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Rolair 5230K30CS Air Compressor Wheelbarrow Electric 5 HP 9 gal. Two-Stage 230V 1-Phase with Regulator & Gauge Set Manufacturer RFB
Product Overview
The Rolair Model 5230K30CS - the biggest electric portable available - delivers 18.8 CFM @ 90 PSI. The two-stage pump allows for cooler and more efficient operation. Because of the high CFM output and for the protection of the motor, this unit is built for constant-run operation.
*Limited Availability* Manufacturer Refurbished units. Most look brand new, some may show minor signs of use. They are items that are returned due to under sizing, shipping damage, or other minor issues. All refurbished units are repaired and tested to ensure proper operation. Ships from the manufacturer.
90 day warranty
Manufacturer direct shipping from WI
Authorized Rolair dealer
Features
- On/Off Switch
- Pressure Gauge 0-200 in 5 lb. Graduations
- Pilot Unloader Valve
- Accessory Support Clip
- Intake Filter with Silencer and Replaceable Element
- Multi-Finned Intercoolers
- Air-Cooled Aftercooler
- Totally Enclosed Steel Belt Guard
- Safety Relief Valve
- Constant Speed Operation
Specifications
| Unit Model | 5230K30CS |
| Installed Accessory | Regulator and Gauge Set (Part# 38RG) |
| Power Type | Electric |
| Horse Power | 5 HP |
| Voltage | 230V |
| Phase | Single |
| CFM Displaced | 23.1 CFM |
| CFM Delivered | 18.8 CFM @ 90 PSI |
| Pump/Motor RPM | 1740 RPM |
| Overload Protection | Yes (Manual Reset Standard) |
| Lubrication Type | Splash Lubrication |
| Pump Type | Two-Stage |
| Pump Oil Capacity | 47 oz. |
| Reed Valve System | Yes (Standard) |
| Tank Capacity | 9 gal. |
| Tank Configuration | Horizontal |
| Compressor Design | Wheelbarrow/Wheeled |
| Shipping Dimensions | 47 x 28 x 36 in. |
| Shipping Weight | 315 lbs. |
Package Contents
Rolair 5230K30CS Air Compressor with Regulator and Gauge Set Manufacturer RFB
User Manual
Warranty
This item comes with a 90 day factory warranty.
