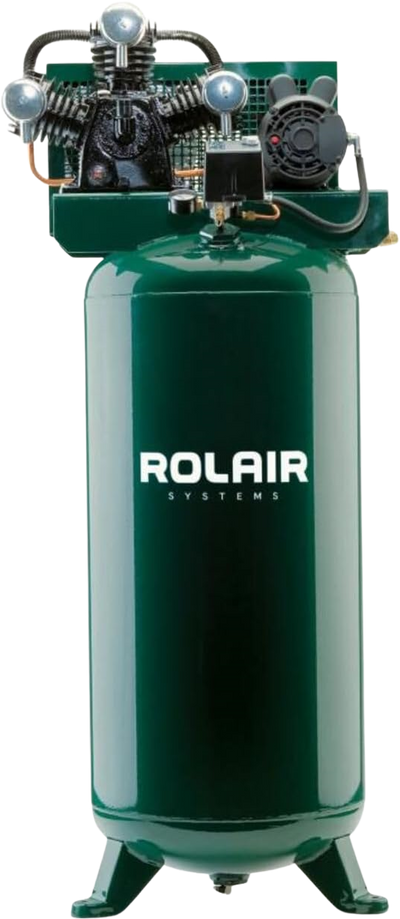

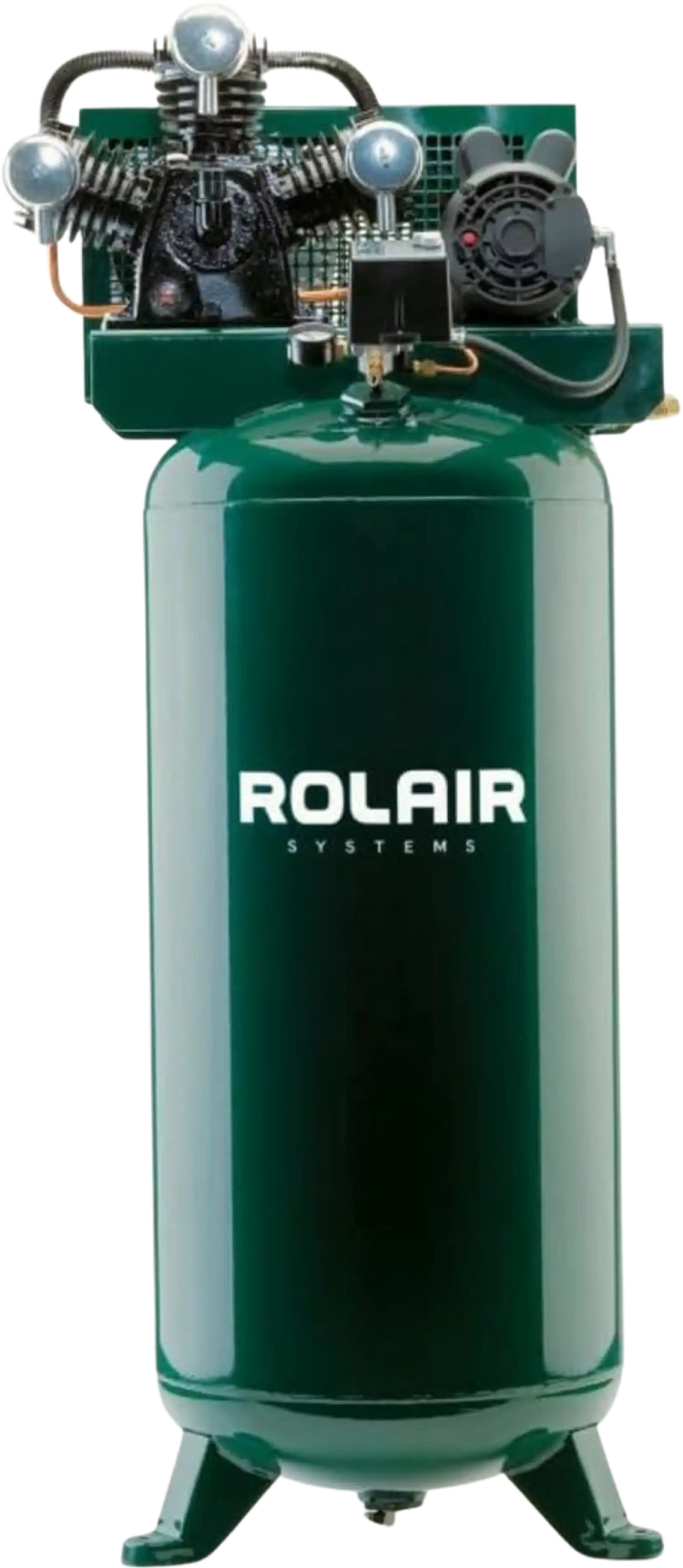

Rolair V5160PT03XB Air Compressor Electric 5 HP 60 gal. Single Stage 230V 1-Phase New
Product Overview
Outfit your professional shop with the powerful ROLAIR® 5 HP Single-Stage Compressor. Its 5 HP single-phase motor is 100% duty rated for greater productivity. The single-stage air compressor pushes out up to 16 CFM at 100 PSI. Its aluminum heads dissipate heat more efficiently. This Rolair air compressor's pressure gauge gives readings from 0-200 PSI in 5-pound increments for greater accuracy. Adjust the surface pressure for 110 and 135 PSI settings. The 60-gallon compressors steel belt guard is completely enclosed to protect both the user and the belt. It runs on 230V single phase, making it easier to hard wire in your shop. The Rolair 5 HP vertical air compressor's 60-gallon ASME tank has a solid platform to help reduce vibration.
Brand new
1 year warranty
Manufacturer direct shipping from WI
Authorized Rolair dealer
Features
- Pressure Switch - Start/Stop Operation,110-135 PSI Settings, On/Off Switch
- Automatic Unloading Device for Loadless Starts
- Heavy-Duty Brass Shut-Off Valve
- Pressure Gauge, 0-200 PSI in 5 lb. Graduations
- Safety Relief Valve - ASME Approved
- Multiple V-Belt Drive
- Intake Filter/Silencer with Replaceable Element
- Totally Enclosed Steel Belt Guard
Specifications
| Unit Model | V5160PT03XB |
| Power Type | Electric |
| Horse Power | 5 HP |
| Voltage | 230V |
| Phase | Single |
| Amp Draw | 20.5 |
| CFM Displaced | 21.1 CFM |
| CFM Delivered | 16 CFM @ 100 PSI |
| Motor RPM | 3450 RPM |
| Lubrication Type | Splash Lubrication |
| Pump Type | Single Stage |
| Pump Drive | Belt Drive |
| Pump Oil Capacity | 24 oz. |
| Aftercooler | No |
| Reed Valve System | Yes (Standard) |
| Tank Capacity | 60 gal. |
| Tank Outlet | 1/2 in. |
| Electronic Drain Valve | No |
| Tank Configuration | Vertical |
| Pressure Gauge | Yes |
| Certification | ASME |
| Product Dimensions | 24 x 20 x 70 in. |
| Shipping Weight | 298 lbs. |
Package Contents
Rolair V5160PT03XB Air Compressor
User Manual
Warranty
This item comes with a 1 year from the date of purchase or 18 months from the date it was built.
