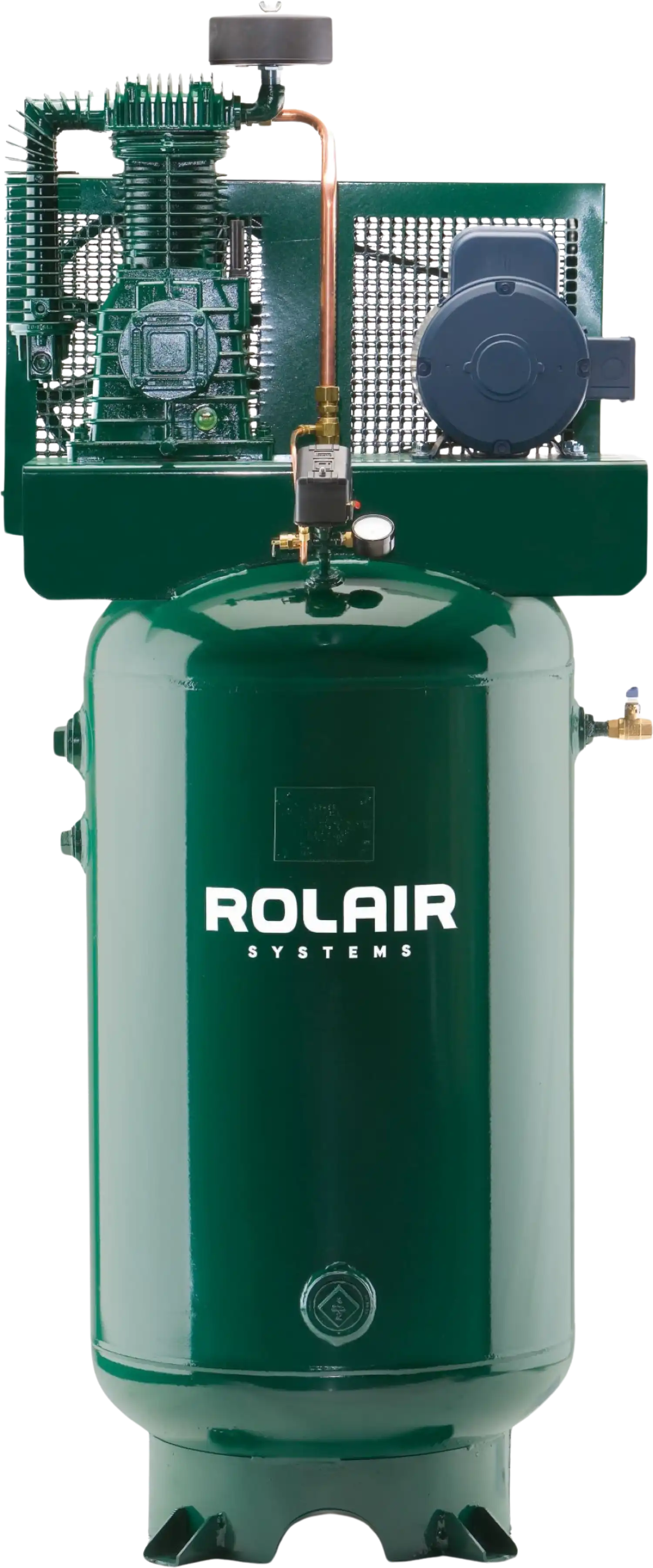

Rolair V5180K30 Air Compressor Electric 5 HP 80 gal. Two-Stage 208V or 230V 1-Phase with Magnetic Starter New
Manufacturer: Rolair
SKU: V5180K30A-19
QTY
(888) 999-1522
$ 2,869.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships in (est.) 3-4 weeks
Manufacturer Direct Built to Order
Extended Warranty
Factory Warranty
- This item comes with a 1 year from the date of purchase or 18 months from the date it was built.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year from the date of purchase or 18 months from the date it was built.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Rolair V5180K30 Air Compressor Electric 5 HP 80 gal. Two-Stage 208V or 230V 1-Phase with Magnetic Starter New
Product Overview
The ROLAIR® 5-HP, 15.3 CFM @ 175 PSI, Vertical 80 Gallon Compressor is a stationary unit designed to power high-pressure pneumatic tools in the workshop. With an output of 15.3 cubic-feet-per-minute (CFM) at 175 pounds-per-square-inch (PSI), you can power sanders, grinders, nail guns and more. This stationary air compressor is driven by a 5-horsepower motor operates on 208 volt or 230 volt single phase power. Thanks to a thermal reset overload protection feature, the motor will automatically shut down to prevent damage from overheating. The air reserve tank for this Rolair compressor boasts a superior storage capacity of 80 gallons. The tank's vertical design is even ergonomically beneficial since it takes up less space. This 5-hp air compressor uses a double-cylinder, two-stage fuel pump that's designed to be highly fuel efficient. Being manufactured with steel and cast iron, this durable unit is built to last.
Brand new
1 year warranty
Manufacturer direct shipping from WI
Authorized Rolair dealer
Features
- Single Phase Models Available in 208 and 230 Volt
- Pressure Switch - Start/Stop Operation
- 145-175 PSI Settings
- On/Off Switch
- Automatic Unloading Device for Loadless Starts
- Heavy Duty Brass Shut-Off Valve
- Pressure Gauge, 0-300 PSI in 5 lb. Graduations
- Safety Relief Valve - ASME Approved
- Multiple V-Belt Drive
- Intake Filter/Silencer with Replaceable Element
- Totally Enclosed Steel Belt Guard
Specifications
| Unit Model | V5180K30A (208V) or V5180K30B (230V) |
| Installed Accessory | Magnetic Starter (Part# MAG51F208V or MAG51F230V depending on selected) |
| Power Type | Electric |
| Horse Power | 5 HP |
| Voltage | 208V or 230V (depending on selected) |
| Phase | Single |
| Amp Draw | 25.6 |
| CFM Displaced | 20.6 - 23.1 CFM |
| CFM Delivered | 15.3 - 180.0 CFM |
| Motor RPM | 1750 RPM |
| Lubrication Type | Splash Lubrication |
| Pump Type | Two-Stage |
| Pump Drive | Belt Drive |
| Pump Oil Capacity | 47 oz. |
| Aftercooler | No |
| Reed Valve System | Yes (Standard) |
| Tank Capacity | 80 gal. |
| Tank Outlet | 1/2 in. |
| Electronic Drain Valve | No |
| Tank Configuration | Vertical |
| Pressure Gauge | Yes |
| Certification | ASME |
| Product Dimensions | 30 x 24 x 77 in. |
| Shipping Weight | 495 lbs. |
Package Contents
Rolair V5180K30 Air Compressor with Magnetic Starter
User Manual
Warranty
This item comes with a 1 year from the date of purchase or 18 months from the date it was built.
