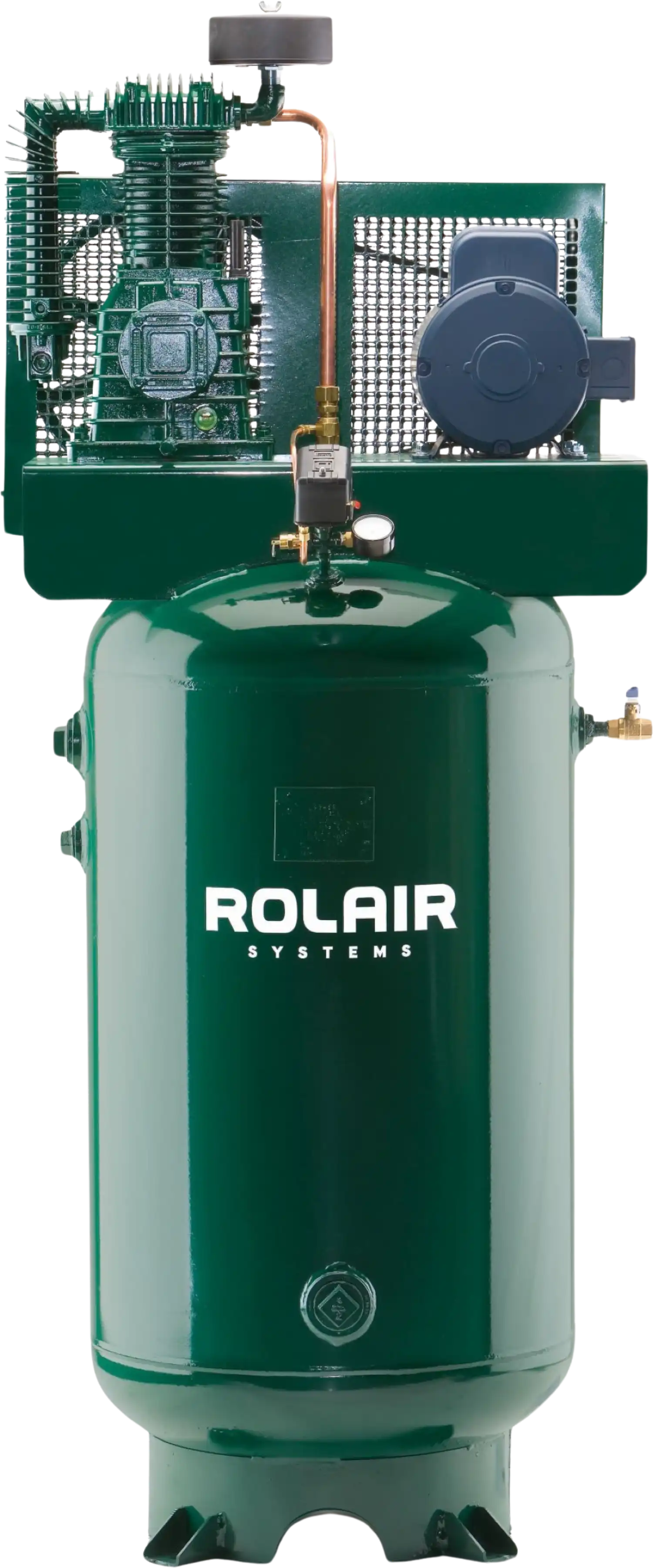

Rolair V5180K30 Air Compressor Electric 5 HP 80 gal. Two-Stage 230V 1-Phase with Magnetic Starter Manufacturer RFB
Manufacturer: Rolair
SKU: V5180K30B-19R
QTY
(888) 999-1522
$ 2,439.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
Only 1 left in stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
Factory Warranty
- This item comes with a 90 day factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 90 day factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Rolair V5180K30 Air Compressor Electric 5 HP 80 gal. Two-Stage 230V 1-Phase with Magnetic Starter Manufacturer RFB
Product Overview
The ROLAIR® 5-HP, 15.3 CFM @ 175 PSI, Vertical 80 Gallon Compressor is a stationary unit designed to power high-pressure pneumatic tools in the workshop. With an output of 15.3 cubic-feet-per-minute (CFM) at 175 pounds-per-square-inch (PSI), you can power sanders, grinders, nail guns and more. This stationary air compressor is driven by a 5-horsepower motor operates on 230 volt single phase power. Thanks to a thermal reset overload protection feature, the motor will automatically shut down to prevent damage from overheating. The air reserve tank for this Rolair compressor boasts a superior storage capacity of 80 gallons. The tank's vertical design is even ergonomically beneficial since it takes up less space. This 5-hp air compressor uses a double-cylinder, two-stage fuel pump that's designed to be highly fuel efficient. Being manufactured with steel and cast iron, this durable unit is built to last.
*Limited Availability* Manufacturer Refurbished units. Most look brand new, some may show minor signs of use. They are items that are returned due to under sizing, shipping damage, or other minor issues. All refurbished units are repaired and tested to ensure proper operation. Ships from the manufacturer.
90 day warranty
Manufacturer direct shipping from WI
Authorized Rolair dealer
Features
- Single Phase Model 230 Volt
- Pressure Switch - Start/Stop Operation
- 145-175 PSI Settings
- On/Off Switch
- Automatic Unloading Device for Loadless Starts
- Heavy Duty Brass Shut-Off Valve
- Pressure Gauge, 0-300 PSI in 5 lb. Graduations
- Safety Relief Valve - ASME Approved
- Multiple V-Belt Drive
- Intake Filter/Silencer with Replaceable Element
- Totally Enclosed Steel Belt Guard
Specifications
| Unit Model | V5180K30B |
| Installed Accessory | Magnetic Starter (Part# MAG51F230V) |
| Power Type | Electric |
| Horse Power | 5 HP |
| Voltage | 230V |
| Phase | Single |
| Amp Draw | 25.6 |
| CFM Displaced | 20.6 - 23.1 CFM |
| CFM Delivered | 15.3 - 180.0 CFM |
| Motor RPM | 1750 RPM |
| Lubrication Type | Splash Lubrication |
| Pump Type | Two-Stage |
| Pump Drive | Belt Drive |
| Pump Oil Capacity | 47 oz. |
| Aftercooler | No |
| Reed Valve System | Yes (Standard) |
| Tank Capacity | 80 gal. |
| Tank Outlet | 1/2 in. |
| Electronic Drain Valve | No |
| Tank Configuration | Vertical |
| Pressure Gauge | Yes |
| Certification | ASME |
| Product Dimensions | 30 x 24 x 77 in. |
| Shipping Weight | 495 lbs. |
Package Contents
Rolair V5180K30 Air Compressor with Magnetic Starter Manufacturer RFB
User Manual
Warranty
This item comes with a 90 day factory warranty.
