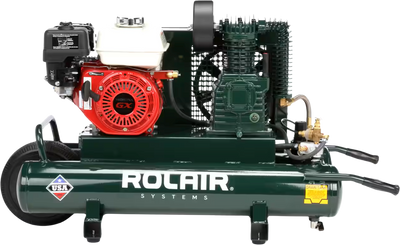

Rolair 4090HK17 Air Compressor Wheelbarrow Gas 9 gal. 5.5 HP Honda GX160 Engine Single Stage Pump Manufacturer RFB

Manufacturer: Rolair

SKU: 4090HK17R

4090HK17-0001-01-01
Rolair 4090HK17 Air Compressor Wheelbarrow Gas 9 gal. 5.5 HP Honda GX160 Engine Single Stage Pump Manufacturer RFB
Rolair 4090HK17 Air Compressor Wheelbarrow Gas 9 gal. 5.5 HP Honda GX160 Engine Single Stage Pump Manufacturer RFB
Rolair 4090HK17 Air Compressor Wheelbarrow Gas 9 gal. 5.5 HP Honda GX160 Engine Single Stage Pump Manufacturer RFB
Rolair 4090HK17 Air Compressor Wheelbarrow Gas 9 gal. 5.5 HP Honda GX160 Engine Single Stage Pump Manufacturer RFB
4090HK17-0001-01-01
Rolair 4090HK17 Air Compressor Wheelbarrow Gas 9 gal. 5.5 HP Honda GX160 Engine Single Stage Pump Manufacturer RFB
Rolair 4090HK17 Air Compressor Wheelbarrow Gas 9 gal. 5.5 HP Honda GX160 Engine Single Stage Pump Manufacturer RFB
Rolair 4090HK17 Air Compressor Wheelbarrow Gas 9 gal. 5.5 HP Honda GX160 Engine Single Stage Pump Manufacturer RFB
Rolair 4090HK17 Air Compressor Wheelbarrow Gas 9 gal. 5.5 HP Honda GX160 Engine Single Stage Pump Manufacturer RFB

QTY

(888) 999-1522

$ 1,209.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Rolair 4090HK17 Air Compressor Wheelbarrow Gas 9 gal. 5.5 HP Honda GX160 Engine Single Stage Pump Manufacturer RFB

Rolair 4090HK17 Air Compressor Wheelbarrow Gas 9 gal. 5.5 HP Honda GX160 Engine Single Stage Pump Manufacturer RFB

Product Overview

The Rolair 4090HK17 gas-powered air compressor has long been the top choice of framing and roofing contractors. In this class, the 4090HK17 stands out because of its high CFM output, portability and rugged build. Delivering 9.3 CFM @ 90 PSI this unit incorporates the popular 163 cc (GX160) Honda engine with automatic idle-down, for increased fuel efficiency, and an atmospheric unloading system to prevent oil consumption.



*Limited Availability* Manufacturer Refurbished units. Most look brand new, some may show minor signs of use. They are items that are returned due to under sizing, shipping damage, or other minor issues. All refurbished units are repaired and tested to ensure proper operation. Ships from the manufacturer.

vendor logo
divider
authorized dealer
checkmark

90 day warranty

checkmark

Manufacturer direct shipping from WI

checkmark

Authorized Rolair dealer

Features

  • Pressure Gauge 0-200 PSI in 5 lb. Graduations
  • Automatic Pilot Valve Operation
  • 110-135 Operating Pressure Range
  • Industrial Flexible Discharge Hose
  • Automatic Idle Control for Fuel Economy and Long Service Life
  • Intake Filter with Silencer and Replaceable Element
  • Schmidt Belt Tightening Device
  • Air-Cooled Aftercooler
  • Totally Enclosed Steel Belt Guard
  • Dual Safety Relief Valves

Specifications

Unit Model 4090HK17
Power Type Gas
Engine Honda GX160
Horse Power 5.5
Auto Idle Yes
Starting System Recoil
Engine Low Oil Shut-Off Yes
CFM Displaced 13.1
CFM Delivered 9.3 CFM @ 90 PSI
RPM 3000
Lubrication Type Splash Lubrication
Pump Material Aluminum w/ Cast Iron Sleeve
Max. PSI 135
Pump Type Single Stage
Pump Drive Belt Drive
Oil Type Oil Lubricated
Pump Oil Capacity 34 oz.
Pump Low Oil Shut-Off No
Reed Valve System Yes (Standard)
Tank Capacity 9 Gallons
Tank Outlet 1/4 in.
Electronic Drain Valve No
Tank Orientation Horizontal
Pressure Gauge Yes
CARB Compliant Yes
Product Dimensions 46 x 19 x 28 in.
Shipping Dimensions 47 x 22 x 36 in.
Shipping Weight 185 lbs.

Package Contents

Rolair 4090HK17 Air Compressor

User Manual

Warranty
