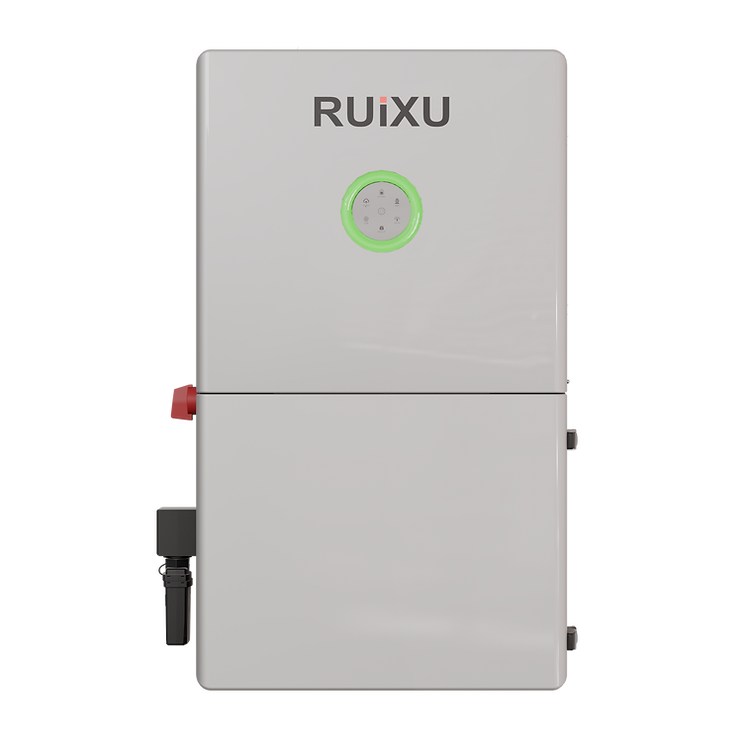

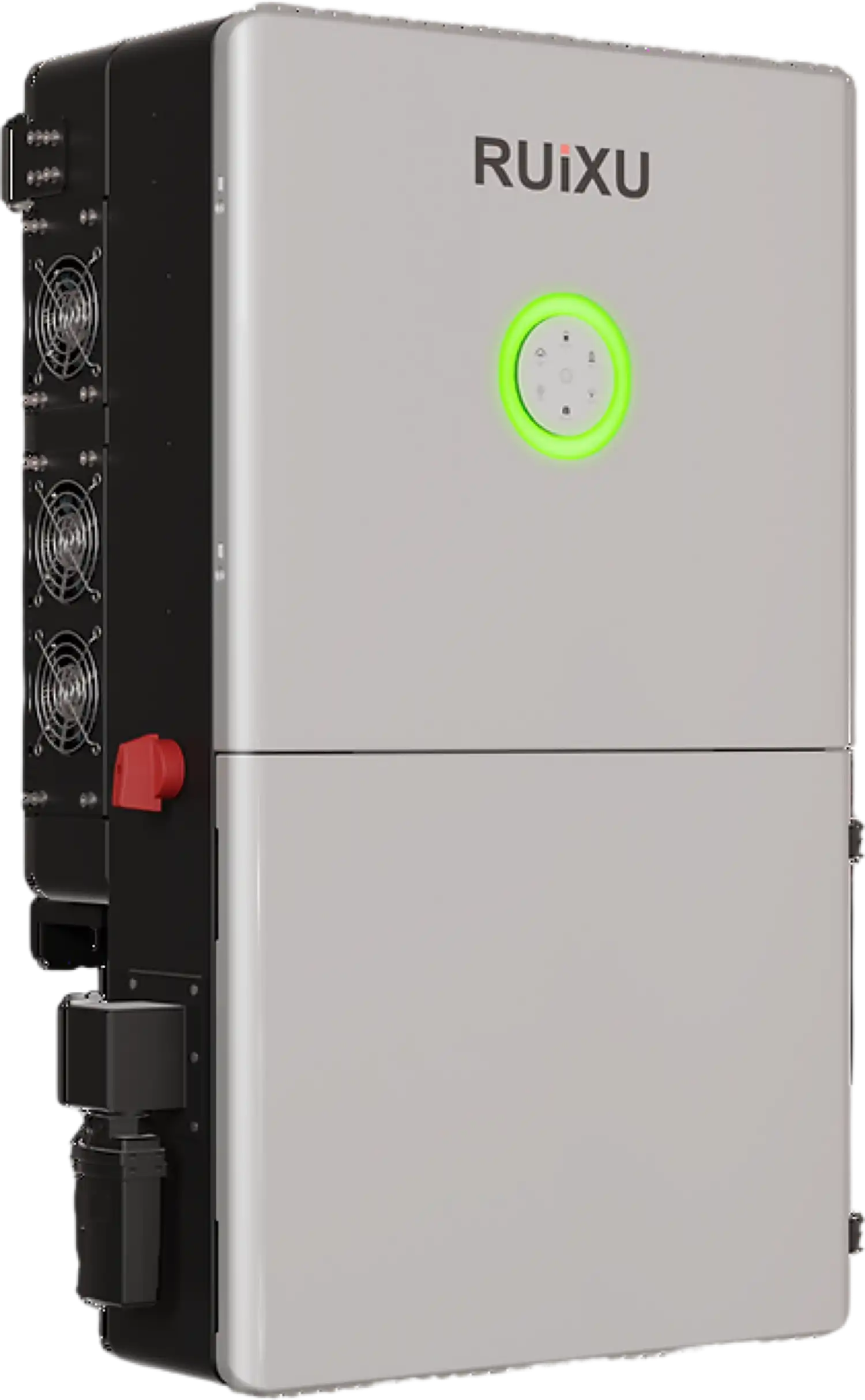

RUiXU RX-12K Split Phase Hybrid Inverter 17.1 kW PV Input New
Product Overview
The RUiXU RX-12K is a high-performance, all-in-one hybrid inverter engineered for U.S. split-phase grid. It delivers up to 11.4kW of continuous AC power, making it ideal for residential and light commercial applications. With its built-in 200A transfer relay, the RX-12K offers seamless whole-home backup power. Compatible with both lithium and lead-acid batteries, it provides a flexible choice for energy management.
Brand new
10 year warranty
Manufacturer direct shipping from CA
Authorized RUiXU dealer
Features
- AC Coupling Compatibility: Quickly retrofit existing solar systems (on-grid & off-grid)
- All-in-One Hybrid Inverter: Capable of running entirely off the grid, using grid assist, or selling power back to the grid.
- High Frequency, Split-Phase Output: Allows for 120/240V single unit or 120/208 multi-unit setups.
- Generator Compatible: Dedicated ports for grid and diesel generators enable diversified backup options.
- High Output Power: Delivers up to 11.4 kW continuous output, with built-in 200A transfer relay for whole-home backup power.
- Rapid Shutdown Function: Ensures safety and meets regulatory standards with fast system deactivation.
- IP65 Protection: Weather-resistant enclosure for indoor or outdoor installation.
- Multiple Battery Compatibility: Works with both lithium and lead-acid batteries.
- MPPT: Up to 4 MPPTs
- UPS Functionality: < 20ms transfer time keeps essential loads powered without interruption.
Specifications
| Model | RX-12K |
| Max PV Array Power | 17.1kW |
| Max DC Voltage | 600V |
| MPPT Voltage Range | 90-550 |
| Nominal DC Voltage | 380V |
| Start Voltage | 100V |
| Max Input Current | 16A |
| No. of Strings per MPPT | 1/1/1/1 |
| No. of MPPT | 4 |
| Battery Type | Lead-Acid or LiFePO4 |
| Voltage Range | 40-60 |
| Max Charging/Discharging Current | 240A |
| Rated AC Power @208Vac | 9880 |
| Rated AC Power @240Vac | 11400 |
| Rated AC Current @208Vac | 47.5A |
| Max. AC Current @240Vac | 52.3A |
| THD | <3% |
| Over Voltage Protection | Integrated |
| AC Surge Protection | Type II |
| DC Surge Protection | Type II |
| Over Heat Protection | Integrated |
| Isolation Type | HF |
| Standby Power Consumption | < 10W |
| Ingress Protection | IP65 |
| Mounting | Wall Mounting |
| Dimensions | 30.7 x 18.5 x 10.2 in. |
| Weight | 110 lbs |
Package Contents
RX-12K Split Phase Hybrid Inverter
200CM CAT6 Communication Cable
Wi-Fi Dongle
User Manual
Warranty
This item comes with a 10 year warranty.
