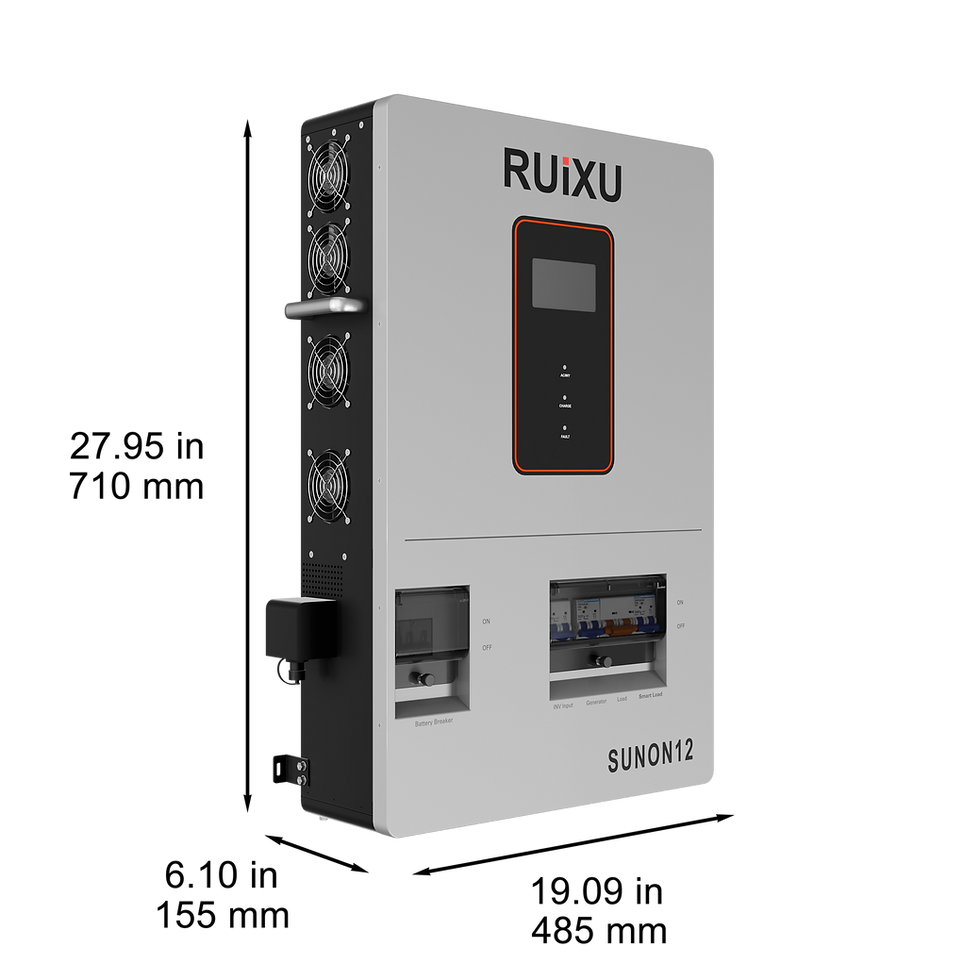

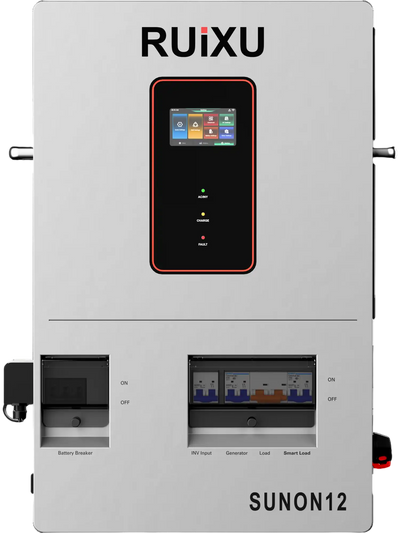

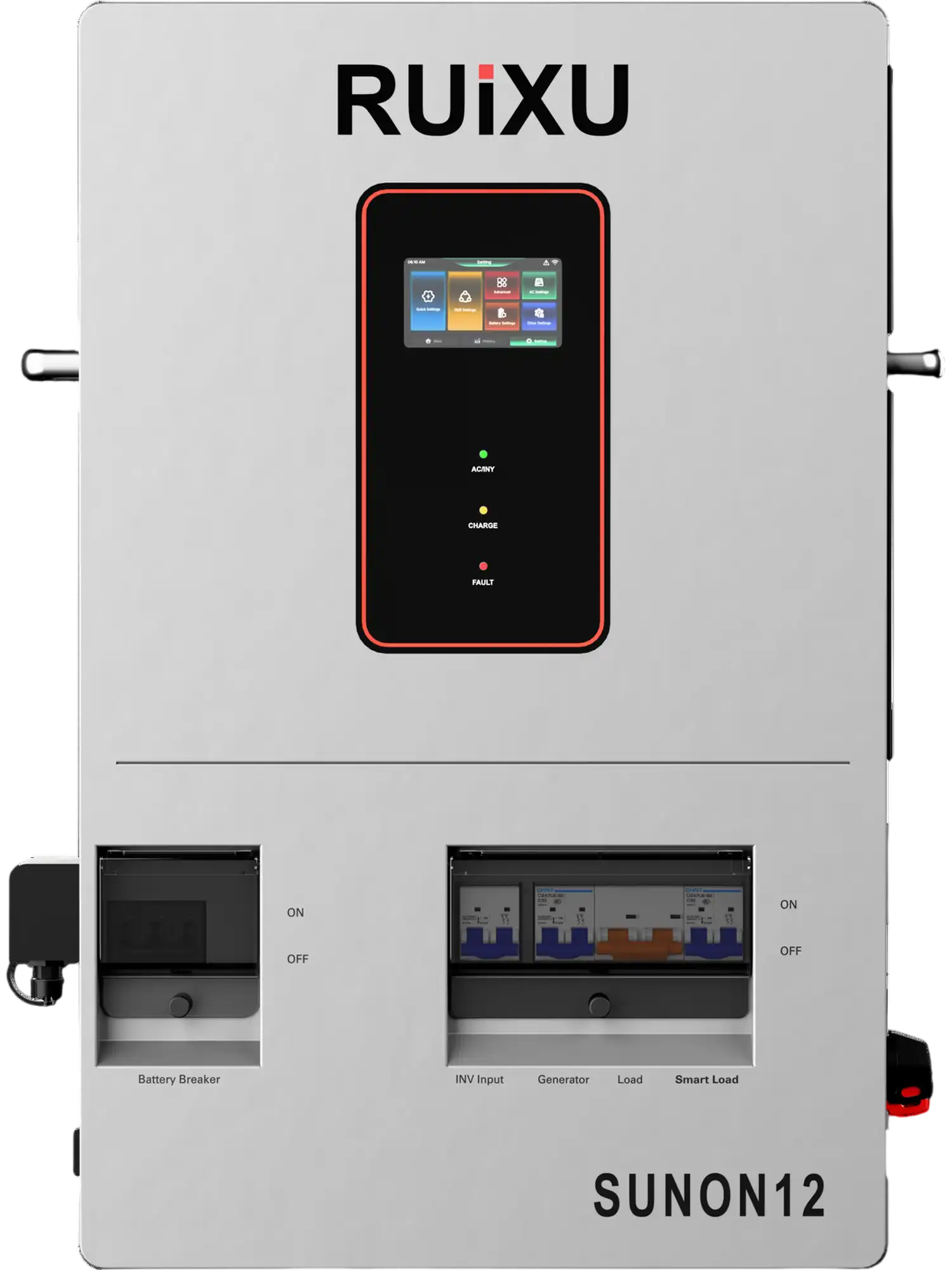

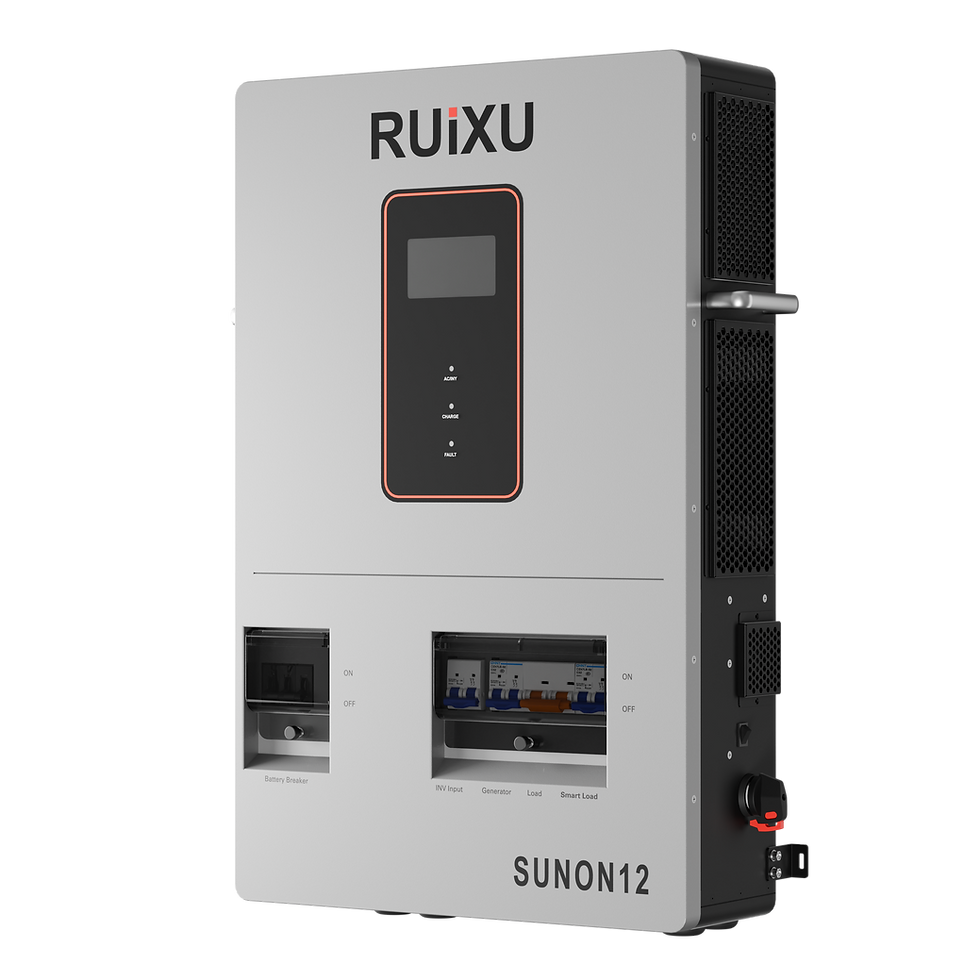

RUiXU SUNON12 Off-Grid Inverter 12kW Single/Split-Phase New
Product Overview
The RUiXU SUNON12 is a single/split-phase off-grid inverter designed for 48V battery systems in residential and commercial solar energy setups. It supports up to 24kW PV input, 12kW rated output, and hybrid charging from both solar and grid sources. Dual MPPT tracking, timed charge and discharge control, and parallel capability for up to 6 units help maximize flexibility and efficiency. Built-in Wi-Fi support and smart load management make system monitoring and control more convenient.
Brand new
5 year warranty
Manufacturer direct shipping from CA
Authorized RUiXU dealer
Features
- Powerful Hybrid Charging: Supports charging up to 150A, combining solar and grid hybrid charging
- Intelligent Time-Sharing: Allows for timed charging and discharging, maximizing energy efficiency.
- Stackable Design: Stack up to 6 units for a total output of 72kW
- Dual MPPT Technology: Dual MPPT design ensures optimal solar energy utilization, 99% MPPT efficiency.
- Smart Load Output: 63A capacity, Adaptive control via voltage / SOC, and PV input
- Generator Compatibility: Dedicated generator input, Selectable 120V or 240V operation
- Bypass Output: Up to 125A capacity Seamless switching via EMS
- Rapid Shutdown: Quickly de-energizes solar PV systems to protect first responders
- WiFi & App Integration: Connects via WiFi to an app for easy access and monitoring of information.
Specifications
| Model | SUNON12 |
| Rated Output Power | 12,000W |
| Max. Output Power | 18,000VA |
| Rated Output Voltage | 120/240 Vac (single-phase/split-phase) |
| Load Capacity of Motors | 6 HP |
| Rated Frequency | 50/60Hz |
| Output Wave | Pure sine wave |
| Bypass Overload Current | 125A |
| Switching Time | 10ms |
| Smart Load Overload Current | 63A |
| Battery Type | Lithium-ion battery/lead-acid battery/user-defined battery |
| Rated Battery Voltage | 48V |
| Battery Voltage Range | 40-60Vdc |
| Max. Solar Charging Current | 250A |
| Max. Grid/Generator Charging Current | 160A |
| Max. Mix Charge Current | 250A |
| Number Of MPPT | 2 |
| Max. PV Input Power | 12,000W+12,000W |
| Max. PV Input Current | 32/32A |
| Max. Open Circuit Voltage | 500Vdc |
| MPPT Voltage Range | 90-450Vdc |
| Generator Rated Input Voltage | 120 L1/N L2/N 240Vac |
| Generator Input Phase Voltage Range | 85-140Vac |
| Generator Input Frequency Range | 50/60Hz |
| Generator Overload Current | 63A |
| Grid Rated Input Voltage | 120 L1/N L2/N 240Vac |
| Grid Input Phase Voltage Range | 85-140Vac |
| MPPT Tracking Efficiency | 99.9% |
| Max. Efficiency | 91% |
| Parallel Capacity | 1-6 units |
| Dimensions | 27.95 x 19.09 x 6.10 in |
| Weight | 84.88 lbs |
| Noise | <60dB |
| Cooling Method | Intelligent fan |
| Protection Degree | IP20 indoor only |
Package Contents
SUNON12 12kW Inverter
200CM CAT6 Communication cable connect with battery
Operation manual
Wifi dongle
Warranty
This item comes with a 5 year warranty.
