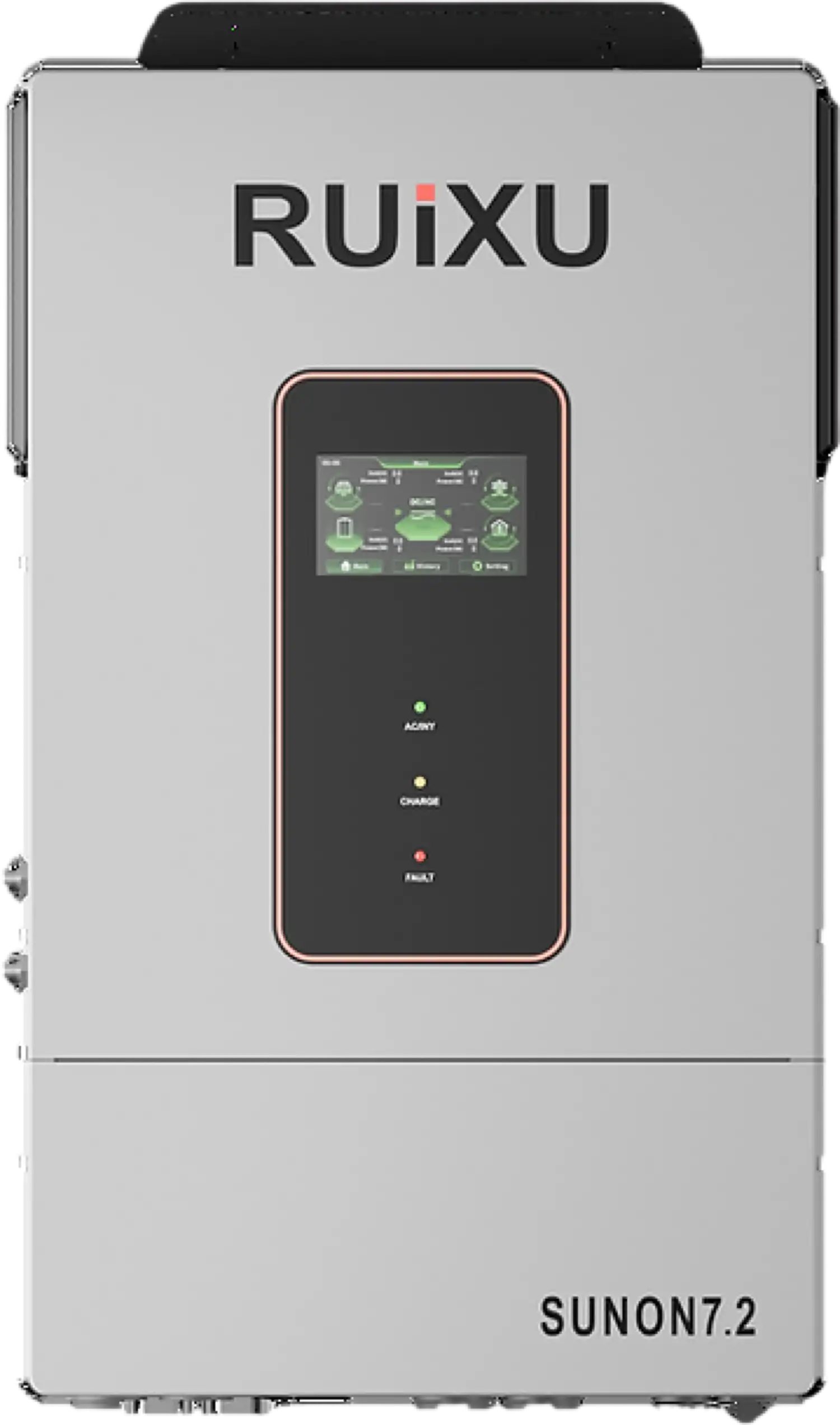

RUiXU SUNON7.2 Off-Grid Inverter Single/Split Phase 7.2 kW New
Product Overview
The RUiXU SUNON7.2 Single/Split-Phase Off-Grid Inverter is a powerful and scalable energy solution designed for residential and light commercial solar applications. Compatible with 48V battery systems, this inverter features a hybrid charging mode, allowing for charging from both the grid and solar sources. Supporting parallel connections for up to six units for a total capacity of 43.2kW. Efficiently harness and manage solar energy for maximum savings and performance with the SUNON7.2.
Brand new
3 year warranty
Manufacturer direct shipping from CA
Authorized RUiXU dealer
Features
- Powerful Hybrid Charging: Supports charging up to 150A, combining solar and grid hybrid charging.
- Intelligent Time-Sharing: Allows for timed charging and discharging, maximizing energy efficiency.
- Stackable Design: Stack up to 6 units for a total output of 43.2kW 120V/240V Output. Provides 120V and 240V to meet your needs.
- Dual MPPT Technology: Dual MPPT design ensures optimal solar energy utilization, 99% MPPT efficiency.
- Rapid Shutdown: Quickly de-energizes solar PV systems to protect first responders.
- WiFi & App Integration: Connects via Wi-Fi to an app for easy access and monitoring of information.
Specifications
| Model | SUNON7.2 |
| Rated Output Power | 7,200W |
| Max Output Power | 10,800VA |
| Rated Output Voltage | 120/240V (single-phase/split-phase) |
| Rated Frequency | 50/60 Hz |
| Output Wave | Pure Sine Wave |
| Switching Time | 10ms |
| Battery Type | Lithium-ion or Lead-Acid |
| Rated Battery Voltage | 48V |
| Voltage Range | 40-60Vdc |
| Max Solar Charging Current | 150A |
| Max Grid/Generator Charging Current | 120A |
| Max Mix Charge Current | 150A |
| No. of MPPT | 2 |
| Max Solar Input Power | 4500W + 4500W |
| MPPT Voltage Range | 90-450Vdc |
| MPPT Tracking Efficiency | 99% |
| Parallel Capacity | 1-6 units |
| Noise | <60dB |
| Protection | IP20, Indoor Only |
| Dimensions | 16.1 x 5 x 22.8 in. |
| Weight | 42.77 lbs |
Package Contents
SUNON7.2 7.2kW Inverter
200CM CAT6 Communication Cable
Wi-Fi Dongle
User Manual
Warranty
This item comes with a 3 year warranty.
