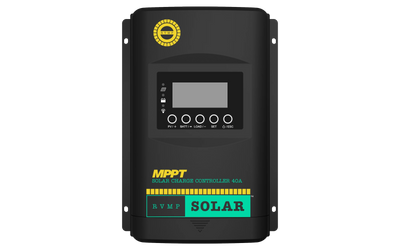

RVMP Solar Charge 40 Amp MPPT Controller New
Manufacturer: RVMP
SKU: RVMP-220450
QTY
(888) 999-1522
$ 155.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
RVMP Solar Charge 40 Amp MPPT Controller New
Product Overview
The RVMP Solar 40 Amp MPPT Solar Charge Controller adopts the advanced MPPT control algorithm, it can minimize the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions. It can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method. Limiting the charging power & current and reducing charging power functions ensure the system stable with over PV modules in high temperature environment. The RVMP Solar 40 Amp MPPT Solar Charge Controller owns self-adaptive three-stage charging mode based on digital control circuit, which can effectively prolong the lifespan of battery and significantly improve the system performance. It also has comprehensive electronic protection for overcharge, over-discharge, PV & battery reverse polarity etc. to ensure the solar system more reliable and more durable. This controller can be widely used for RV, household system, field monitoring and many other applications.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from IN or OH
Authorized RVMP dealer
Features
- Advanced MPPT technology & ultra-fast tracking speed guarantee tracking efficiency up to 99.5%
- Three-stage charging mode based on digital control circuit, which can effectively prolong the lifespan of battery and significantly improve the system performance
- Five buttons for parameters setting and monitoring
- Comprehensive electronic protection, IP33 â–² Ingress protection
- Isolated RS485 with 5V/200mA protected output for no power devices, with Modbus protocol
- Increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method
- Minimize the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions
- Can be widely used for RV, household system, field monitoring and many other applications
- CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3)
Specifications
| Enclosure | IP33 |
| Safety | EN/IEC62109-1，UL1741，CSA C22.2#107.1 |
| EMC(Emission immunity) | EN61000-6-3/EN61000-6-1 |
| FCC | 47 CFR Part 15, Subpart B |
| Performance and Function | IEC62509 |
| ROHS | IEC62321-3-1 |
| Mounting Hole Size | Φ0.2" (5mm) |
| Mounting Dimensions | 7.9" x 6.9 (200×176mm) |
| Dimensions | 10" x 7.3" x 2.7" (255x185x67.8mm) |
| Weight | 3.7 lbs. (1.70 kgs) |
| Rated charge and discharge current | 40 Amp |
| MPPT Tracking Efficiency | ≥99.5% |
| Maximum Conversion Efficiency | 98% |
| Nominal System Voltage | 12V/24V DC auto work |
| Maximum PV Input Power | 520W charge for 12V battery system |
| Maximum PV Input Power | 1040W charge for 24V battery system |
| Maximum PV Open Circuit voltage | 100V (at minimum operating environment temperature) |
| Maximum PV Open Circuit voltage | 92V (at 77°F (25°C) environment temperature)) |
| Battery Voltage Range | 8～32V |
| MPP Voltage Range | (Battery voltage+2V)~72V |
| Grounding | Common negative |
| Working environment temperature | -13°F~122°F (-25°C~+50°C) |
| Storage temp. range | -4°F~158°F (-20°C~+70°C) |
| LCD backlight time | 60S (Default) |
Package Contents
RVMP 40 Amp MPPT Solar Charge Controller
User's Manual
Warranty
This product comes with a 1 year factory warranty.
