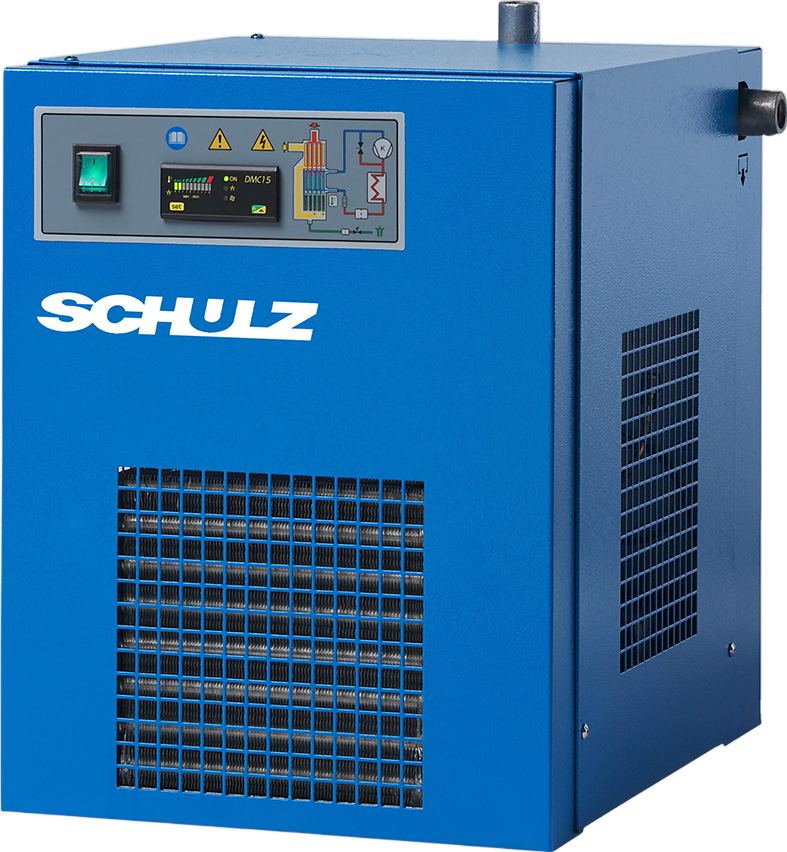

Schulz ADS-10 Refrigerated Air Dryer Non-Cycling 10 CFM 115V Single Phase New
Manufacturer: Schulz
SKU: ADS-10-UP
Flow (CFM)
QTY
or
(888) 999-1522
$ 1,420.80
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 Business Days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

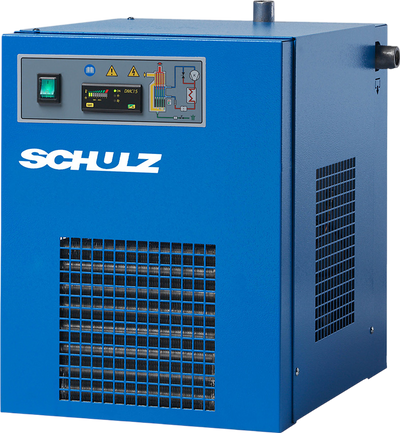

Schulz ADS-10 Refrigerated Air Dryer Non-Cycling 10 CFM 115V Single Phase New
Product Overview
Schulz ADS air dryers are designed to match the displacement of the air compressors, reducing the need to oversize the dryer, resulting in savings in energy consumption. The dryers have excellent performance, even in situations where ambient and inlet temperatures are elevated. The panels are easily removable and allow immediate access to internal components, facilitating inspection and maintenance operations.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Excellent performance even where ambient temperatures are elevated
- Nominal air pressure of 100 PSI; 232 PSI maximum
- Energy efficient sizing; matches the compressors displacement, saving energy
- Electronic controller digitally shows temperature & dew point
- High-efficiency compressor; circulates the refrigerant through the system
- Quick disconnect automatic drain valve doesn't need special tools
- R134a is effective and easier on the environment
- Compact footprint, easy to install
Specifications
| Model | ADS-10 |
| Air Flow | 10 CFM |
| Rated Pressure | 100 PSI |
| Maximum Pressure | 232 PSI |
| Connection | 3/8" NPT-F |
| Voltage | 115V |
| Frequency | 60 Hz |
| Phase | Single |
| Nominal Voltage | 2.5 A |
| Refrigerant Fluid | R134a |
| Dimensions | 12" x 13" x 18" |
| Weight | 46 lbs |
Package Contents
Schulz ADS-10 Non-Cycling Refrigerated Air Dryer
User Manual
Warranty
This item comes with a 1 year warranty.
