Schulz ADS-50 Air Dryer Non-Cycling Compressed 50 CFM 232 PSI 115V 1-Phase New
Product Overview
The Schulz non-cycling compressed air dryers have been developed for applications with inlet and room temperatures up to 100 °F. Removable panels facilitate easy and quick access to internal components. With an integrated electronic panel, this dryer is an extremely cost-effective option. Select the best option for your company.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features

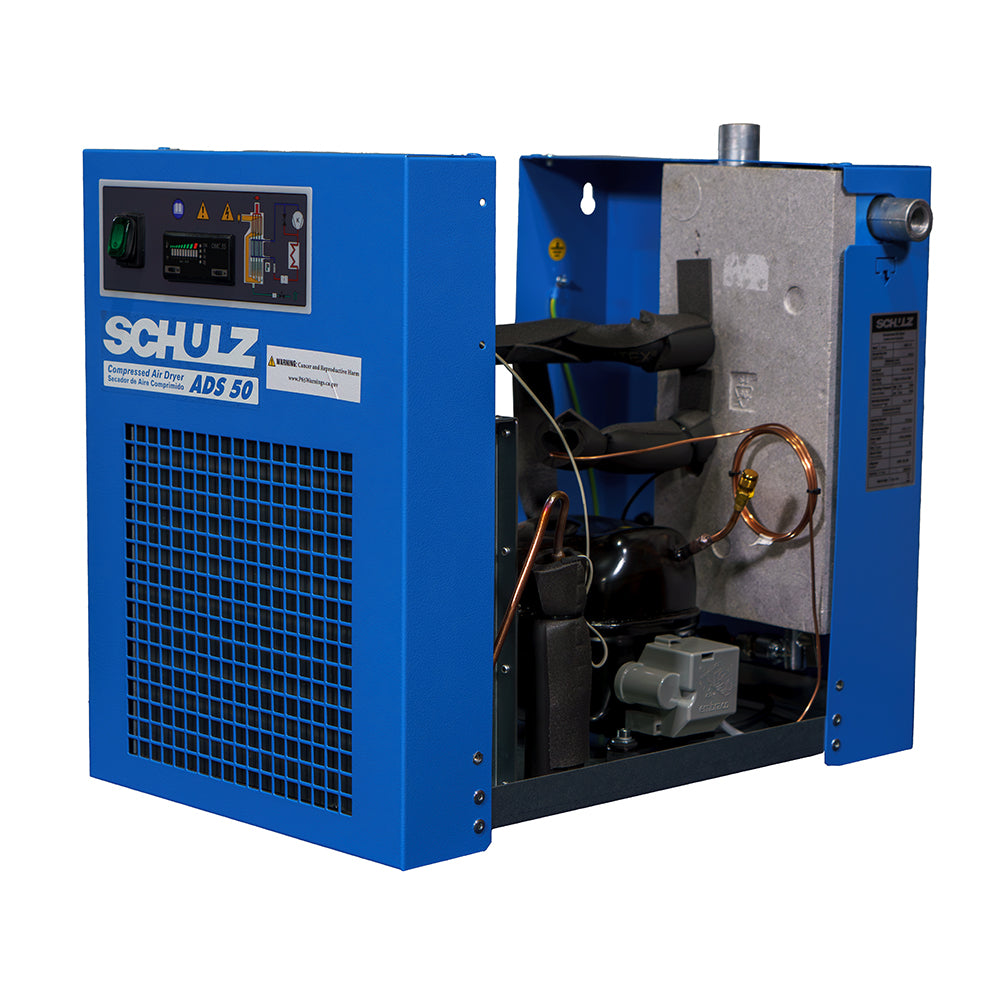

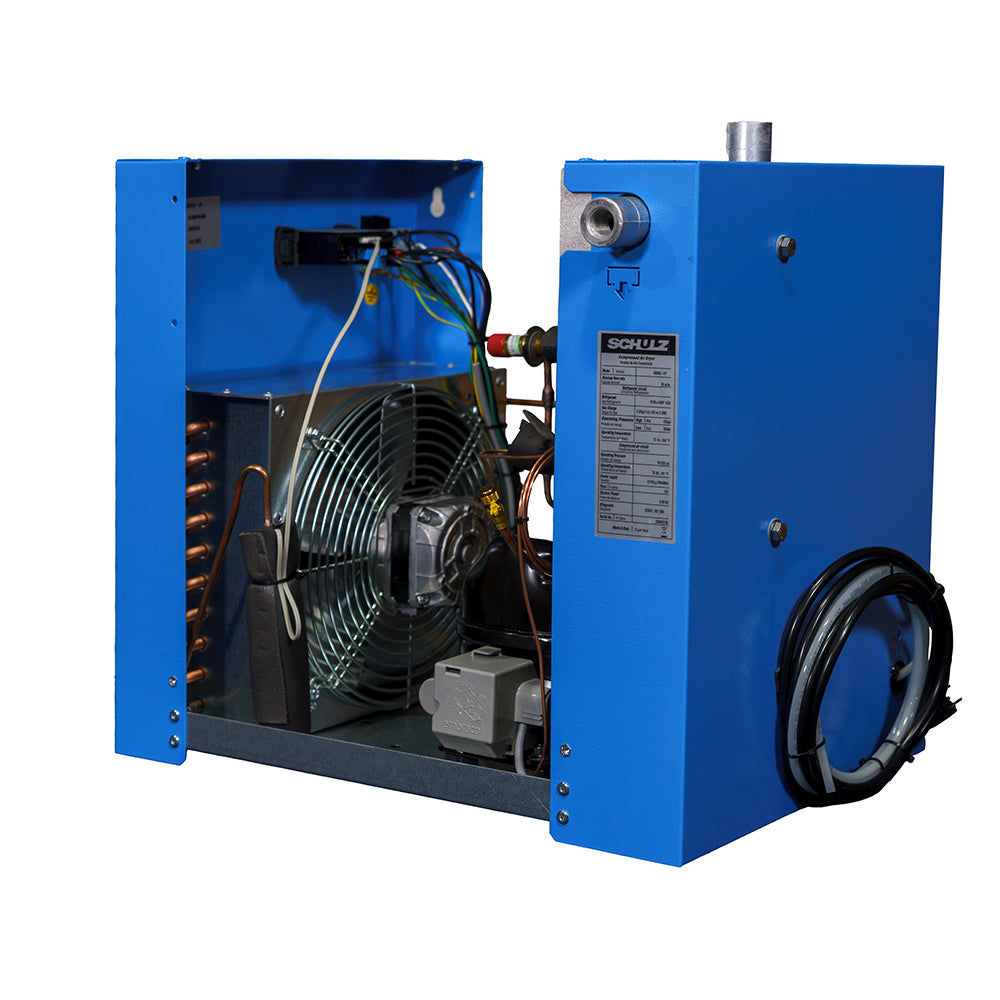

- The ADS Schulz line of air dryers was designed to facilitate inspection and maintenance operations. The panels are easily removable and allow immediate access to internal components. ADS Schulz dryers are equipped with a quick-disconnected automatic drain valve which does not require any special tools for maintenance and cleaning.

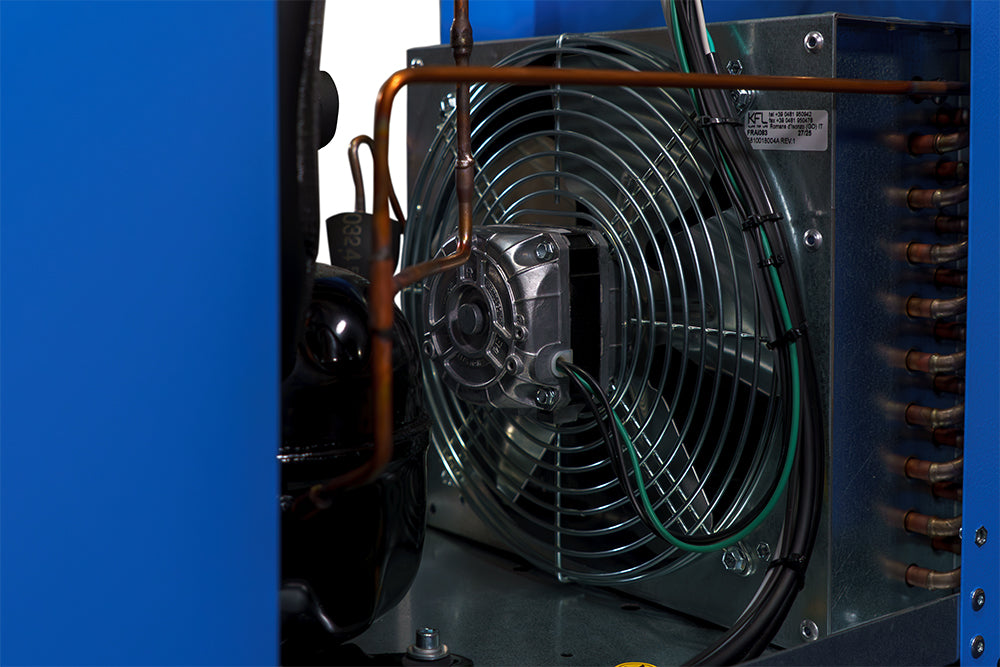

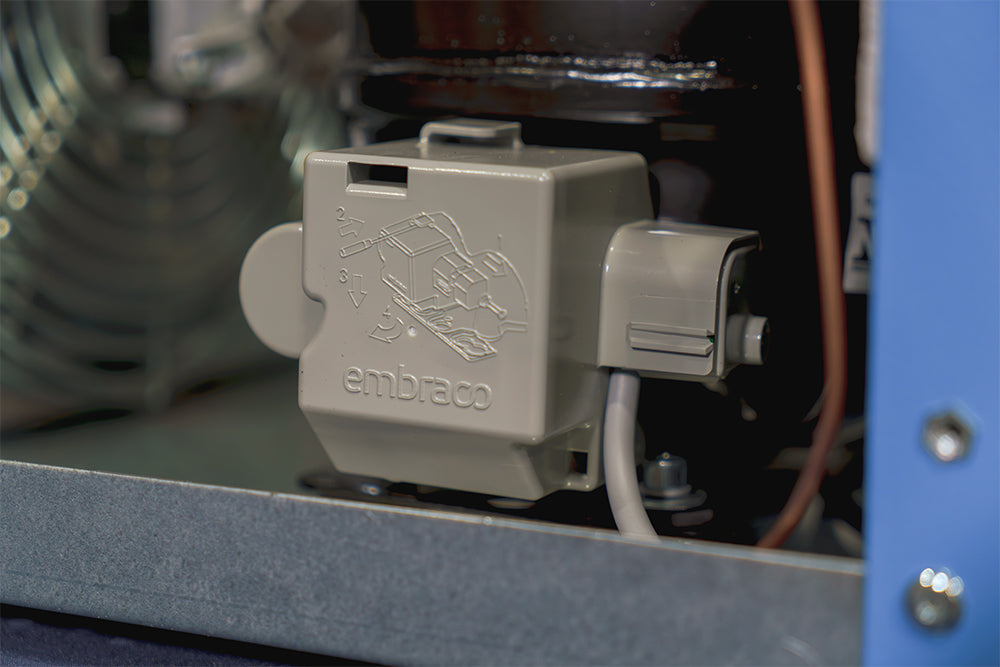

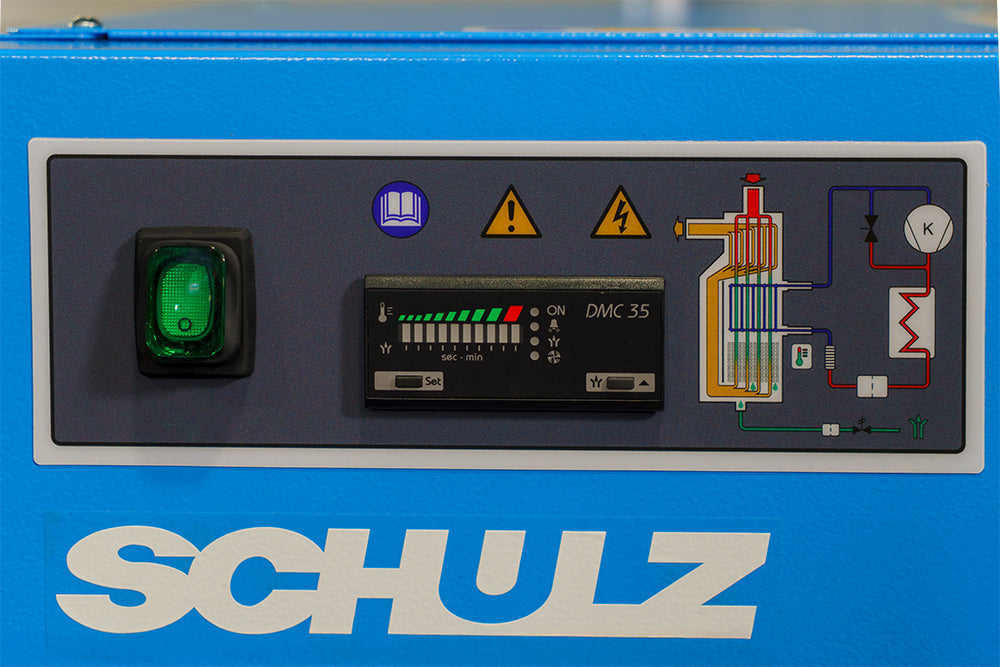

- The dryer’s operation is monitored by an electronic controller The dryer’s operation is monitored by an electronic controller which digitally indicates the temperature and dew point, controls the drain valve through a timer, and the condenser fan through a probe. The refrigerant is circulated through the system using high-efficiency compressors. These compressors have totally new design that brings low levels of power consumption and high dependability.
- ADS Schulz dryers are designed to match the displacement of the air compressors, consequently, it is not necessary to oversize the dryer, resulting in savings in energy consumption.
- ADS Schulz dryers have excellent performance, even in situations where ambient and inlet temperatures are elevated.
Specifications
| Model | ADS-50 |
| Flow (CFM, l/min, m³/h) | 50 / 1,415 / 85 |
| Connections | 1/2" NPT-F |
| Nominal Air Pressure | 100 PSI |
| Max. Air Pressure | 232 PSI |
| Voltage | 115V |
| Frequency | 60 Hz |
| Nominal Amp | 3.4A |
| Wire | 14 GA |
| Refrigerant Type | R134A |
| Dimensions (H x W x L) | 18.11/16 x 14.9/16 x 18.11/16 in. |
| Weight | 70 lbs. (32 kg) |
Package Contents
Schulz ADS-50 Air Dryer Non-Cycling Compressed 50 CFM 232 PSI 115V 1-Phase
User Manual
Warranty
This item comes with a 1 year warranty.
