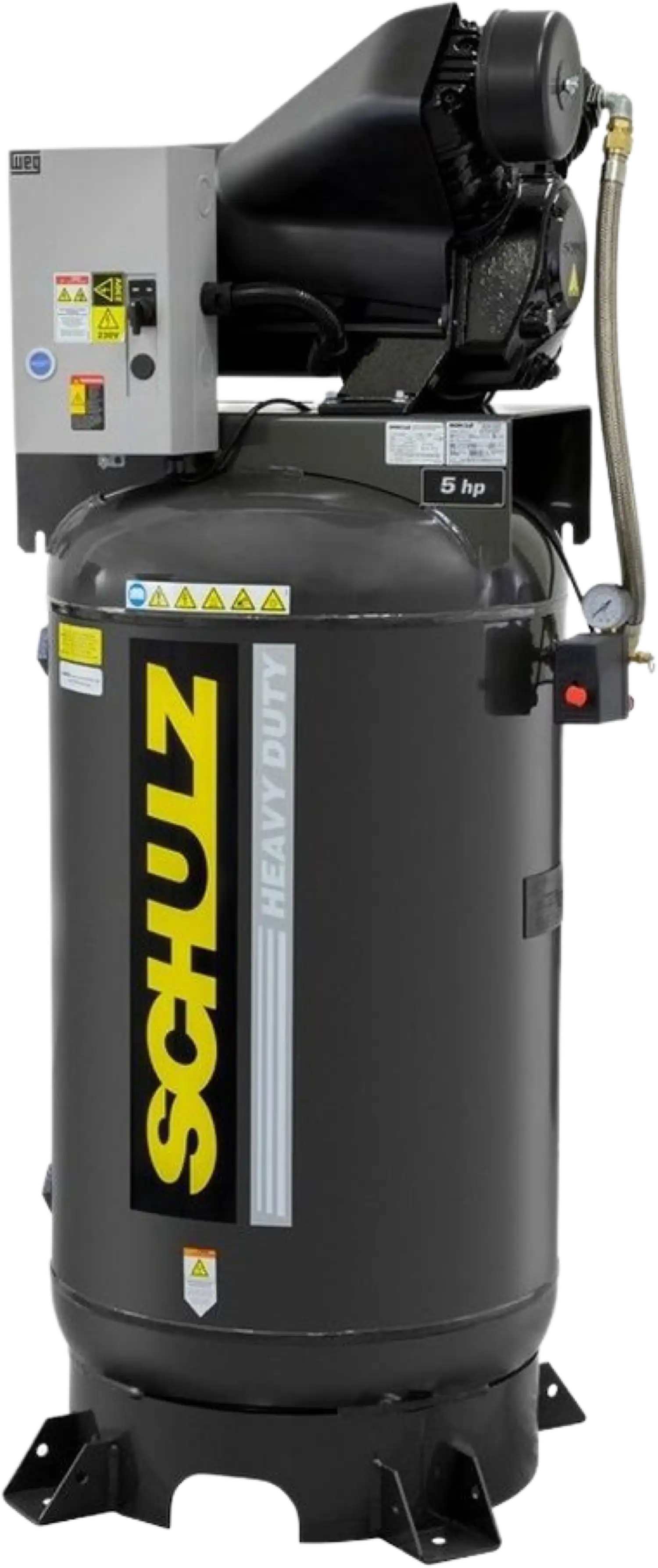

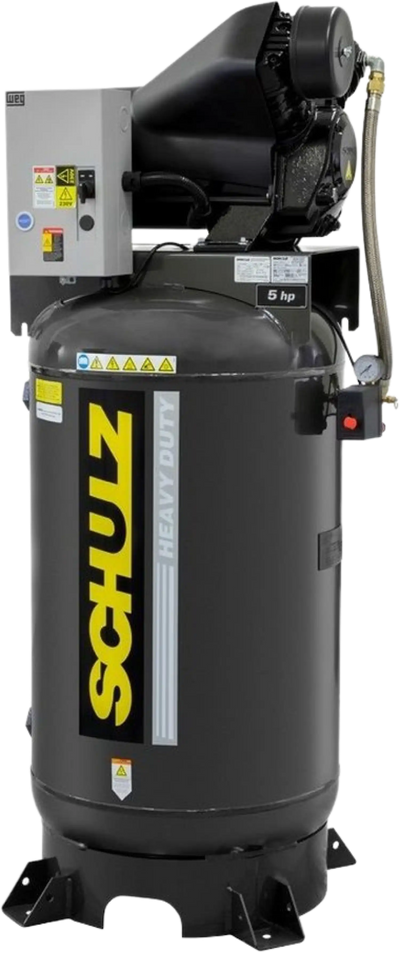

Schulz Audaz MCSV Air Compressor 5 HP 80 gal. 2-Stage 230V 1-Phase Vertical 932.9364-0 New
Manufacturer: Schulz
SKU: 932.9364-0
Tank Orientation
Phase
QTY
or
(888) 999-1522
$ 3,092.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Schulz Audaz MCSV Air Compressor 5 HP 80 gal. 2-Stage 230V 1-Phase Vertical 932.9364-0 New
Product Overview
The compressor Audaz MCSV 20/80 is the most innovative one in the market. The exclusive patented technology IC-TECH® allows the integrated connection between high-efficiency stages. This technology allows lubricating oil to be changed every 300 hours* (which represents a gain of 50% in the durability of the oil). The direct coupling reduces the loss of energy and ensures greater safety. From mechanical workshops to small companies, its productivity will be greater, with less maintenance expense. This compressor of 20 cfm (cubic feet/min) has an integrated 5 hp motor, a plastic cover specially designed to increase the cooling efficiency of the compressor pump, and an oil sight glass that facilitates its monitoring.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Direct Drive using IC-TECH Patented Technology
- Solid cast iron construction
- Splash oil lubricated pump
- CNC machined - ISO 9002
- Large Swedish stainless steel reed valves
- Finned Intercooler
- Two-cylinder V design
- Maximum pressure - 175psi
- Available only in 230 Volt
Specifications
| Item Number | 932.9364-0 |
| Model | MCSV 20 AP AUDAZ |
| Product Category | Air Compressor - Stationary |
| Power Type | Electric |
| Engine HP | 5 |
| Voltage | 230 Volt AC |
| Phase | 1-Phase |
| Magnetic Starter | Yes |
| CFM | 20 |
| CFM Rated @ | 175 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Direct Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-Off | No |
| Tank Size | 80 Gallons |
| Electronic Drain Valve | No |
| Tank Orientation | Vertical |
| Pressure Gauge | Yes |
| Certification | ASME |
| Product Length | 24 Inches |
| Product Width | 28 Inches |
| Product Height | 67 Inches |
| Weight | 352 lbs. |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
Package Contents
Schulz Audaz MCSV Air Compressor 5 HP 80 gal. 2-Stage 230V 1-Phase
User Manual
Warranty
This item comes with a 1 year on the product and 2 year warranty on the pump.
