Schulz Dynamic Air Compressor 15 HP 120 gal. 460V 3-Phase 51 CFM 125 PSI SRP 4015 R DYNAMIC New
Manufacturer: Schulz
SKU: 970.3455-460
QTY
or
(888) 999-1522
$ 14,204.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 Business Days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

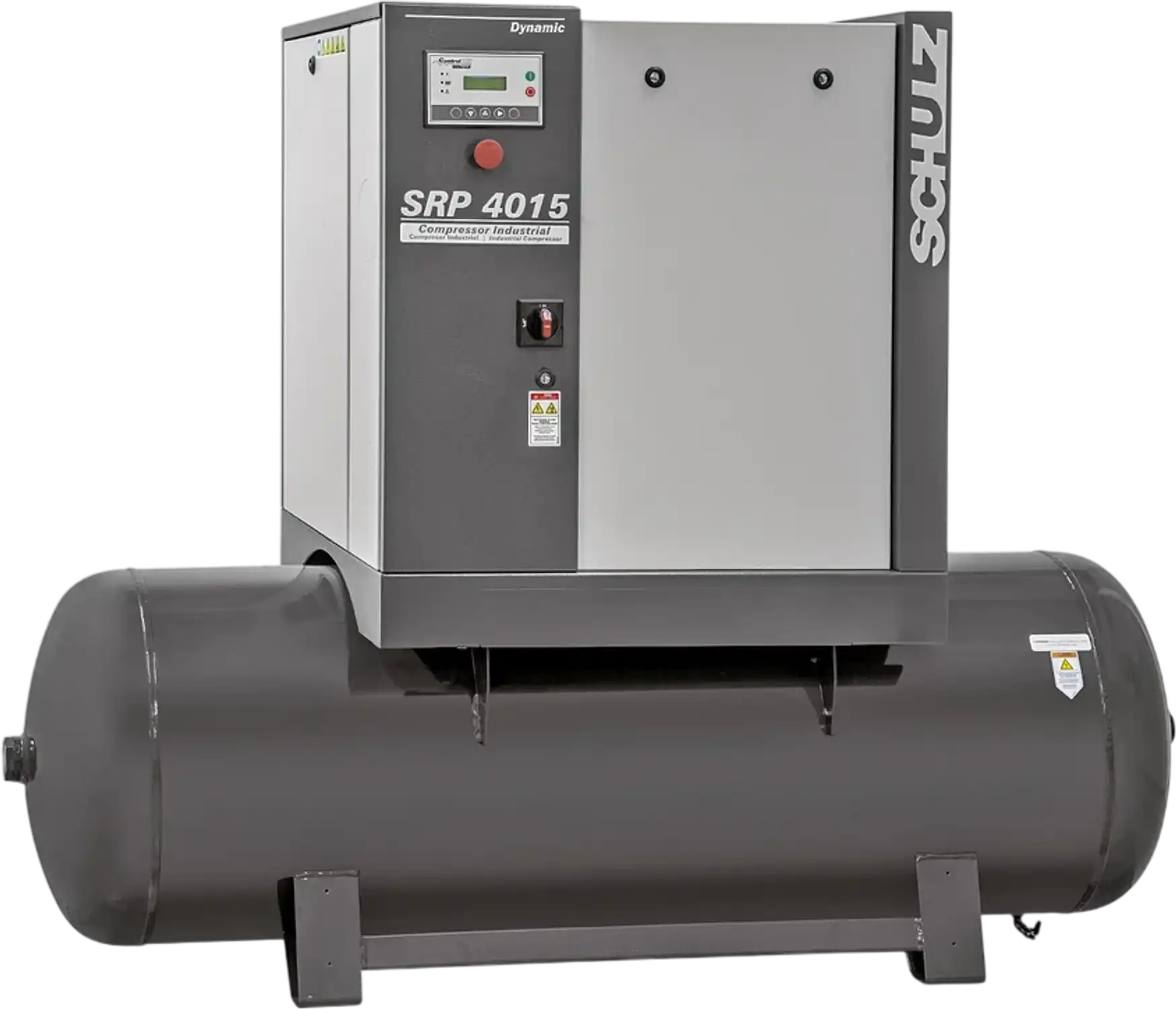

Schulz Dynamic Air Compressor 15 HP 120 gal. 460V 3-Phase 51 CFM 125 PSI SRP 4015 R DYNAMIC New
Product Overview
The Schulz SRP 4015 R DYNAMIC is a fixed-speed, belt-driven rotary screw air compressor built for high الأداء and dependable continuous-duty use. Designed to operate 24 hours a day in ambient temperatures up to 113°F, it features a rugged 15 hp three-phase IP55 totally enclosed motor, quiet 69 dBA operation, and a 120-gallon ASME tank, making it an excellent choice for facilities that need powerful compressed air in spaces where noise control matters.
This model delivers 51 cfm of free air at 125 psi and includes a microprocessor controller that continuously monitors operation, allows adjustable operating parameters, and helps with fault indication and troubleshooting. With its compact footprint, durable belt-driven design, and efficient filtration for improved compressed air quality, the SRP 4015 R DYNAMIC offers versatile performance for demanding industrial applications.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Designed for continuous 24/7 operation in ambient temperatures up to 113°F.
- IP55 totally enclosed three-phase electric motor helps protect the compressor in demanding industrial environments.
- Belt-driven rotary screw design delivers dependable performance and long service life.
- Microprocessor controller provides constant system monitoring for easier operation and performance tracking.
- Adjustable operating parameters let you fine-tune compressor performance to your application.
- Built-in troubleshooting and fault indication help simplify maintenance and reduce downtime.
- Quiet operation makes it well suited for installations where low noise is important.
- Optional vehicular double filter is available for enhanced filtration in harsher environments.
Specifications
| Model | SRP 4015 R DYNAMIC |
|---|---|
| Maximum Pressure (psi) | 125 |
| Working Pressure (bar) | 8.6 |
| Motor Power (hp) | 15 |
| Motor Power (kW) | 11 |
| Voltage (V) | 460 |
| Phase | Three |
| Free Air Delivery (cfm) | 51 |
| Free Air Delivery (L/min) | 1444 |
| Discharge Connection (in) | 3/4 |
| Noise Level (dBA) | 69 |
|---|---|
| Tank Capacity (gal) | 120 |
| Dimensions (H x W x D) | 39.8 x 58.5 x 27.6 in |
| Weight (lb) | 639 |
| Drive Type | Belt Driven |
| Motor Enclosure | Totally Enclosed |
| Motor Protection Rating | IP55 |
Warranty
Schulz compressors include a 2-year warranty on the compressor pump and a 1-year warranty on all other components.
