Schulz Dynamic Rotary Screw Air Compressor 30 HP 120 gal. 460V 3-Phase 117 CFM 125 PSI SRP 4030 R DYNAMIC New
Manufacturer: Schulz
SKU: 970.3907-460
QTY
or
(888) 999-1522
$ 22,910.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 Business Days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

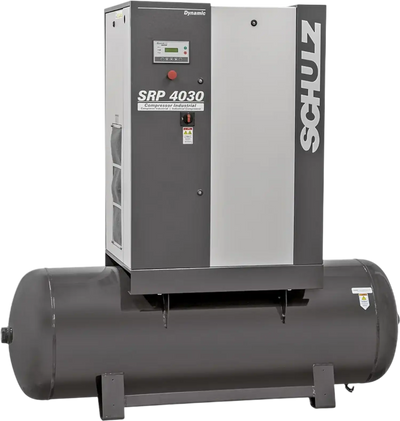

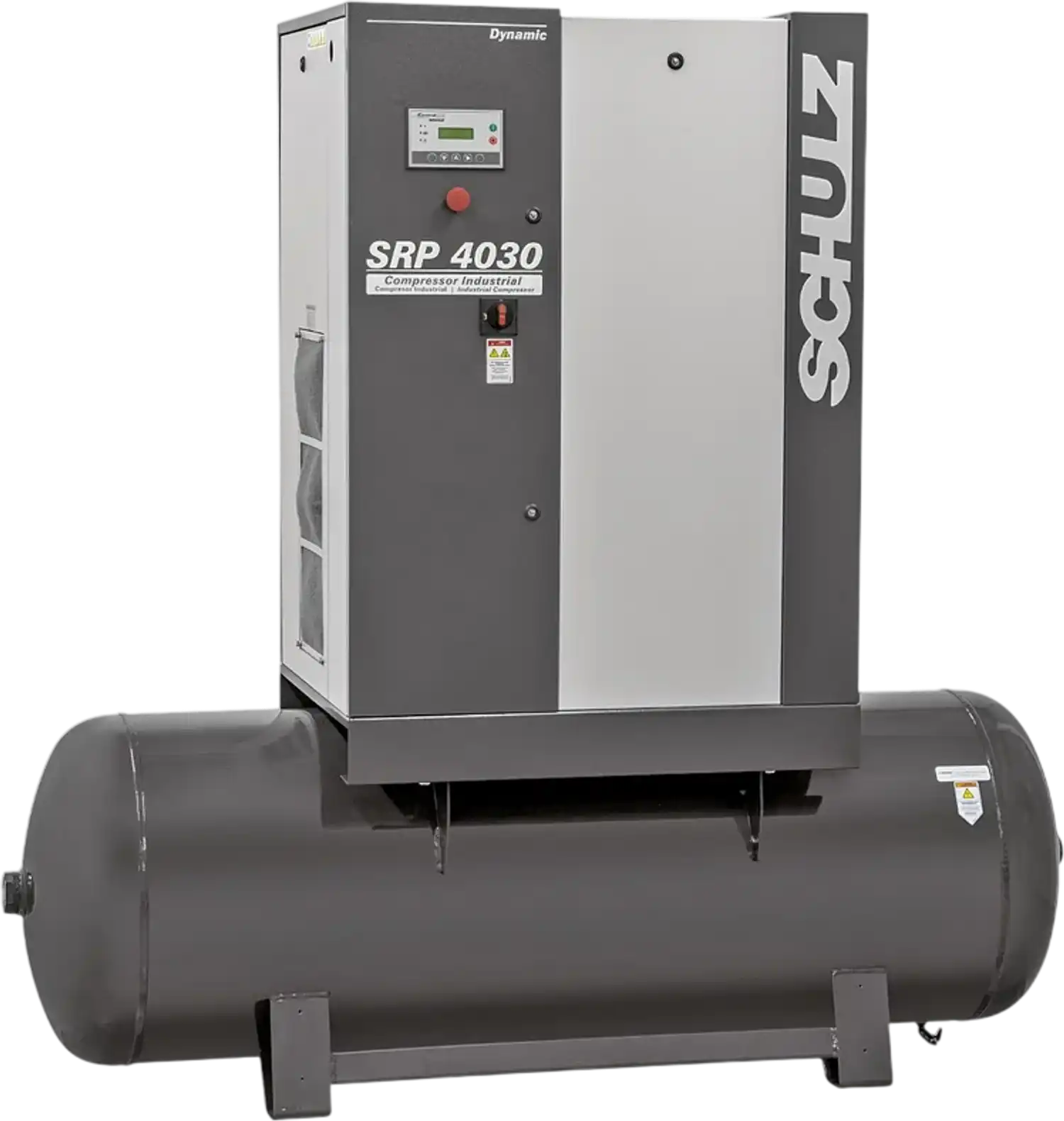

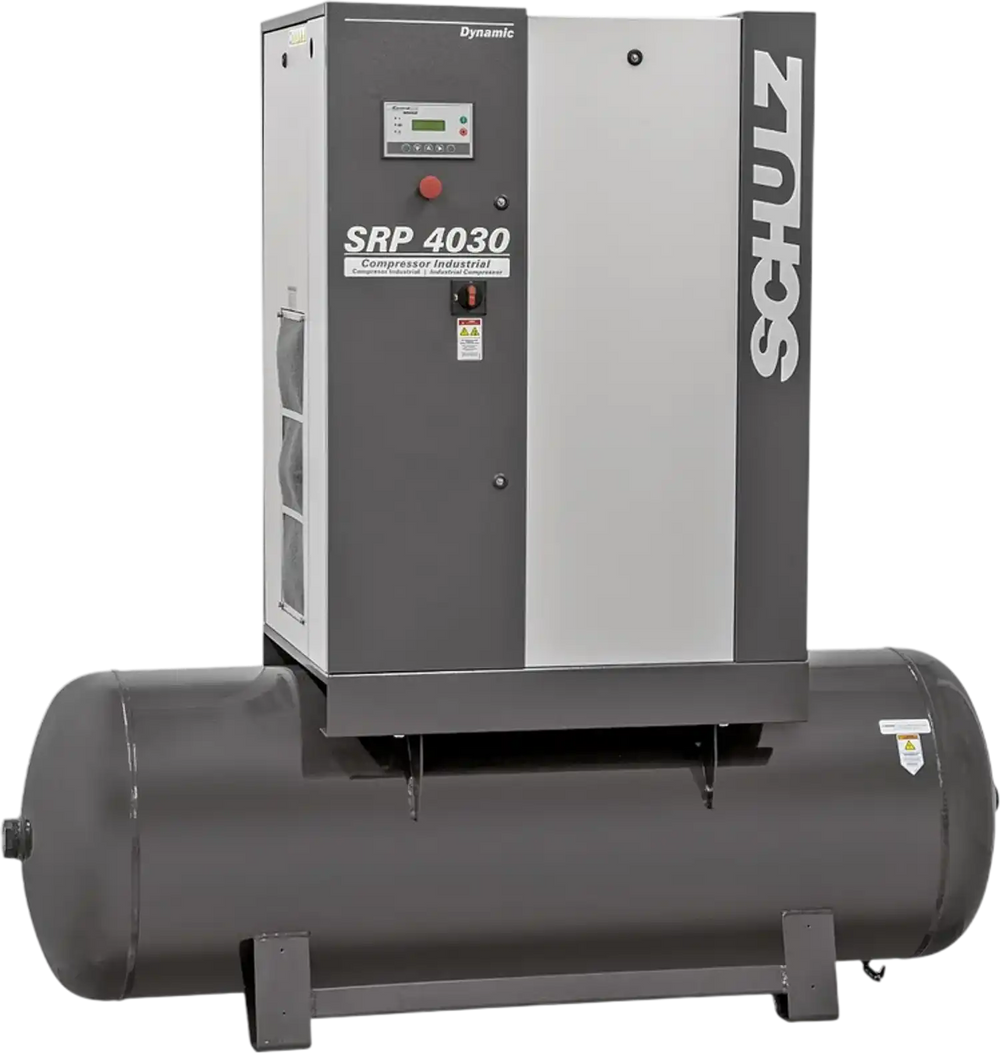

Schulz Dynamic Rotary Screw Air Compressor 30 HP 120 gal. 460V 3-Phase 117 CFM 125 PSI SRP 4030 R DYNAMIC New
Product Overview
The Schulz SRP 4030 Dynamic is a 30 hp belt-driven rotary screw air compressor built for high-performance applications that require dependable compressed air with quiet operation. Designed for continuous 24/7 duty in ambient temperatures up to 113°F, it features a three-phase IP55 totally enclosed electric motor, high-efficiency filtration for improved air quality, and a space-conscious design suited for installations with limited access or floor space.
Its microprocessor controller provides constant operating readings, adjustable parameters, fault indication, and local or remote operation support for easier monitoring and control. With 117 cfm at 125 psi, a 120-gallon ASME tank, and durable screw compressor construction, the SRP 4030 Dynamic is a versatile solution for demanding industrial environments.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Designed for continuous 24/7 operation in ambient temperatures up to 113°F
- IP55 totally enclosed three-phase electric motor for reliable performance in demanding environments
- Belt-driven screw air compressor design that balances performance and durability
- Microprocessor-based control panel with constant operating readings for easy system monitoring
- Adjustable operating parameters to tailor compressor performance to your application
- Built-in troubleshooting and fault indication to simplify maintenance and reduce downtime
- Quiet operation suited for installations where low noise is important
- High-efficiency filtration helps improve compressed air quality
- Optional vehicular double filter available for enhanced filtration in demanding conditions
Specifications
| Model | SRP 4030E Dynamic |
|---|---|
| Compressor Type | Rotary Screw Air Compressor |
| Drive Type | Belt Driven |
| Maximum Pressure (psi) | 125 |
| Working Pressure (bar) | 8.6 |
| Motor Power (hp) | 30 |
| Motor Power (kW) | 22 |
| Voltage (V) | 460 |
| Phase | Three |
| Motor Enclosure | IP55 Totally Enclosed |
| Free Air Delivery (cfm) | 117 |
| Free Air Delivery (L/min) | 3312 |
|---|---|
| Discharge Connection (in) | 1 |
| Noise Level (dBA) | 70 |
| Tank Capacity (gal) | 120 |
| Dimensions (H x W x D) | 39.8 x 58.5 x 30.3 in |
| Weight (lb) | 1187 |
| Maximum Ambient Temperature | 113°F |
Warranty
Schulz compressors include a 2-year warranty on the compressor pump and a 1-year warranty on all other components.
