Schulz Flex Air Compressor 75 HP 460V 3-Phase 305 CFM 125 PSI SRP-4075 FLEX New
Product Overview

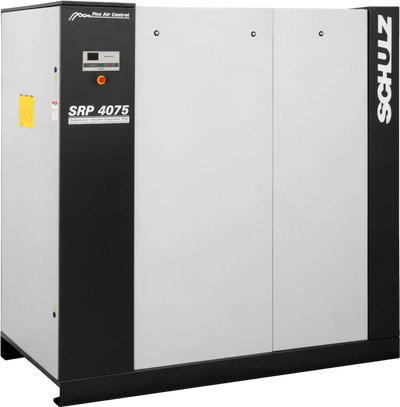

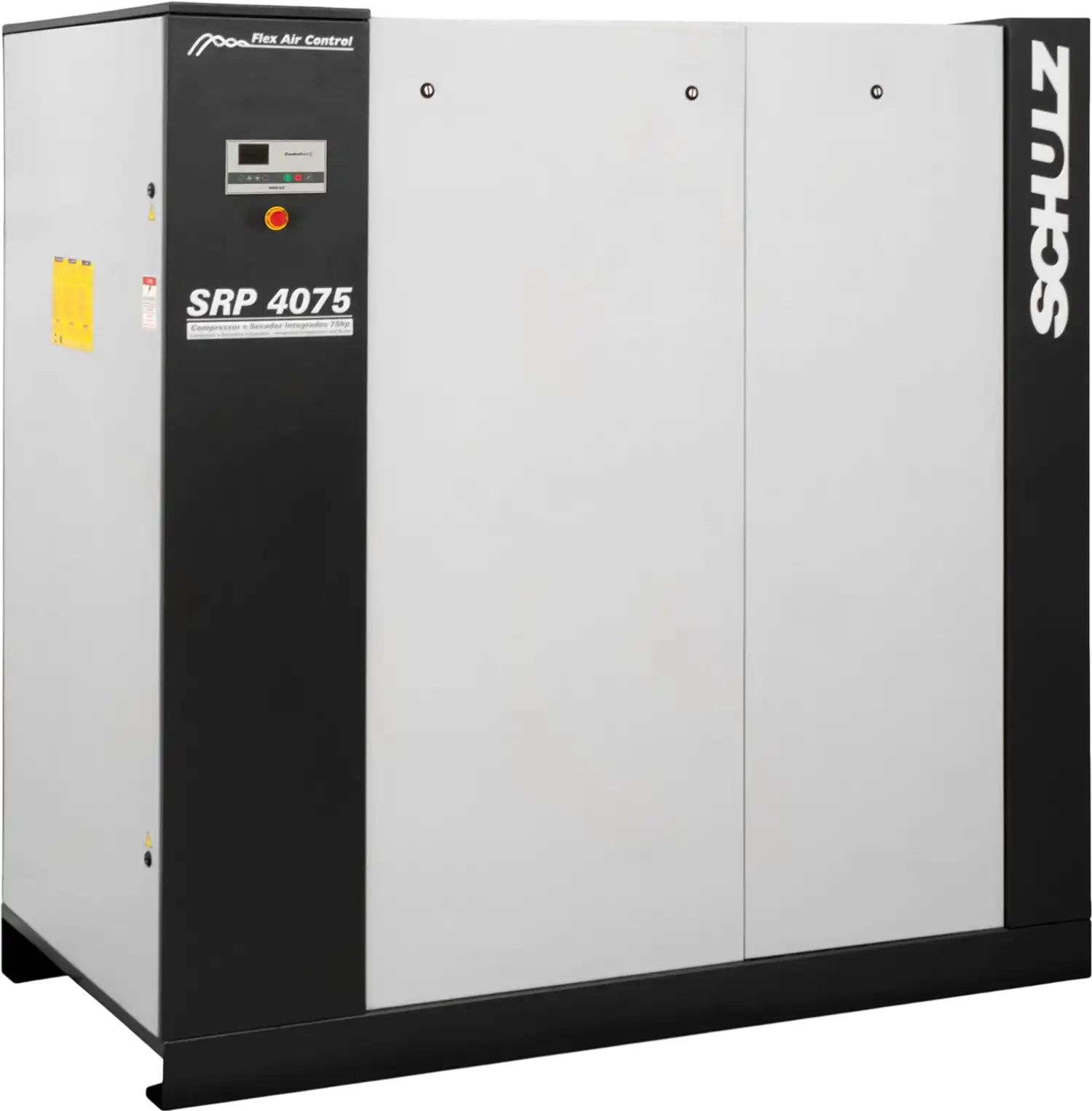

The Schulz SRP-4075 FLEX rotary screw air compressor is a high-efficiency variable-speed compressor designed to match air production to your system demand. Using a frequency inverter and advanced microprocessor control, it helps reduce energy consumption, minimize pressure variation in the air network, and deliver dependable compressed air for demanding industrial applications.
Built for continuous 24-hour operation in ambient temperatures up to 113°F, the SRP-4075 FLEX features a fully enclosed low-noise package, high-efficiency two-stage intake filtration, and an intelligent ControlNet electronic controller for monitoring, failure alerts, and maintenance scheduling. It is an excellent choice for facilities that need powerful 75 hp performance, quiet operation, and efficient compressed air generation.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Variable-speed drive technology adjusts air production to match demand for improved energy efficiency and reduced power consumption.
- Helps reduce energy consumption by up to 38% while maintaining reliable compressed air supply.
- Reduces pressure fluctuations in the air network for more stable system performance.
- Direct-drive design on larger Flex Line models supports maximum operating efficiency.
- Advanced frequency inverter control delivers precise variable-speed compressor operation.
- Microprocessor-based controller monitors compressor performance and provides failure alerts for easier system oversight.
- Integrated controller supports maintenance scheduling and operating condition monitoring to help reduce maintenance time.
- Controller can sequence with other compressors in the compressor room for coordinated multi-compressor operation.
- Remote or local start capability offers flexible control for different installation needs.
- Designed for continuous 24-hour operation in ambient temperatures up to 113°F.
- High-efficiency two-stage intake filters help deliver cleaner inlet air and support air-end durability.
- Fully enclosed package design provides low-noise operation for a quieter work environment.
Specifications
| Model | SRP 4075E Flex |
|---|---|
| Max Pressure (bar) | 8.6 |
| Max Pressure (PSI) | 125 |
| Motor Power (hp) | 75 |
| Motor Power (kW) | 56 |
| Phase | Three |
| Voltage (V) | 460 |
| Air Flow Min-Max (CFM) @ 110 PSI | 92-340 |
| Effective Flow (CFM) | 305 |
| Effective Flow (L/min) | 8,634 |
|---|---|
| Discharge Connection (in.) | 1 1/2 |
| Noise Level (dBA) | 78 |
| Tank Capacity (gal) | None |
| Dimensions (H x W x D) | 78.7 x 77.2 x 43.3 in |
| Weight (lb) | 2,822 |
Warranty
Schulz compressors include a 2-year warranty on the compressor pump and a 1-year warranty on all other components.
