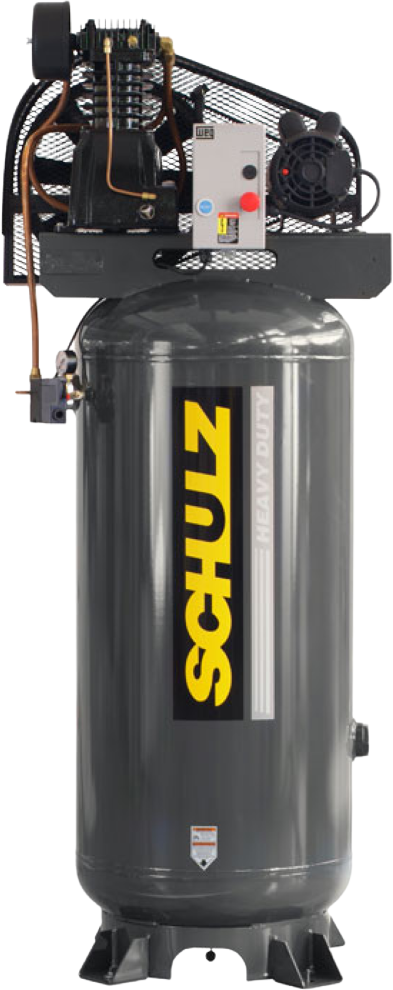

Schulz L-Series Air Compressor 3 HP 60 gal. Single Stage 220V 1-Phase Vertical New
Product Overview
The in line L-series compressors are strong, durable equipment with distinguished performance. With vertical tank design, this single stage product operates with low RPMs with a high-quality cast iron block. The double-supported crankshaft design provides lower vibration and longer bearing life, as well as the modern valve system (reed type) provides extended service life and excellent product efficiency. Mounted and wired magnetic starters, provide convenience and safety in operation with a ready to use system.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Cast iron construction
- Low RPM two piston in-line design
- Auto start/stop pressure switch operation
- Powder coated ASME receivers
- Enclosed metal belt guard
- Easy access to adjust belt tension
- Balanced drive pulleys
- Oversized check valves
- ASME safety relief valves
- Pressure gauge
- Manual condensate drain
Specifications
| Item Number | 932.3438-0 |
| Model | 360VL18X-1 |
| Engine HP | 3 |
| Voltage | 220 Volt AC |
| Phase | 1-Phase |
| Magnetic Starter | No |
| CFM | 18 |
| CFM Rated @ | 145 PSI |
| Pump | MSL-18MAX |
| Pump Material | Solid Cast Iron |
| Max PSI | 145 PSI |
| Pump Type | Single Stage |
| Tank Size | 60 Gallons |
| Electronic Drain Valve | No |
| Tank Orientation | Vertical |
| Pressure Gauge | Yes |
| Certification | ASME |
| Product Length | 20 Inches |
| Product Width | 23 Inches |
| Product Height | 68 Inches |
| Weight | 571 lbs. |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
Package Contents
Schulz L-Series Air Compressor 3 HP 60 gal. Single Stage 220V 1-Phase
User Manual
Warranty
This item comes with a 1 year on the product and 2 year warranty on the pump.
