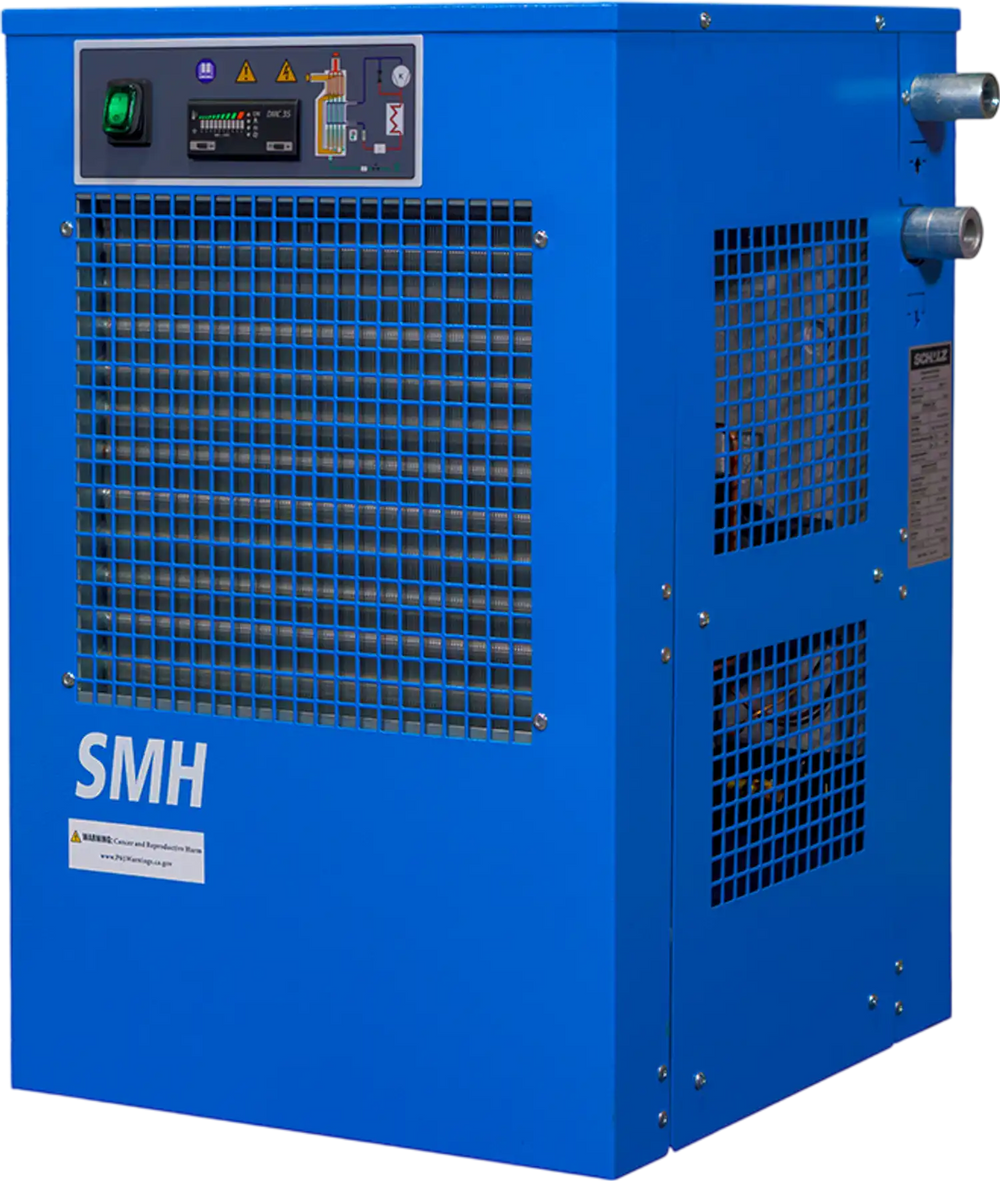

Schulz SMH-40 Refrigerated Air Dryer High Temperature Non-Cycling 40 CFM 115V Single Phase New
Product Overview

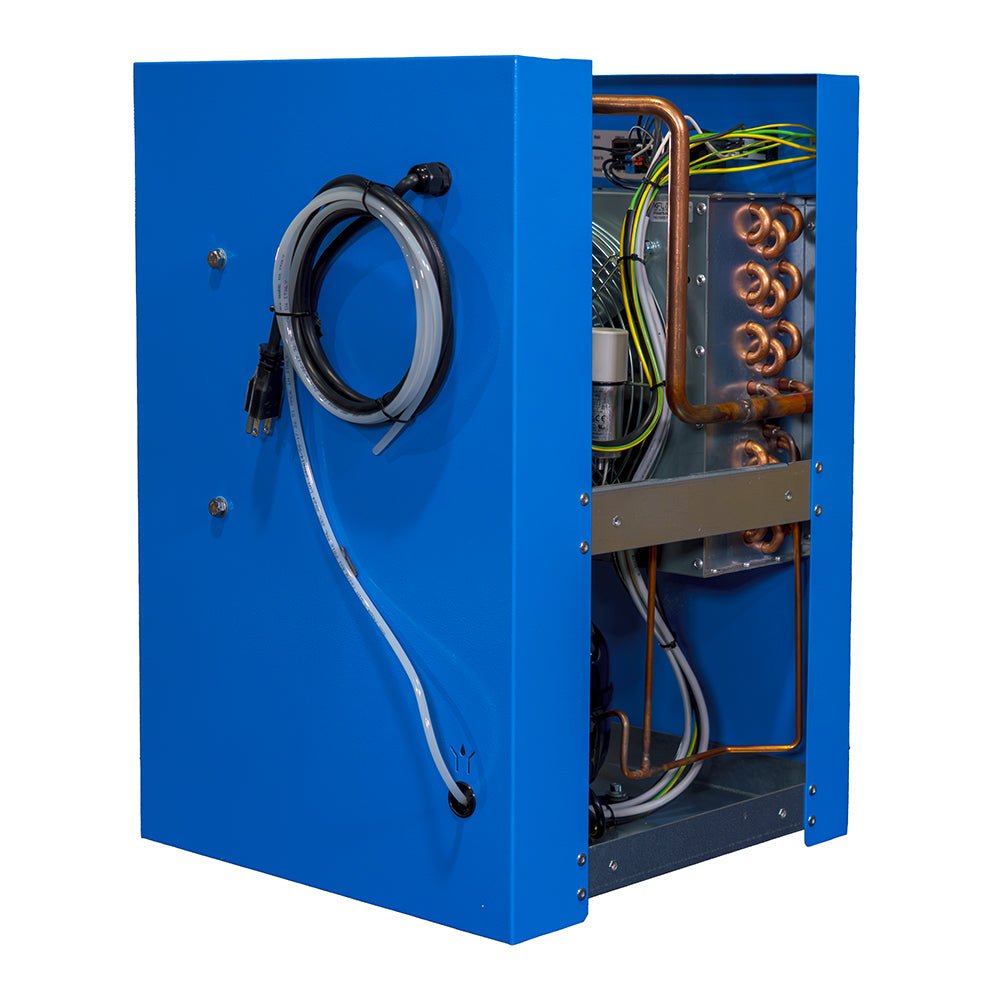

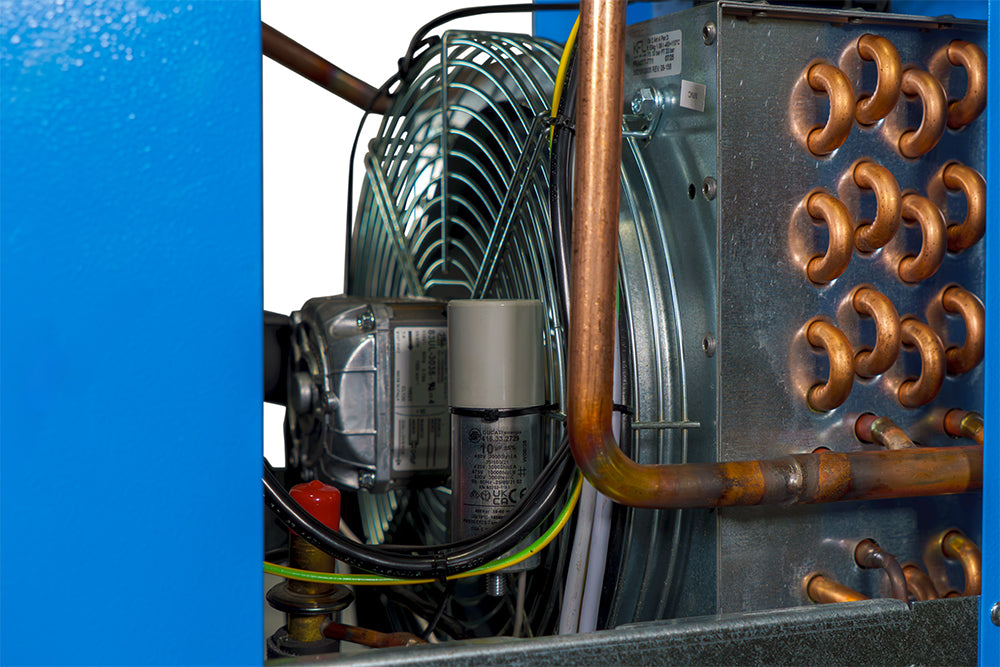

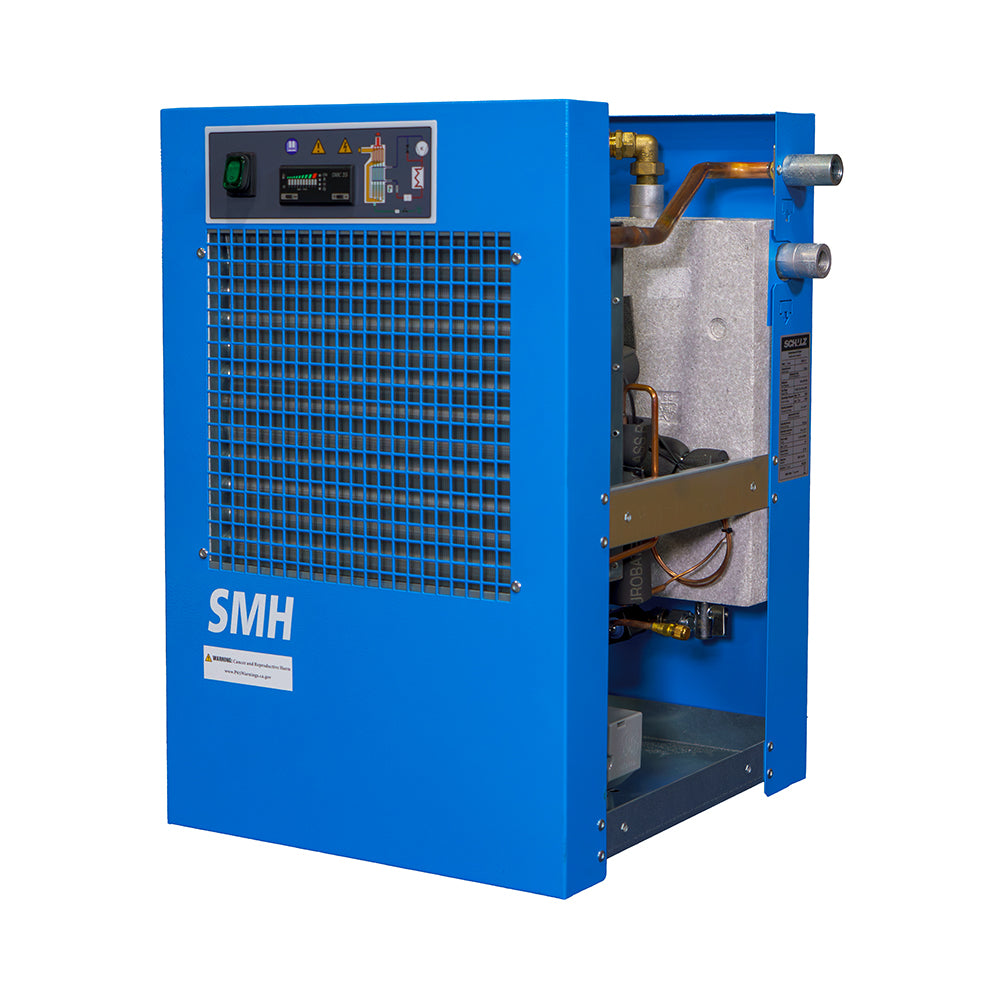

Schulz high-temperature dryers are designed for high inlet (up to 194°F) and room temperature applications (up to 113°F). SMH High Temp Dryers eliminate the need for separate aftercooler and moisture separators, conserving valuable floor space. Its innovative cooling system delivers high performance and energy savings. The integrated digital controller and automatic drain ensure stable dew point during operation. Removable panels facilitate easy and quick access to internal components.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Eliminates the need for separate aftercooler and moisture separators
- Helps conserve energy and floorspace; Less equipment to install and maintain
- Designed to accept up to 194°F inlet air temperatures; operates in 113°F ambient conditions

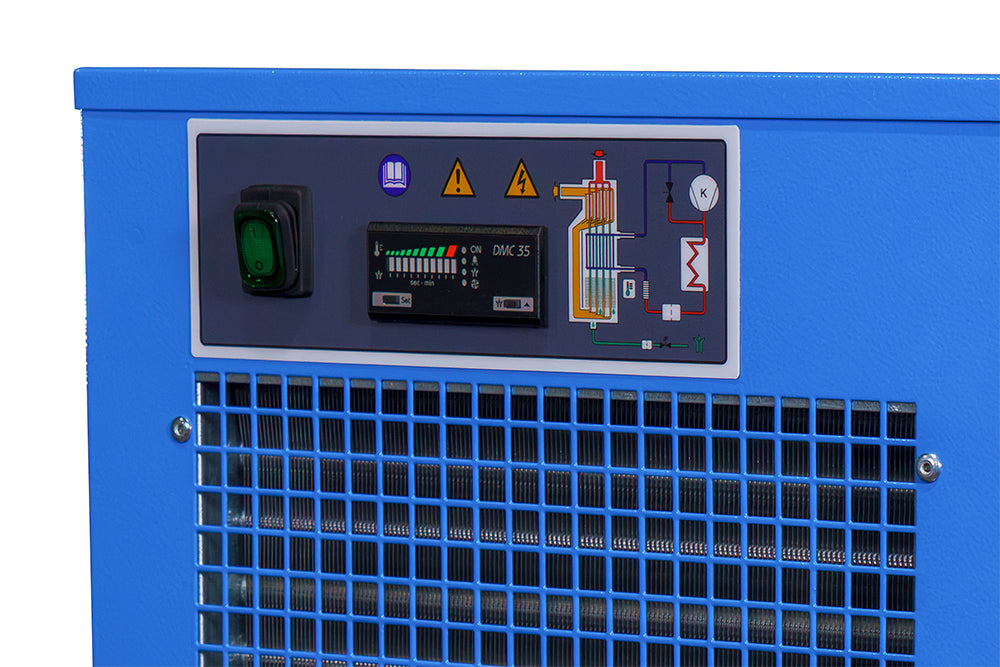

- DMC electronic controller makes this dryer easy to use
- Built-in aftercooler circuit with separate drain
- Lower pressure drops
- Quiet operation; runs at less than 70 dB(A) sound level
Specifications
| Model | SMH-040-UP-TD |
|---|---|
| Air Flow | 40 CFM |
| Inlet | 1/2" NPT-F |
| Outlet | 1/2" NPT-F |
| Voltage | 115V |
| Frequency | 60 Hz |
| Phase | Single phase |
| Nominal Voltage (A) | 4.7 |
| Refrigerant | R134a |
|---|---|
| Dimensions | 16.8" x 16.4" x 25.6" |
| Weight | 75 lbs |
Package Contents
Schulz SMH-40 High Temperature Non-Cycling Refrigerated Air Dryer
User Manual
Warranty
This item comes with a 1 year warranty.
