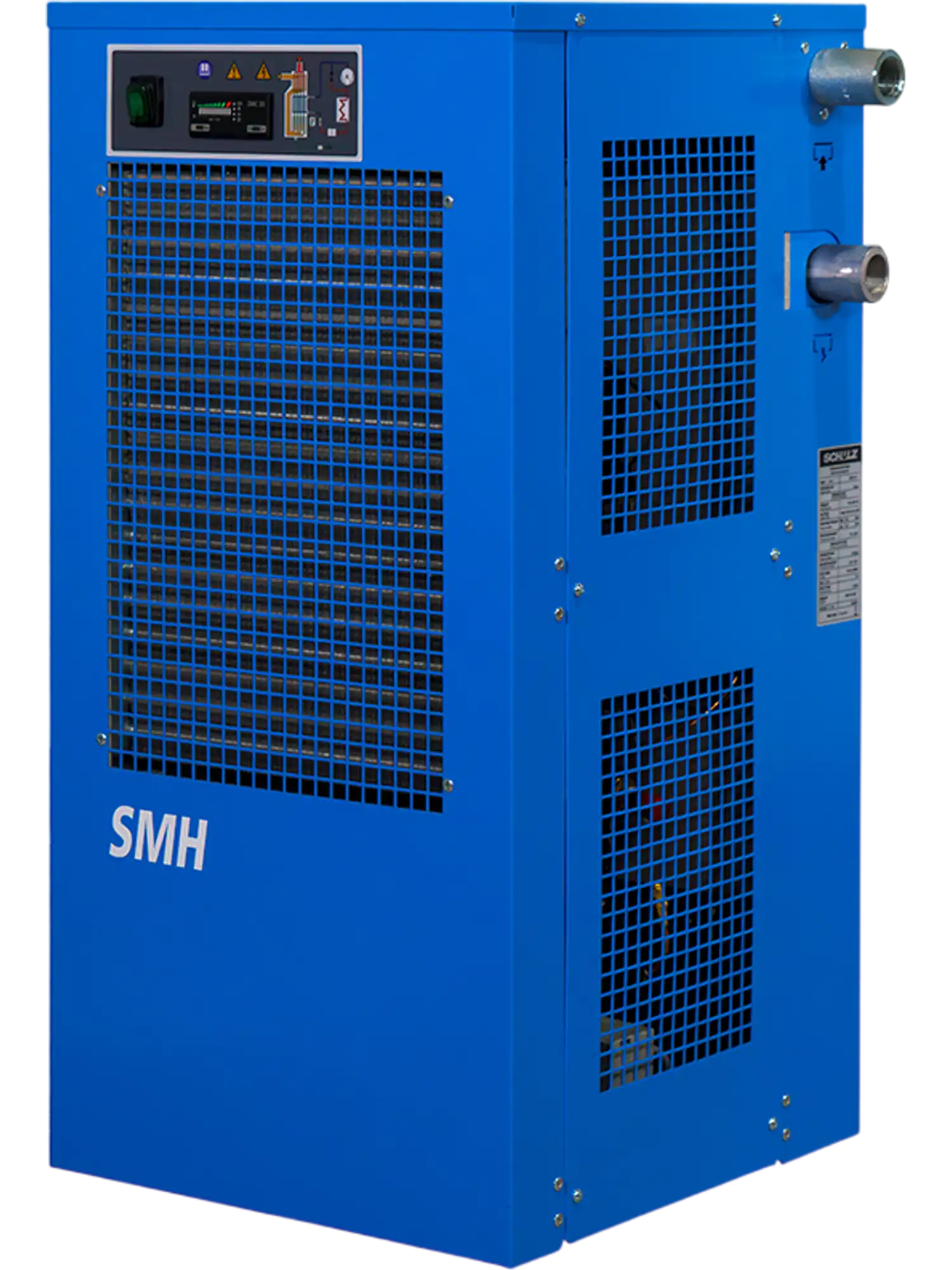

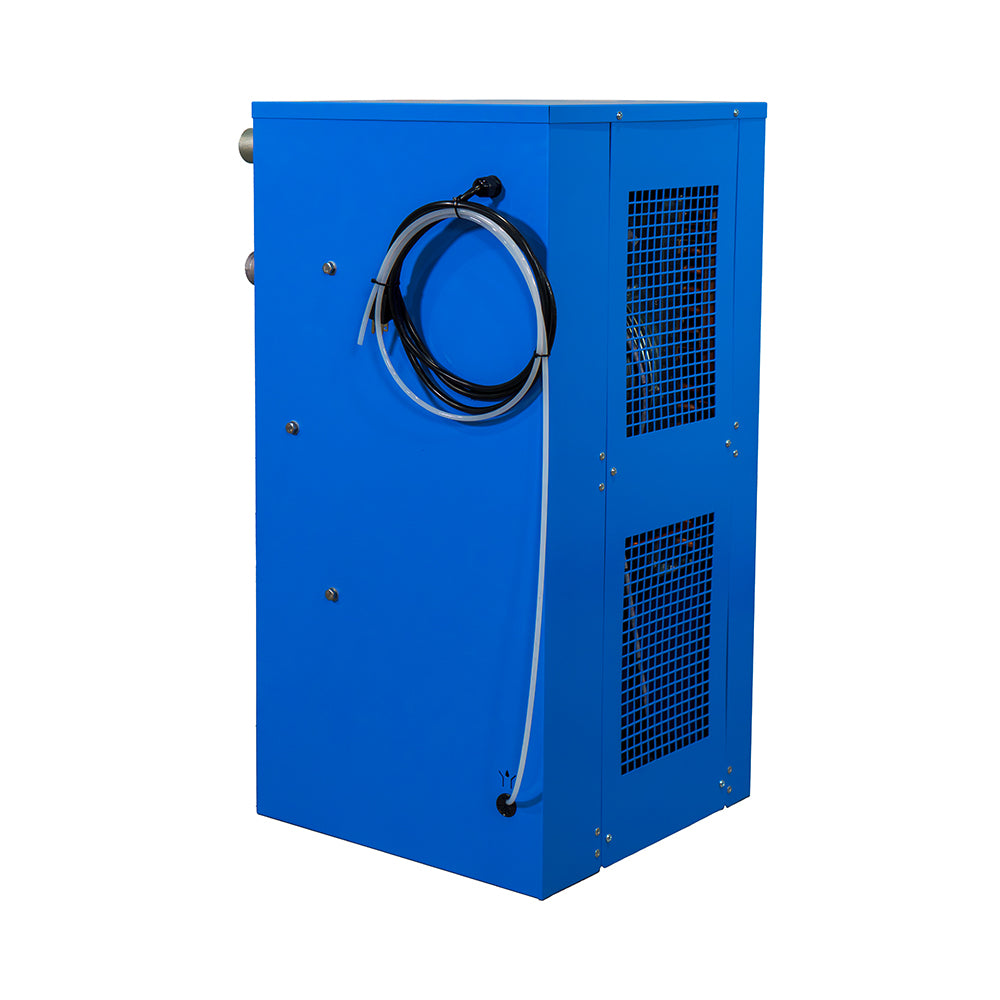

Schulz SMH Refrigerated Air Dryer 75 CFM 115V 1-Phase SMH-075-UP-TD New
Product Overview
Schulz high-temperature dryers are designed for high inlet air temperatures up to 194°F and ambient temperatures up to 113°F, making them an ideal solution for demanding compressed air applications. The SMH-075-UP-TD features an innovative cooling system that delivers strong drying performance while helping reduce energy consumption. Its integrated digital controller and automatic drain work together to maintain a stable dew point during operation.
This dryer also helps simplify your compressed air system by reducing the need for separate aftercoolers and moisture separators, saving valuable floor space and lowering installation and maintenance requirements. Removable access panels make service quick and convenient, while the low-pressure-drop design supports efficient system performance.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Built-in aftercooler circuit with a separate drain helps remove heat and moisture without requiring additional external equipment.
- Lower pressure drop design helps maintain air system efficiency and performance.

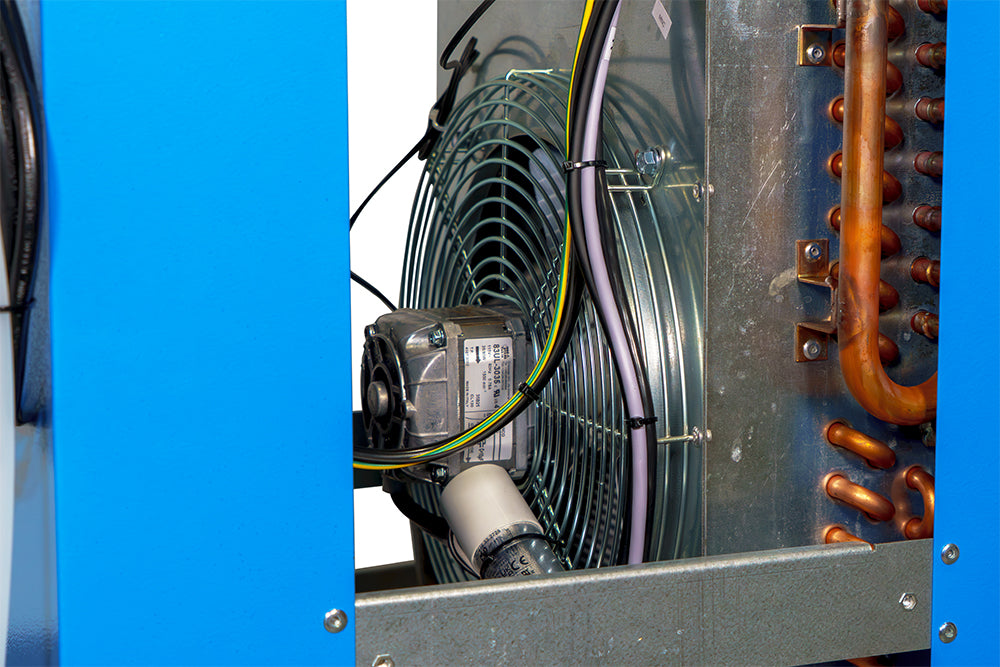

- Energy-efficient refrigeration compressor helps reduce power consumption and operating costs.
- Quiet operation at less than 70 dB(A) helps create a more comfortable work environment.

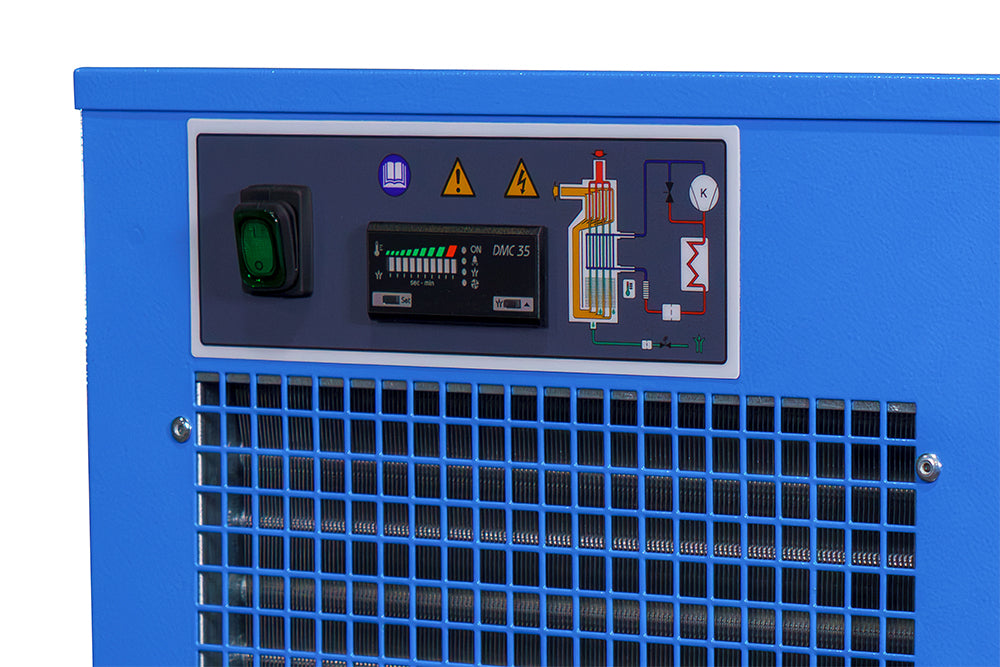

- DMC electronic controller manages dryer operation for reliable performance and stable dew point control.
- Handles high inlet air temperatures up to 194°F for demanding high-temperature compressed air applications.
- Operates in ambient temperatures up to 113°F for dependable performance in hot environments.
- Integrated design eliminates the need for a separate aftercooler and moisture separator, saving floor space and simplifying installation.

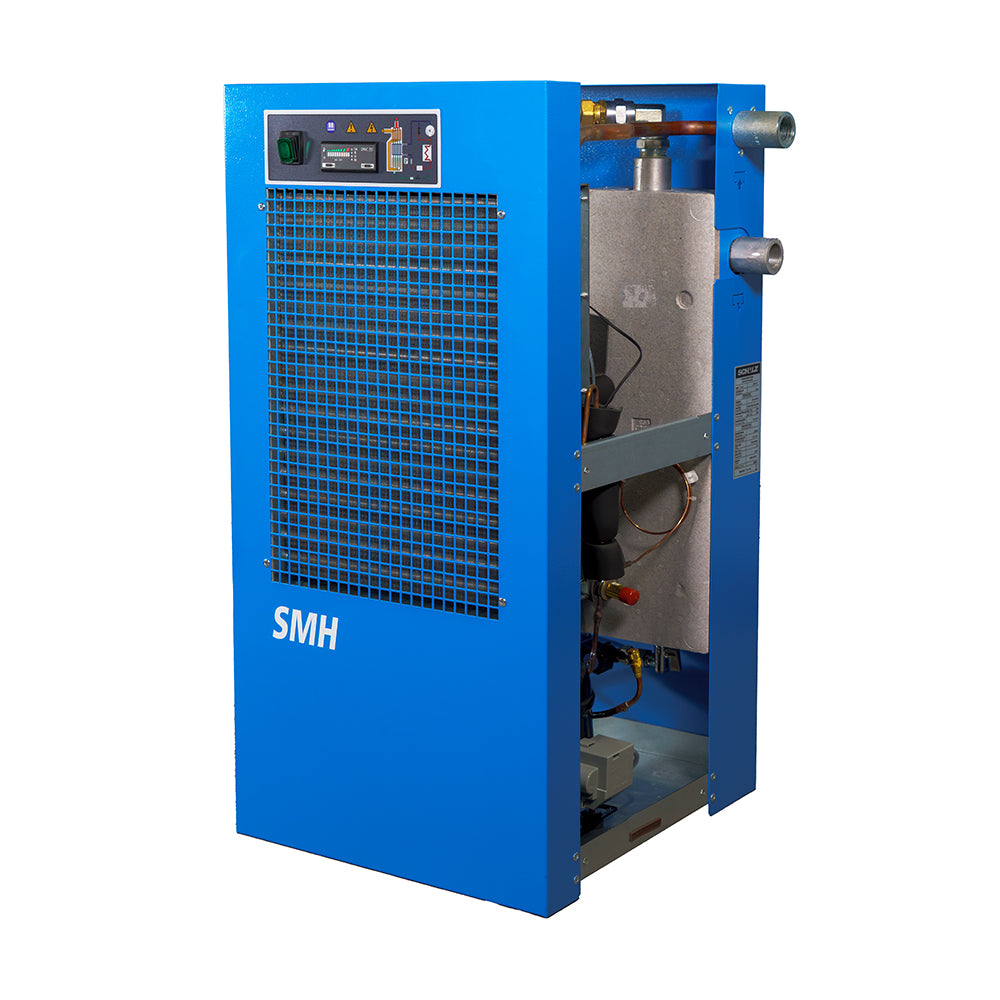

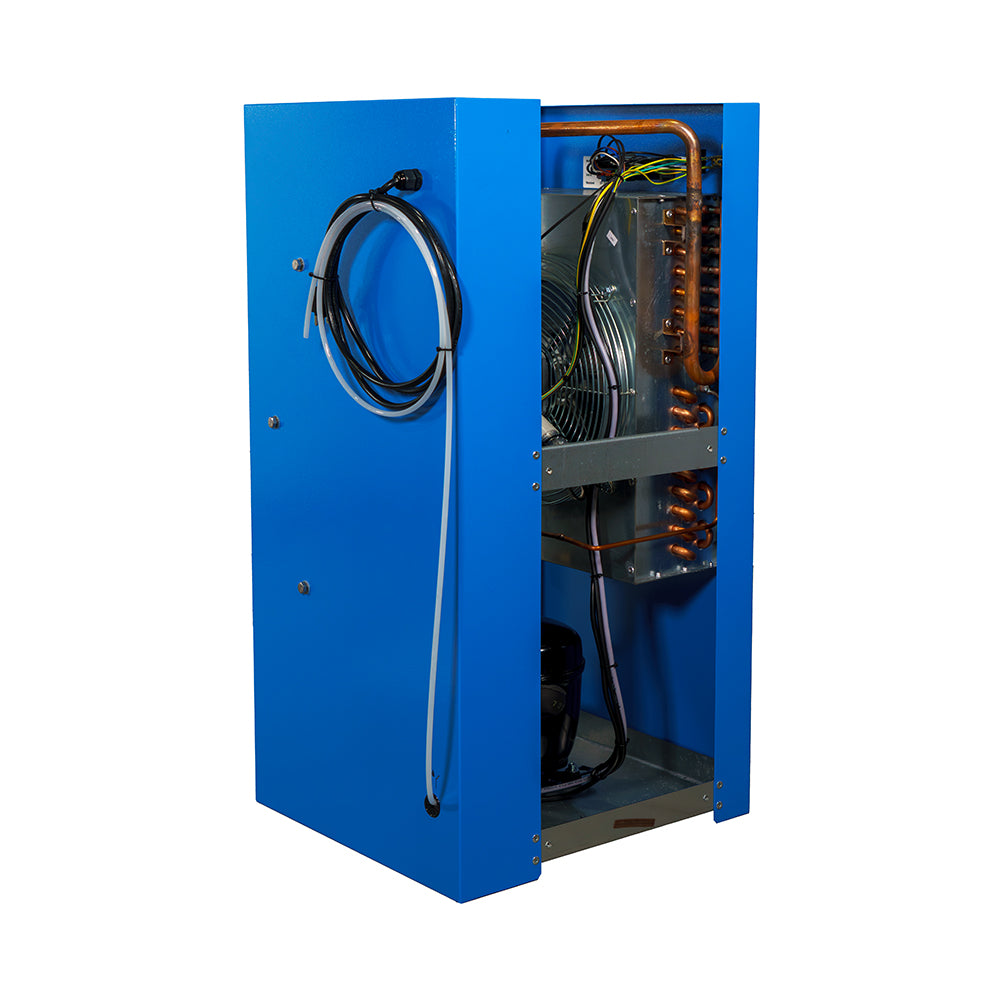

- Removable panels allow fast, easy access to internal components for maintenance and service.
- Automatic drain helps remove collected moisture for consistent, trouble-free operation.
Specifications
| Model | SMH-075-UP-TD |
|---|---|
| Dryer Type | High Temperature Refrigerated Air Dryer |
| Nominal Air Flow | 75 CFM |
| Nominal CFM at 50°F PDP | 88 CFM |
| Nominal CFM at 45°F PDP | 81 CFM |
| Nominal CFM at 41°F PDP | 66 CFM |
| Connection Size | 1 in. NPT-F |
| Heat Rejection | 4950 BTU/h |
| Voltage | 115 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Electrical Supply | 115/1/60 |
| Nominal Current | 7.5 A |
| Refrigerant | R513a |
|---|---|
| Length | 17.5 in. |
| Width | 17.3 in. |
| Height | 35.4 in. |
| Weight | 99 lb |
| Maximum Inlet Air Temperature | 194 °F |
| Maximum Ambient Temperature | 113 °F |
| Sound Level | Less than 70 dB(A) |
| Controller Type | DMC electronic controller |
| Drain Type | Automatic drain |
Warranty
This item comes with a 1 year warranty.
