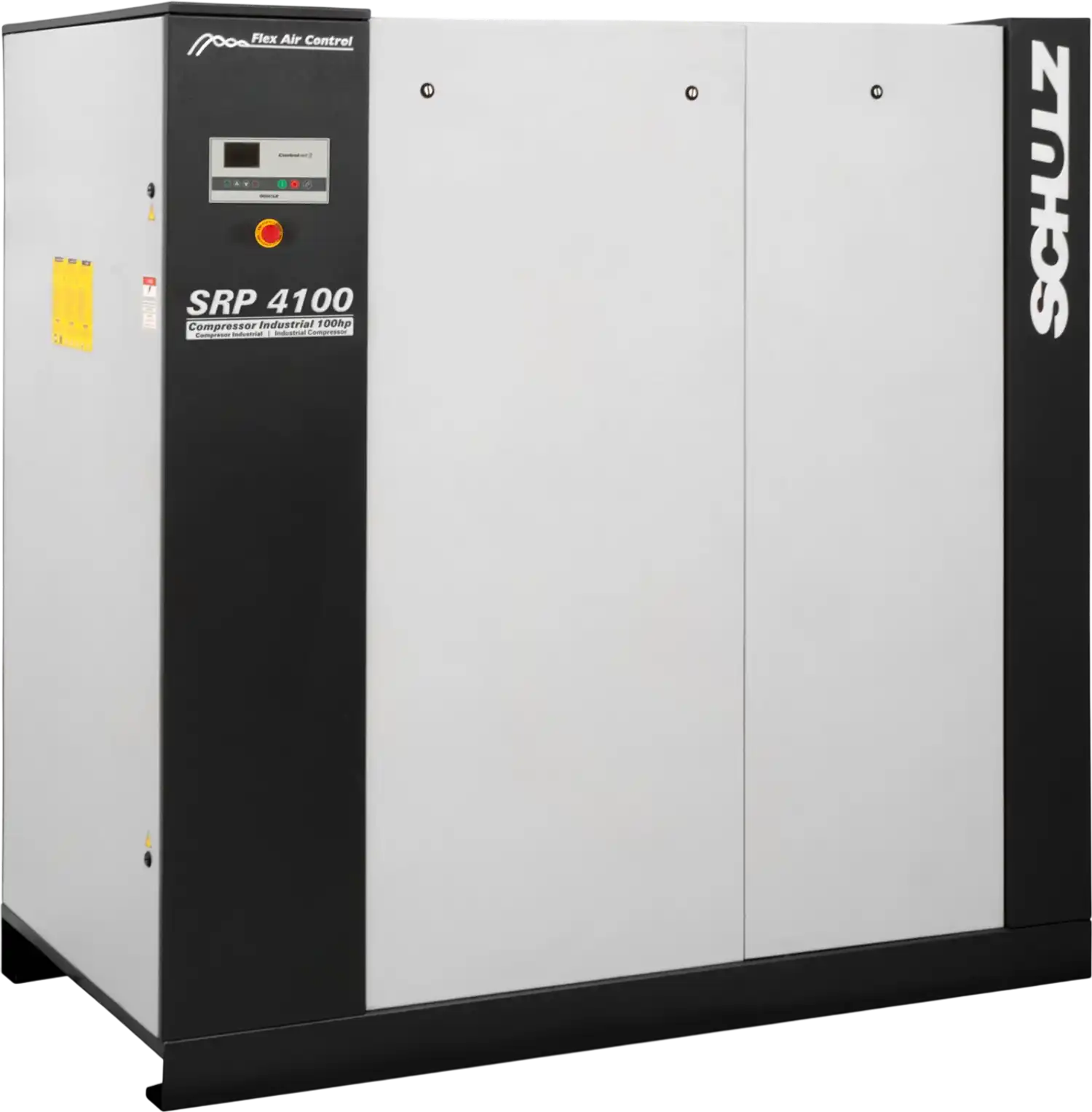

Schulz SRP 4000 Flex Line Rotary Screw Air Compressor 100 HP 460V 3-Phase 92-445 CFM 125 PSI SRP-4100 FLEX New
Manufacturer: Schulz
SKU: 970.3798-0/V1
QTY
or
(888) 999-1522
$ 53,204.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 Business Days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Schulz SRP 4000 Flex Line Rotary Screw Air Compressor 100 HP 460V 3-Phase 92-445 CFM 125 PSI SRP-4100 FLEX New
Product Overview
The Schulz SRP-4100 FLEX is a 100 hp variable-speed rotary screw air compressor designed for high-efficiency compressed air production in demanding industrial applications. Using a frequency inverter and microprocessor-based control, it adjusts air output to match system demand, helping reduce energy consumption, stabilize pressure in the air network, and improve overall operating efficiency. Its direct-driven design and fully enclosed package make it a strong choice for facilities that need dependable performance with lower noise.
Built for continuous 24-hour operation in ambient temperatures up to 113°F, the SRP-4100 FLEX features the ControlNet electronic controller for integrated monitoring, warning indications, maintenance scheduling, and operating condition supervision. High-efficiency two-stage intake filters help protect the air end and support clean, high-quality compressed air, while remote or local start capability and compressor sequencing support make it easier to integrate into larger compressor rooms.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Variable-speed rotary screw compressor helps reduce energy consumption by matching air production to system demand.
- Frequency inverter control minimizes pressure fluctuations in the air network for more stable compressed air delivery.
- Direct-driven design on 25 hp and larger models improves operating efficiency and power transmission.
- ControlNet electronic controller provides integrated system monitoring with warning indicators and maintenance scheduling.
- Microprocessor-based controls monitor operating conditions, signal faults, and support compressor sequencing in multi-compressor installations.
- Remote or local start capability gives flexible operation for different compressor room setups.
- Designed for continuous 24-hour operation in ambient temperatures up to 113°F.
- High-efficiency two-stage intake filters help protect the air end and support clean, high-quality compressed air.
- Fully enclosed package design keeps operating noise low for a quieter work environment.
- Consumable monitoring helps simplify maintenance planning while supporting longer service life and consistent performance.
Specifications
| Model | SRP 4100E Flex |
|---|---|
| Series | SRP 4000 Flex Line |
| Compressor Type | Rotary Screw Air Compressor |
| Drive Type | Direct Drive |
| Control Type | Variable Speed with Frequency Inverter |
| Maximum Pressure | 125 psi |
| Maximum Pressure (bar) | 8.6 |
| Motor Power (hp) | 100 |
| Motor Power (kW) | 75 |
| Voltage (V) | 460 |
| Phase | Three |
| Air Flow (CFM) | 92-445 |
|---|---|
| Effective Flow (CFM) | 385 |
| Effective Flow (L/min) | 2,547 - 10,899 |
| Noise Level (dBA) | 79 |
| Discharge Connection (in.) | 1 1/2 |
| Tank | No Tank |
| Dimensions (H x W x D) | 78.7 x 77.2 x 43.3 in |
| Weight (lb) | 3,042 |
Warranty
Schulz compressors include a 2-year warranty on the compressor pump and a 1-year warranty on all other components.
