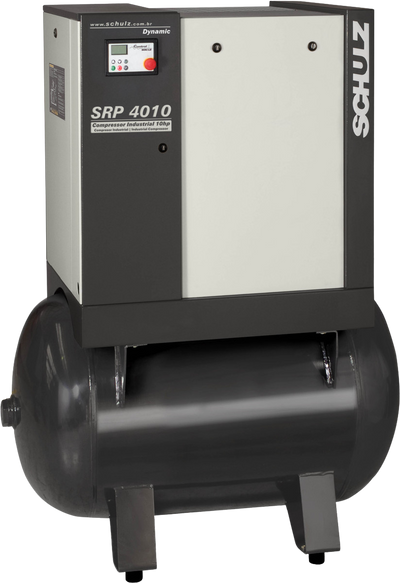

Schulz SRP-4010 Dynamic Air Compressor 10 HP 120 gal. 208-230V 3-Phase Horizontal New
Manufacturer: Schulz
SKU: 970.3902-0
Voltage
QTY
or
(888) 999-1522
$ 11,352.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 Business Days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Schulz SRP-4010 Dynamic Air Compressor 10 HP 120 gal. 208-230V 3-Phase Horizontal New
Product Overview
The SRP Dynamic Line, available from 7.5 to 50 hp, is synonymous with versatility for applications requiring high performance in places where quiet operation is a must, and for spaces with difficult access or limited area. Designed to operate 24 hours continuous in places with ambient temperatures up to 113 °F, they are equipped with a three-phase IP 55 Totally Enclosed Electric motor and high efficiency filter which improves the compressed air quality. Dynamics microprocessor controller monitors the compressor operation, signals failures, and provides local/remote operation.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- TEFC, IP55, degree of protection electric motors.
- Automatic starters with phase and sequence failure detection.
- Lubricated air-end.
- Low maintenance costs.
- Low oil consumption.
- Coolers updraft for heat recovery installation.
- Modern design components.
- High effi ciency electric motors.
- Thermostatic valve for working temperature control.
- 24V Control panel.
- Constant readings.
- Adjustable parameters of operation.
Specifications
| Item Number | 970.3902-0 |
| Model | SRP-4010 Dynamic |
| Max. Pressure | 125 |
| Motor HP | 10 |
| Motor kW | 7.5 |
| Phase | 3-Phase |
| Voltage | 208/230V |
| Discharge Connection | 3/4 in. |
| Free Air @ 125 PSI (CFM, l/min) | 35 |
| Pump Type | Rotary |
| After Cooler | Yes |
| Pump Drive | Belt |
| Oil Type | Oil Lubricated |
| Tank | 120 gal. |
| Tank Orientation | Horizontal |
| Noise Level dB(A) | 69 |
| Dimensions (D x W x H) | 27.6 x 58.5 x 39.8 in. |
| Weight | 613 lbs. |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
Package Contents
Schulz SRP-4010 Dynamic Air Compressor 10 HP 120 gal. 208/230V 3-Phase Horizontal
User Manual
Warranty
This item comes with a 1 year on the product and 2 year warranty on the pump.
