Shop Fox W1669 Benchtop Radial Drill Press 34" New
Manufacturer: Shop Fox
SKU: W1669
QTY
(888) 999-1522
$ 489.00
Exceptional Customer Service
Authorized Dealer
Shop Fox W1669 Benchtop Radial Drill Press 34" New
Product Overview

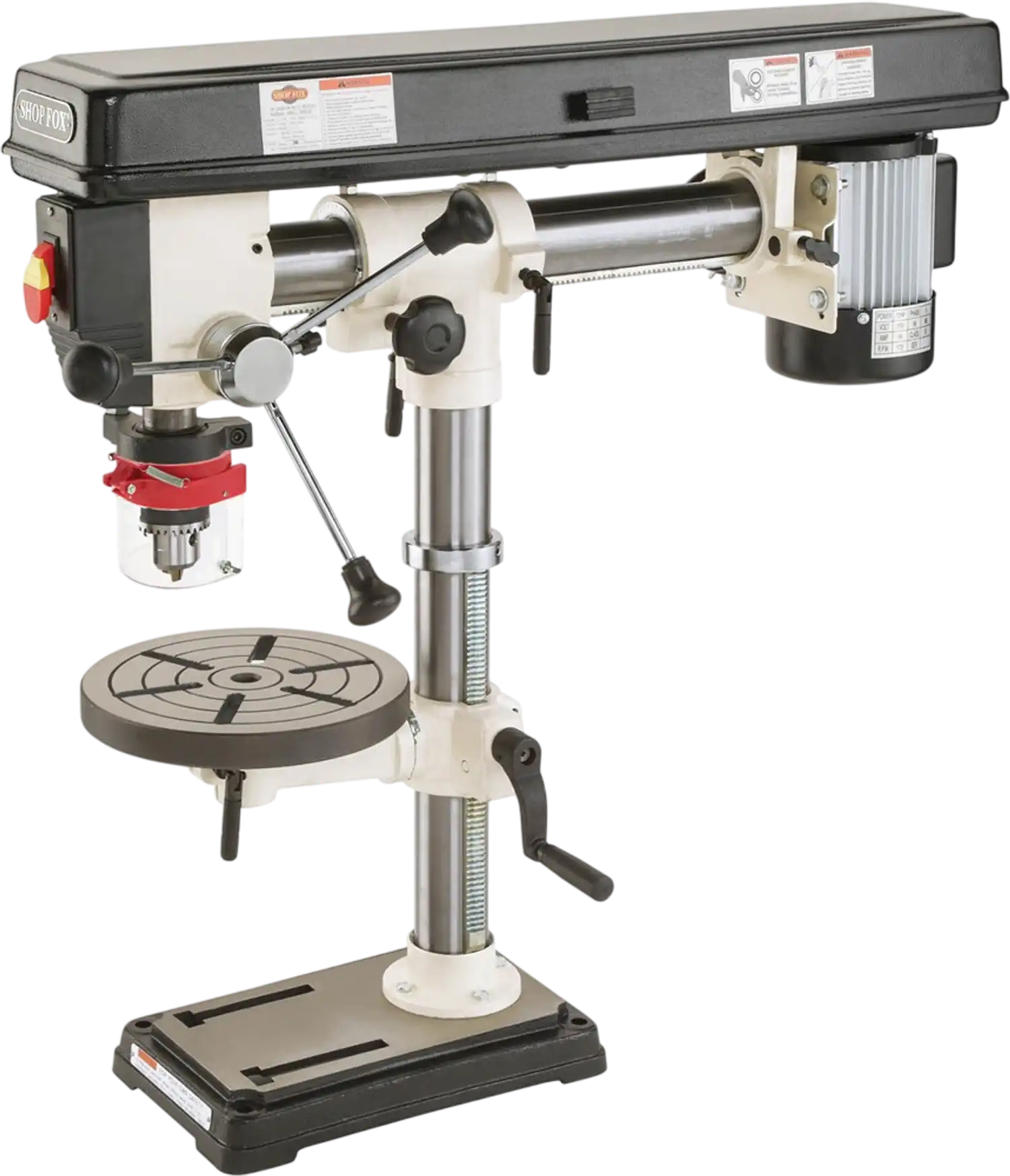

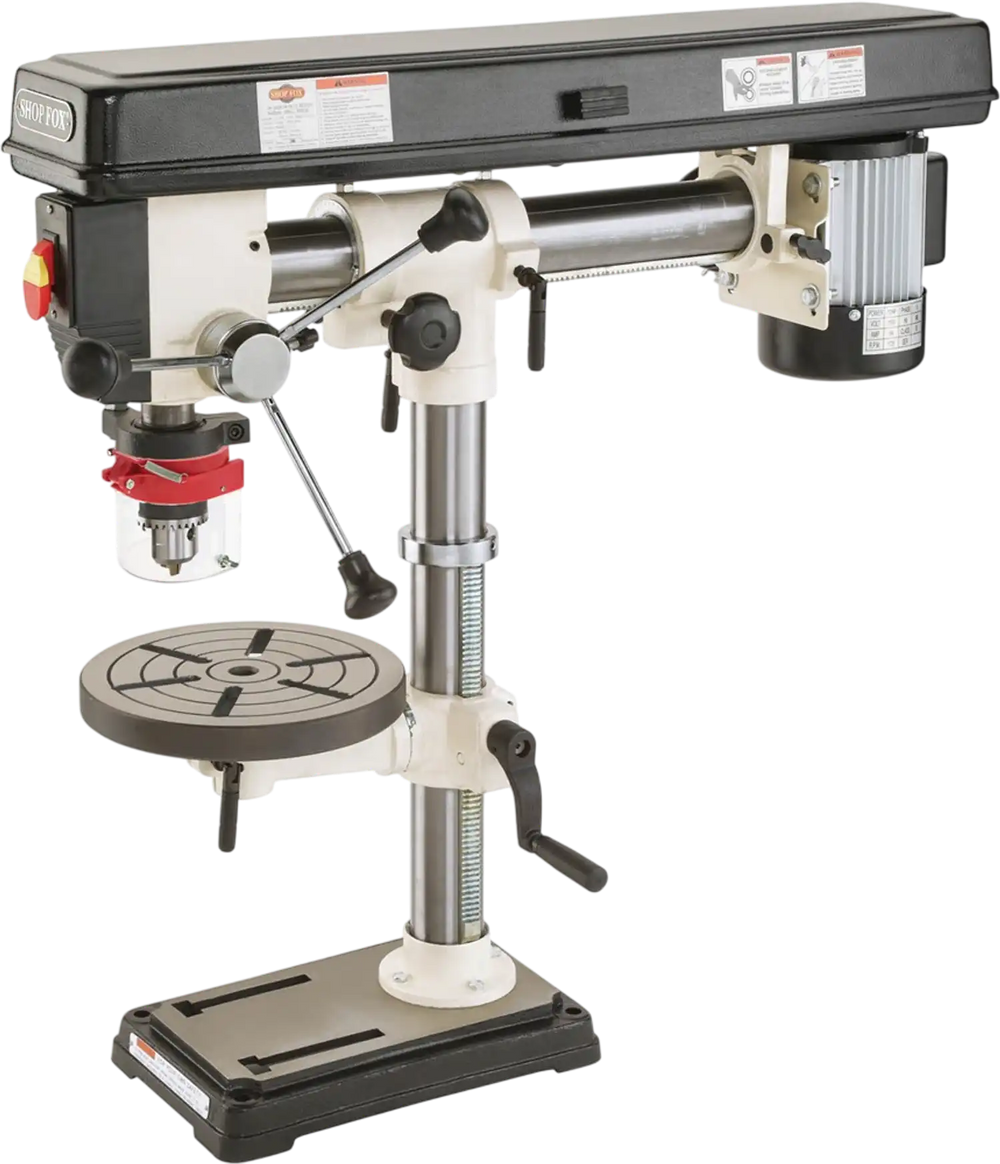

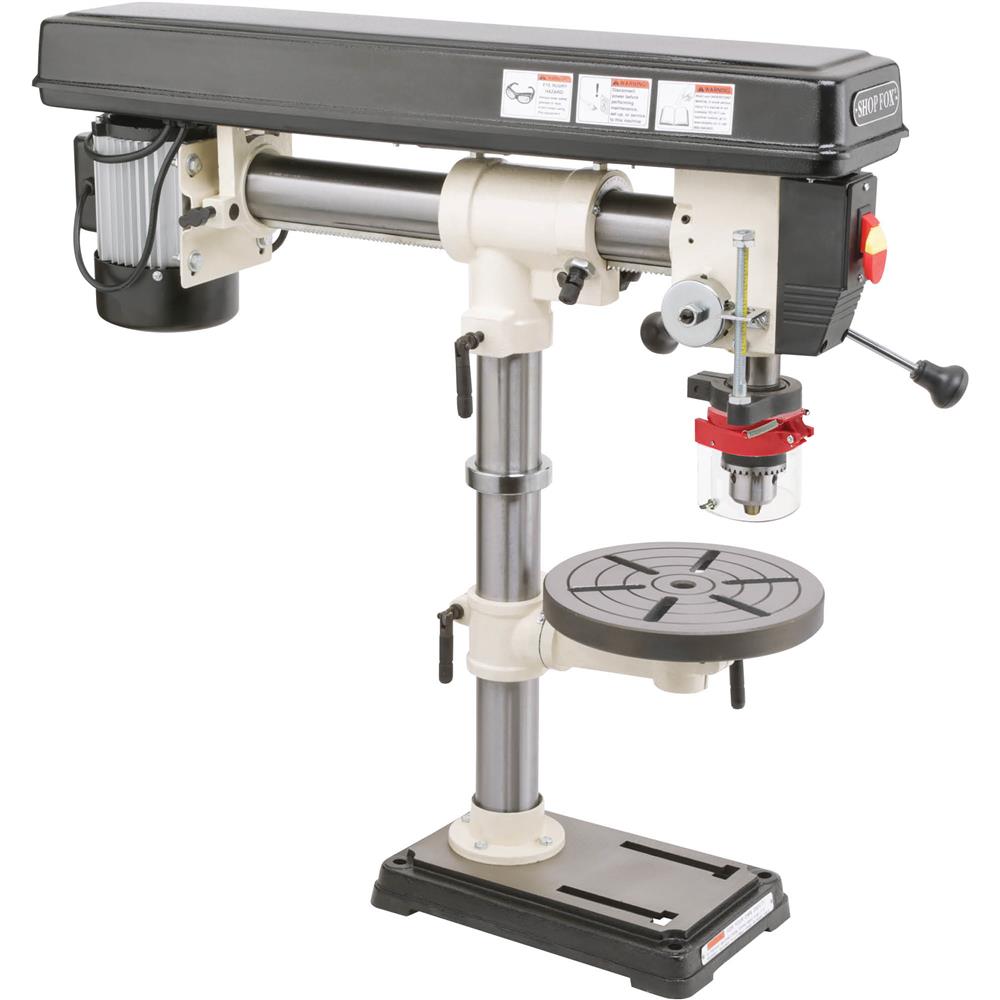

The Shop Fox W1669 is a benchtop radial drill press designed for versatile, accurate drilling in a compact workshop footprint. Its radial design, sliding headstock, and tilting head make it easy to position the spindle for angled and offset drilling that standard drill presses can’t handle as easily.
A 1/2 HP motor drives five spindle speeds from 550 to 3000 RPM, giving you the range to work with wood, plastic, fiberglass, composites, and up to 1/2 inch mild steel. The keyed chuck accepts bits from 1/16 inch to 5/8 inch, while 3-1/4 inches of spindle travel and an adjustable depth stop help with controlled, repeatable results.

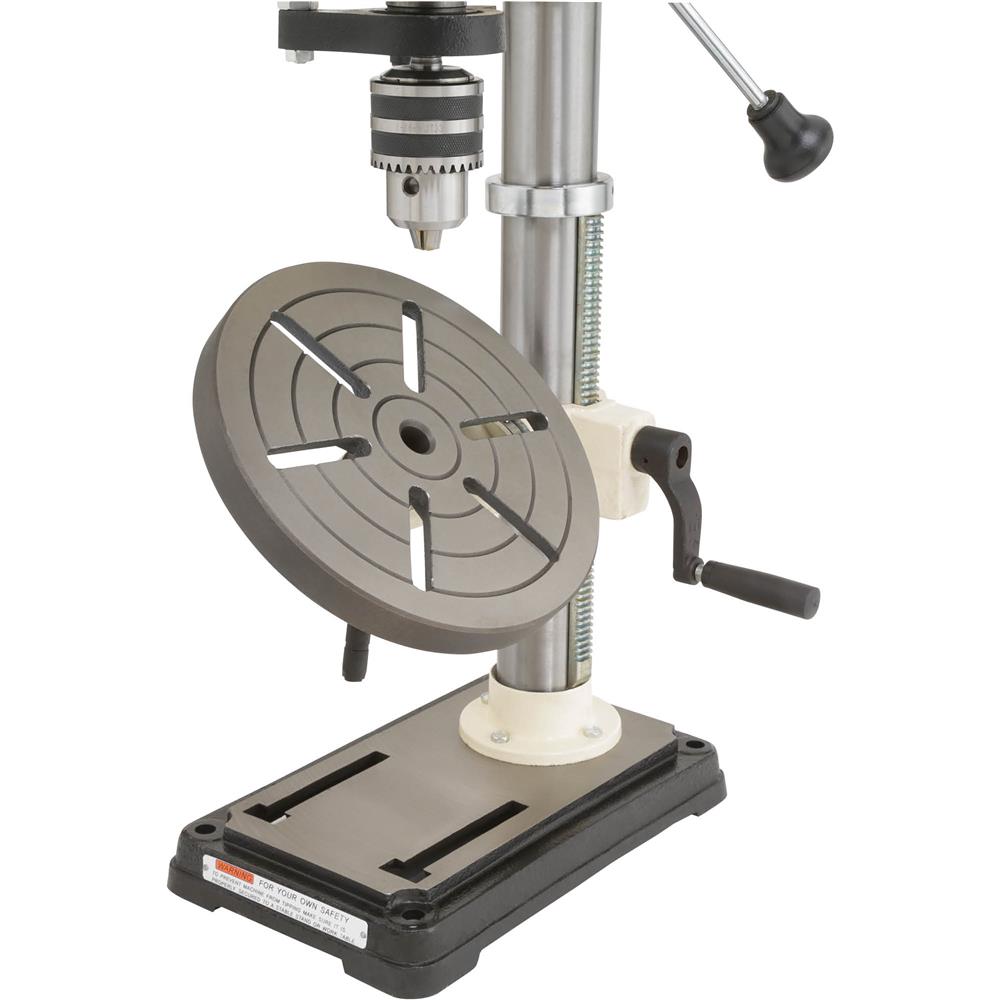

The cast-iron table offers solid support and can raise, tilt, and rotate around the column for added flexibility. This model is a strong choice for hobbyists, small shops, and makers who want a compact drill press with expanded angle-drilling capability.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized Shop Fox dealer
Features
- Two-year warranty!!
- Horizontal sliding headstock

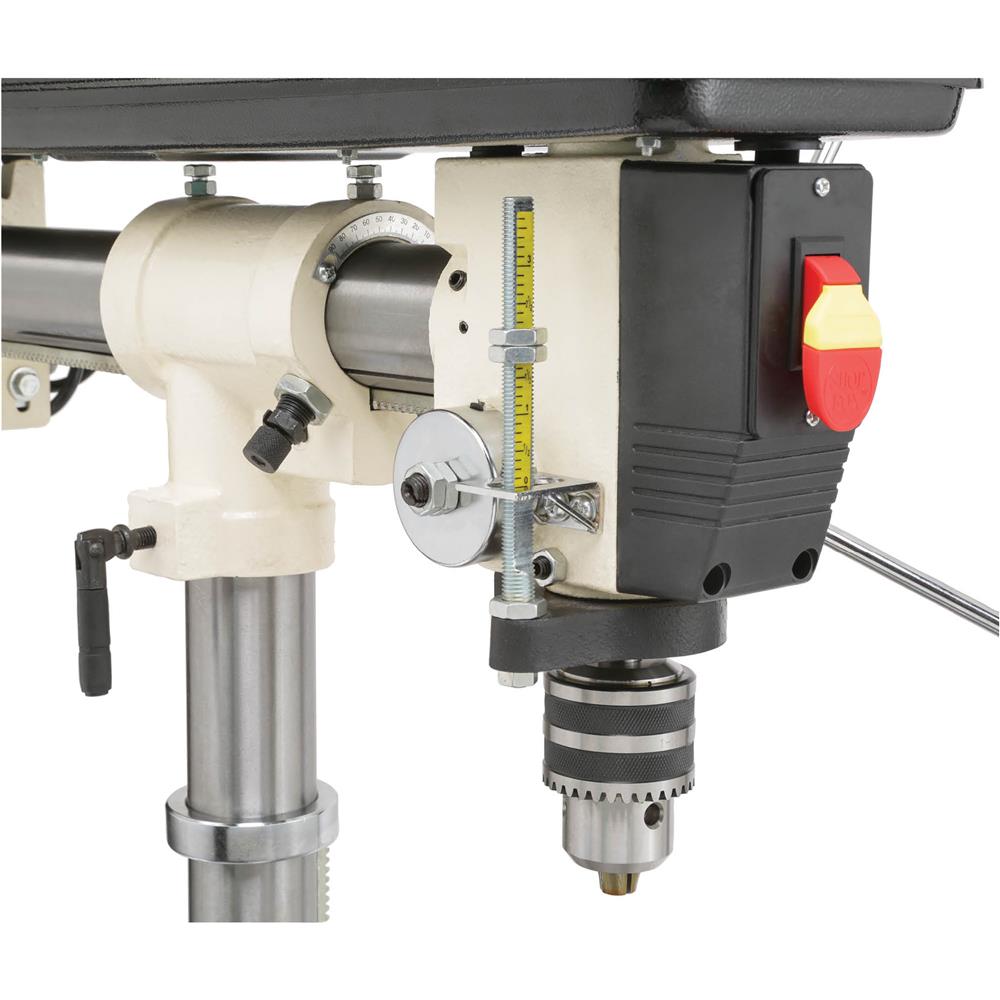

- Threaded depth stop
- Crank handle operated rack-and-pinion vertical table movement
- Table has lock levers
- Radial design allows angle drilling
- Cushioned grip quill handles
- Precision-ground cast-iron table
Specifications
| Motor | 1/2 HP, 120V, single-phase, 4.7A |
|---|---|
| Swing | 34" |
| Drill chuck | 1/16"–5/8" |
| Drilling capacity | 1/2" mild steel |
| Spindle taper | JT-33 |
| Spindle travel | 3-1/4" |
| Number of speeds | 5, 550–3000 RPM |
| Column diameter | 2.360" |
| Table size | 9-3/4" diameter |
| Table swing | 360° |
| Table tilts | 90° L/R |
|---|---|
| Table T-slots | 6 @ 5/8" |

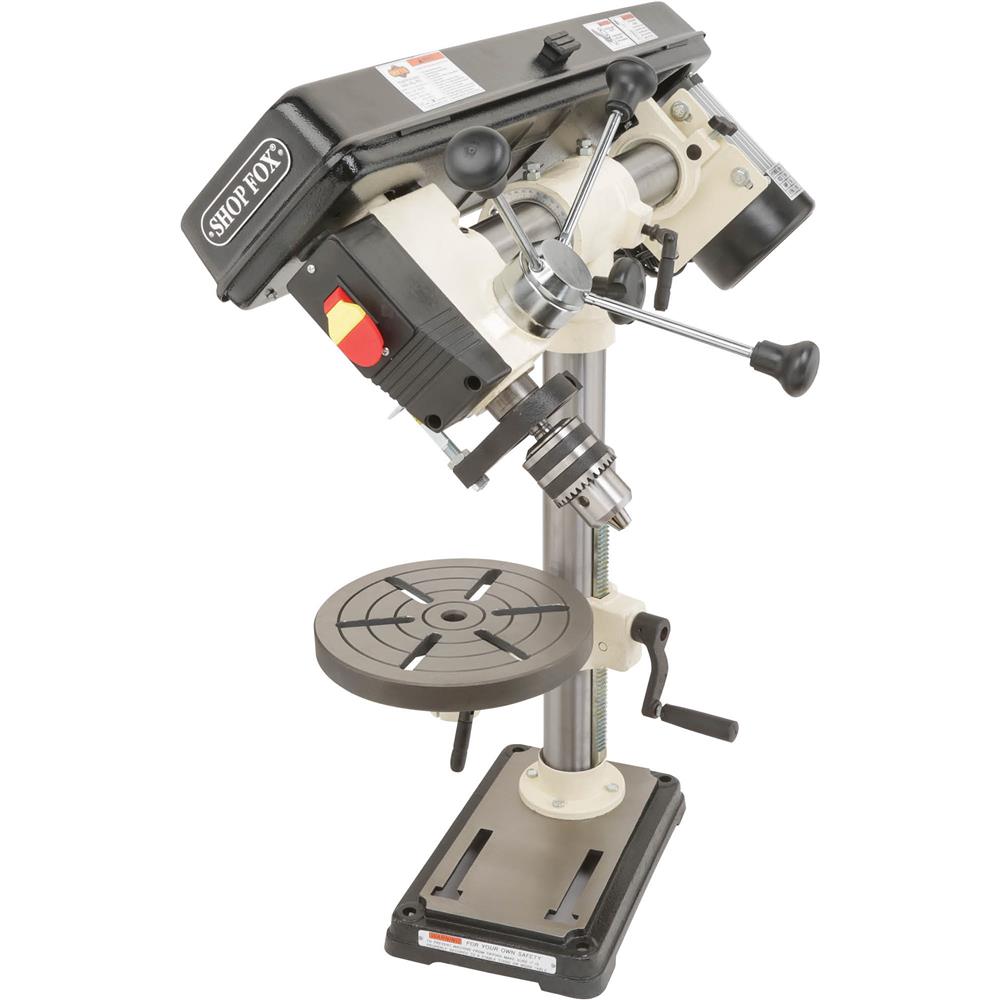

| Head tilt | 45 degrees left, 90 degrees right |
| Footprint | 8-1/2" W x 13-1/2" L |
| Overall size | 12" W x 33-1/2" D x 31-1/2" H |
| Approximate shipping weight | 98 lbs. |
Warranty
This item comes with a 2 year factory warranty.
