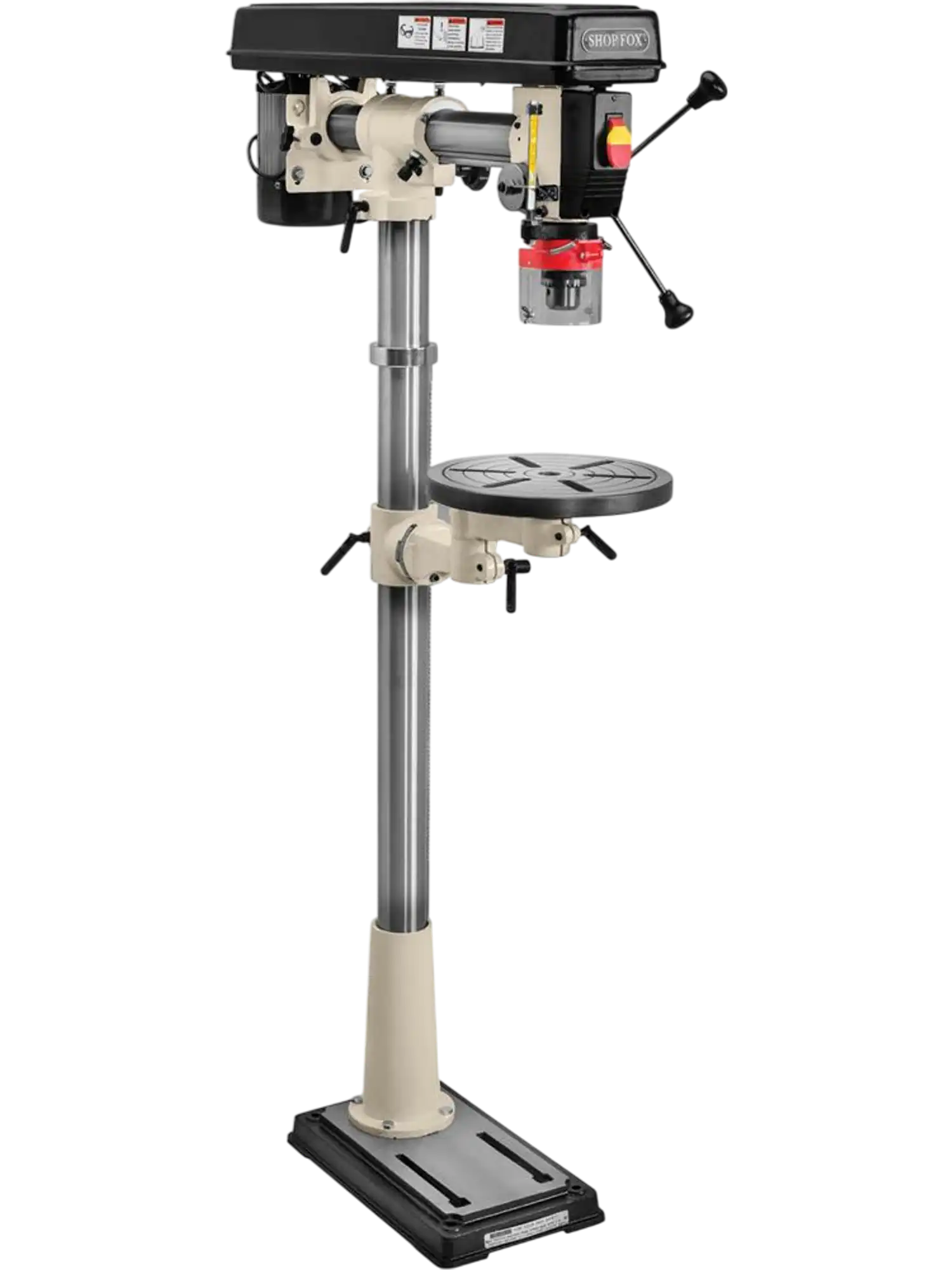

Shop Fox W1670 Floor Radial Drill Press 34" New
Product Overview

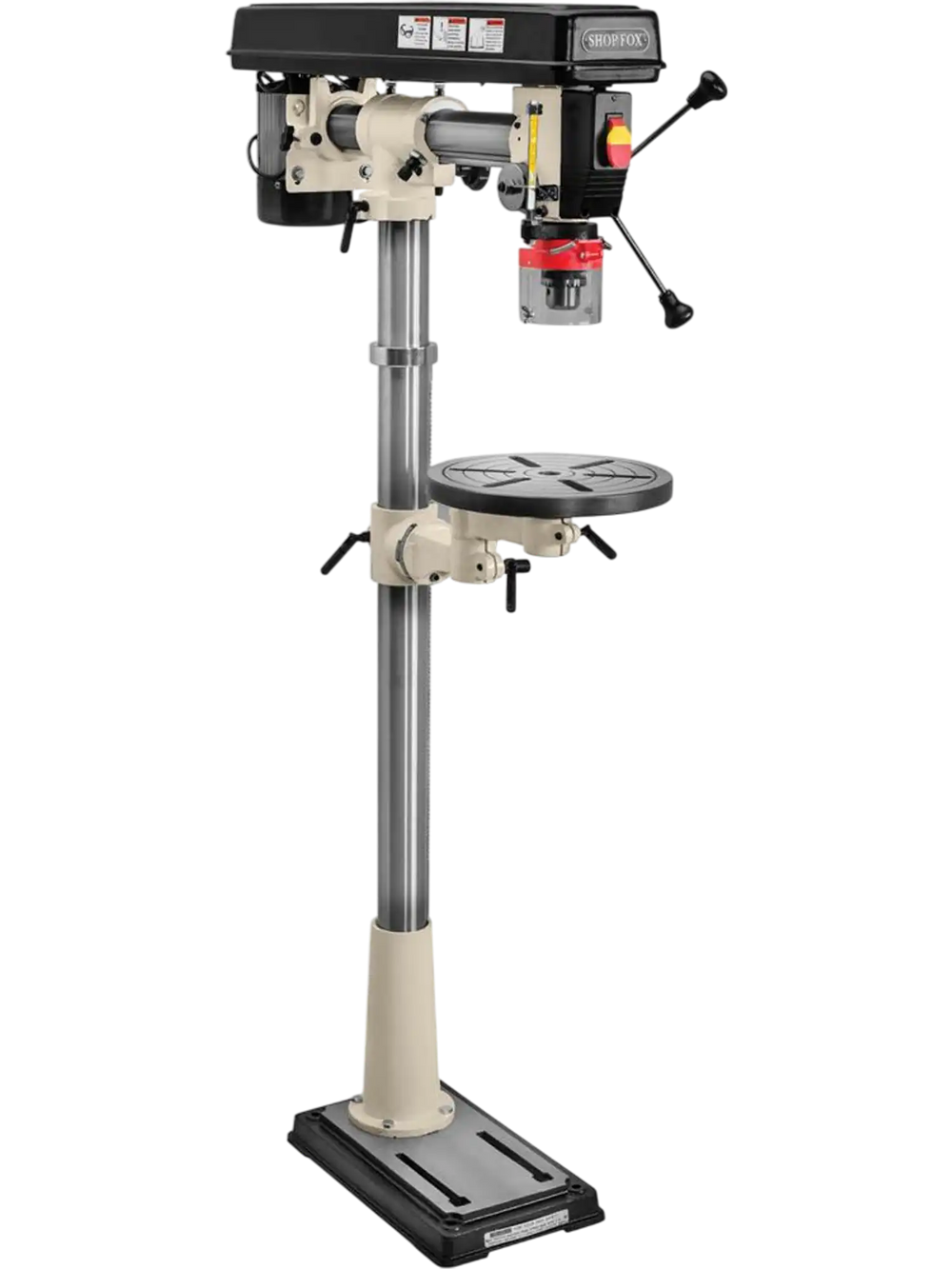

The Shop Fox W1670 is a 34-inch floor radial drill press designed for flexible, precise drilling in wood, plastic, fiberglass, composites, and mild steel. Its radial design, sliding headstock, and tilting head make it well suited for angled drilling and for positioning the bit exactly where the job requires.

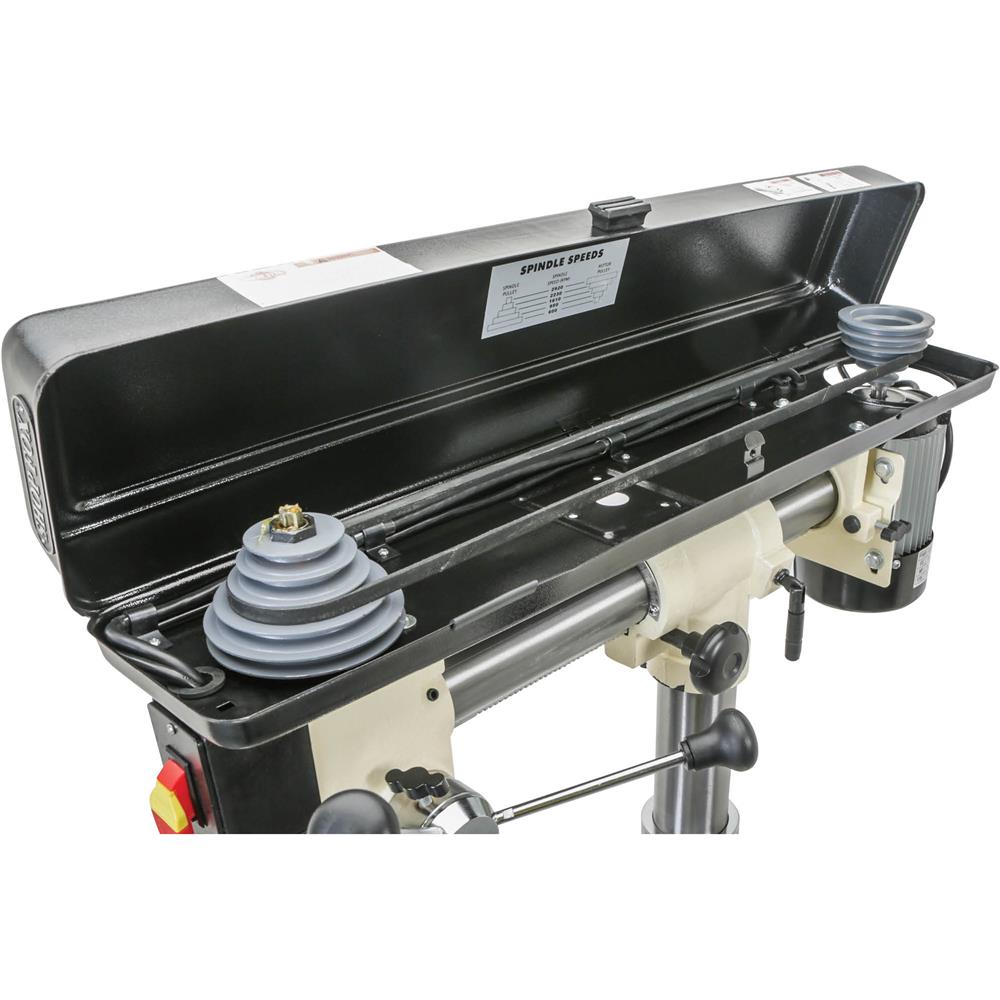

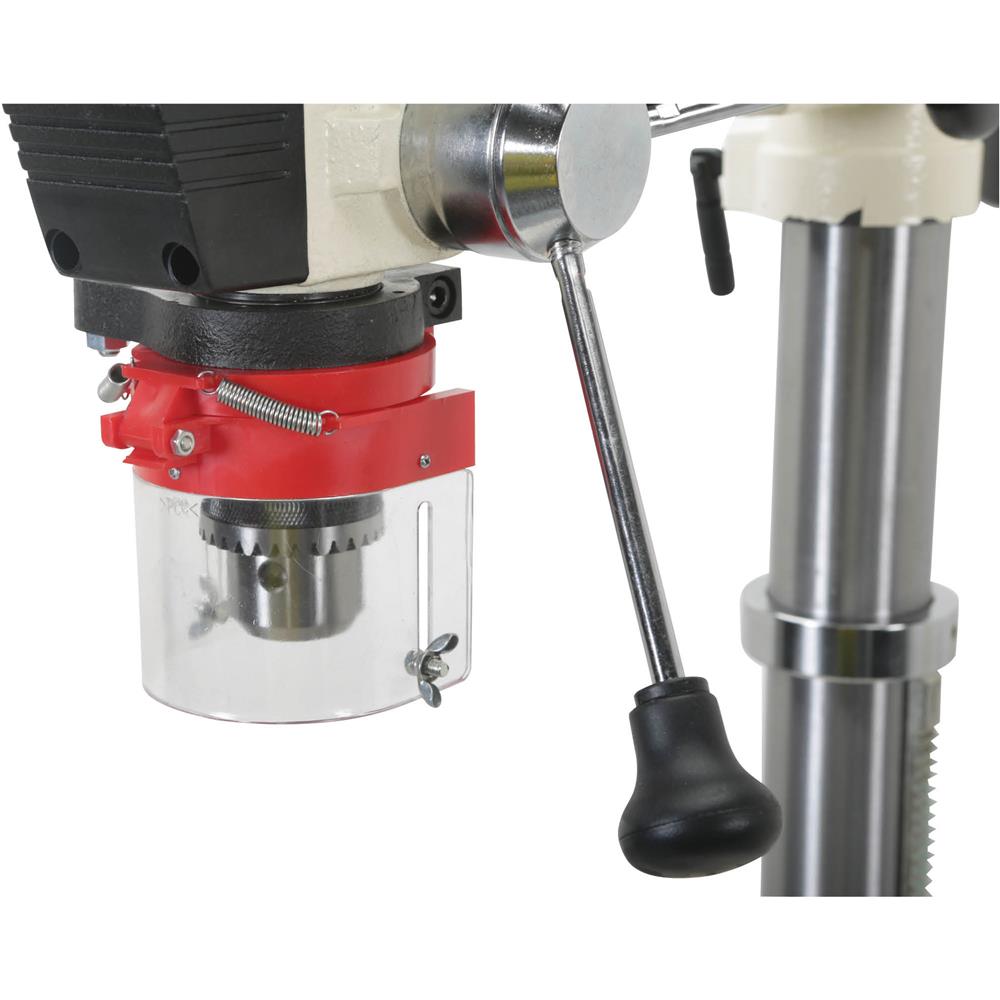

A 1/2 HP motor drives five spindle speeds from 550 to 3000 RPM, giving you the range needed for different materials and bit sizes. The drill press features a 1/16-inch to 5/8-inch keyed chuck, 3-1/4-inch spindle travel, and an adjustable threaded depth stop for consistent repeat drilling.

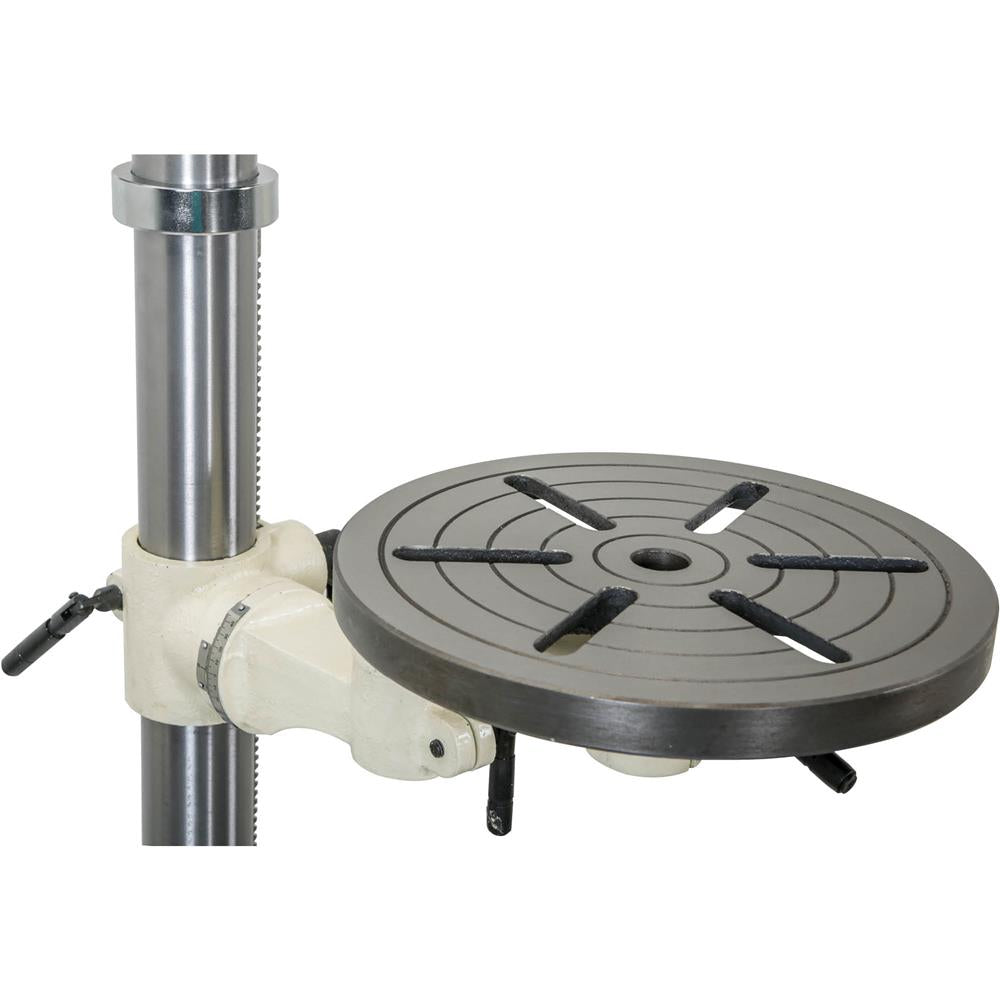

The cast-iron table offers solid support and adjusts vertically with rack-and-pinion control, while also tilting and rotating around the column for added versatility. This model is a strong choice for serious hobbyists, home workshops, and small professional shops that need a capable floor-standing drill press with broad adjustment options.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized Shop Fox dealer
Features
- Two-year warranty!!

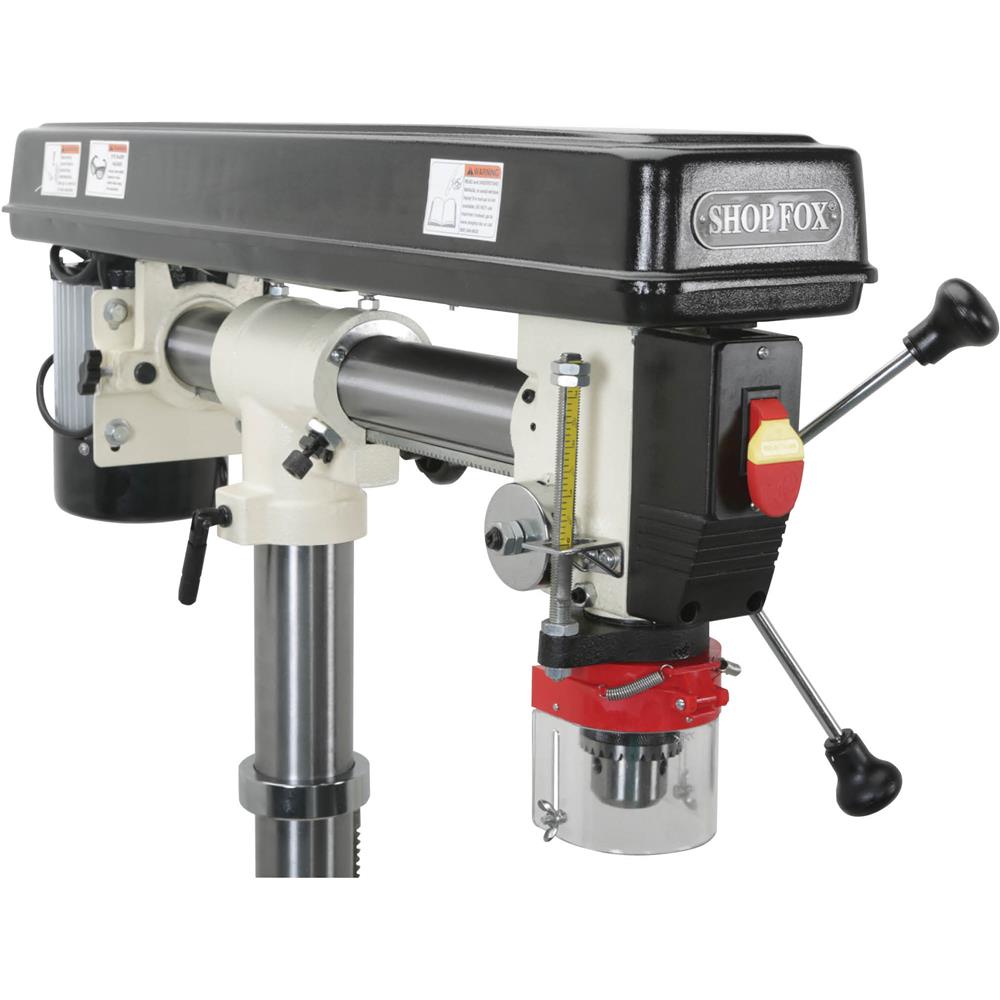

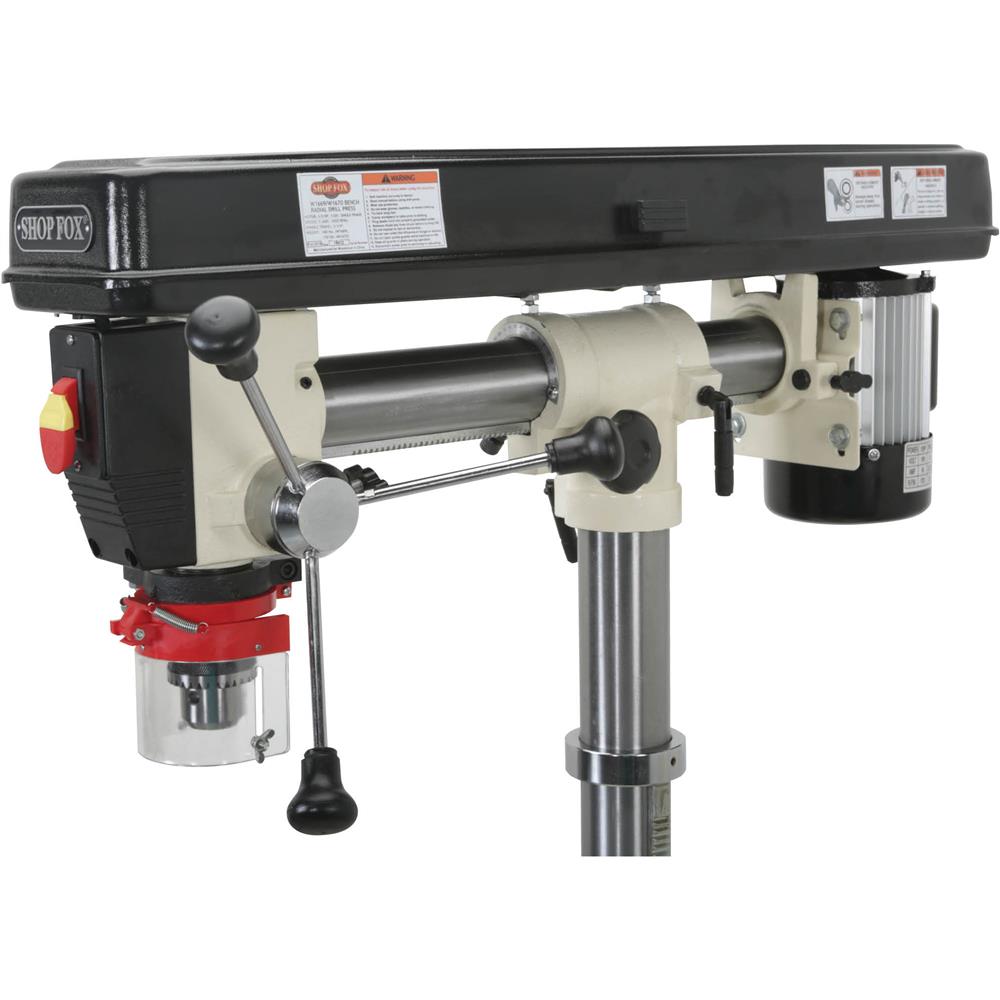

- Horizontal sliding headstock
- Threaded depth stop
- Table has lock levers
- Cushioned grip quill handles
- Crank handle operated rack-and-pinion vertical table movement
- Radial design allows angle drilling
- Precision-ground cast-iron table
Specifications
| Motor | 1/2 HP, single-phase, 120V, 4.7A |
| Swing | 34" |
| Drill chuck | 1/16"–5/8" |
| Drilling capacity | 1/2" mild steel |
| Spindle taper | JT-33 |
| Spindle travel | 3-1/4" |
| Number of speeds | 5, 550–3000 RPM |
| Column diameter | 2.79" |
| Table size | 12-3/16" dia. |
| Table swing | 360° |
| Table tilts | 90° L/R |
| Table T-slots | 5 @ 5/8" |

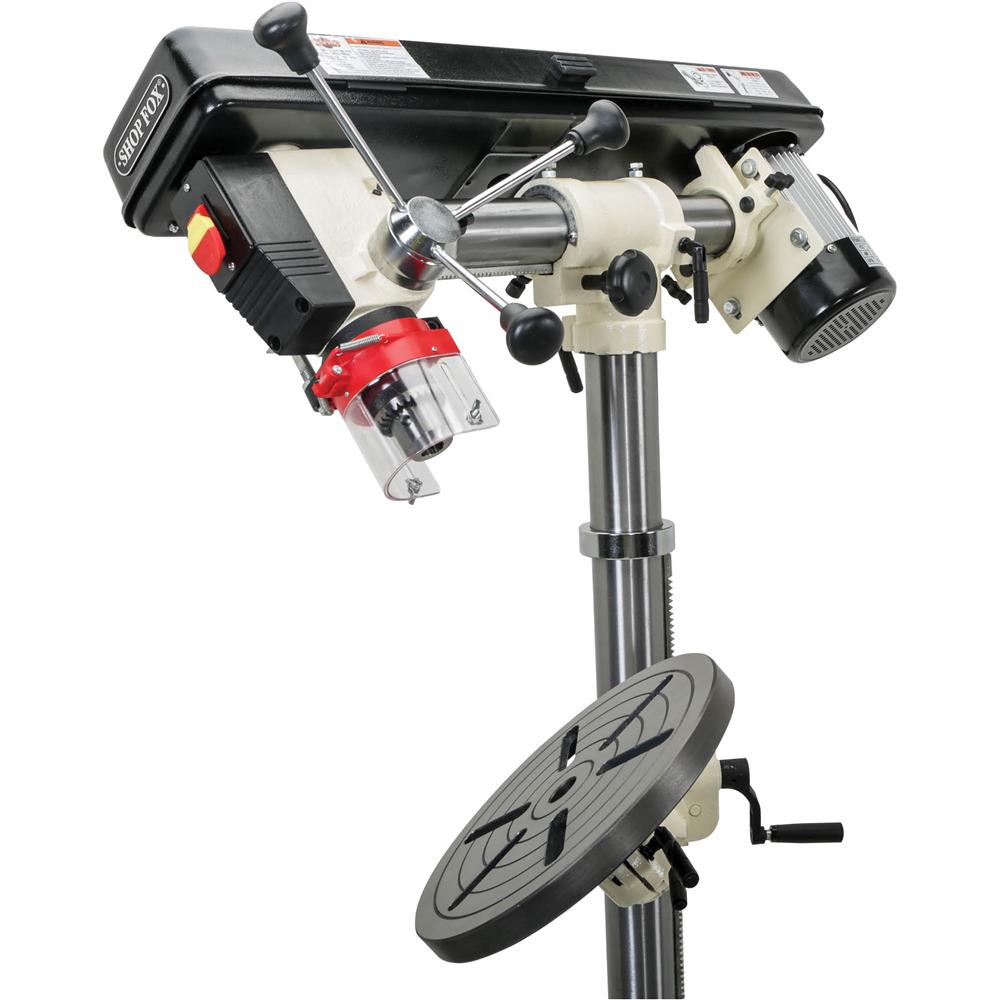

| Head tilt | 45° L, 90° R |

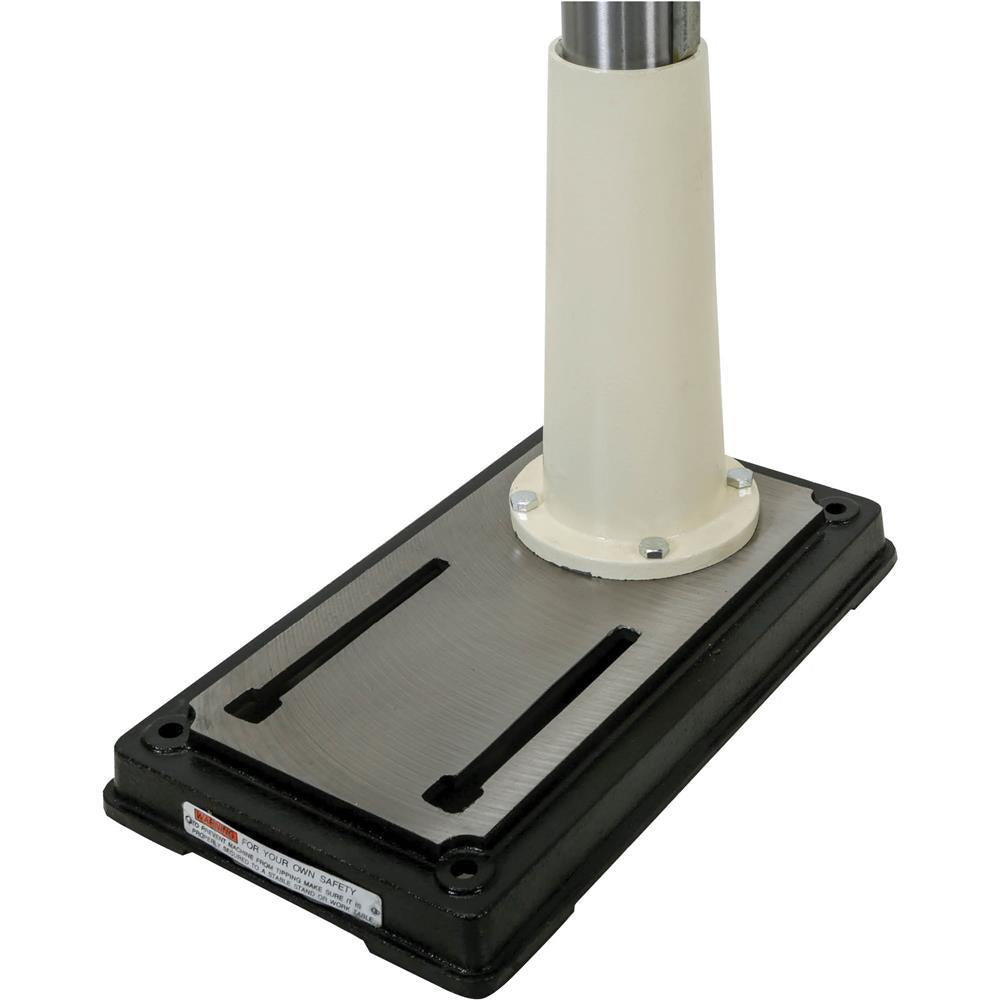

| Footprint | 11" x 11" |
| Overall size | 14" W x 32" D x 64-1/2" H |
| Approximate shipping weight | 147 lbs. |
