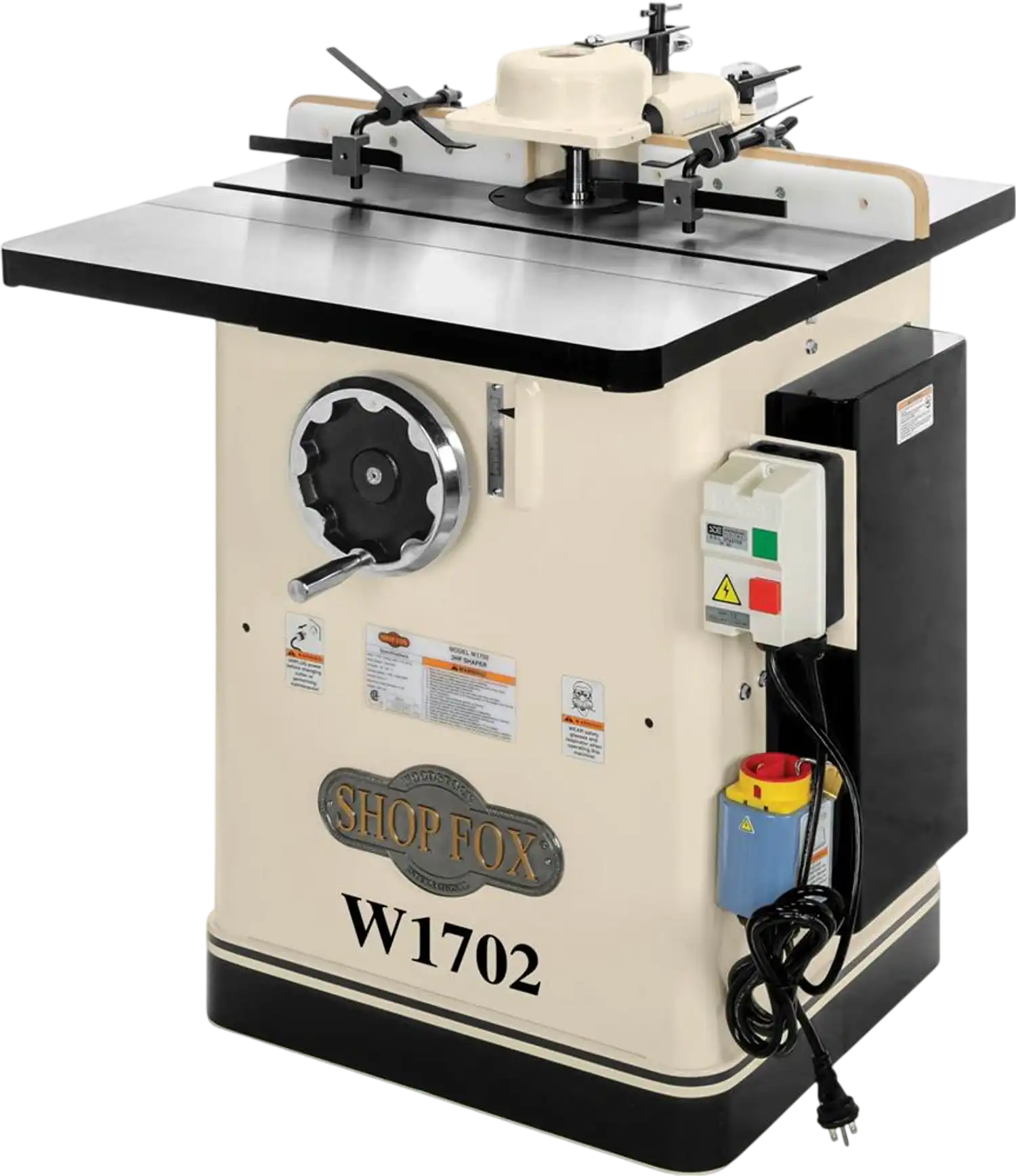

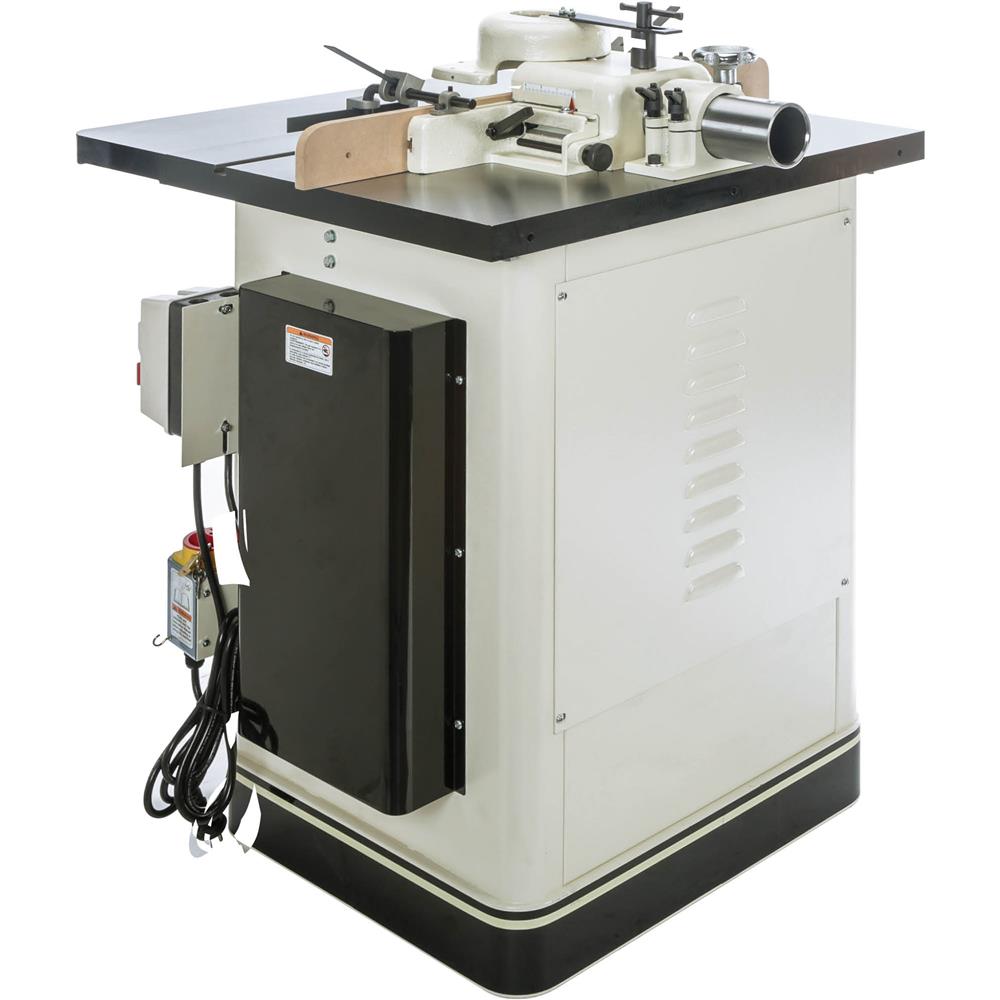

Shop Fox W1702 Shaper 3 HP New
Product Overview
The Shop Fox W1702 is a 3 HP woodworking shaper built for edge profiling, raised panels, and the production of door stiles and rails. With reversible spindle speeds of 7,000 and 10,000 RPM, it gives woodworkers the flexibility to run a wide range of cutters for detailed shaping work.
This machine features a large precision-ground cast-iron table, a heavy split fence with independent adjustment, and 3 inches of spindle travel for accurate setup and control. Three included spindle sizes let it handle everything from small profile cutters to large panel cutters up to 5-1/2 inches in diameter.
Designed for serious hobbyists, custom cabinet shops, and professional woodworking environments, it combines stability, power, and versatility in one floor-standing unit. A built-in dust port, miter gauge, removable inserts, and starting pins make it well suited for both routine shaping tasks and more specialized applications.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized Shop Fox dealer

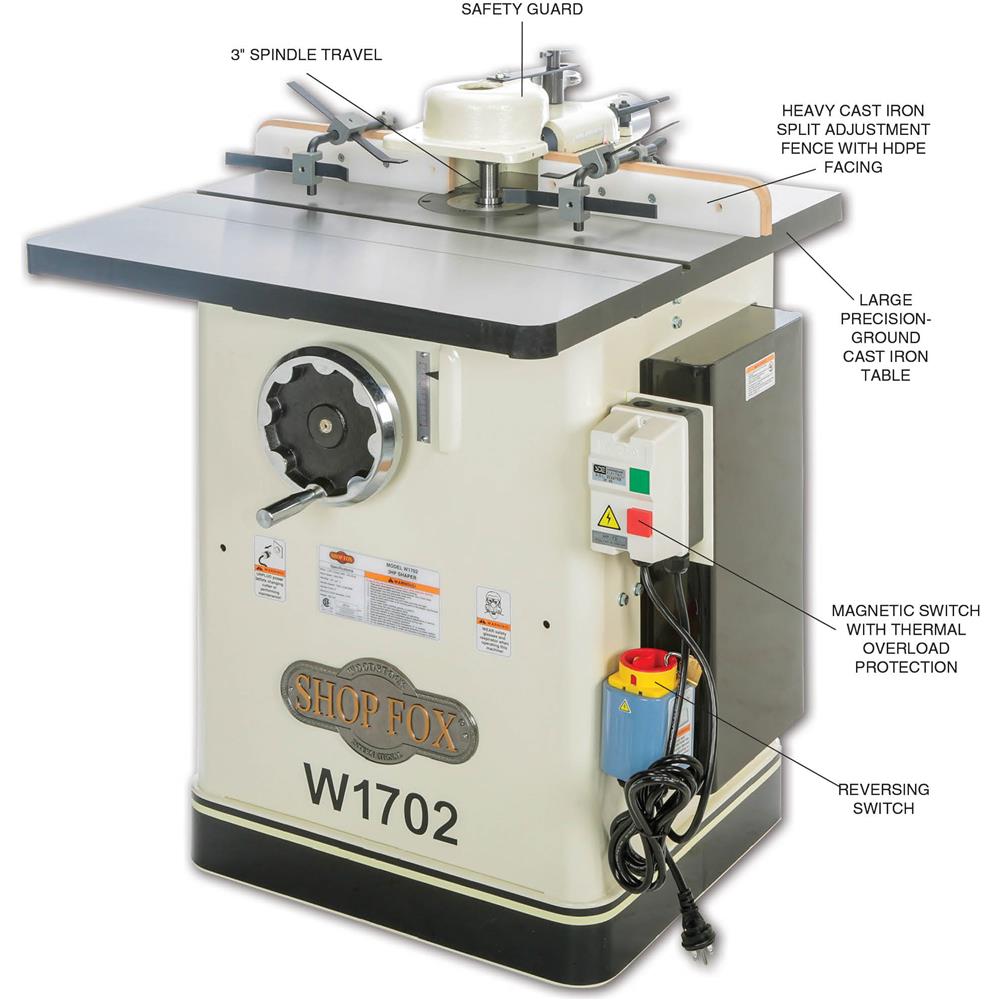

Features
- Two-year warranty!!

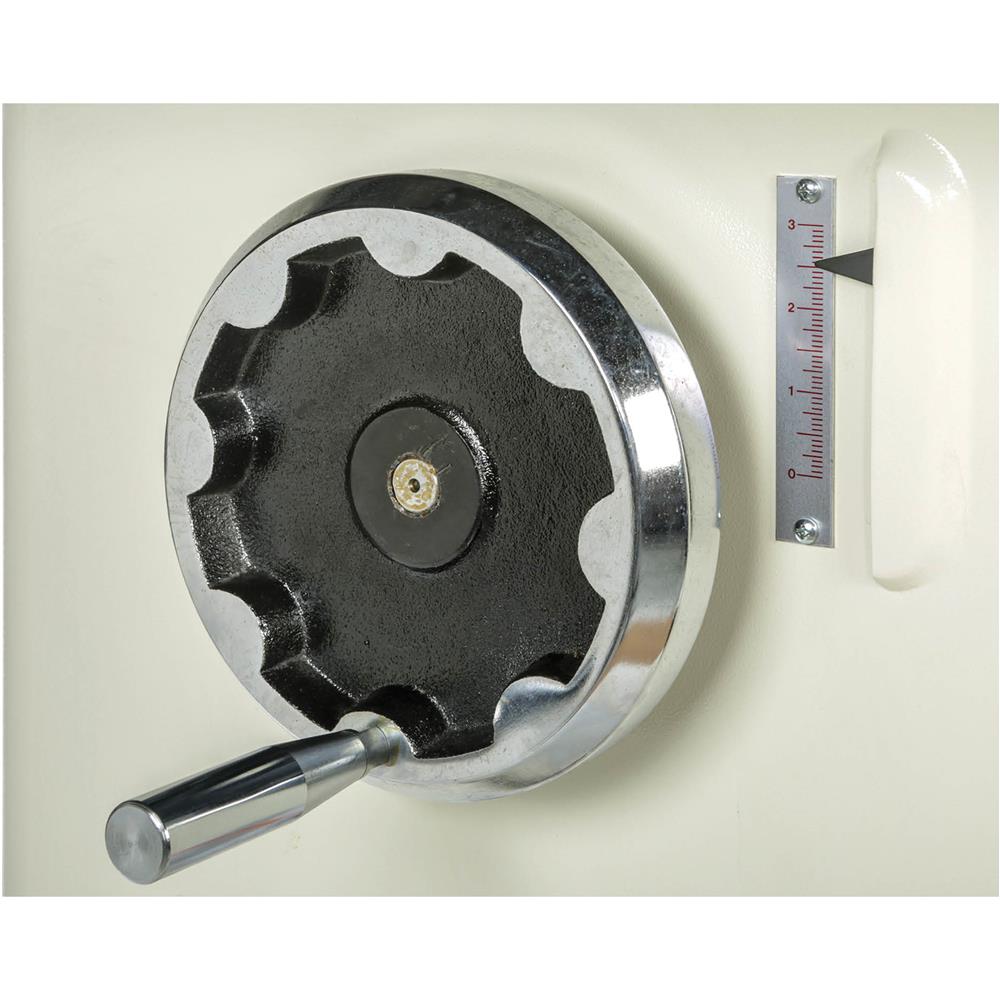

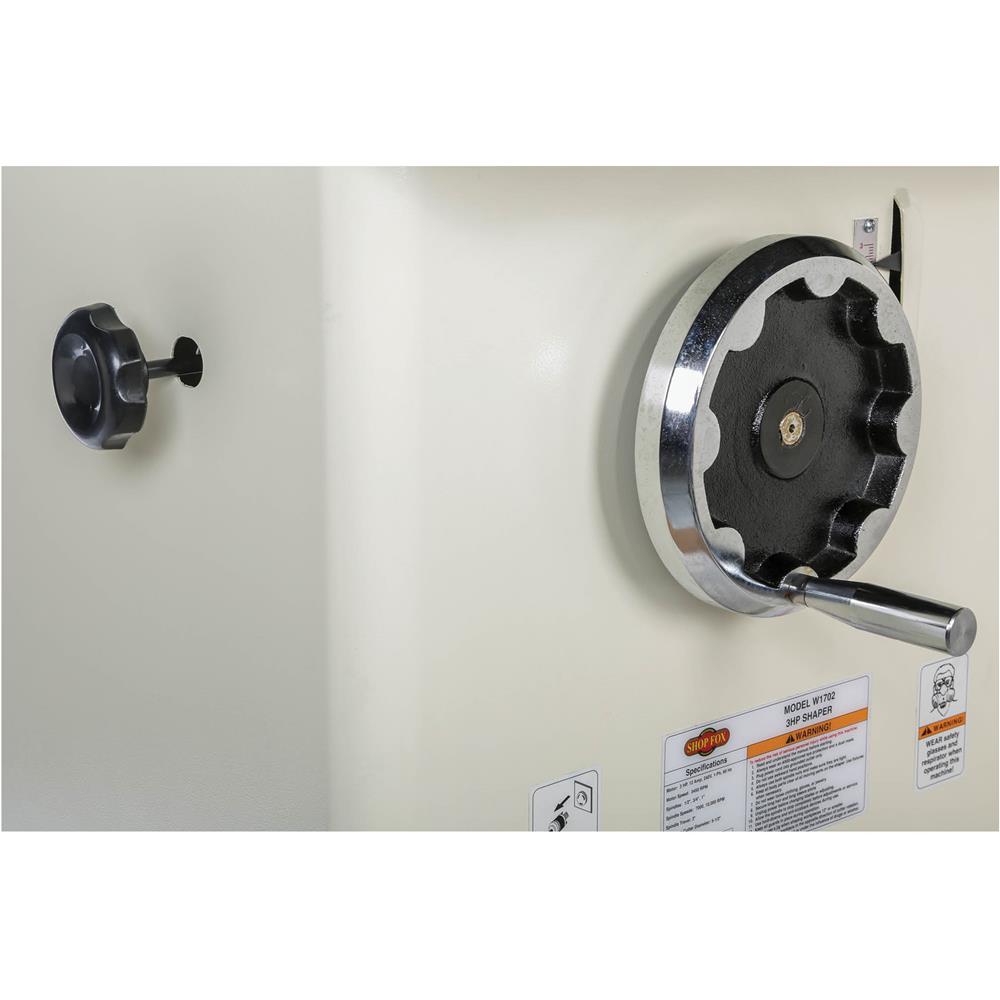

- Large handwheel elevates the spindle for precise control
- Spindle lock knob ensures consistent results

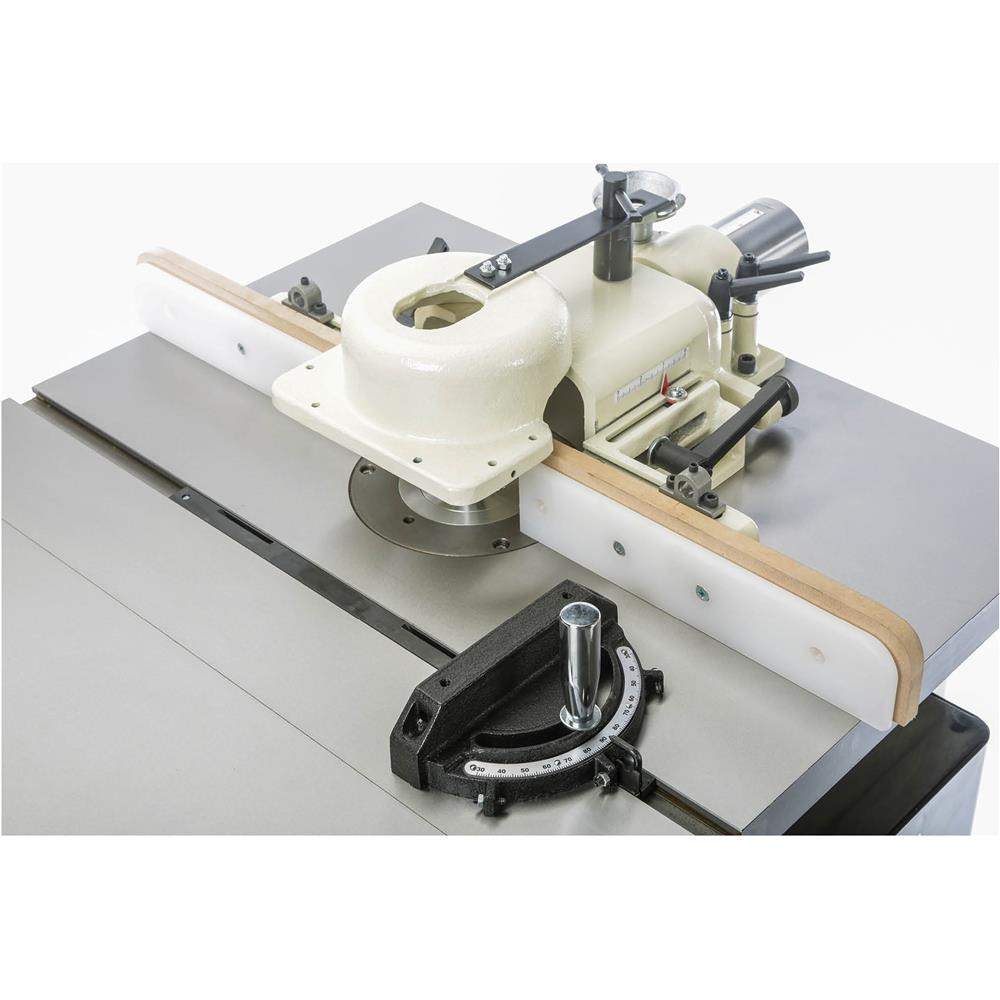

- T-slot miter gauge
- Locking forward/reverse spindle switch

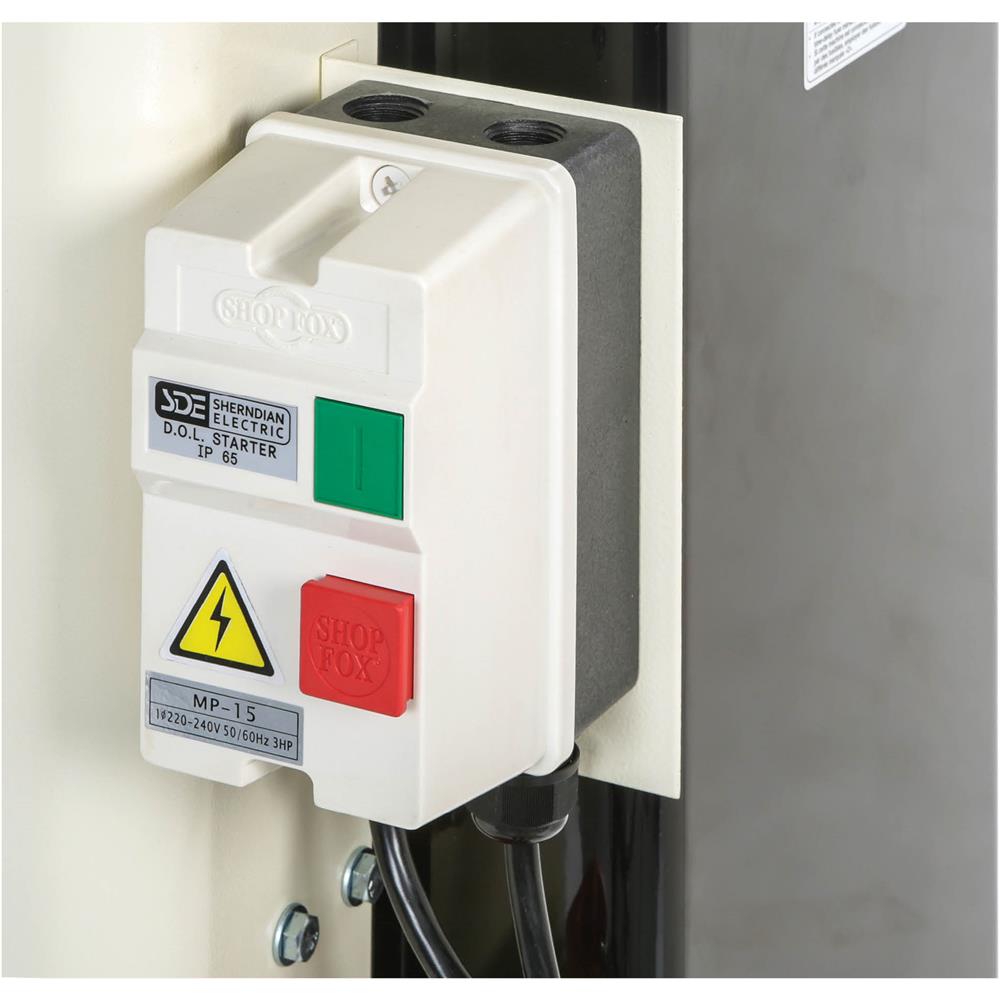

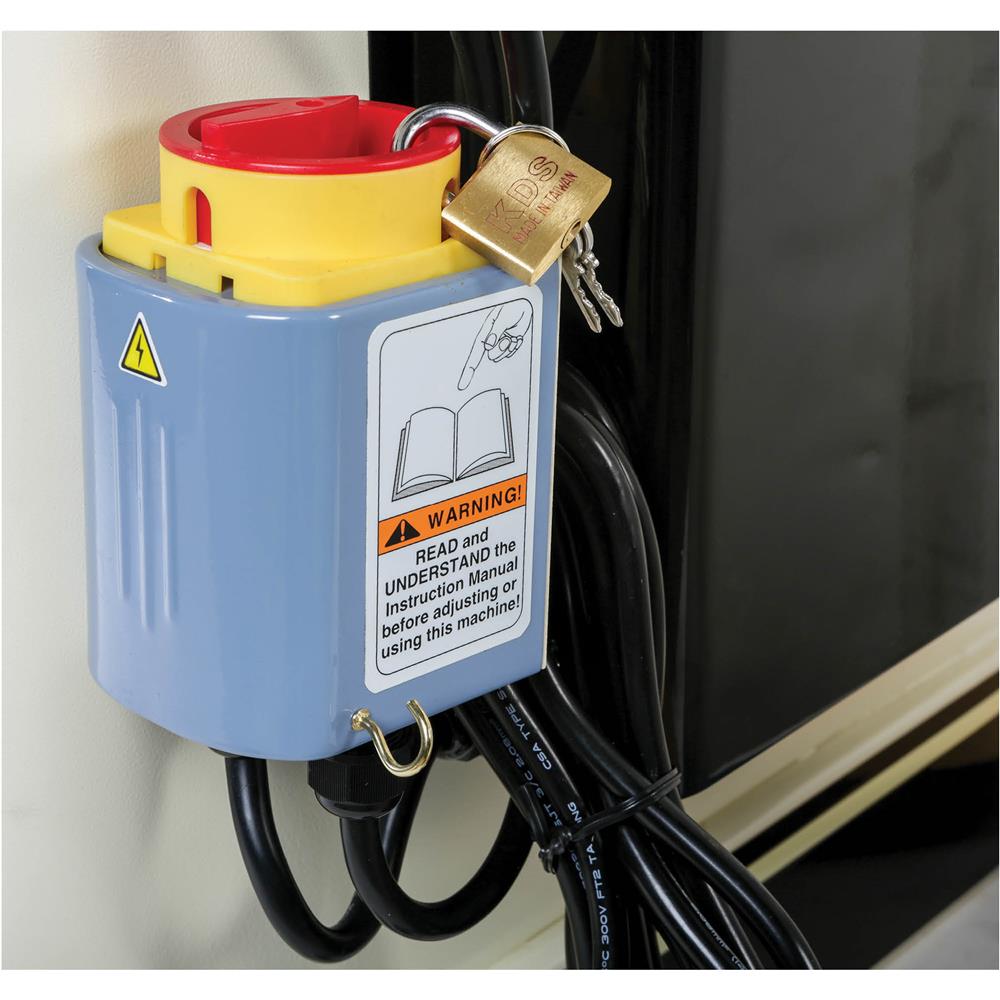

- Magnetic switch with thermal overload protection

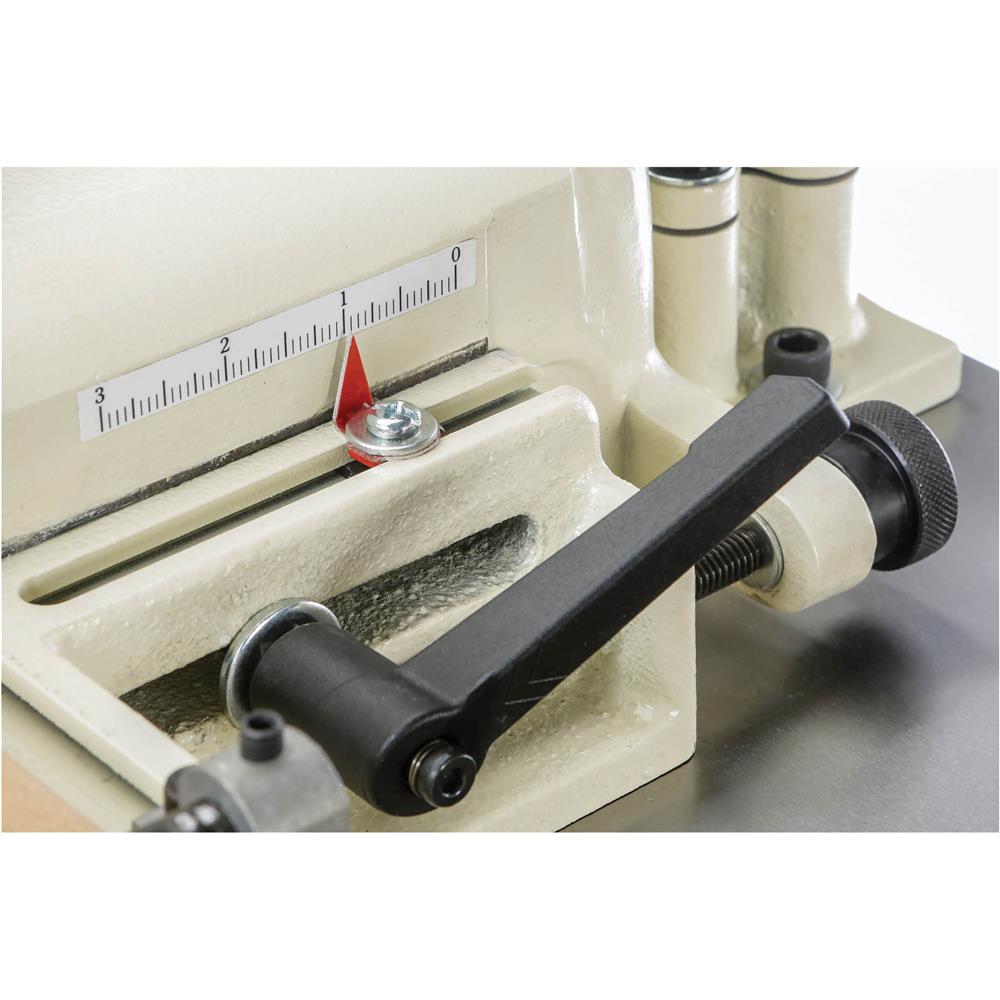

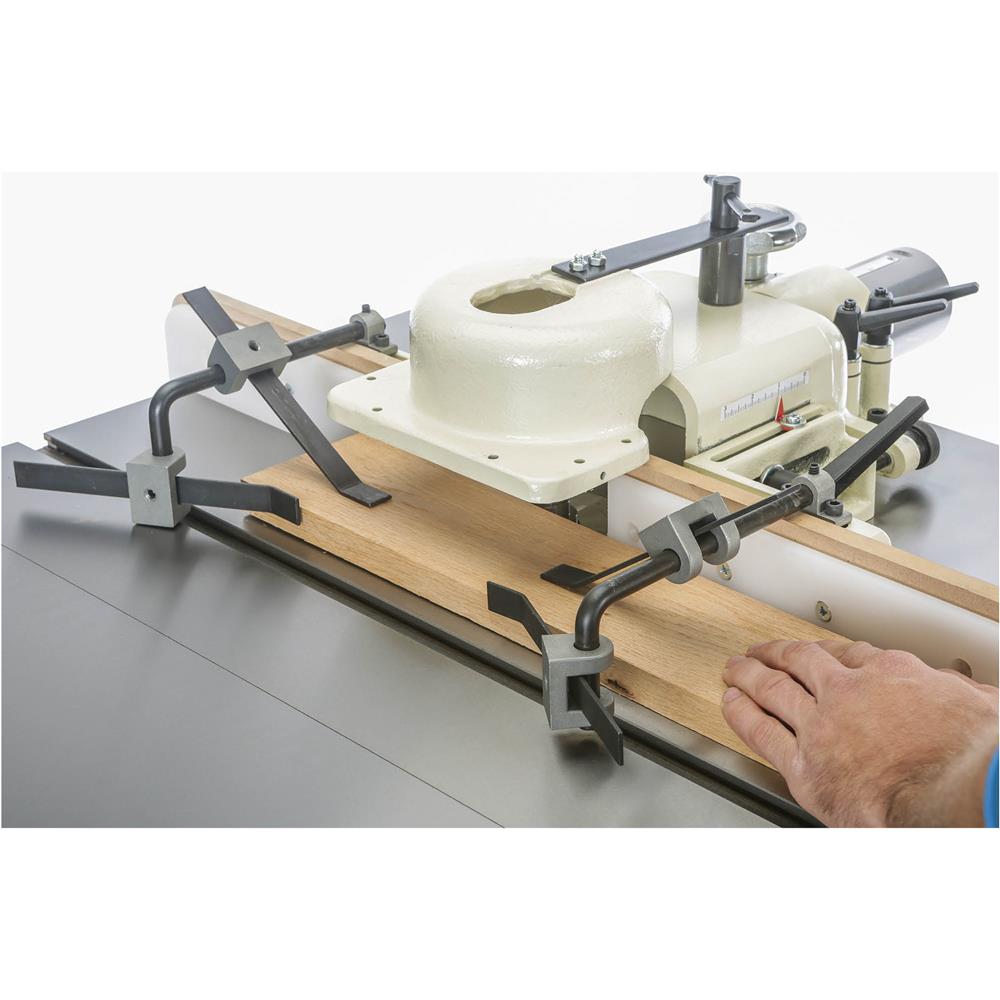

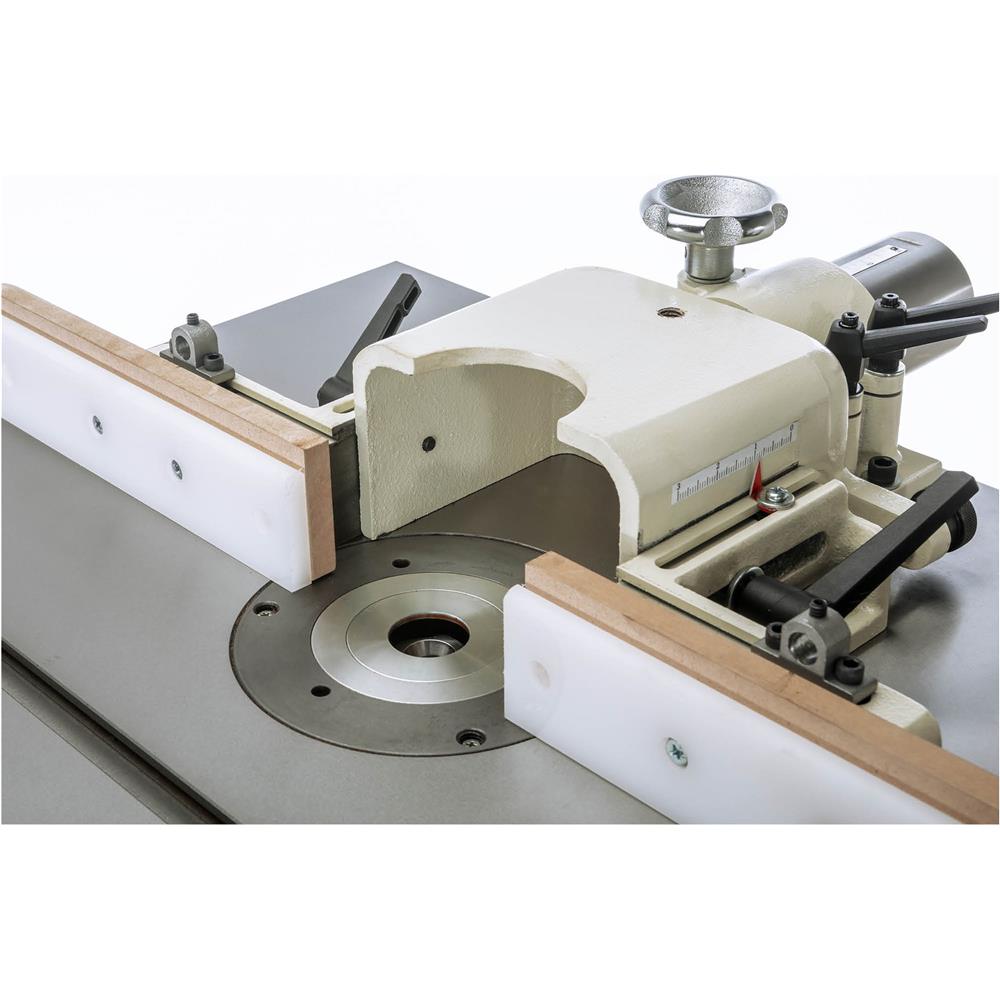

- Heavy cast-iron, independently adjustable, split fence allows full-edge profiling
- Built-in 3" dust port
- Large precision-ground cast-iron table
- Shielded and lubricated ball bearings
- Interchangeable spindle are easy to change
- Removable table inserts provide work support close to the cutter
- Starting pins for freehand shaping
Specifications
| Motor | 3 HP, 240V, single-phase, 12A |
| Maximum cutter height | 2-1/2" |
| Maximum cutter diameter | 5-1/2" |
| Spindle sizes | 1/2", 3/4", 1" |
| Spindle lengths | 2-3/4", 3", 3-1/2" |
| Spindle capacity under nut | 2", 2-1/4", 2-1/2" |
| Spindle speeds | 7000, 10,000 RPM |
| Spindle travel | 3" |
| Spindle openings | 1-7/16", 2-3/4", 3-7/8", 5-5/8" |
| Table insert sizes I.D. | 1-7/16", 2-3/4", 3-7/8" |
| Table insert sizes O.D. | 2-15/16", 4-3/8", 6-3/4" |
| Table counterbore | 7" dia. x 5/8" deep |
| Table size | 28-1/4" W x 30-1/2" D |
| Floor-to-table height | 34" |
| Footprint | 20" x 21" |
| Overall dimensions | 30-1/2" W x 28-1/4" D x 39-1/2" H |
| Approximate shipping weight | 353 lbs. |
Warranty
This item comes with a 2 year factory warranty.
