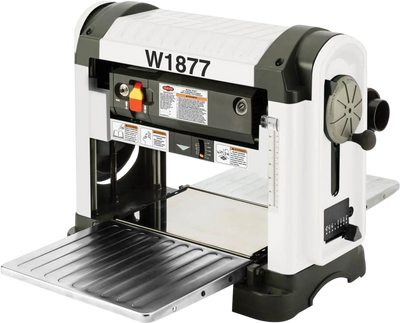

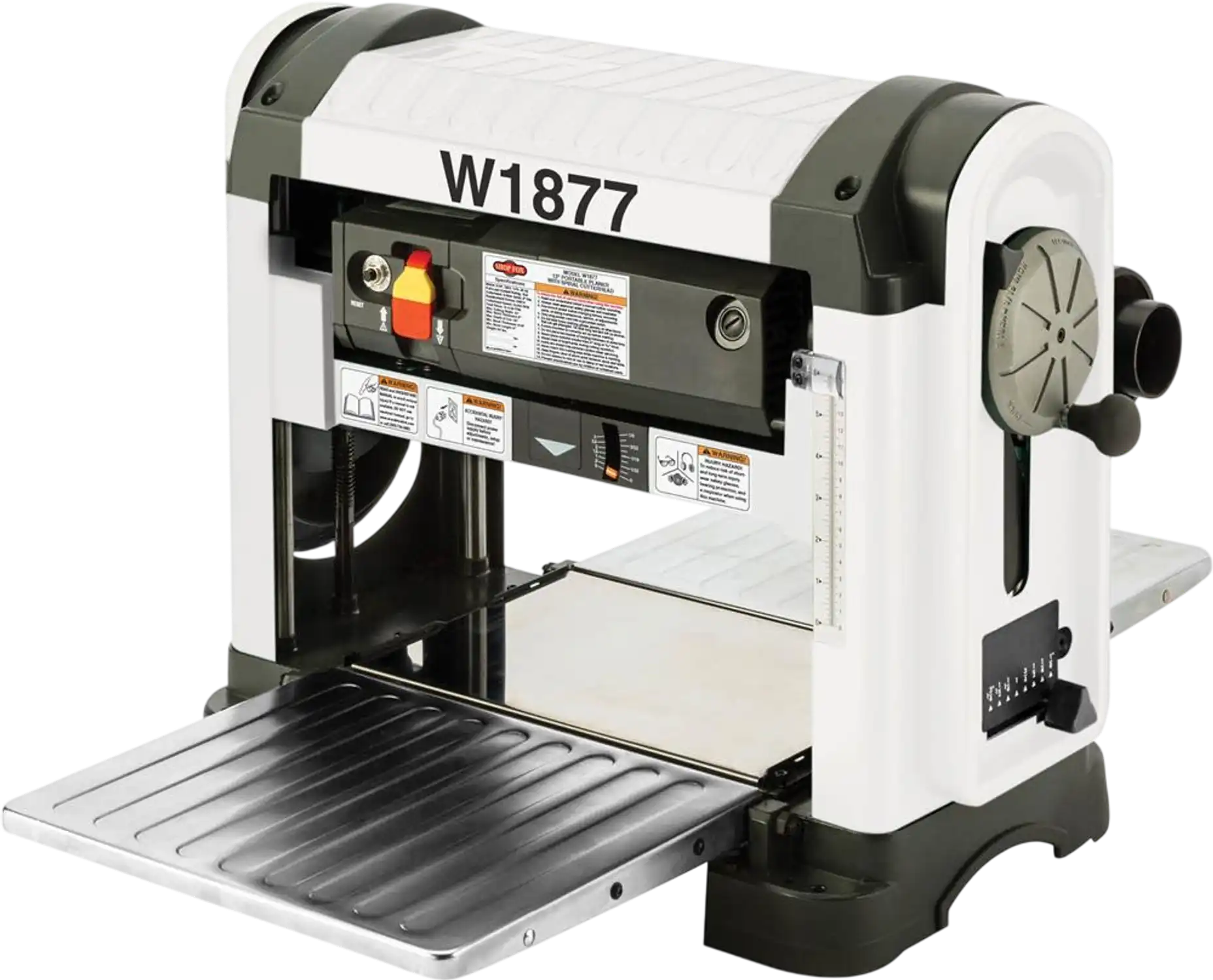

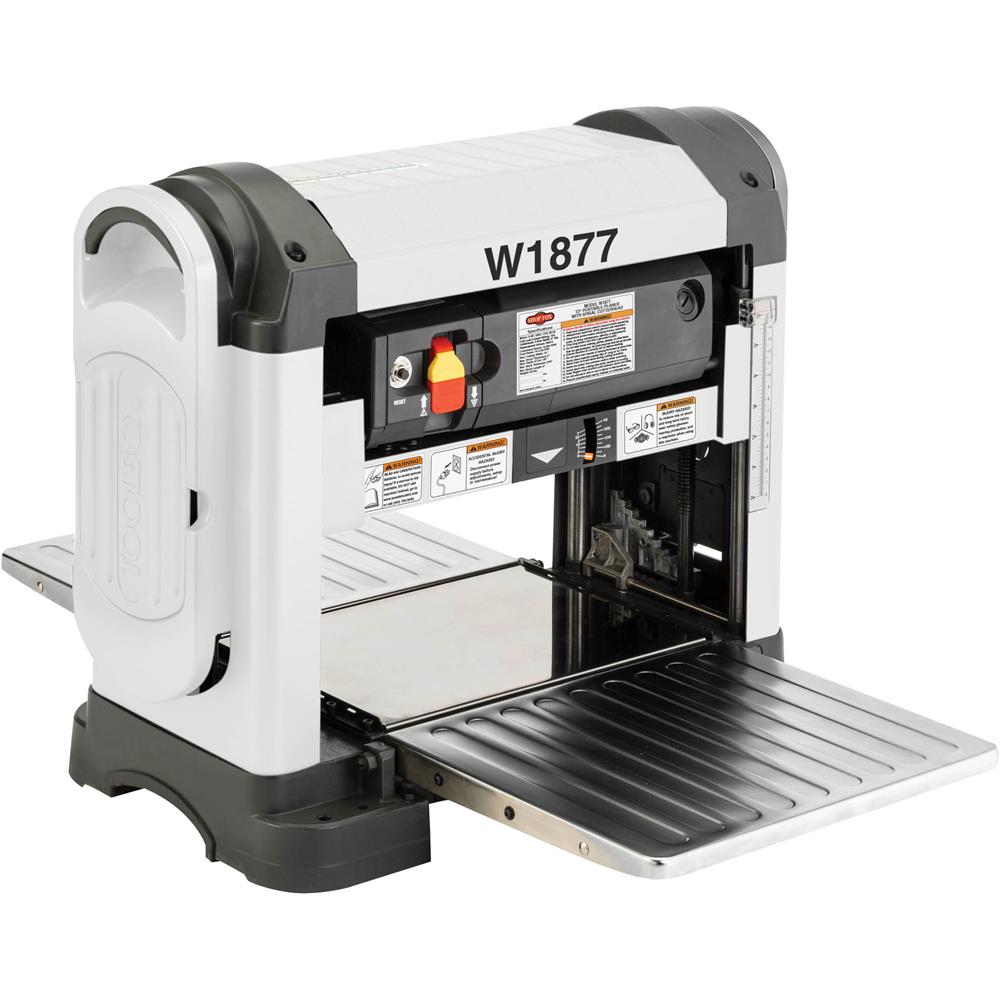

Shop Fox W1877 Benchtop Planer 13" Spiral-Type Cutterhead New
Product Overview
The Shop Fox W1877 is a 13-inch benchtop planer designed to bring smooth, consistent surfacing to a portable woodworking setup. Its spiral-style cutterhead uses 26 two-sided HSS inserts to produce a cleaner finish with quieter operation and less upkeep than traditional straight-knife designs.

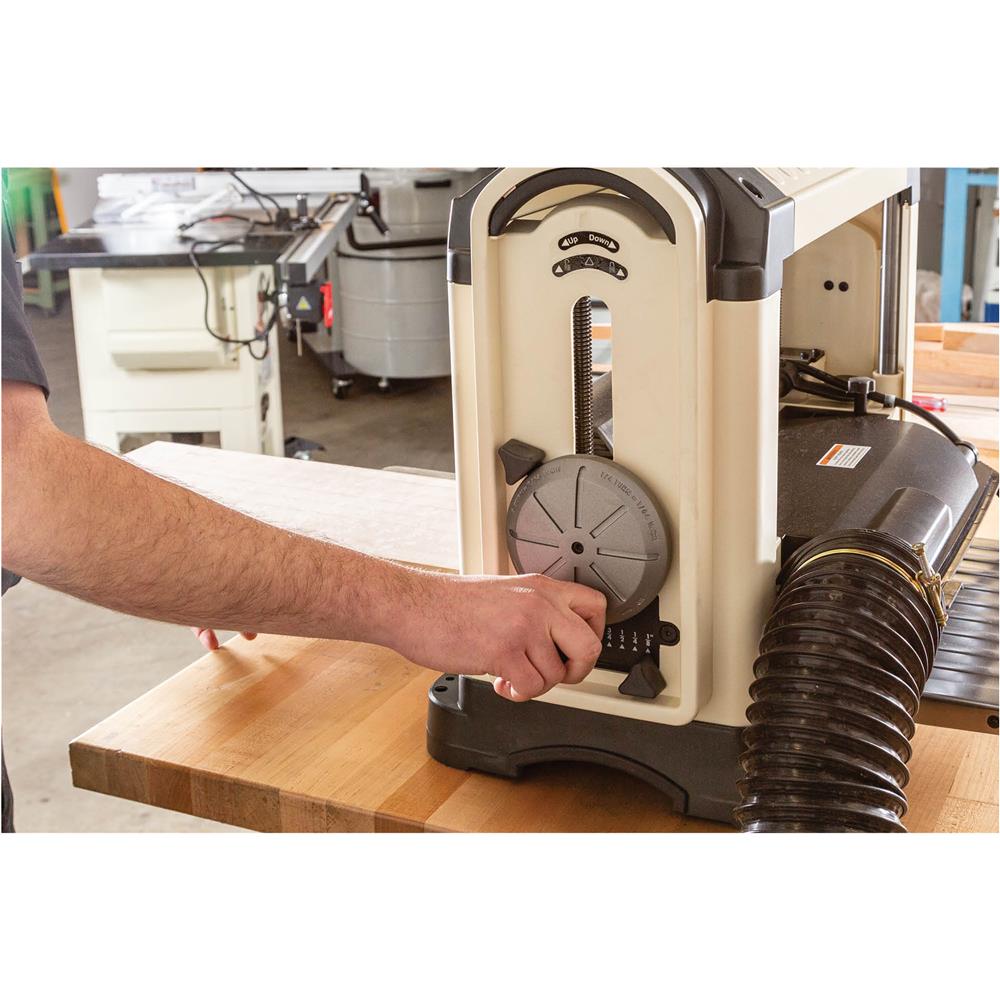

Built for dimensioning and finish planing boards up to 13 inches wide and 6 inches thick, this planer features six preset cutterhead heights, a thickness scale, and a cutterhead height lock for repeatable results. A 2 HP motor, 10,000 RPM cutterhead speed, and 26 FPM feed rate help it handle everything from light cleanup passes to more demanding stock removal.

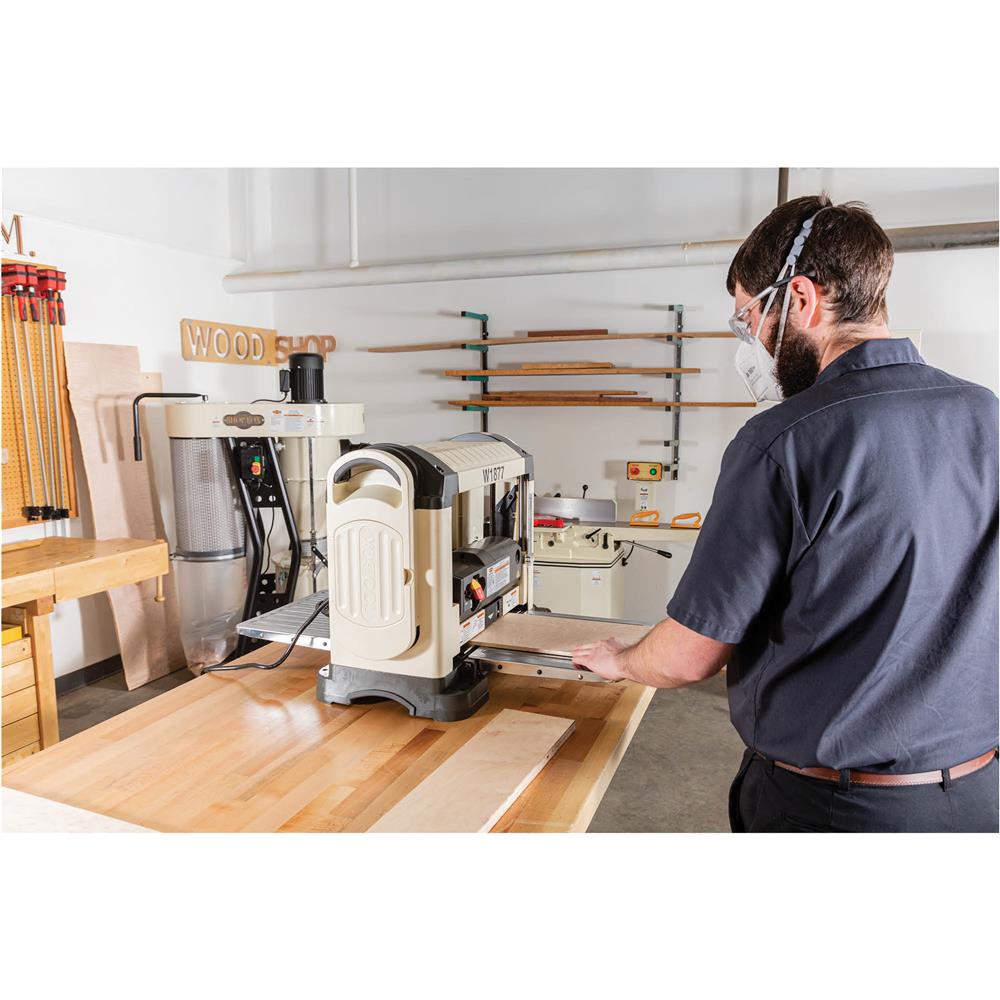

Folding extension tables, a compact benchtop footprint, and built-in dust collection make it a practical fit for small shops, jobsite use, and serious home woodworking spaces. It is well suited for woodworkers who want improved surface quality and efficient planing performance in a machine that is easier to move and store than a full-size stationary planer.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized Shop Fox dealer
Features
- Spiral-style cutterhead with 26 indexable HSS inserts

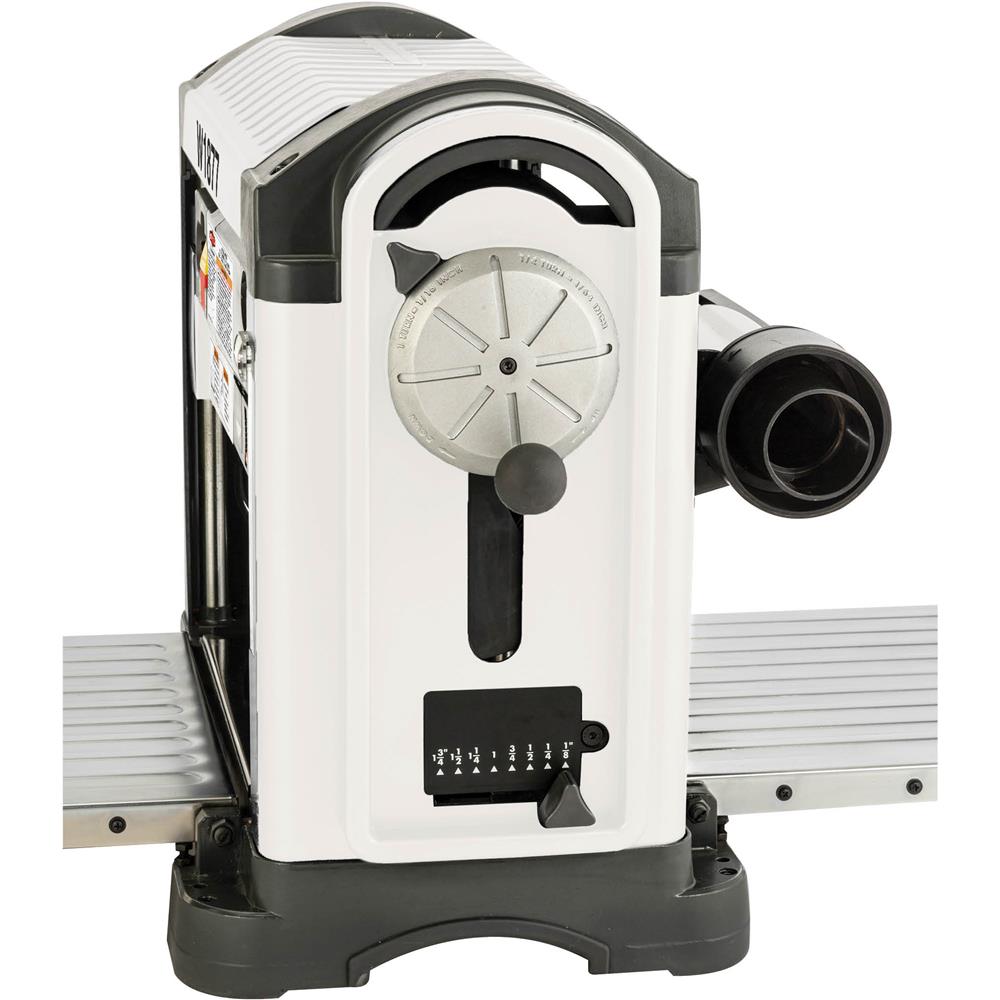

- Stepped depth-of-cut gauge: 1/8"–1-3/4"
- Stock thickness scale: 0"–6"

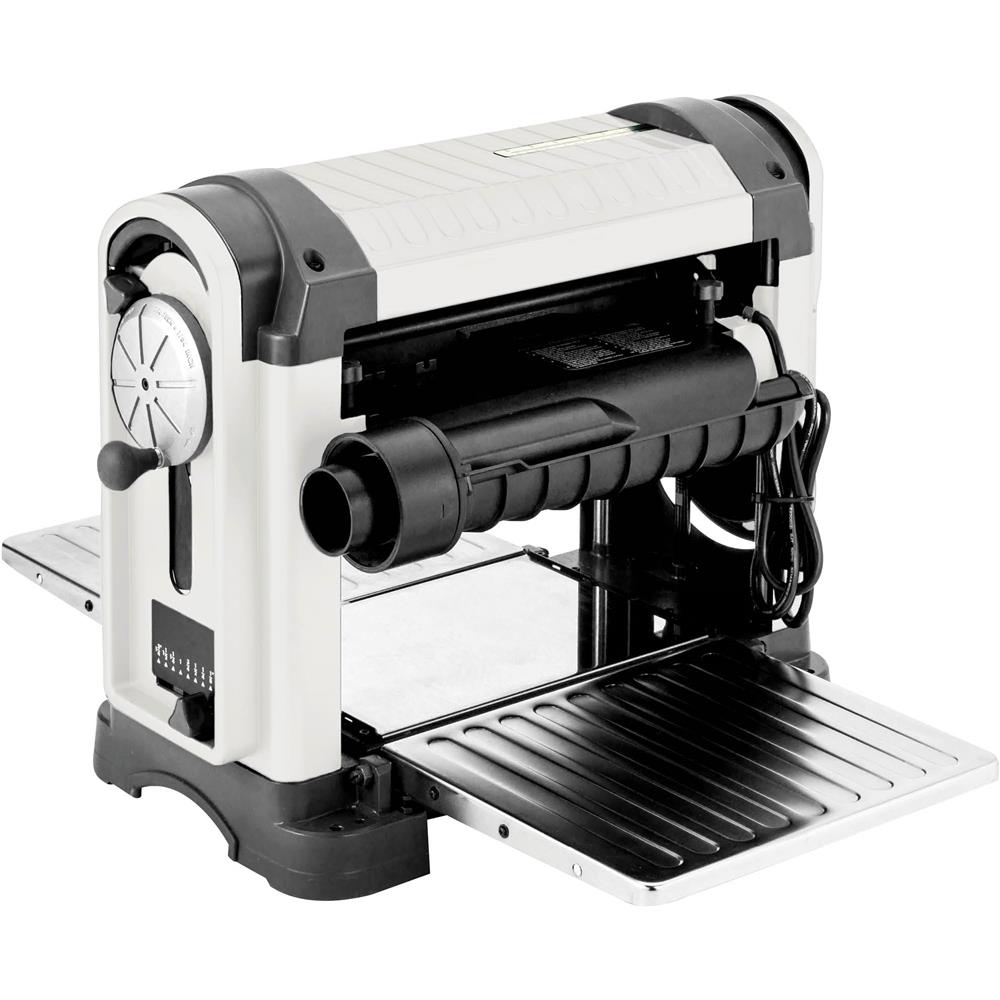

- Built-in dust collection with 4" dust port & 2-1/2" adapter

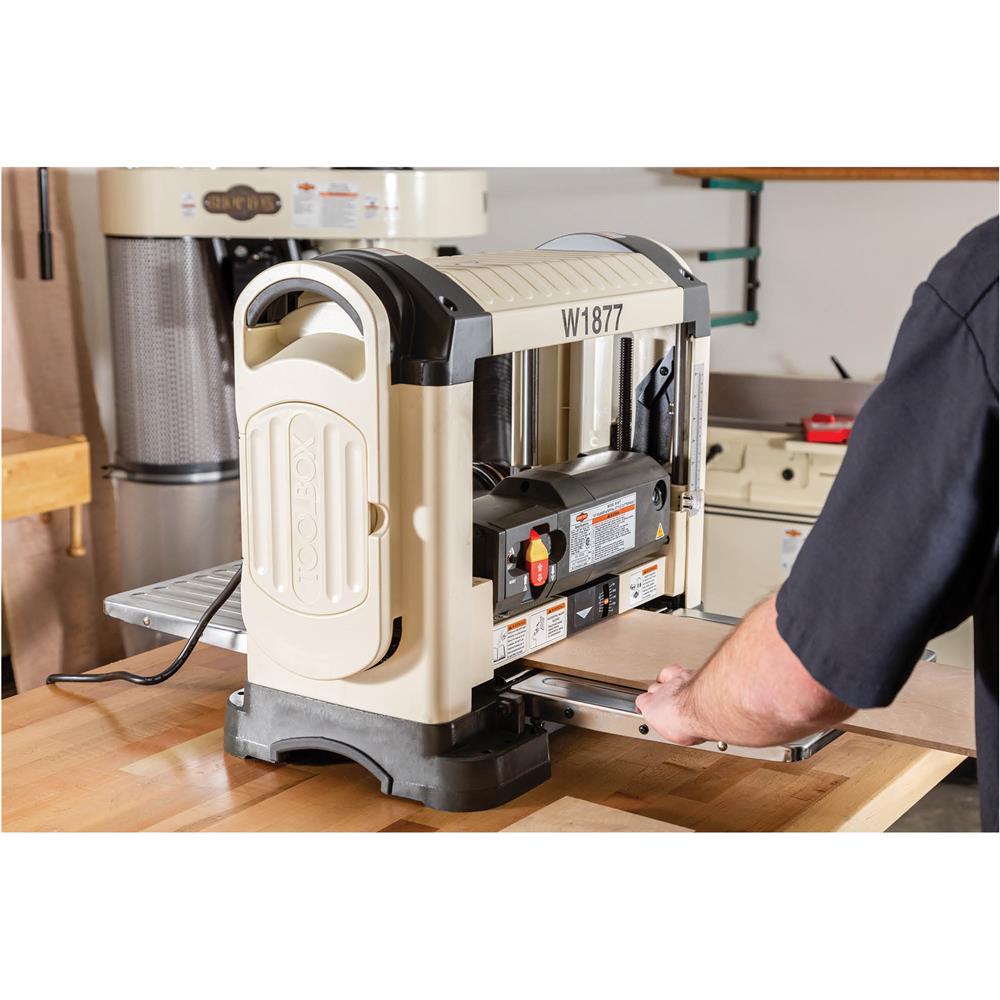

- Enclosed tool storage

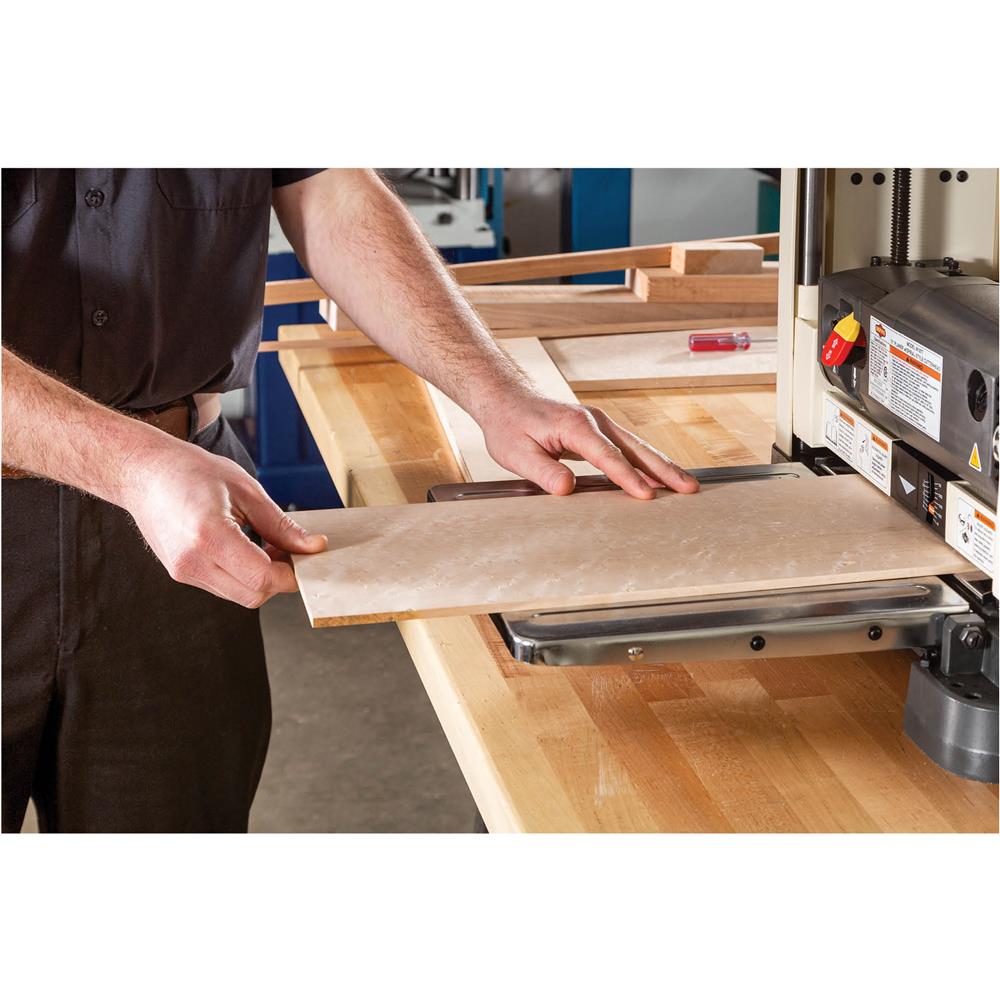

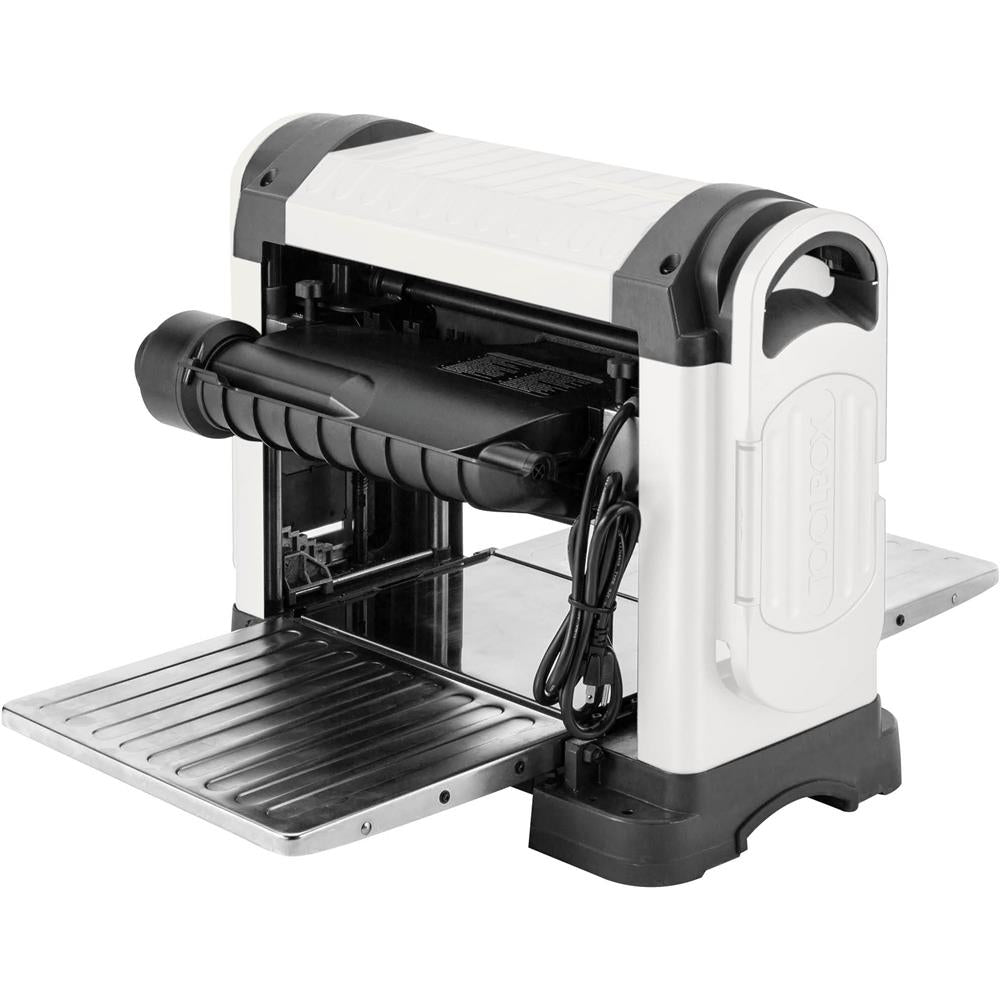

- Stainless steel table with folding extensions
- 2-year limited warranty
Specifications
| Motor | 2 HP, 120V, single-phase, 15A |
| Maximum depth of cut | 1/8" (6" wide board) |
| Maximum stock width | 13" |
| Maximum stock thickness | 6" |
| Minimum stock length | 8" |
| Minimum stock thickness | 1/8" |

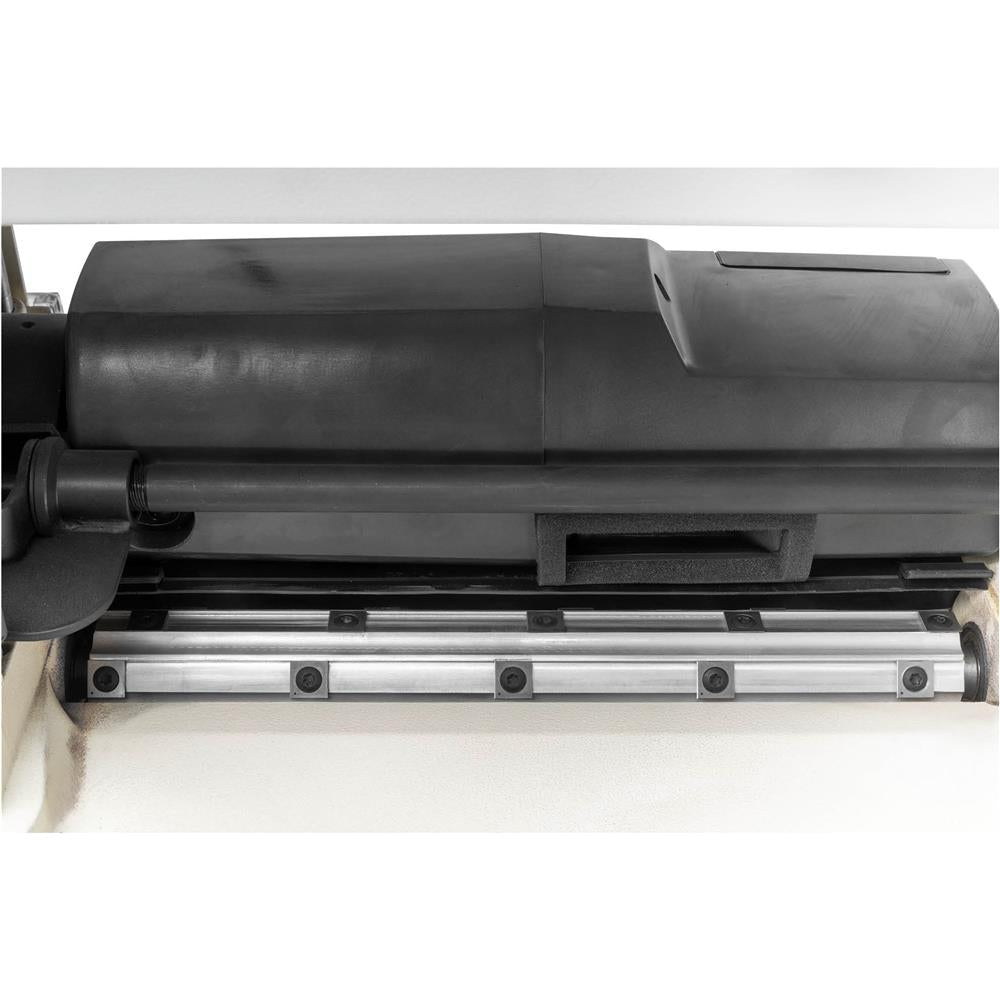

| Cutterhead type | Spiral-style with 26 two-sided indexable inserts |
| Carbide insert size | 14.25mm x 14.25mm x 2mm |
| Cutterhead speed | 10,000 RPM |
| Feed rate | 26 FPM |
| Table size with extensions | 13-1/16" x 34" |
| Dust port size | 4" |
| Footprint | 22" x 13-1/2" |
| Overall dimensions | 30" x 34" x 20" |
| Approximate shipping weight | 88 lbs. |
Warranty
This item comes with a 2 year factory warranty.
