South Bend SB1049F Metal Lathe 13" x 30" Gearhead Lathe with Fagor DRO New
Product Overview

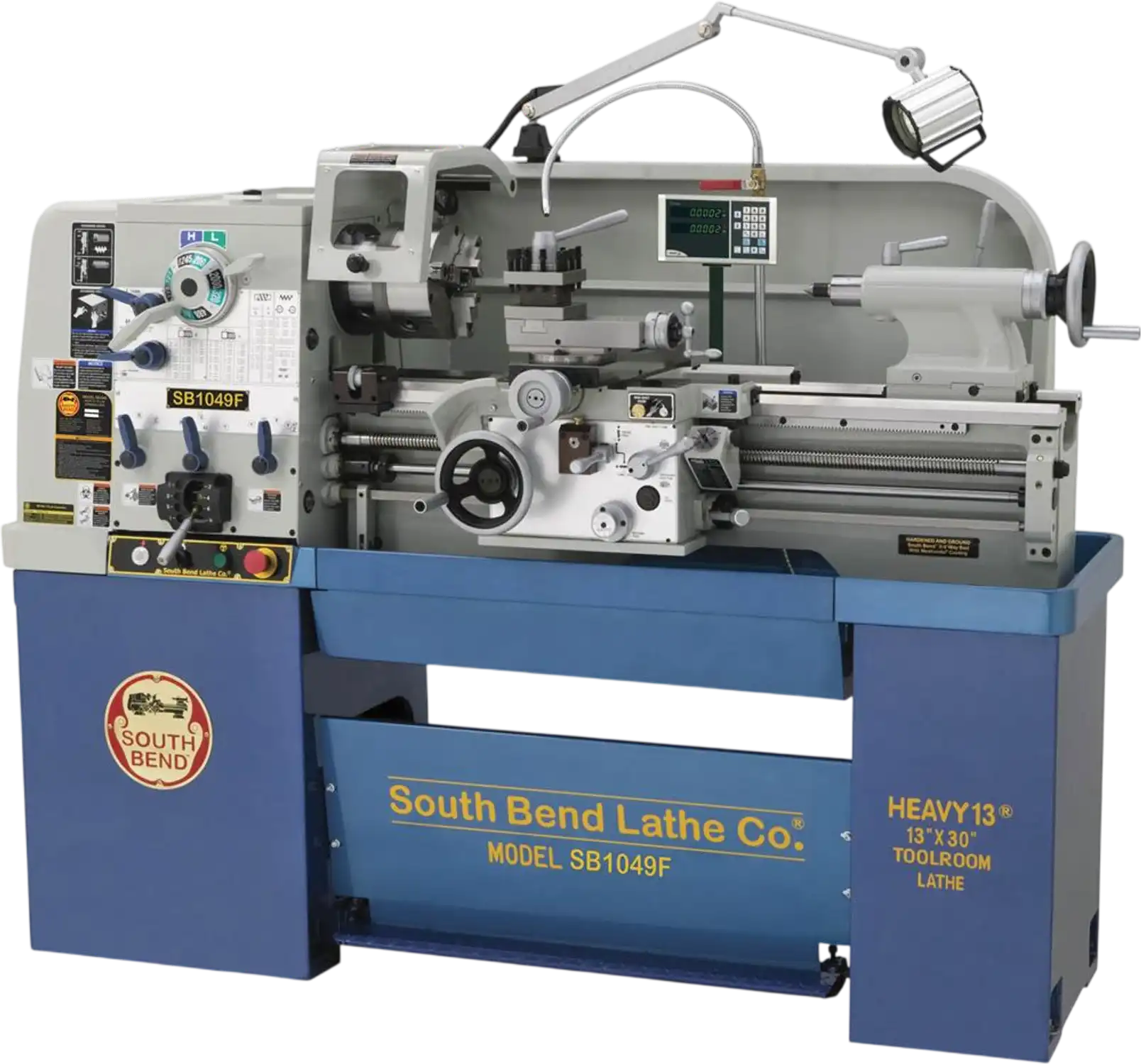

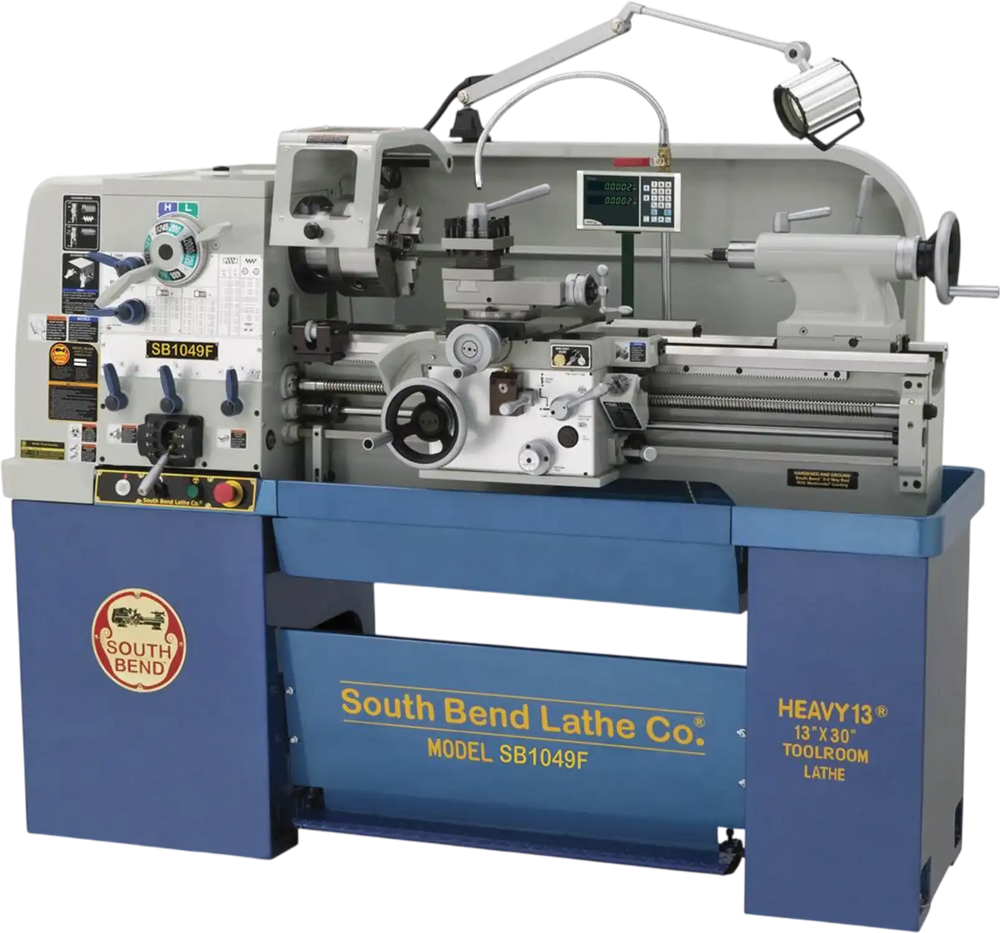

The South Bend SB1049F is a 13" x 30" gearhead metal lathe built for accurate turning, threading, and general machining in a compact, shop-friendly footprint. A 3 HP motor drives eight spindle speeds from 80 to 2000 RPM, while the 1.57" spindle bore, D1-5 camlock spindle, and MT#5 taper support a wide range of metalworking tasks.

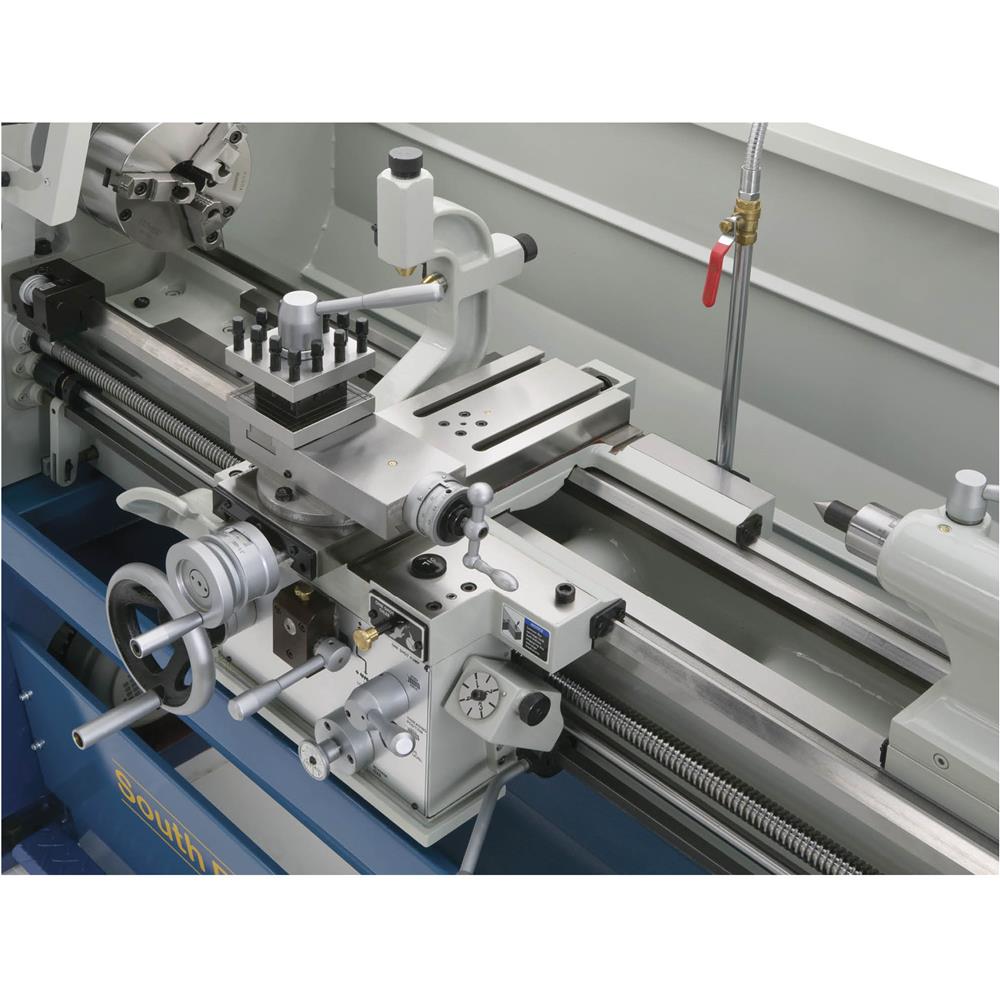

This machine is equipped with a factory-installed Fagor 2-axis digital readout for clear carriage and cross slide positioning, helping improve precision and repeatability. Hardened, precision-ground Meehanite castings, a traditional 3 V-way bed, dependable electrical controls, and a circulating coolant system make it a strong choice for consistent day-to-day performance.
With 30" between centers, broad feed options, and inch threading from 2 to 72 TPI, this lathe is well suited for machinists, maintenance shops, toolrooms, and serious fabrication environments that need capability without moving to a larger machine. Included workholding and support accessories add versatility for a variety of turning setups right away.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features
- Fagor 2-axis DRO
- Meehanite® castings

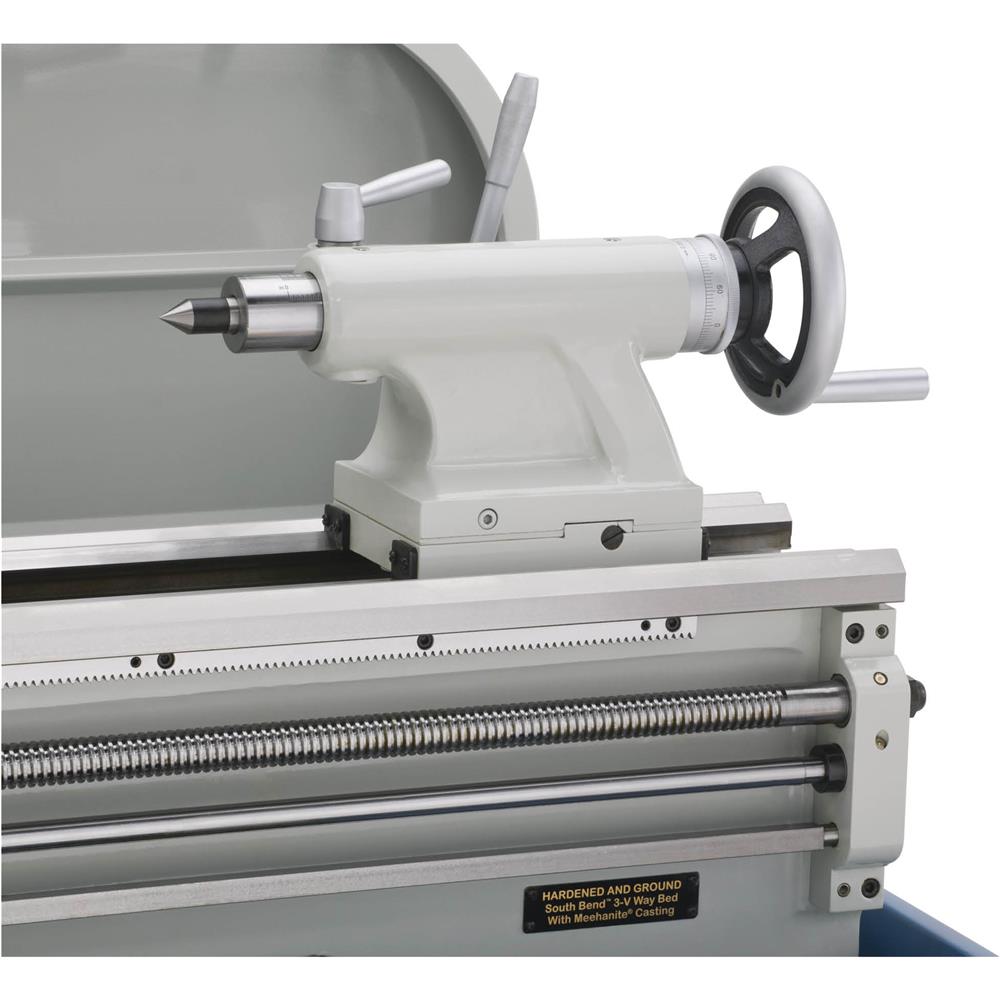

- Signature South Bend® 3 V-way bed

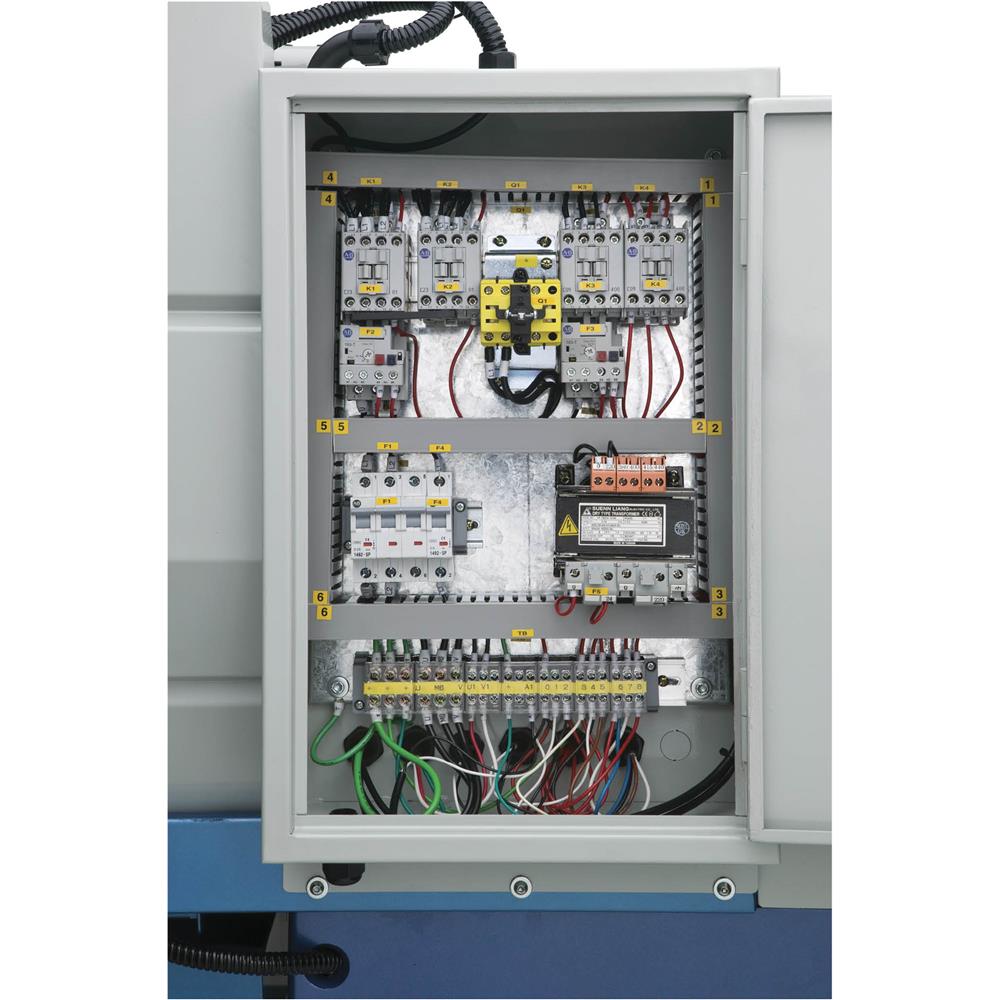

- Allen-Bradley® controls
- Micrometer carriage stop

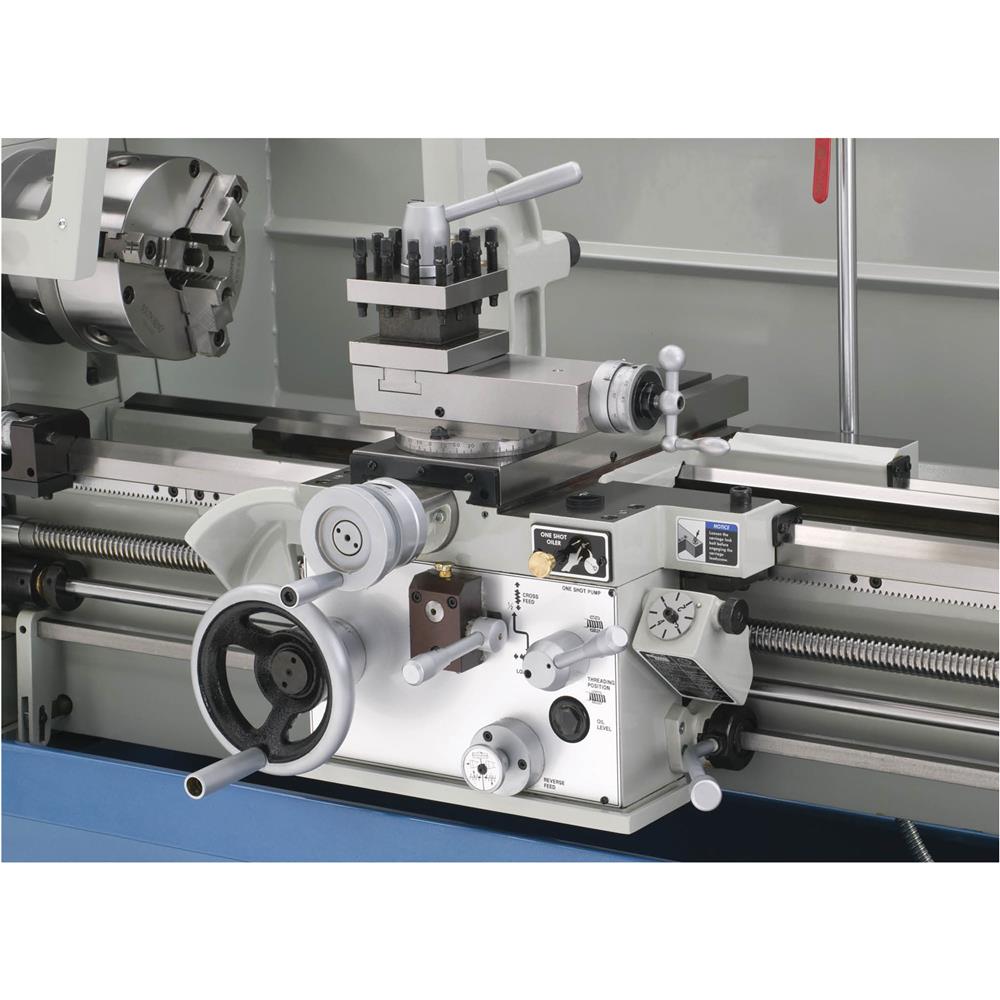

- 4-Way tool post
- Foot brake
- 8" 4-Jaw independent chuck D1-5
- 7" 3-Jaw scroll chuck D1-5
- 10" Faceplate D1-5
- Follow rest

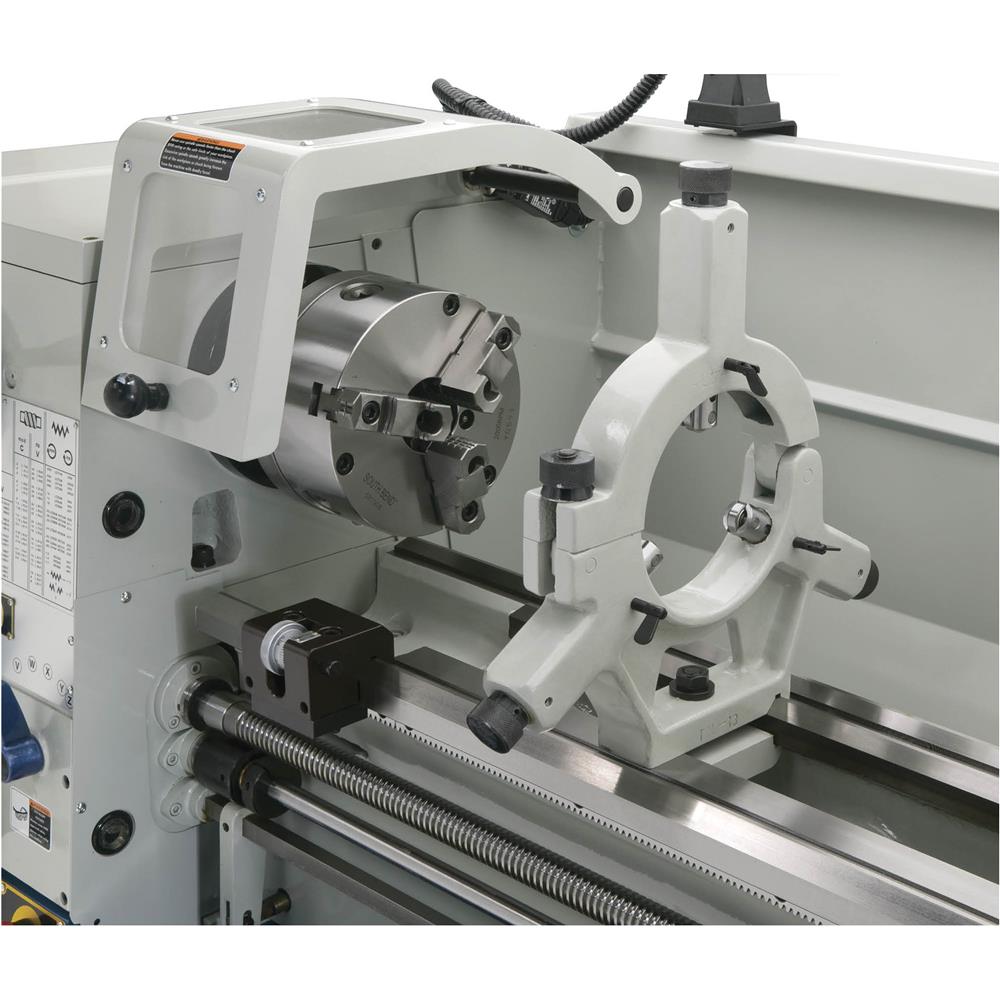

- Steady rest with roller bearing tips
- #5 to #3 morse taper spindle sleeves
- Two morse taper #3 dead centers
- U.S.-based customer service and technical support
Specifications
| Spindle motor | 3 HP, 220V, single-phase, 16.5A |
| Coolant pump motor | 1/8 HP, 0.45A |
| Distance between centers | 30" |
| Swing over bed | 13-1/4" |
| Swing over cross slide | 8.26" |
| Swing over saddle | 11.02" |
| Maximum tool bit size | 3/4" |
| Compound travel | 4" |
| Carriage travel | 36-1/2" |
| Cross slide travel | 7" |
| Spindle bore | 1.57" |
| Spindle taper | MT #5 |
| Spindle speeds | 80–2000 RPM |
| Spindle type | D1-5 camlock |
| Tailstock travel | 4-1/2" |
| Tailstock taper | MT #3 |
| Tailstock barrel diameter | 1.968" |
| Longitudinal feeds | 0.002 to 0.067 IPR (17) |
| Cross feeds | 0.001 to 0.034 IPR (17) |
| Inch thread range | 2 to 72 TPI (45 pitches) |
| Metric thread range | 0.2 to 14 mm (39 pitches) |
| Modular threads | 0.3 to 3.5 (18 pitches) |
| Diametral threads | 8 to 44 (21 pitches) |
| Bed width | 9" |
| Footprint | 69" x 19-1/2" |
| Overall dimensions | 71" W x 34" D x 73" H |
| Approximate shipping weight | 2513 lbs. |
Warranty
This item comes with a 2 year factory warranty.
