South Bend SB1091 Jointer 8" Parallelogram Helical Cutterhead New
Product Overview

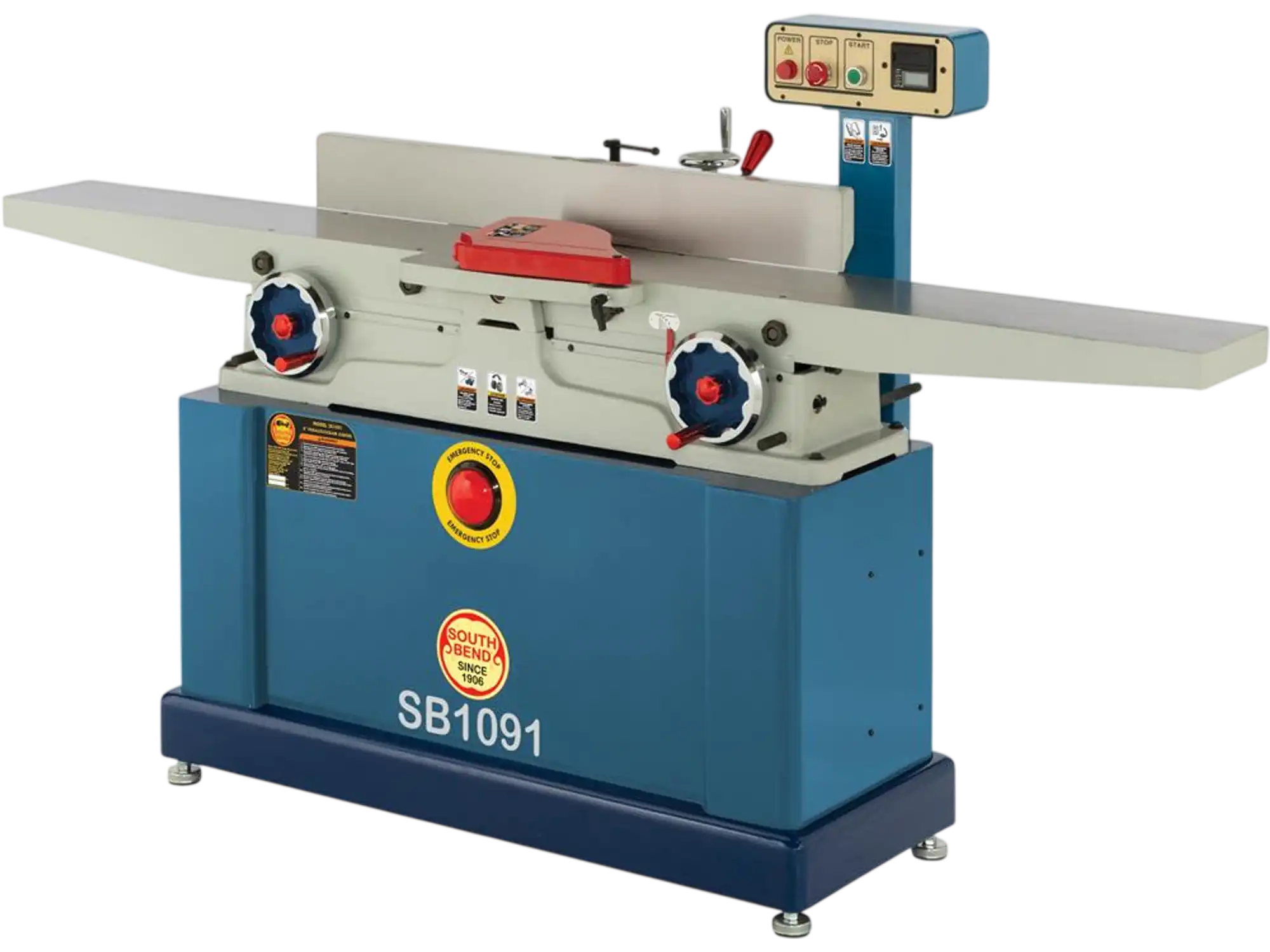

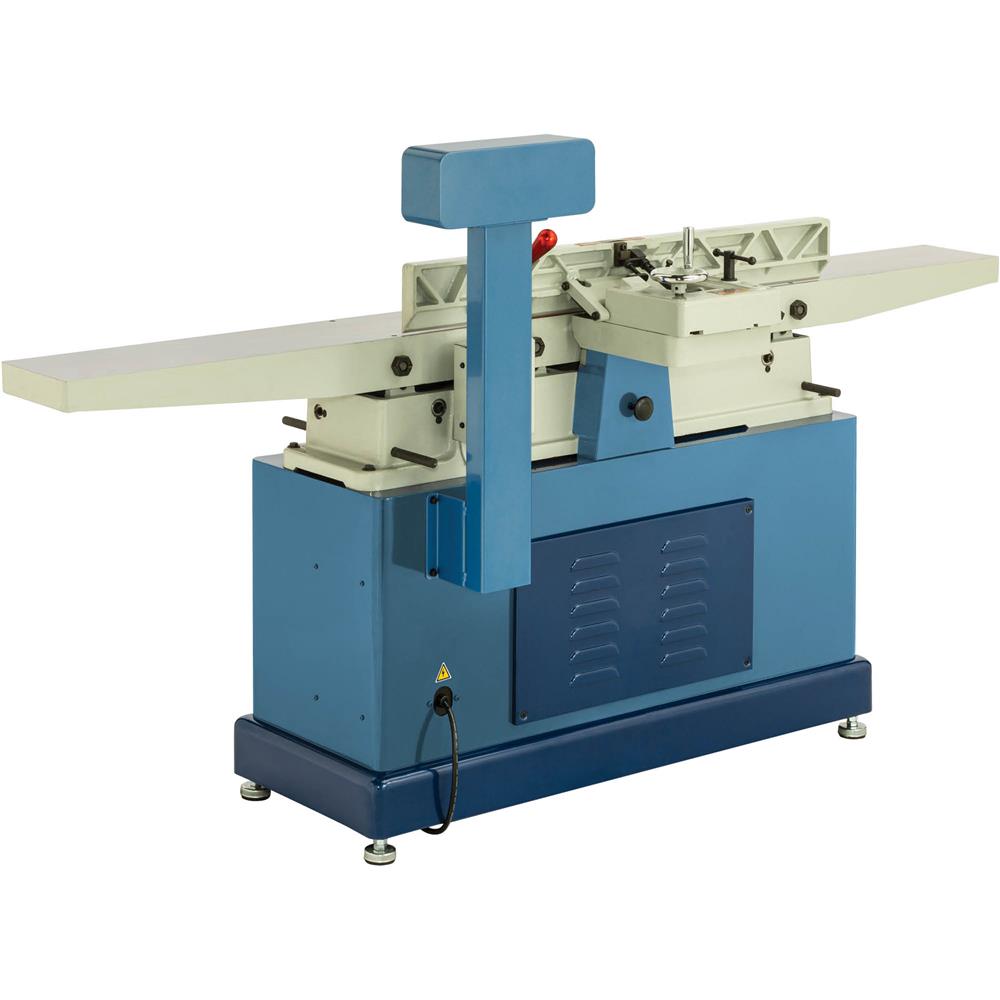

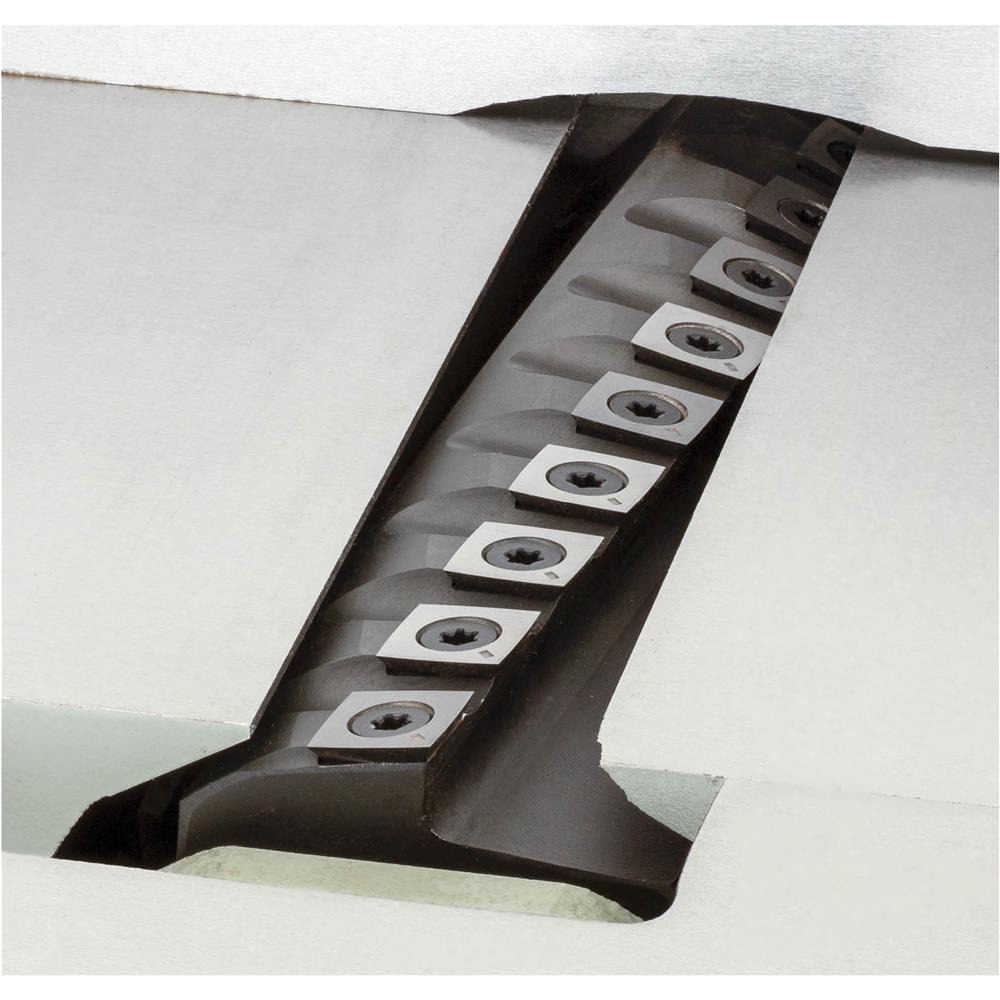

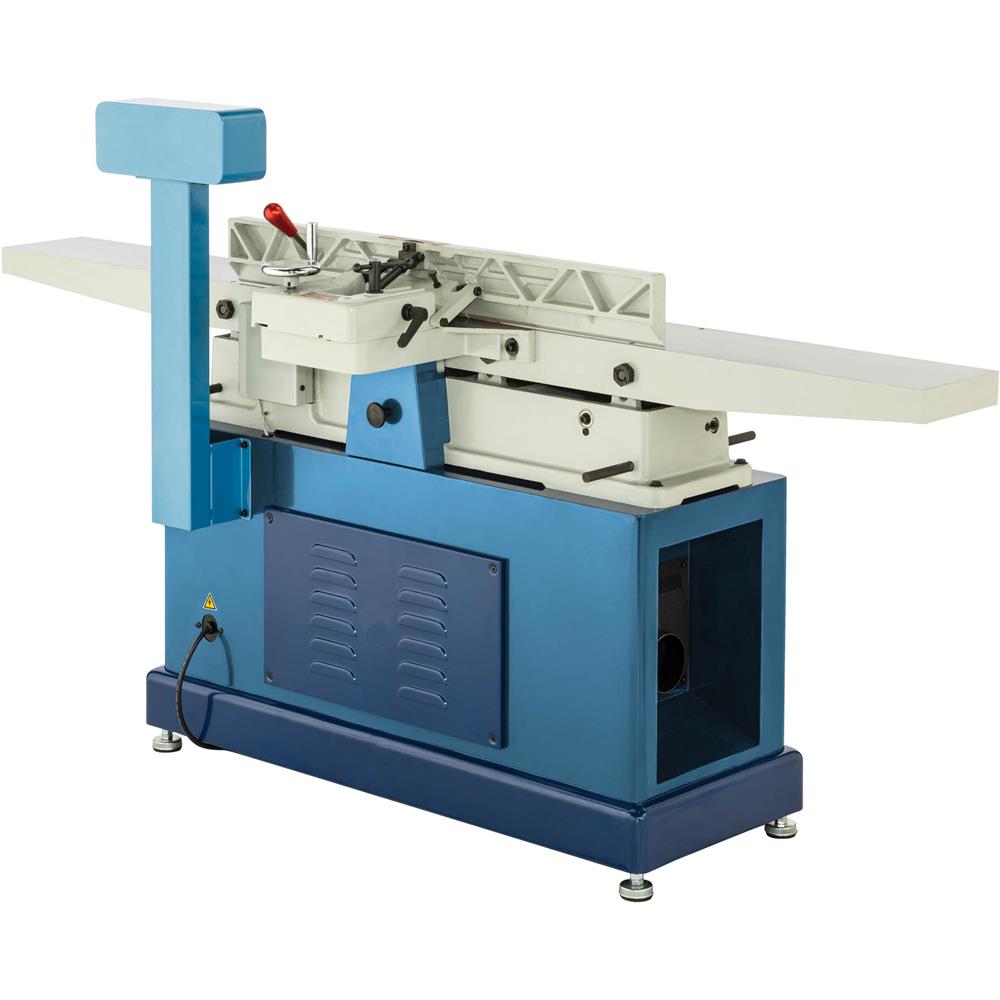

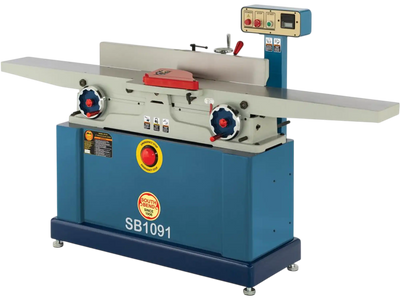

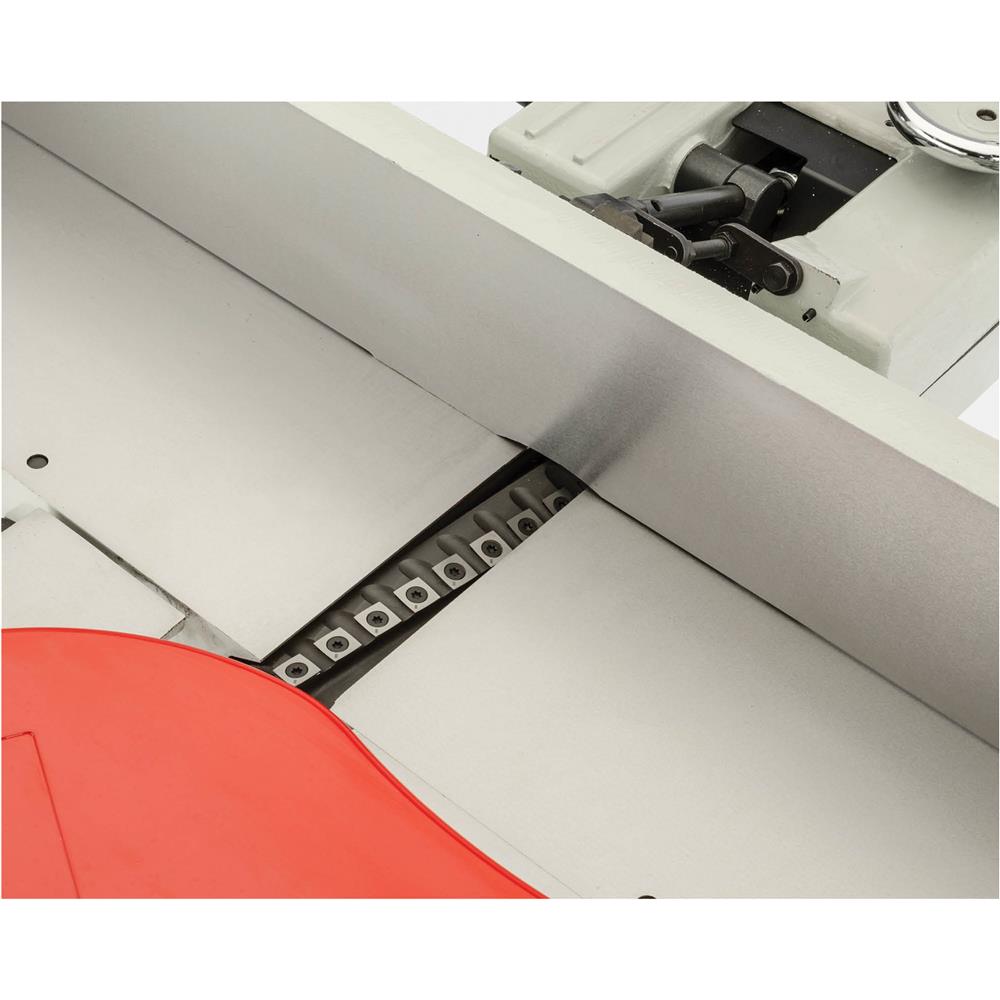

The South Bend SB1091 is an 8-inch parallelogram jointer built for flattening faces, straightening edges, and preparing stock for precise woodworking. Its 4-row helical cutterhead uses 36 indexable carbide inserts to deliver a smooth shearing cut and a clean, flat finish on both surface planing and edge jointing tasks.
Parallelogram table adjustment and handwheel controls help dial in accurate settings, while the digital infeed height readout makes fine adjustments easier. Precision-ground cast-iron tables, an 83-inch table length, and a heavy-duty center-mounted fence with rack-and-pinion lateral adjustment provide the stability and control needed for consistent results.

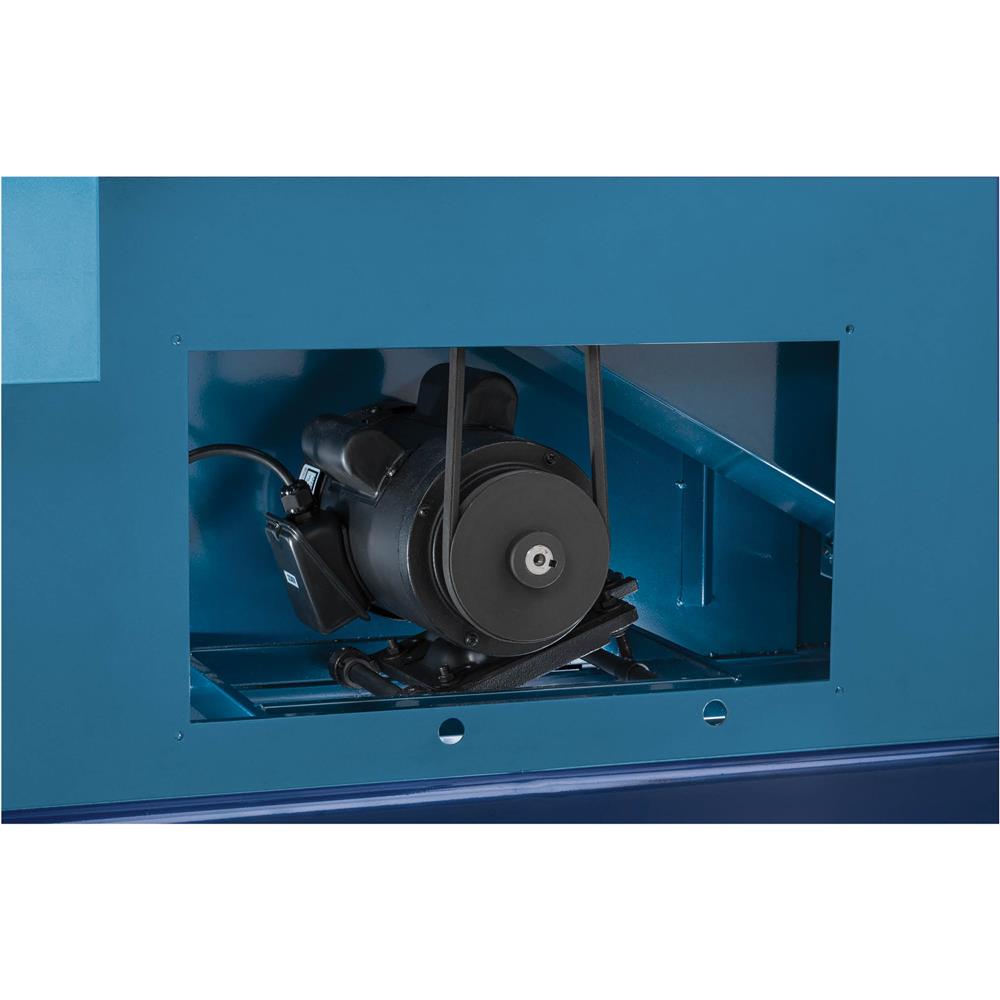

With a 3 HP, 230V single-phase motor, 7000 RPM cutterhead speed, and up to 1/8-inch depth of cut, this machine is well suited for serious hobbyists, furniture makers, cabinet shops, and professional woodworkers who want dependable performance in a full-size jointer.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features
- Parallelogram table adjustment
- Handwheel-adjusted tables

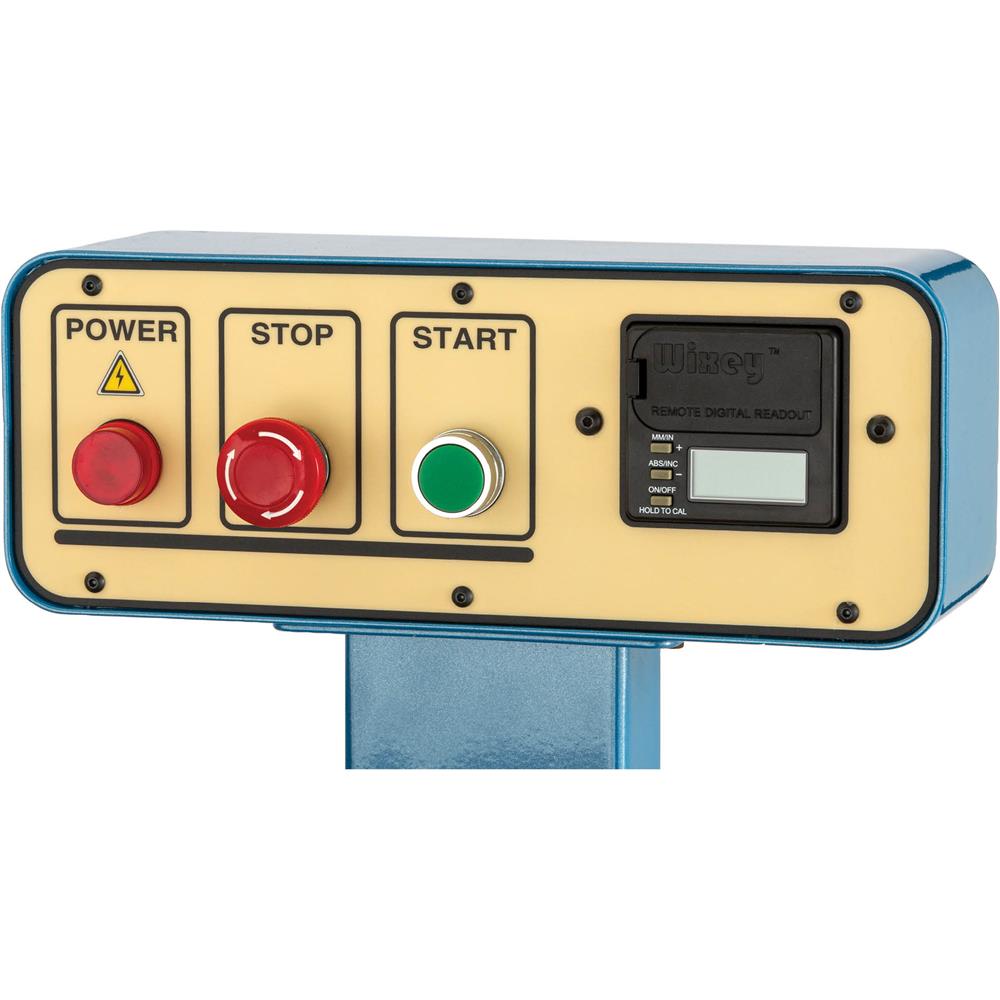

- Digital readout for infeed table height
- Precision-ground cast-iron tables
- Rabbeting table

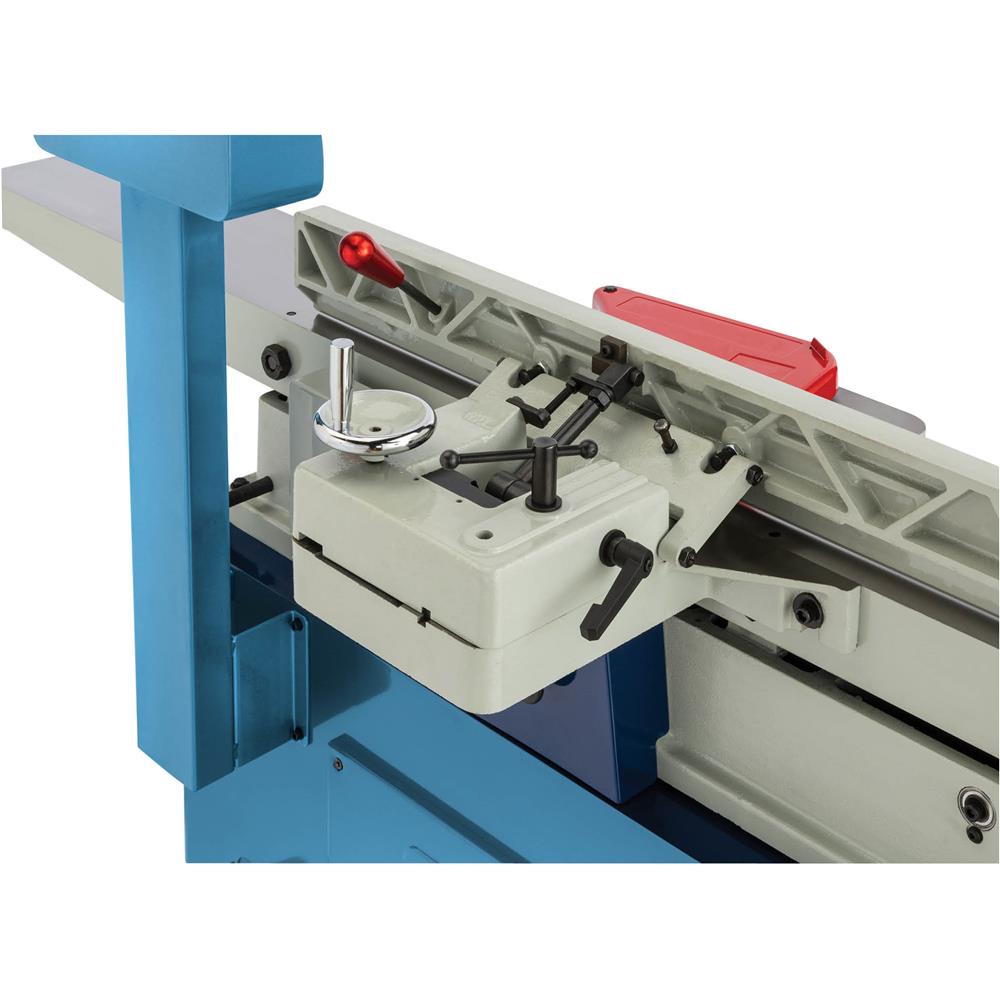

- Heavy-duty center-mounted fence with rack-and-pinion lateral adjustment
- Fence stops at 45, 90, 135°
- Anodized handwheels and fence handle
- U.S.-based customer service and technical support
Specifications
| Motor | 3 HP, 230V, single-phase, 12A |
| Maximum width of cut | 8" |
| Maximum depth of cut | 1/8" |
| Maximum rabbeting depth | 1/2" |
| Minimum stock length | 10" |
| Minimum stock thickness | 1/2" |
| Cutterhead diameter | 3-1/16" |
| Cutterhead type | 4-Row helical with 36 inserts |
| Insert size and type | 15 x 15 x 2.5mm, indexable carbide |
| Cutterhead speed | 7000 RPM |
| Table size | 8" x 83" |
| Fence size | 38" L x 4-5/8" H |

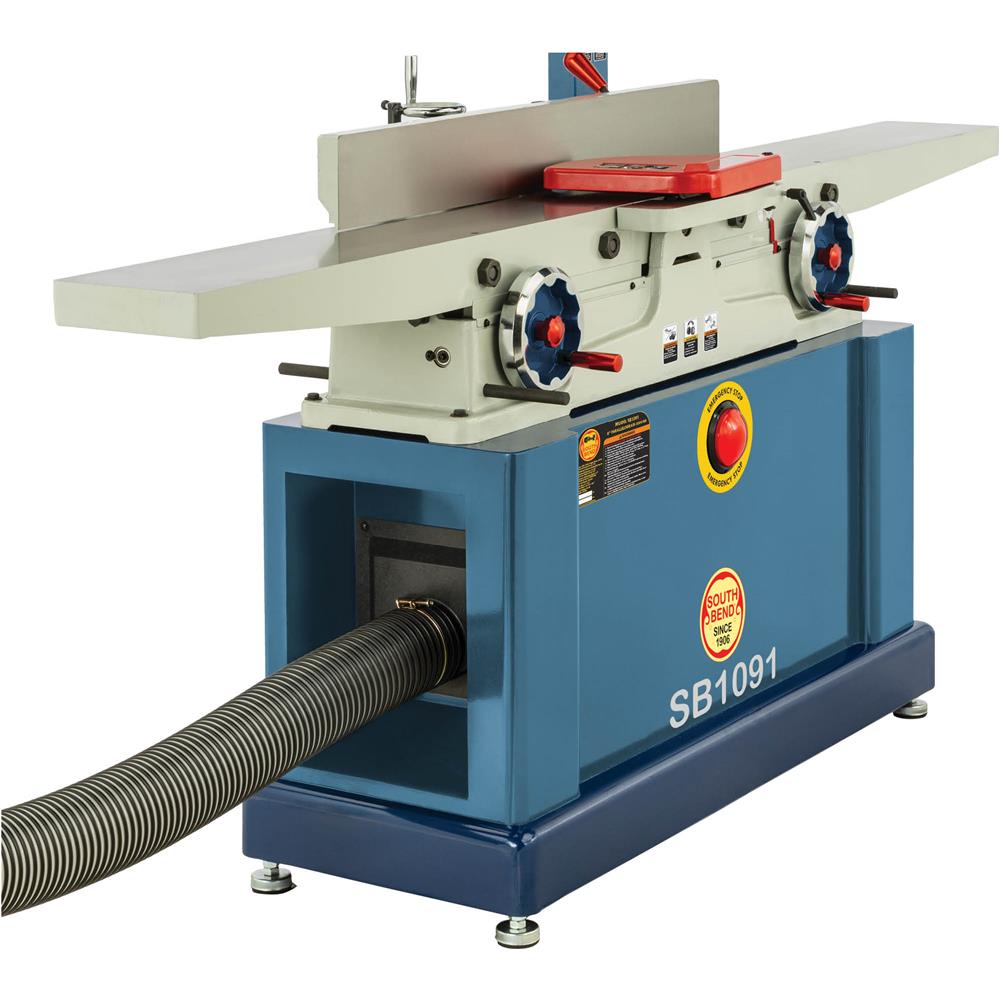

| Dust port size | 4" |
| Footprint | 46" x 18" |
| Overall dimensions | 83" W x 26" D x 46" H |
| Approximate shipping weight | 730 lbs. |
Warranty
This item comes with a 2 year factory warranty.
