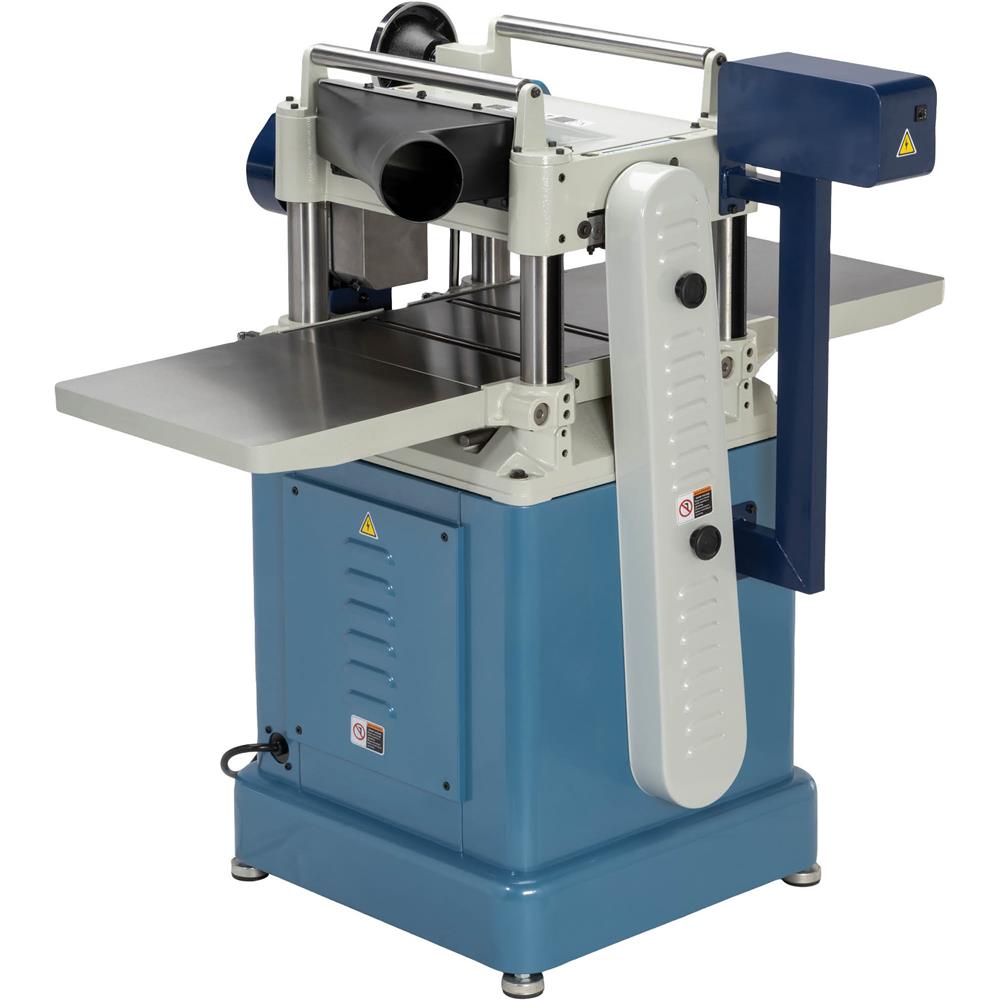

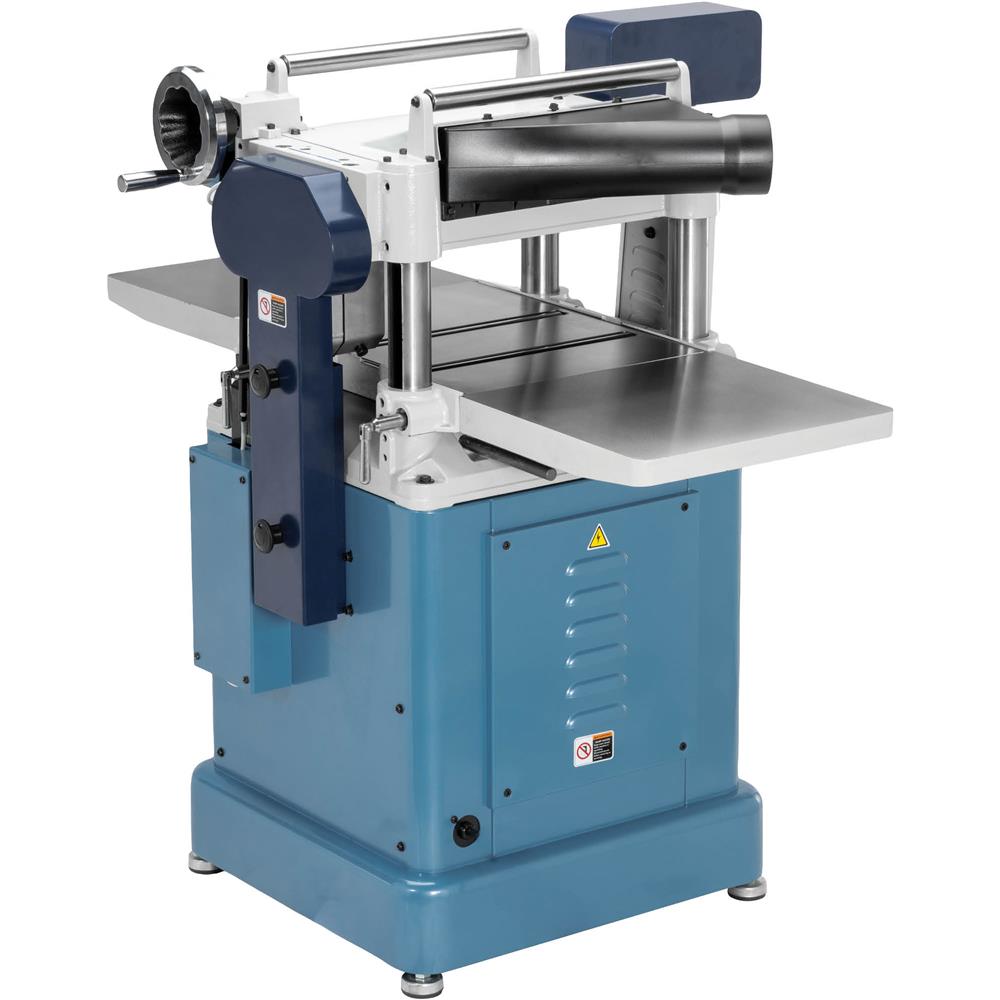

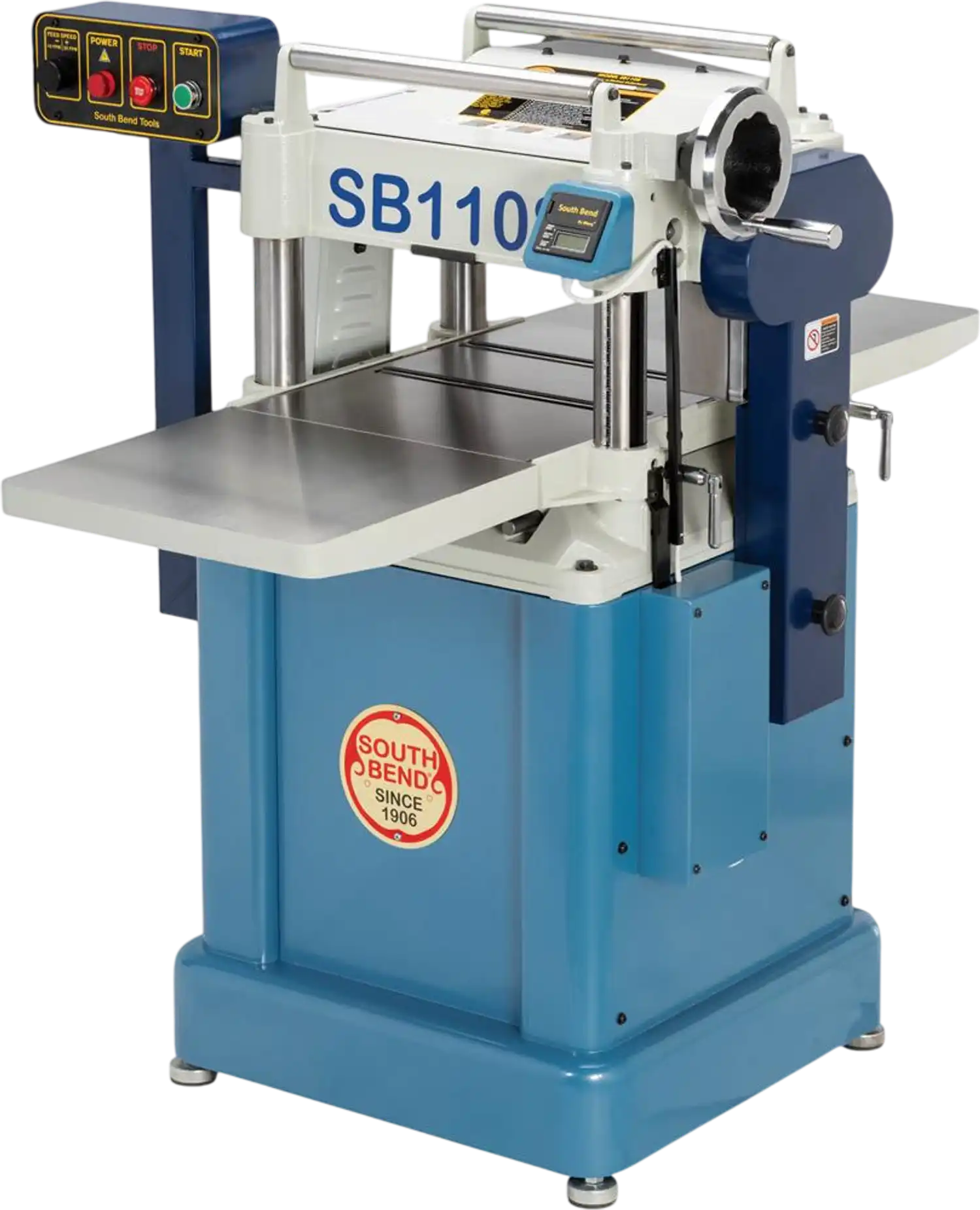

South Bend SB1108 Planer 15" Variable-Speed Helical Cutterhead New
Product Overview

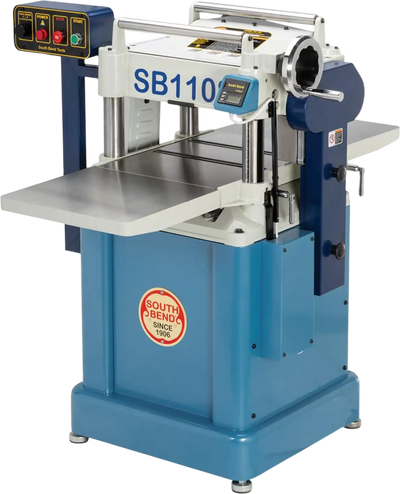

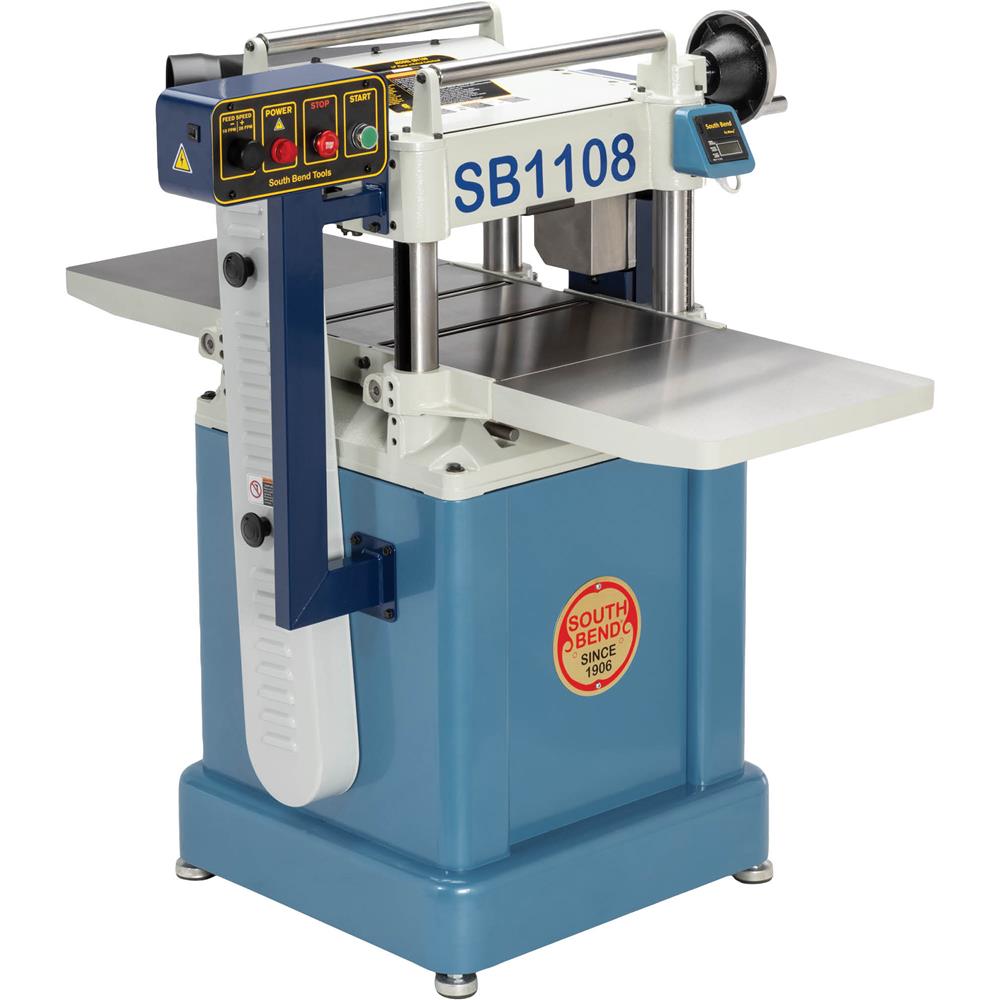

The South Bend SB1108 is a 15-inch variable-speed planer built for precise thicknessing and smooth surface finishing in serious woodworking shops. Its 3 HP single-phase motor, heavy cast-iron construction, and 15-inch capacity make it a strong fit for furniture makers, cabinet shops, and dedicated home craftsmen working with rough or dimensioned stock.

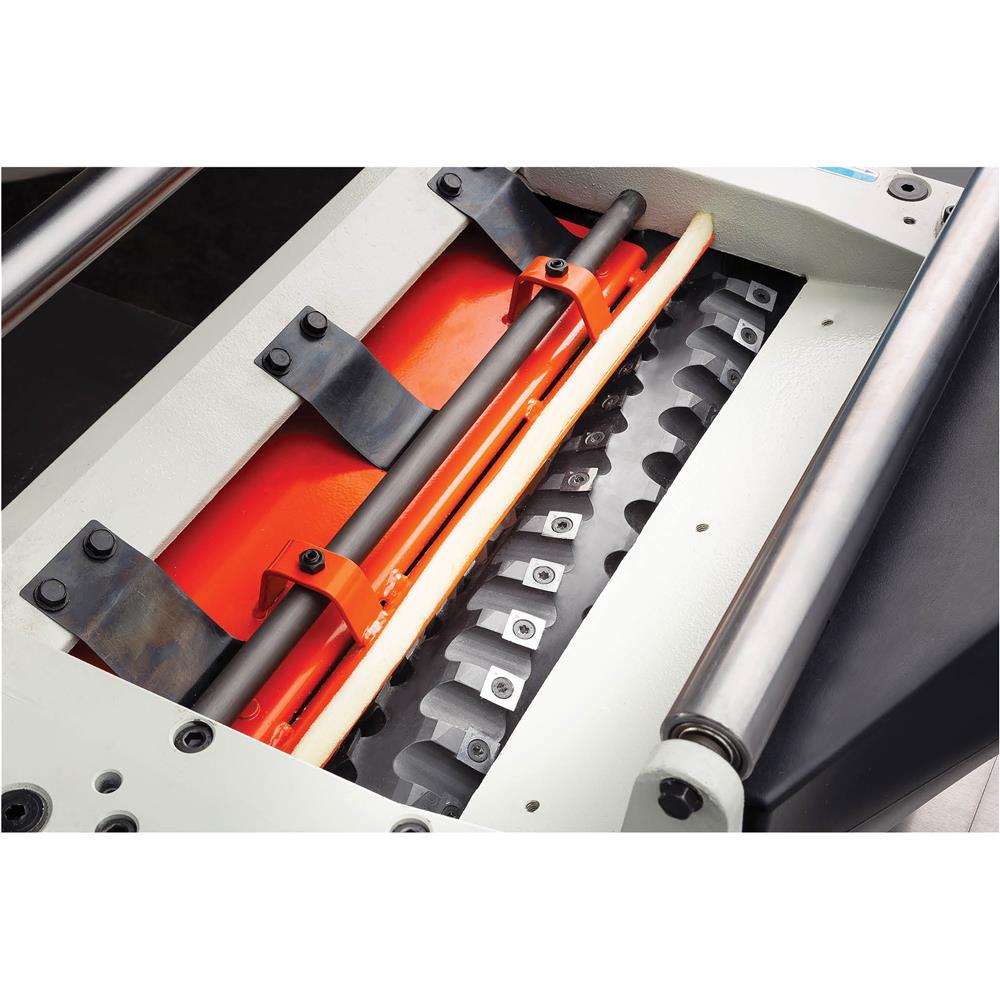

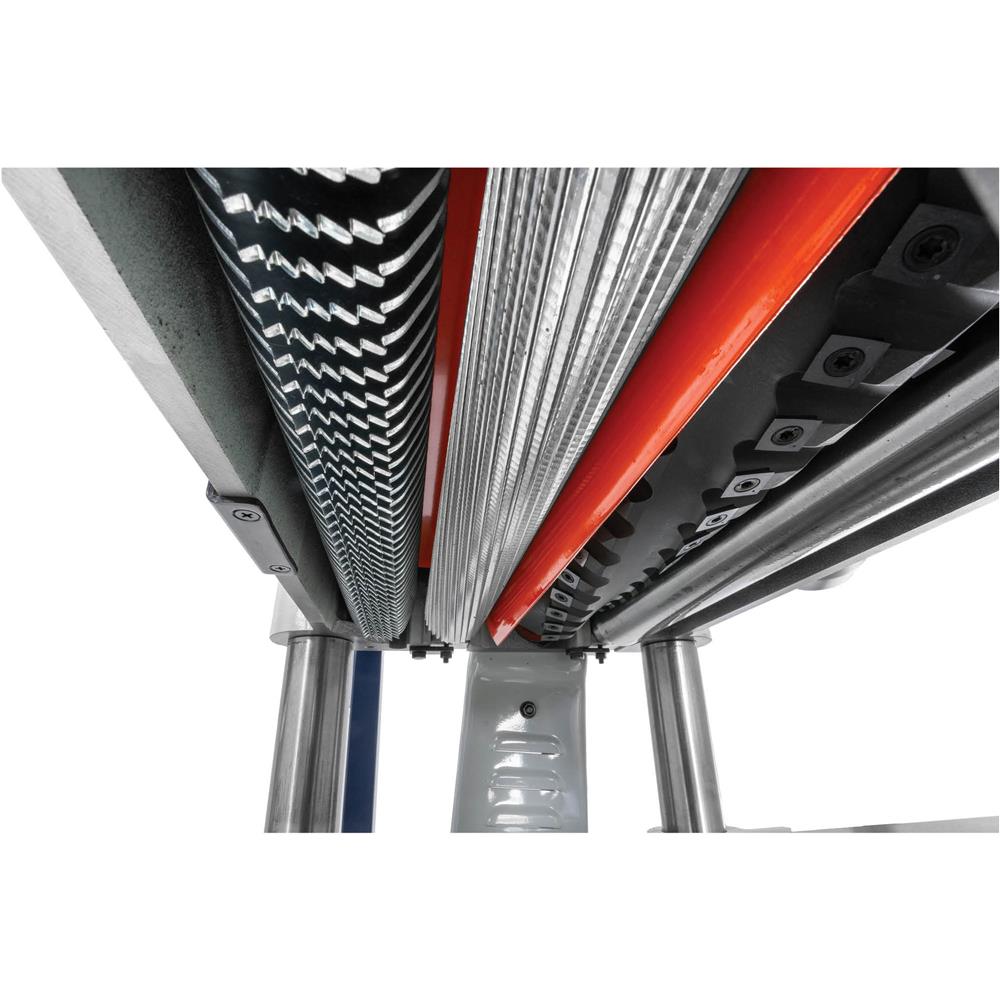

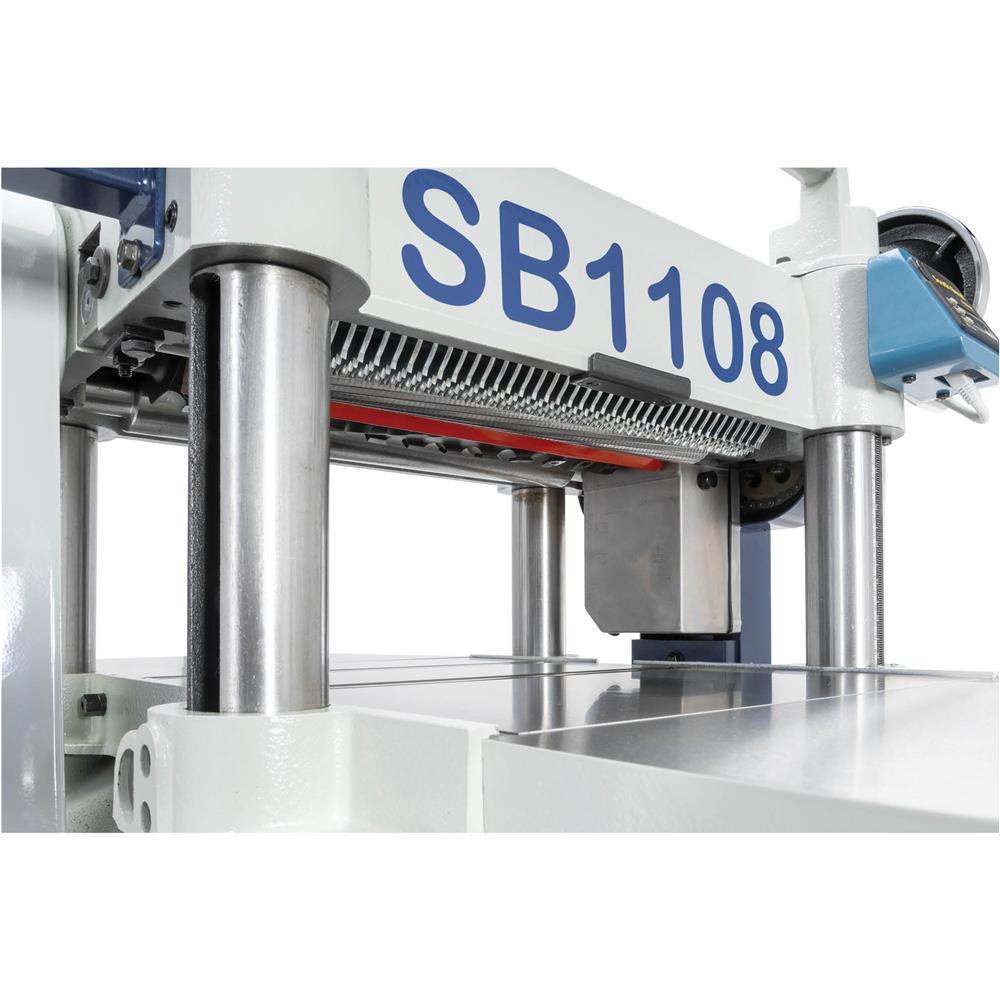

A 4-row helical cutterhead with 52 indexable carbide inserts uses a shearing cut to produce a cleaner finish with reduced tearout, especially on figured hardwoods. Compared with traditional straight-knife designs, it also runs with lower noise and delivers consistent results across a wide range of materials.
The variable feed rate lets you fine-tune performance from slower passes for demanding grain patterns to faster speeds for production work. A digital table height scale, precision-ground cast-iron tables, sturdy support columns, and a triple belt drive help maintain accurate, repeatable cuts for woodworkers who need control, stability, and finish quality in one machine.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features

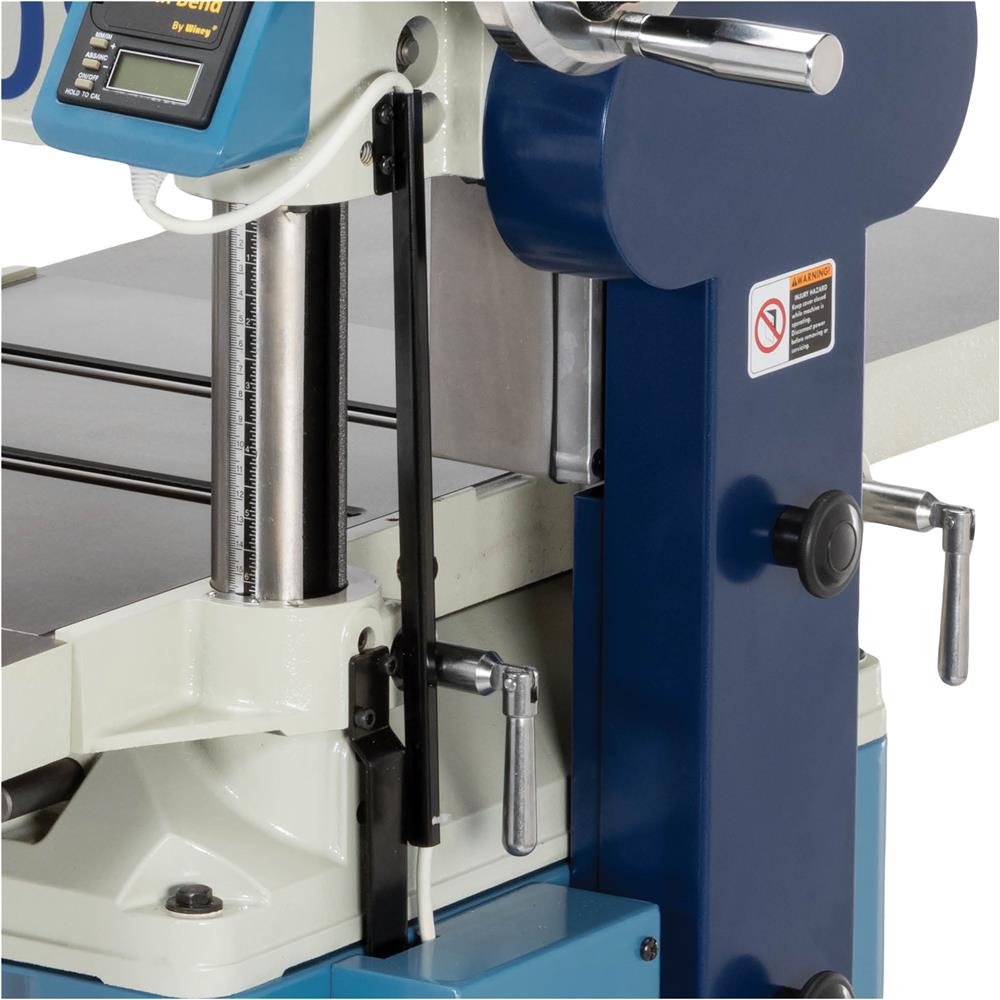

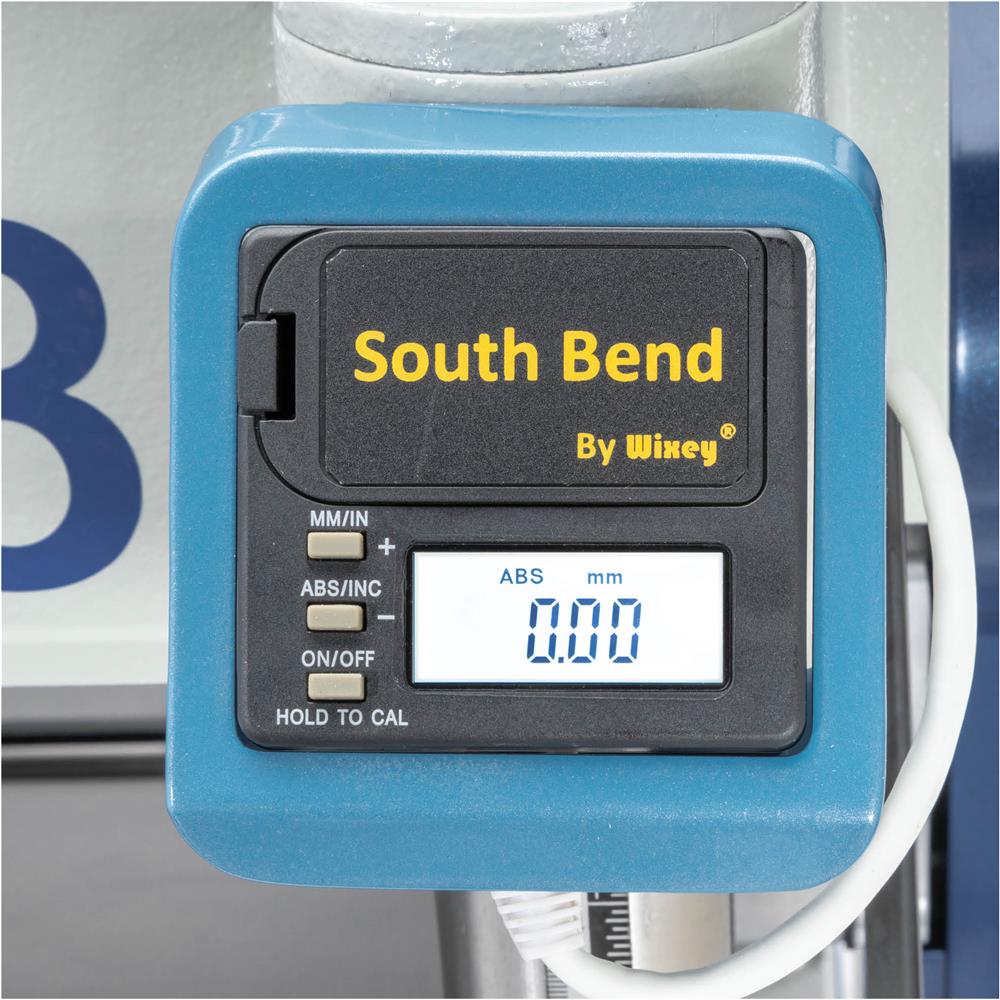

- Digital table height scale
- Variable feed speed dial on control pedestal
- Extra-large ball bearing return rollers

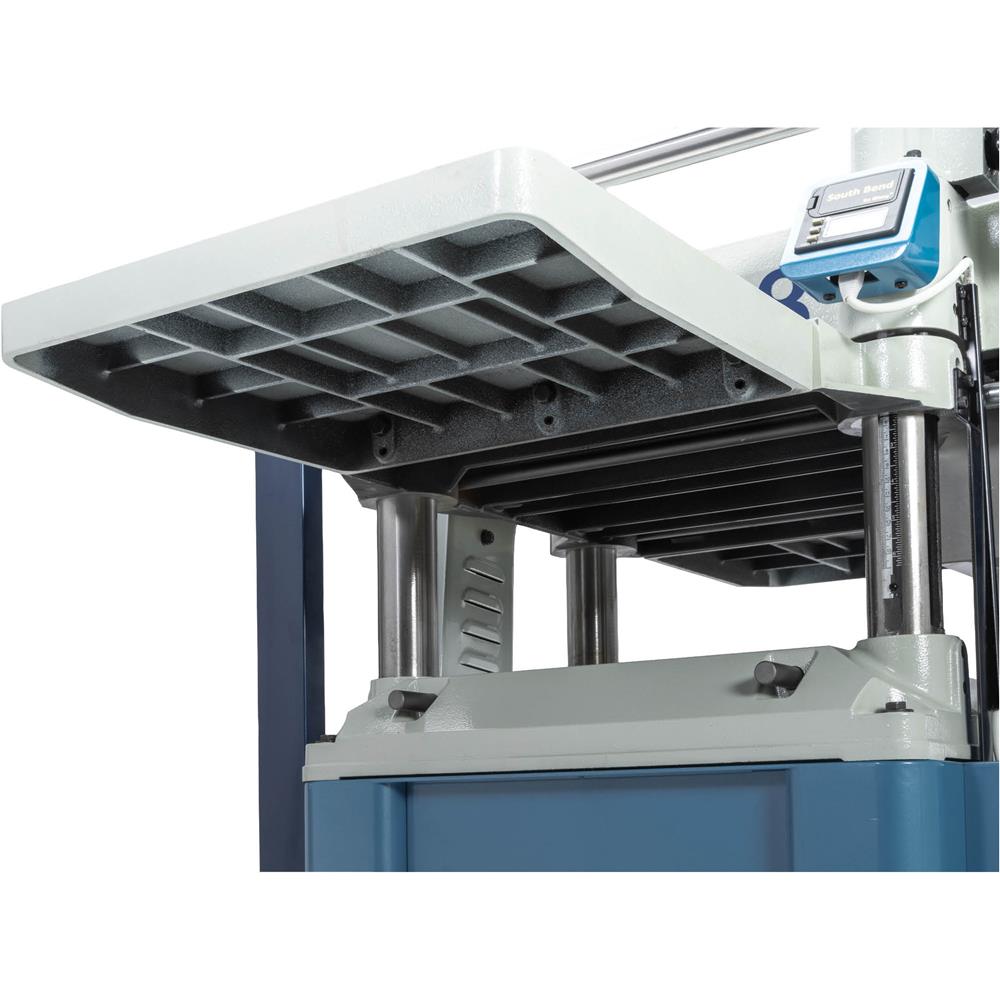

- Heavy-duty precision-ground cast-iron extension wings

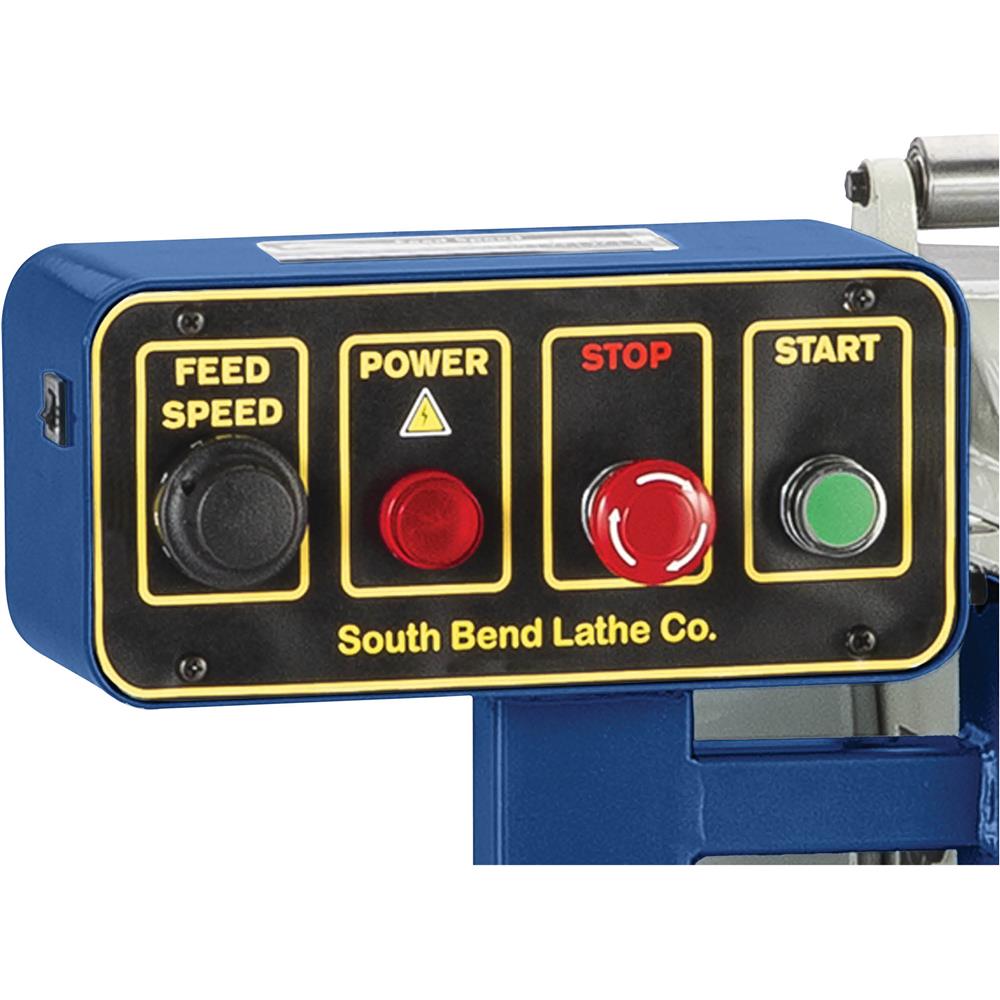

- Pedestal-mounted controls with magnetic switch and thermal overload protection

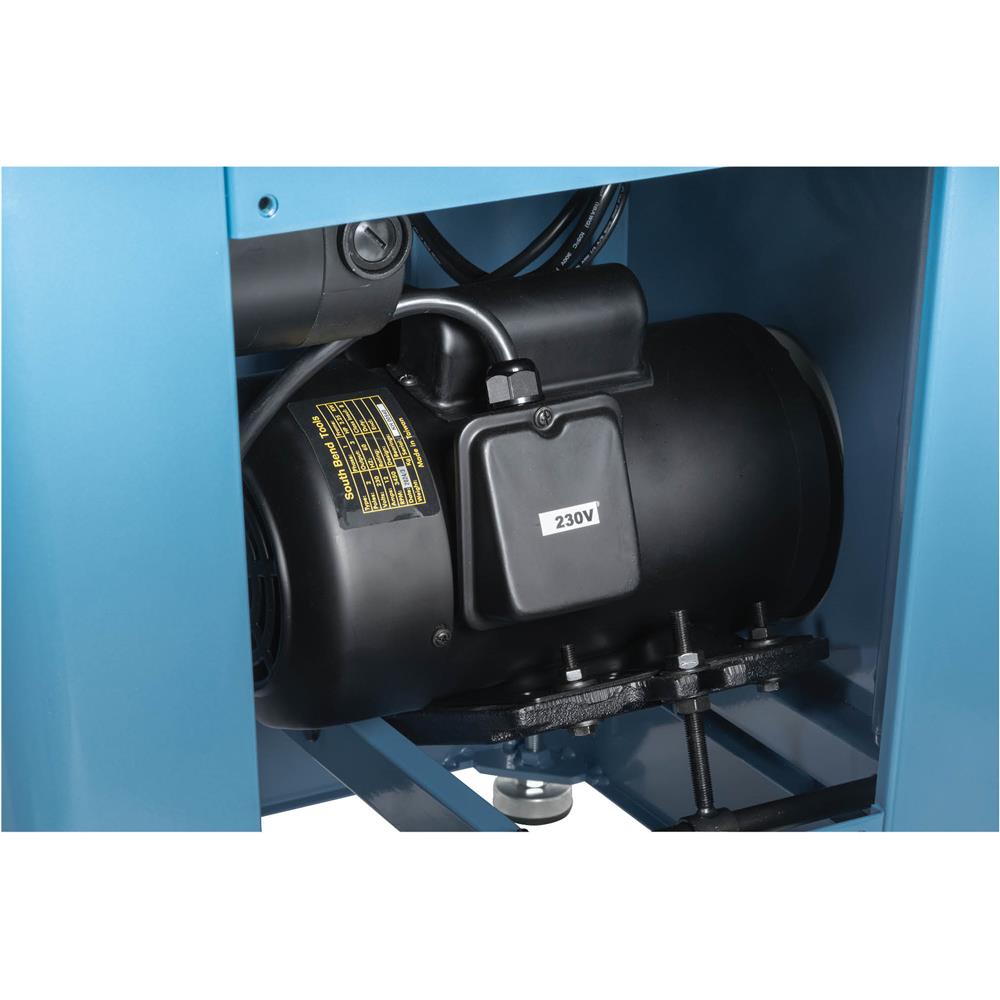

- Internally mounted motor
- Four heavy-duty support columns
- Anti-kickback fingers

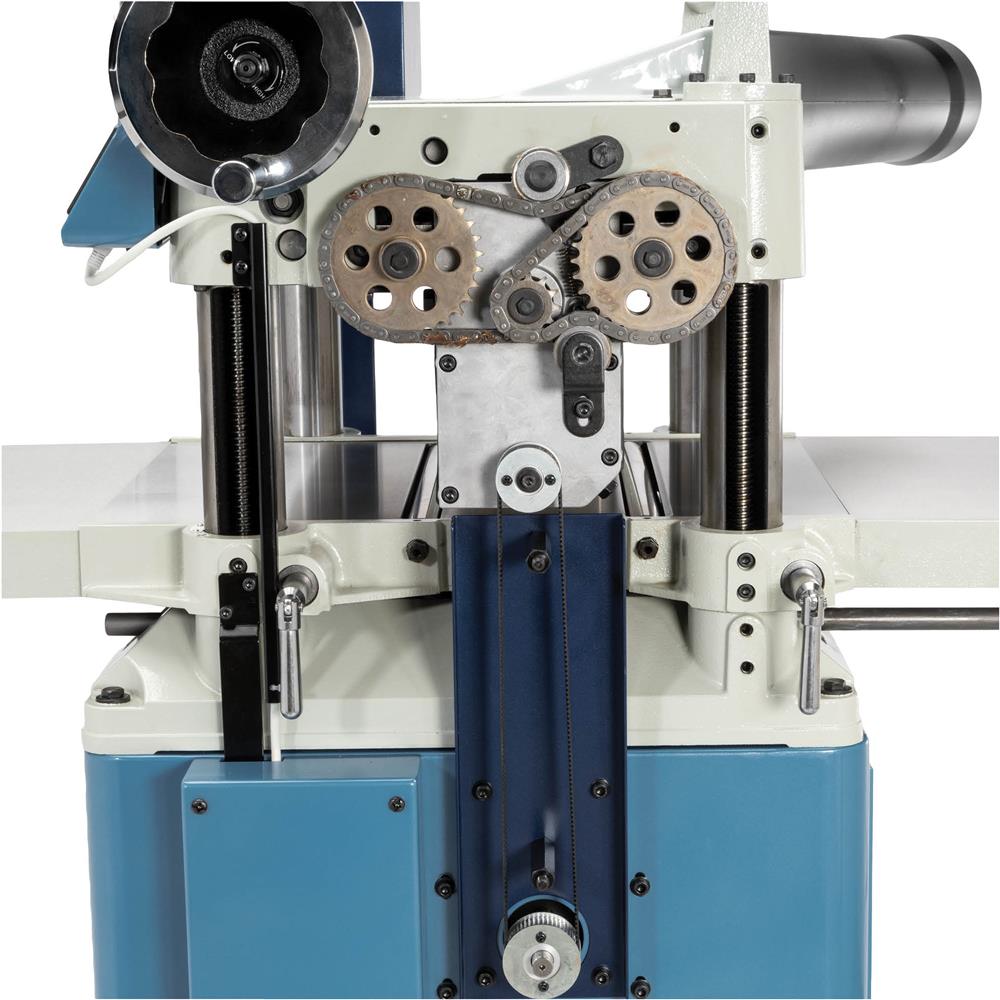

- Drive gears run in oil bath

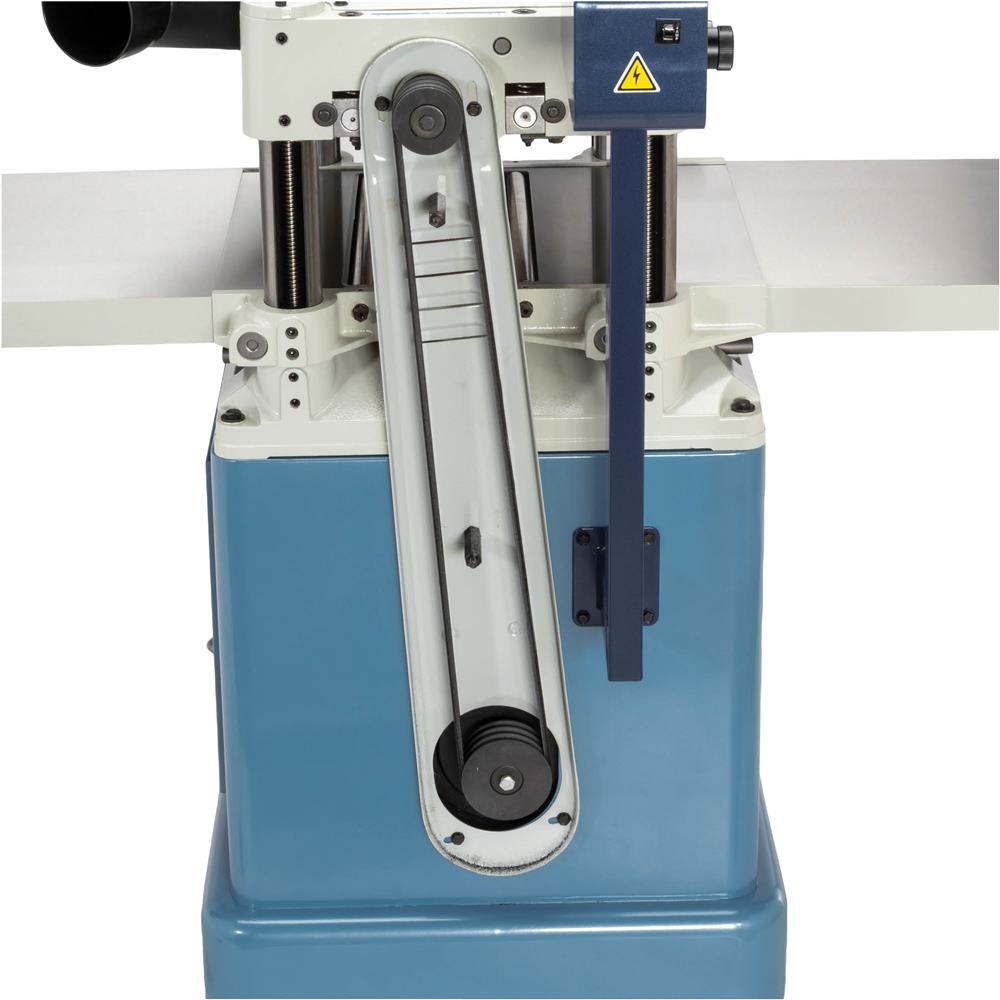

- Triple belt drive inside housing
- U.S.-based customer service and technical support
Specifications
| Motor | 3 HP, 230V, single-phase, 12A |
| Maximum stock width | 15" |
| Maximum stock thickness | 6" |
| Minimum stock thickness | 3/16" |
| Minimum stock length | 6" |
| Maximum cutting depth | 1/8" |
| Cutterhead diameter | 3" |
| Cutterhead type | 4-Row helical with 52 inserts |
| Cutterhead speed | 5000 RPM |
| Insert size, type | 15 x 15 x 2.5mm, indexable carbide |
| Feed rate | Variable, 10–28 FPM |
| Table size with extensions | 15" x 48" |
| Dust port size | 4" |
| Footprint | 22-1/2" x 23" |
| Overall dimensions | 39" W x 48" D x 44-1/2" H |
| Approximate shipping weight | 595 lbs. |
Warranty
This item comes with a 2 year factory warranty.
