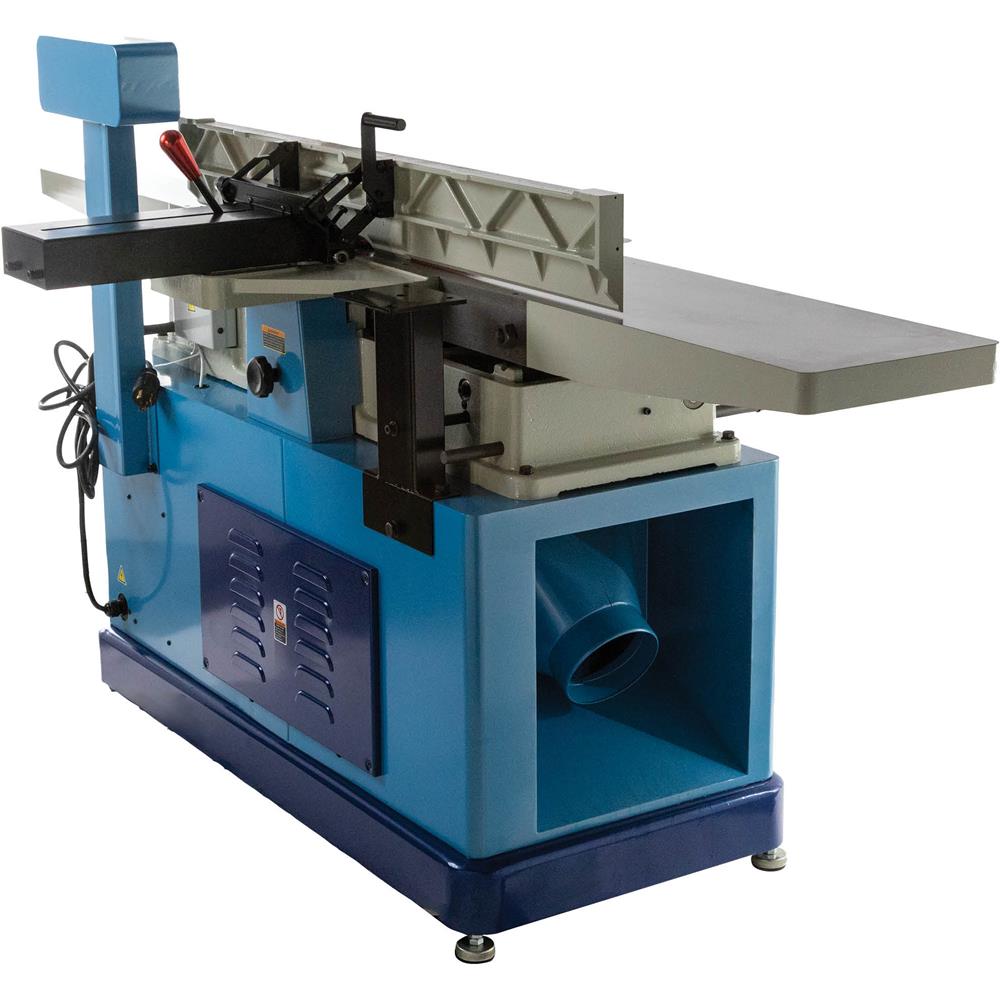

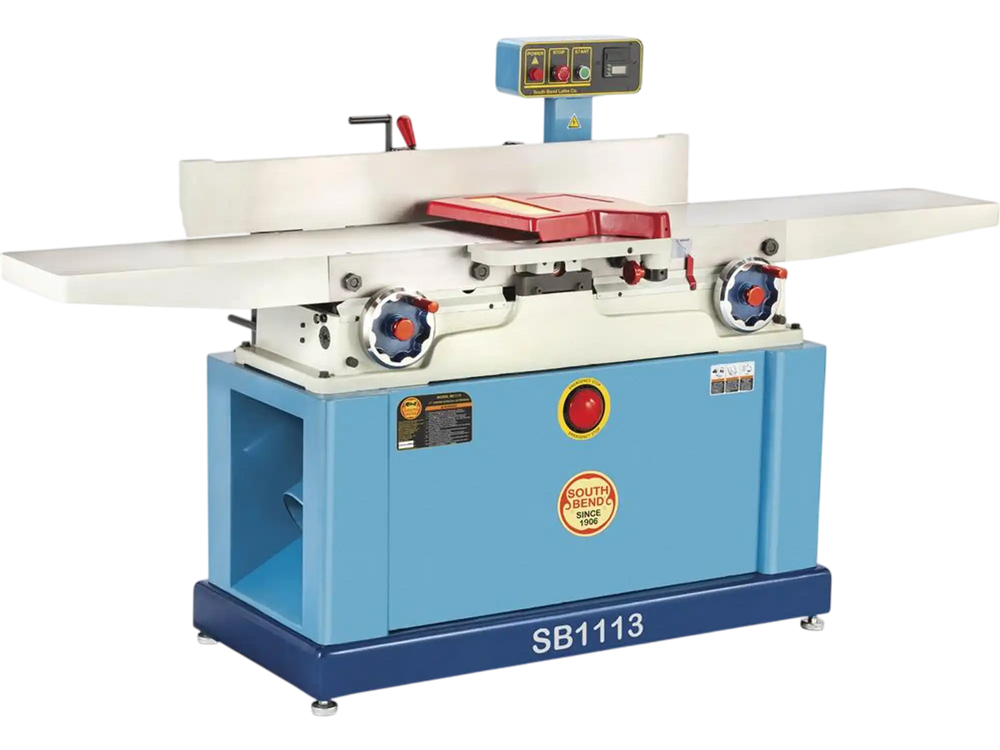

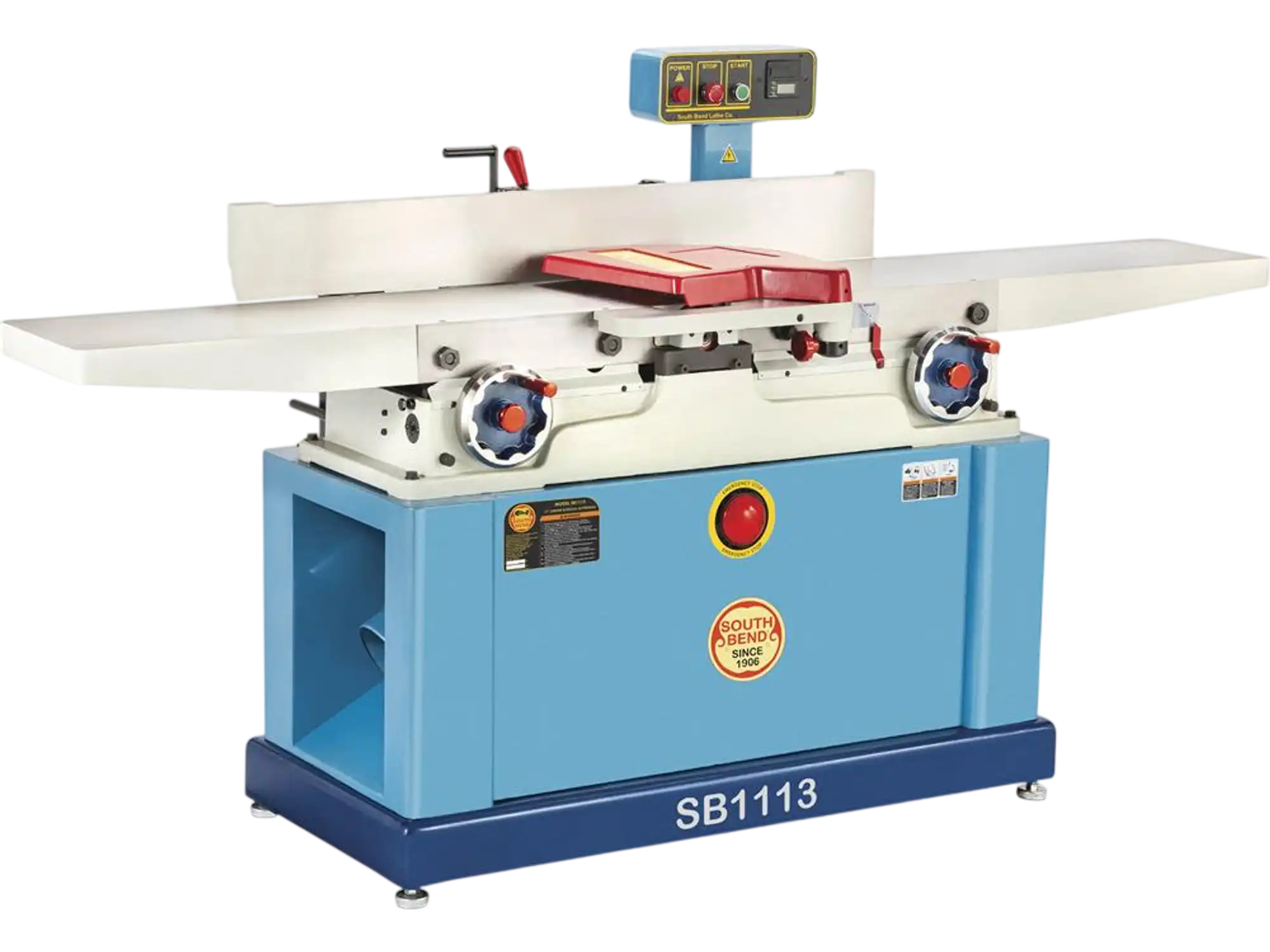

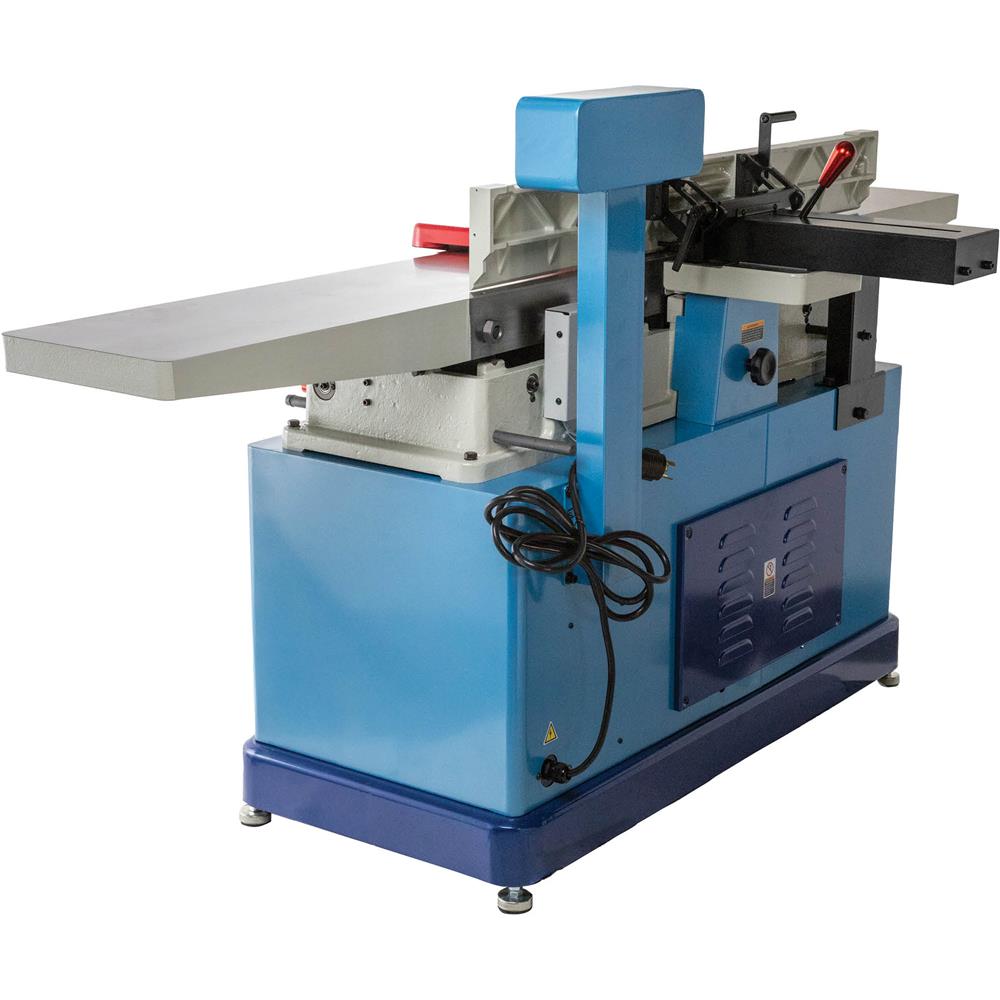

South Bend SB1113 Jointer 12" x 87" Helical Cutterhead DRO New
Product Overview
The South Bend SB1113 is a professional 12-inch jointer built for flattening faces, straightening edges, and preparing stock for accurate glue-ups and final milling. Its long 87-1/2 inch precision-ground cast-iron table provides stable support for larger boards, while the 5 HP motor delivers the power needed for demanding shop work.

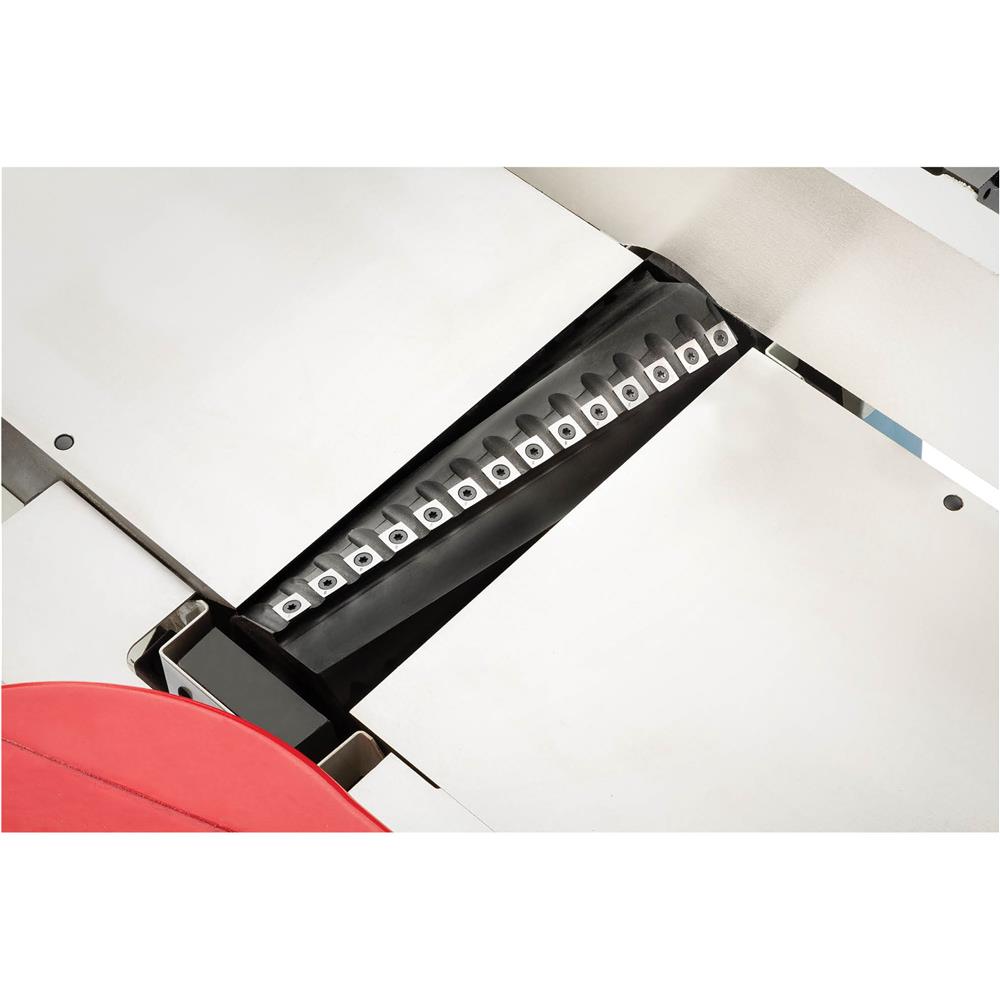

A 4-row helical cutterhead with 56 indexable carbide inserts produces a smooth finish with reduced tearout, especially in figured or difficult hardwoods, and runs quieter than many straight-knife designs. The parallelogram table design allows smooth, precise adjustments, and the digital readout makes it easy to set infeed table height and repeat exact cut depths.
Designed for serious woodworkers, cabinet shops, furniture makers, and professional production environments, this machine also includes a rabbeting table, a large adjustable fence, and an easy-to-reach knee stop button for added control during operation. It is well suited for users who need industrial-capacity jointing performance with accurate, repeatable setup.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features

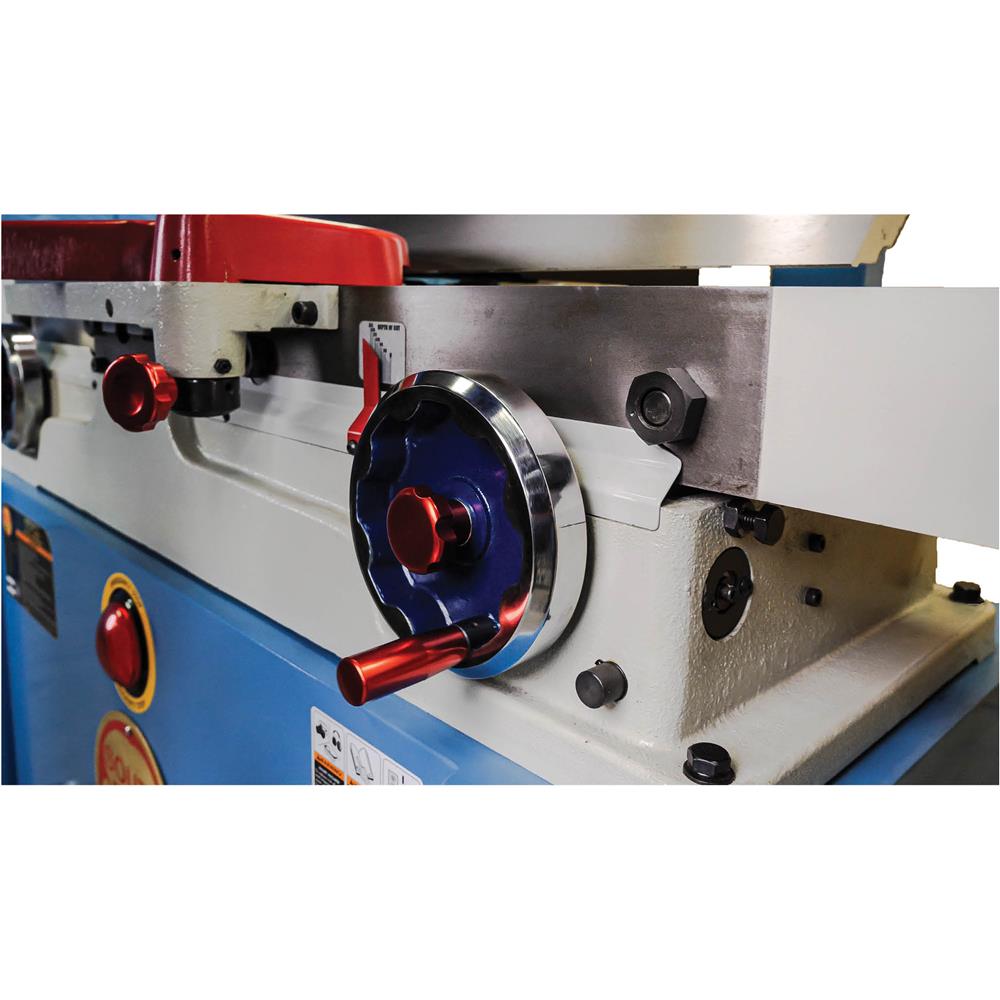

- Parallelogram tables with handwheel adjustment

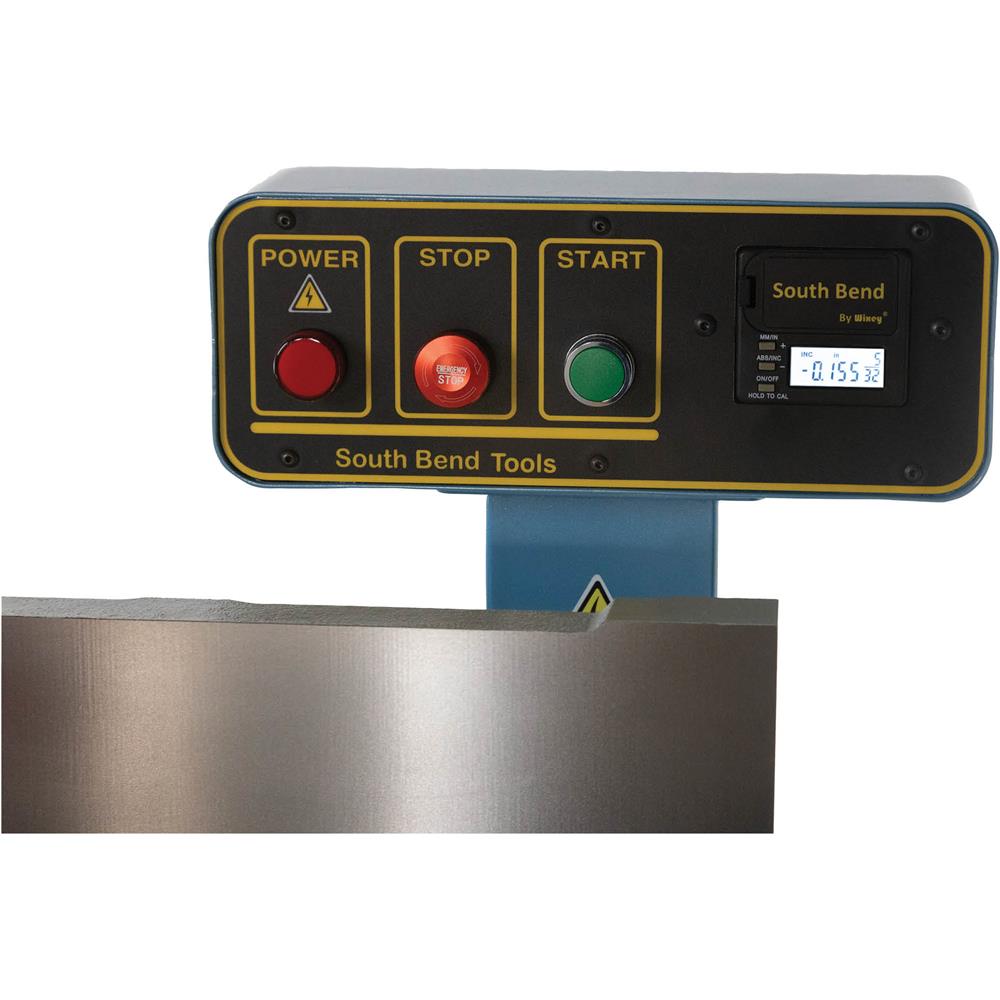

- Digital readout for infeed table height

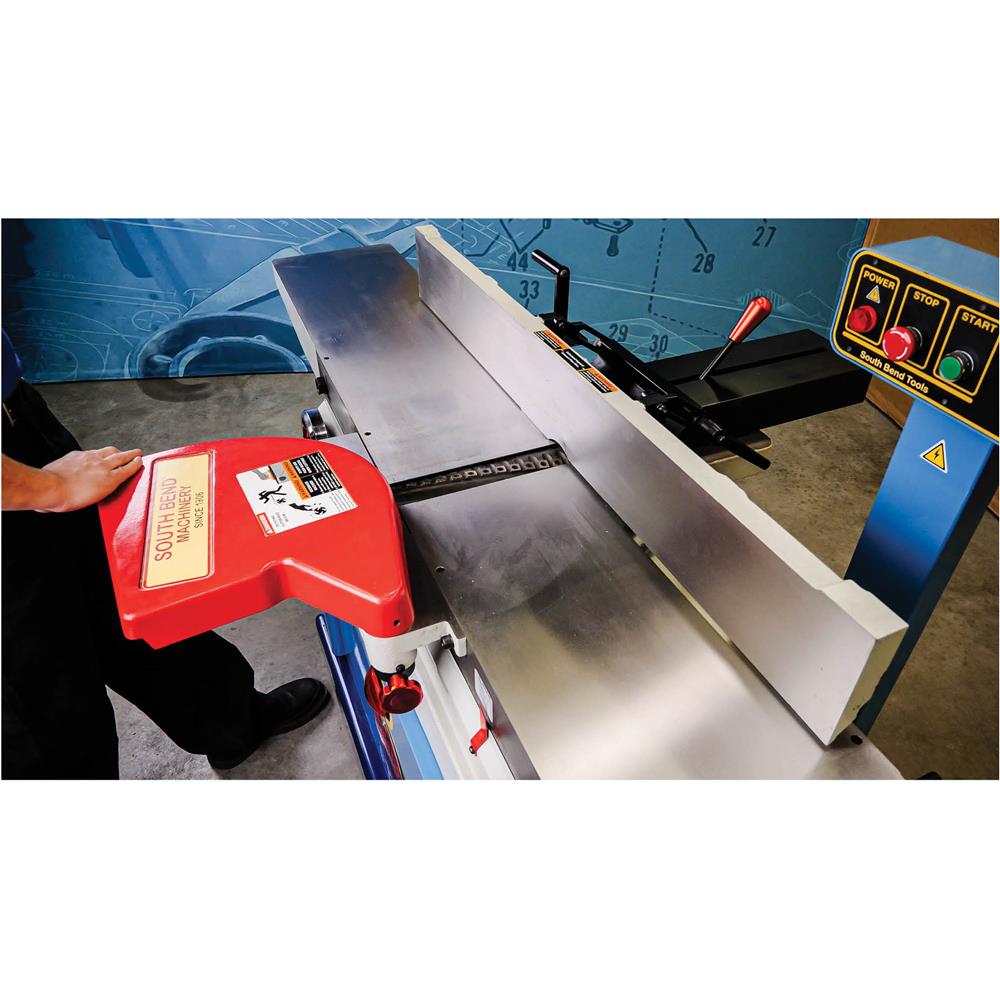

- Rabbeting table
- Pedestal-mounted switch controls
- Easy-to-reach knee stop button located below cutterhead
- Rack-and-pinion lateral fence adjustment
- Fence stops at 90° and 135°
- Precision-ground cast-iron table
- Anodized handwheels and fence handle
- U.S.-based customer service and technical support
Specifications
| Motor | 5 HP, 230V, single-phase, 23A |
| Maximum width of cut | 12" |
| Maximum depth of cut | 1/8" |
| Maximum rabbeting depth | 1/2" |
| Cutterhead diameter | 4" |
| Cutterhead type | 4-Row helical, 56 inserts |
| Insert size and type | 15 x 15 x 2.5mm, indexable carbide |
| Cutterhead speed | 5500 RPM |
| Table size | 12" x 87-1/2" |
| Fence size | 47-1/2" L x 6" H |
| Minimum stock length | 14" |
| Minimum stock thickness | 1/2" |
| Dust port size | 6" |
| Footprint | 49-1/2" x 23" |
| Dimensions | 87-1/2" W x 39" D x 46" H |
| Approximate shipping weight | 992 lbs. |
Warranty
This item comes with a 2 year factory warranty.
