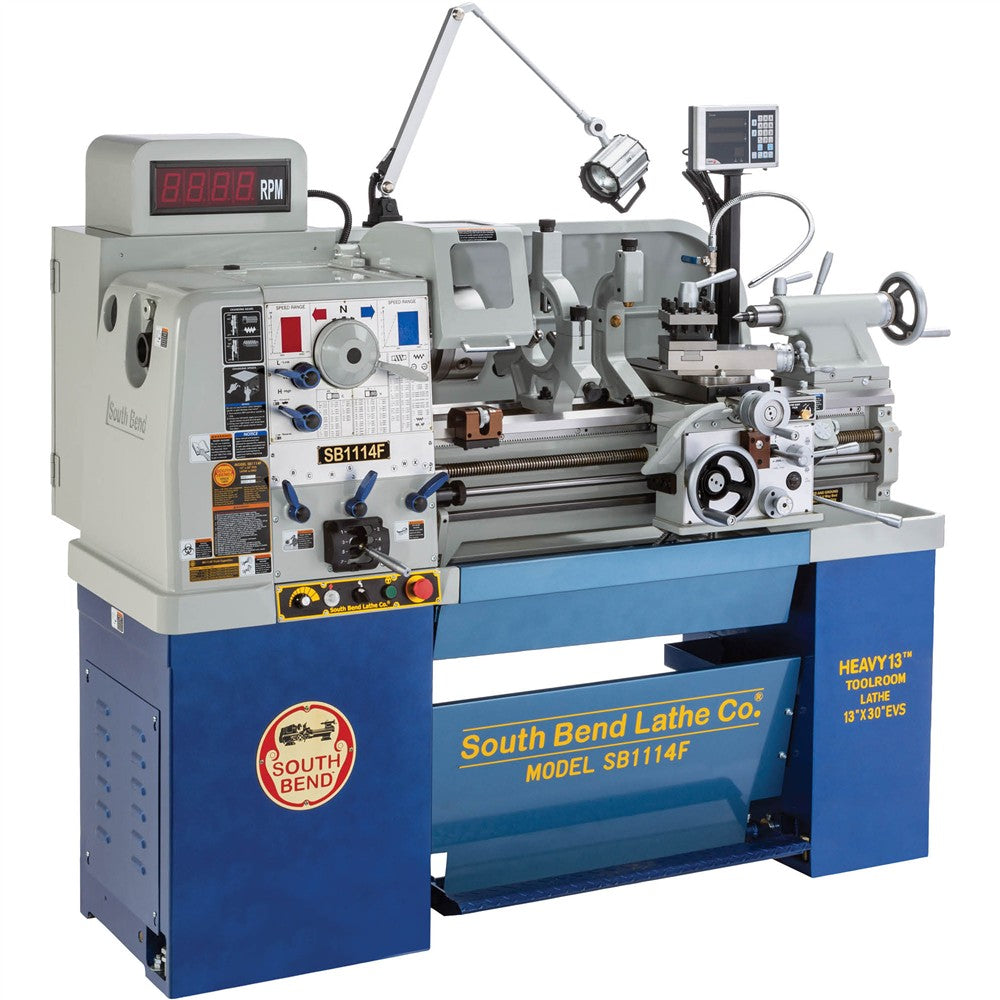

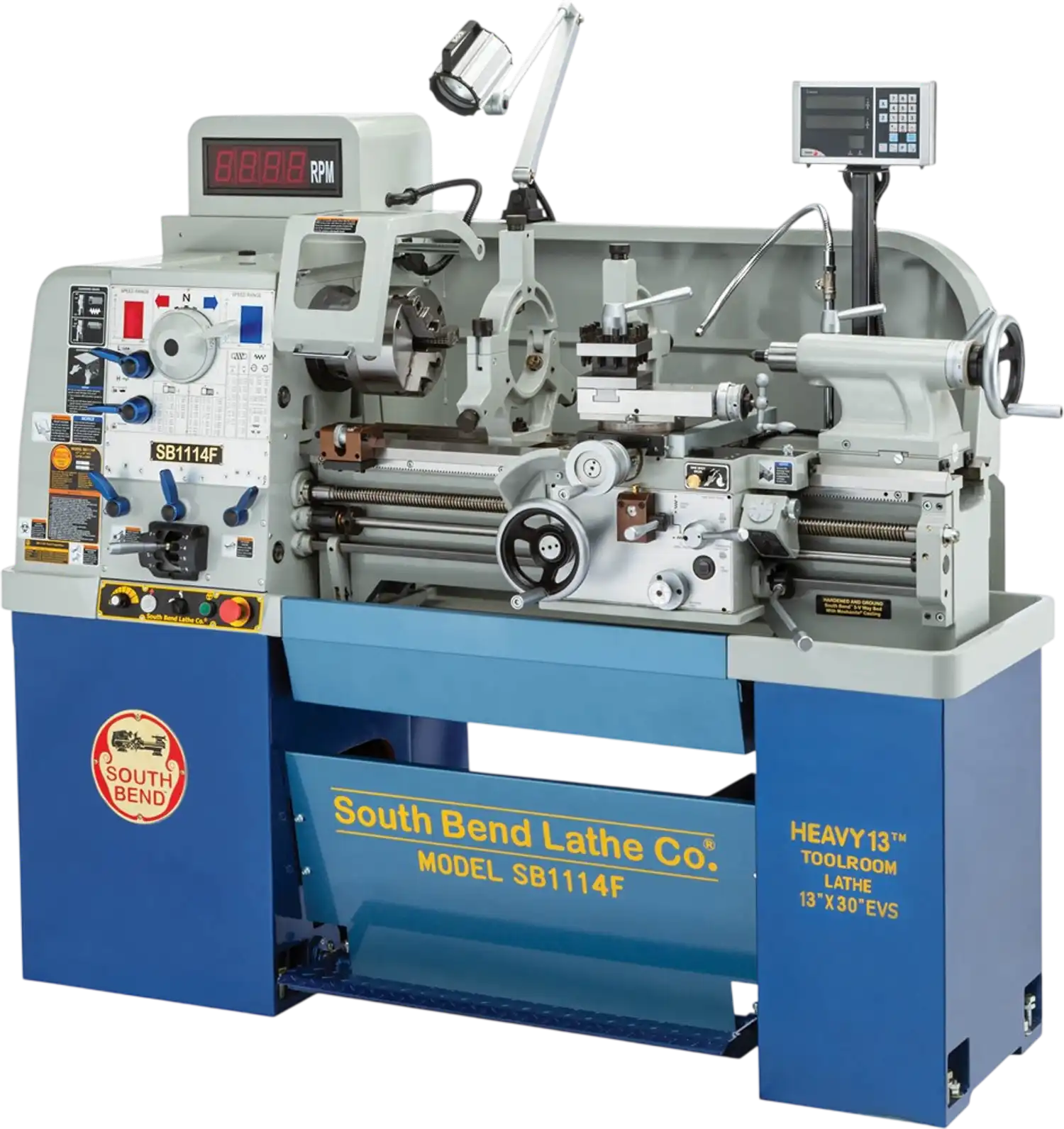

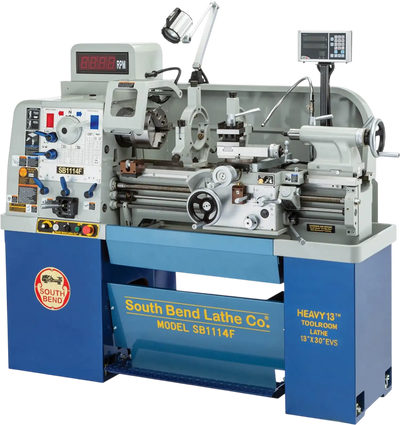

South Bend SB1114F Metal Lathe 13" x 30" EVS Lathe with DRO New
Product Overview
The South Bend SB1114F is a heavy-duty 13" x 30" metal lathe built for precision turning, facing, threading, and general machining work. It combines a 5 HP motor with electronic variable speed control, giving you a smooth 100 to 3000 RPM range for handling a wide variety of materials and operations.
A factory-installed two-axis digital readout helps track carriage and cross slide position for more accurate, repeatable results. The hardened and precision-ground Meehanite cast-iron bed, enclosed universal gearbox, and dependable electrical controls make this machine well suited for serious shop use where rigidity and control matter.

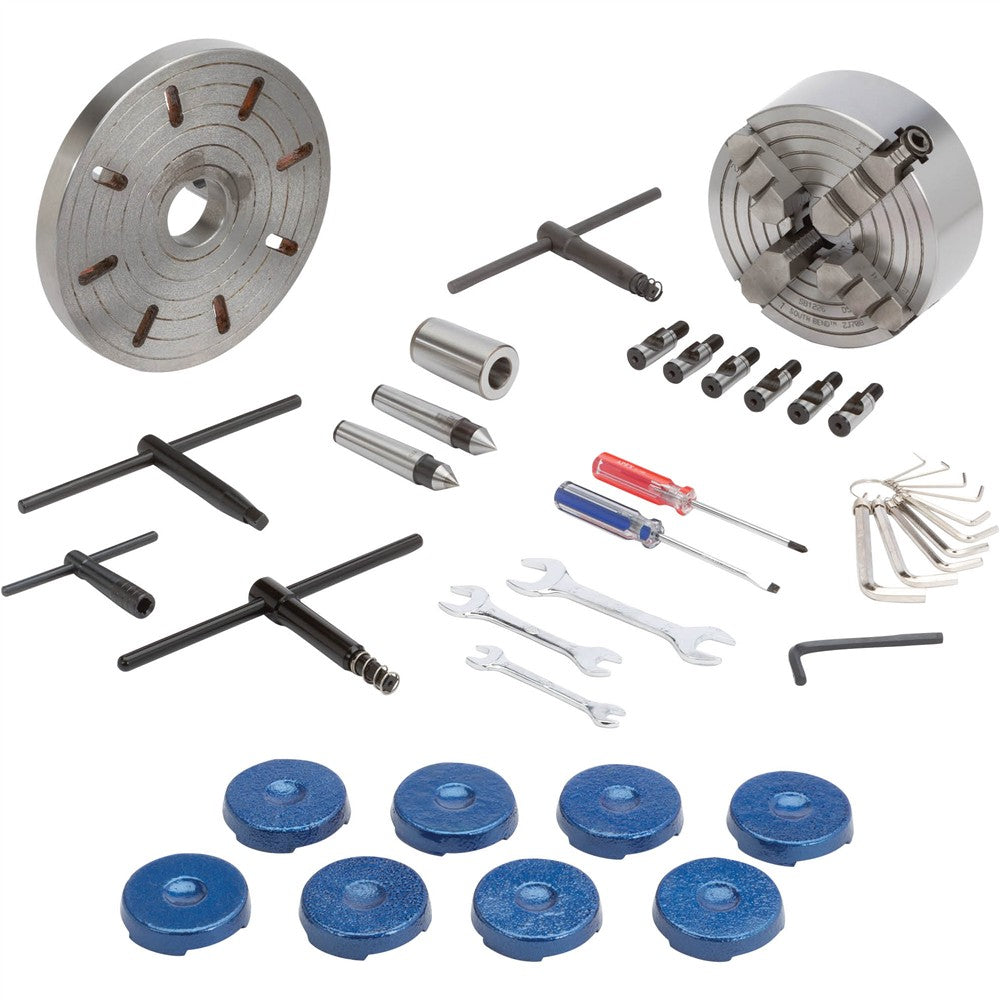

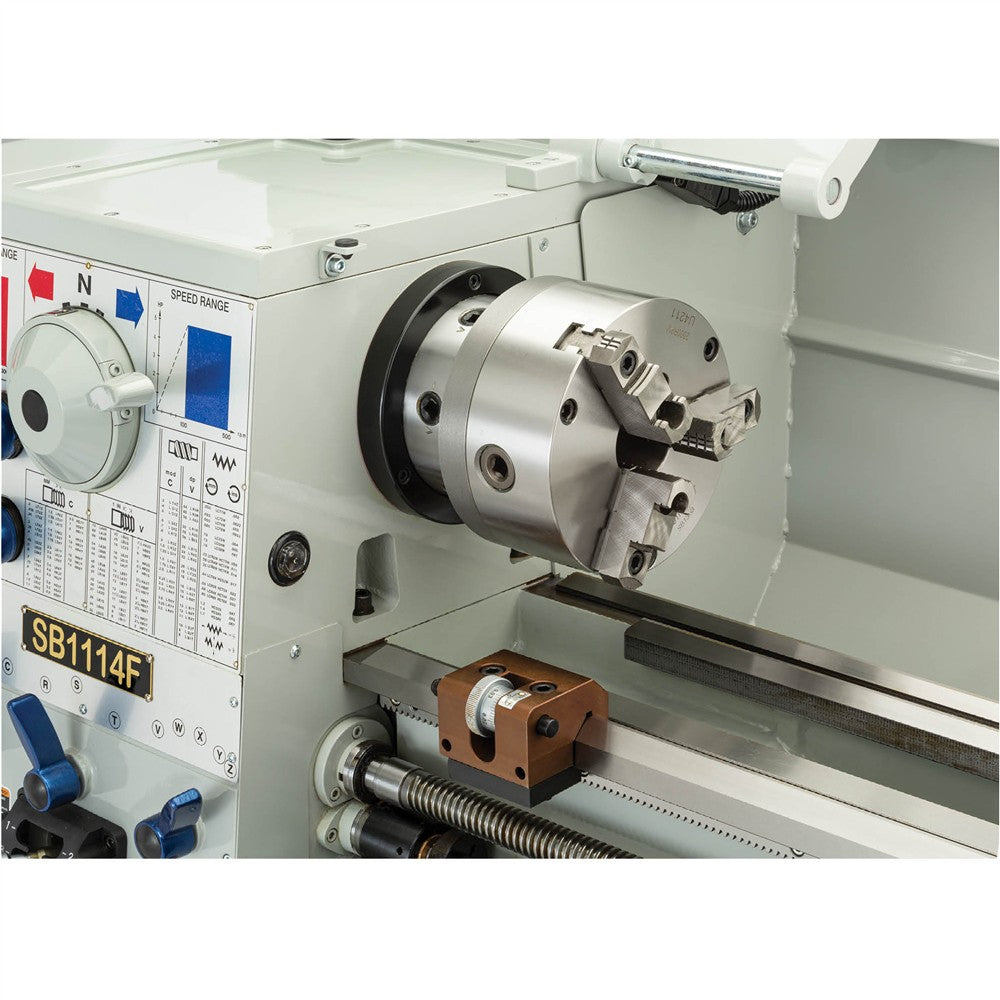

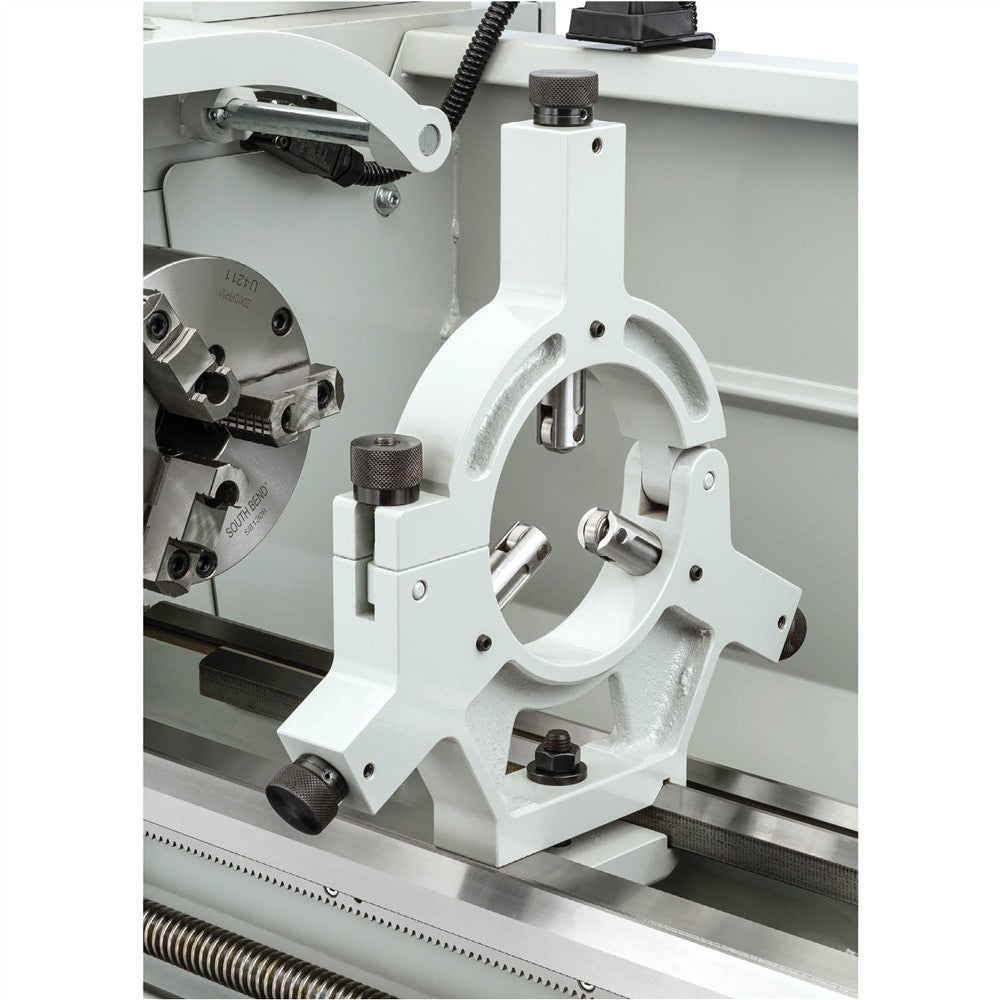

Designed for machinists, fabrication shops, maintenance departments, and advanced metalworking professionals, this lathe offers a 13-1/4" swing over bed and 30" distance between centers in a compact floor-standing format. It also includes useful tooling such as 3-jaw and 4-jaw chucks, a faceplate, follow rest, steady rest, and dead centers to support a broad range of turning tasks.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features
- 2-year limited warranty
- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
- Meehanite® castings
- Allen-Bradley® controls

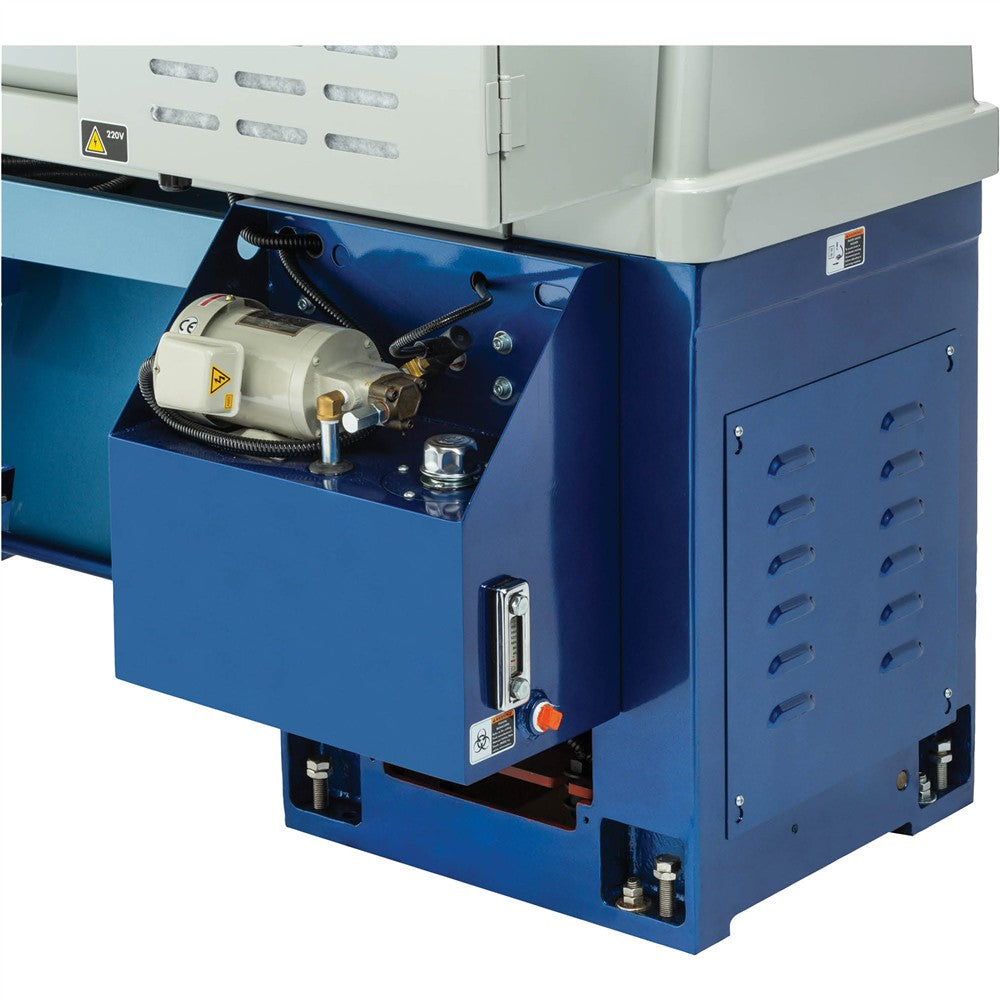

- Complete recycling coolant system

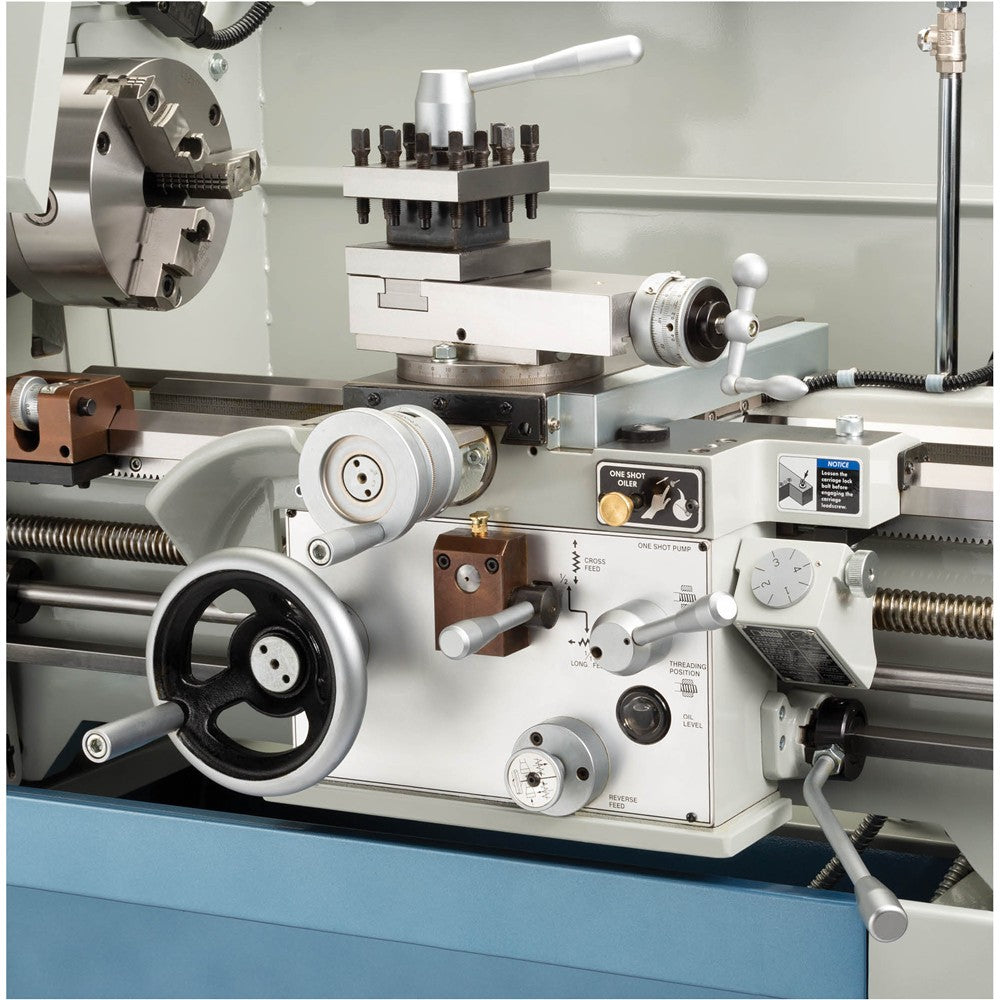

- Micrometer carriage stop
- Threading dial indicator

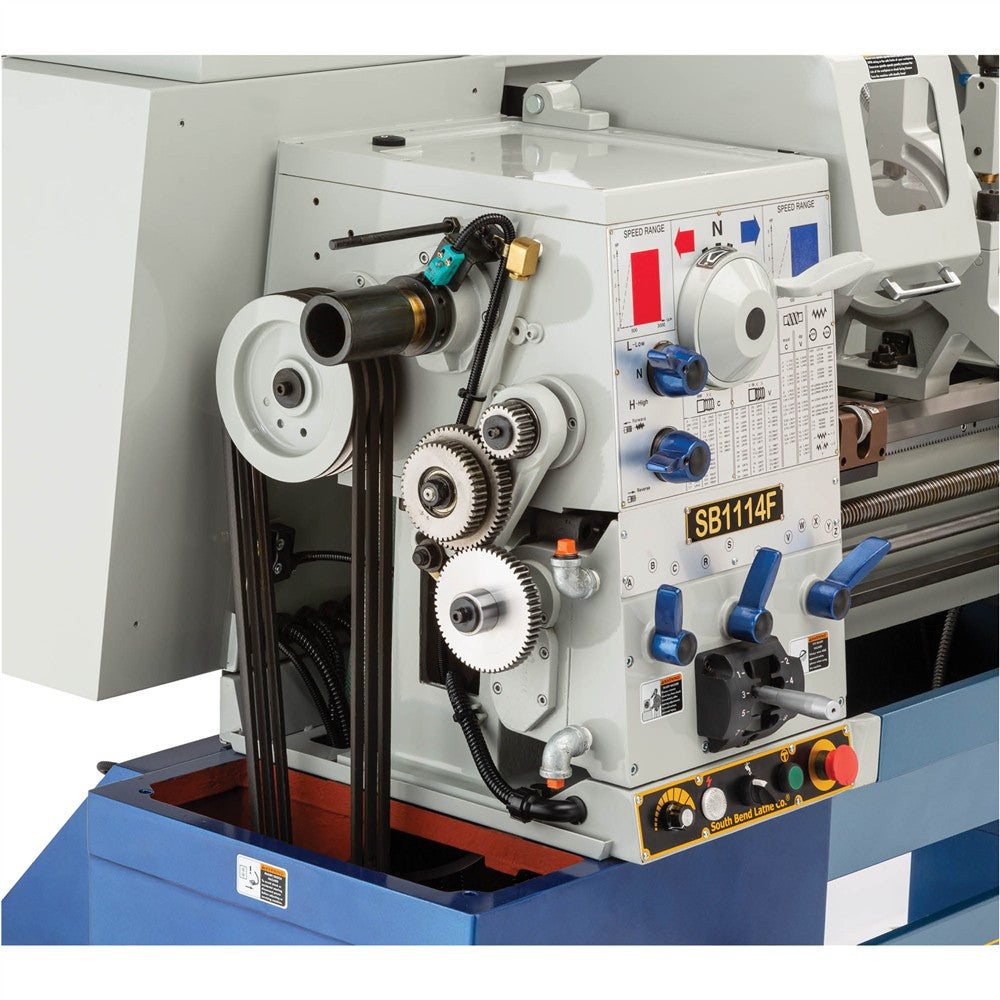

- Enclosed universal gearbox for cutting inch, metric, modular, and diametral pitches
Specifications
| Required power source | 220V, single-phase, min. 30A circuit |

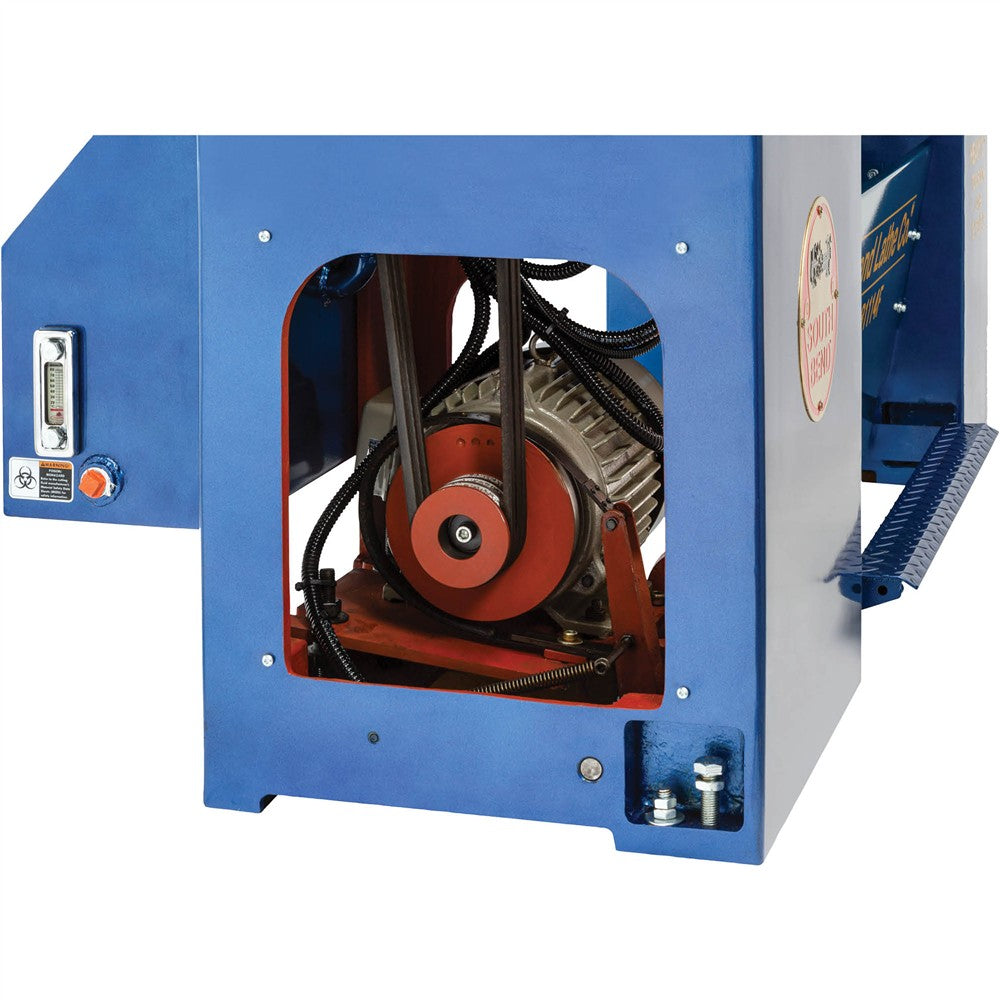

| Spindle motor | 5 HP, 220V |
| Coolant pump motor | 1/8 HP, 0.4A |
| Oil pump motor | 1/4 HP, 1.3A |
| Distance between centers | 30" |
| Swing over bed | 13-1/4" |
| Swing over cross slide | 8-1/6" |
| Swing over saddle | 13" |
| Maximum tool bit size | 5/8" |
| Compound travel | 3-3/4" |
| Carriage travel | 25-9/16" |
| Cross slide travel | 7" |
| Spindle taper | MT #5 |
| Spindle speed | Variable, 100–3000 RPM |

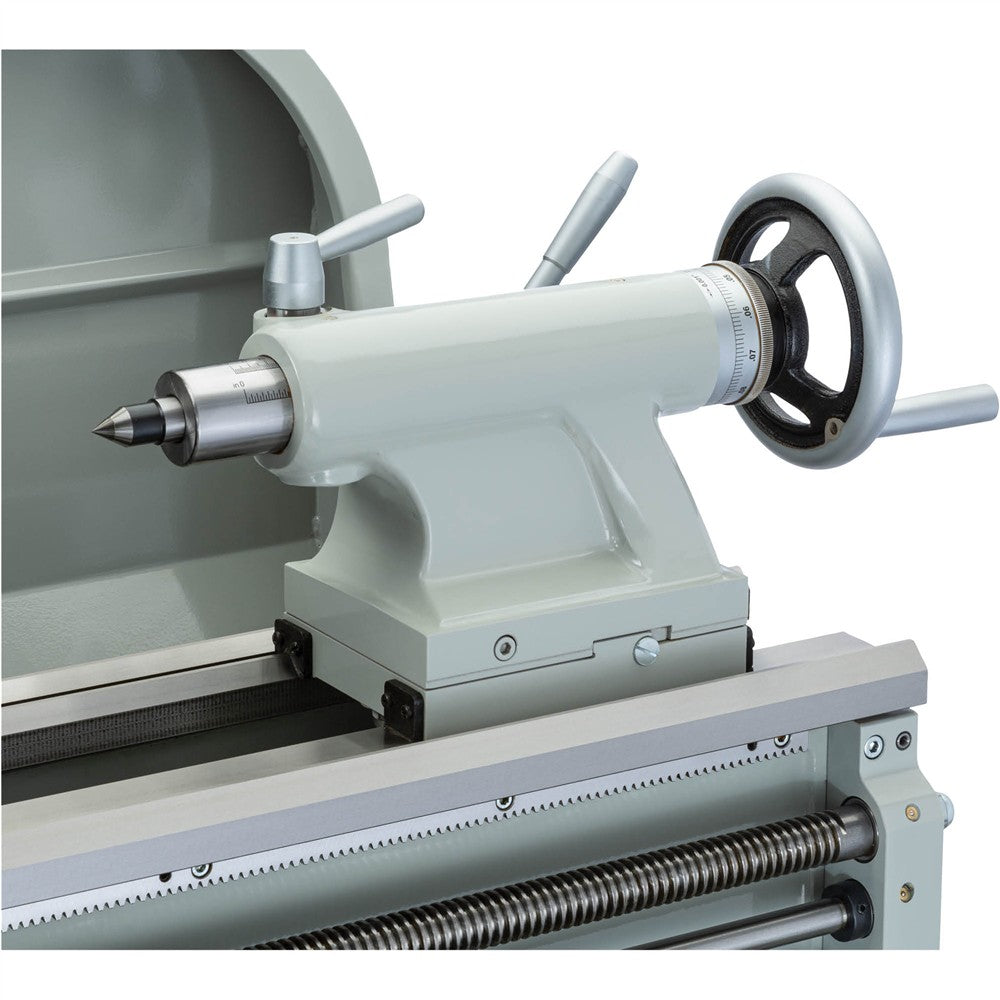

| Tailstock taper | MT #3 |
| Tailstock travel | 4-1/2" |
| Footprint | 68-1/2" x 19-1/2" |
| Overall dimensions | 71" W x 38" D x 60-1/2" H |
| Approximate shipping weight | 2602 lbs. |
Warranty
This item comes with a 2 year factory warranty.
