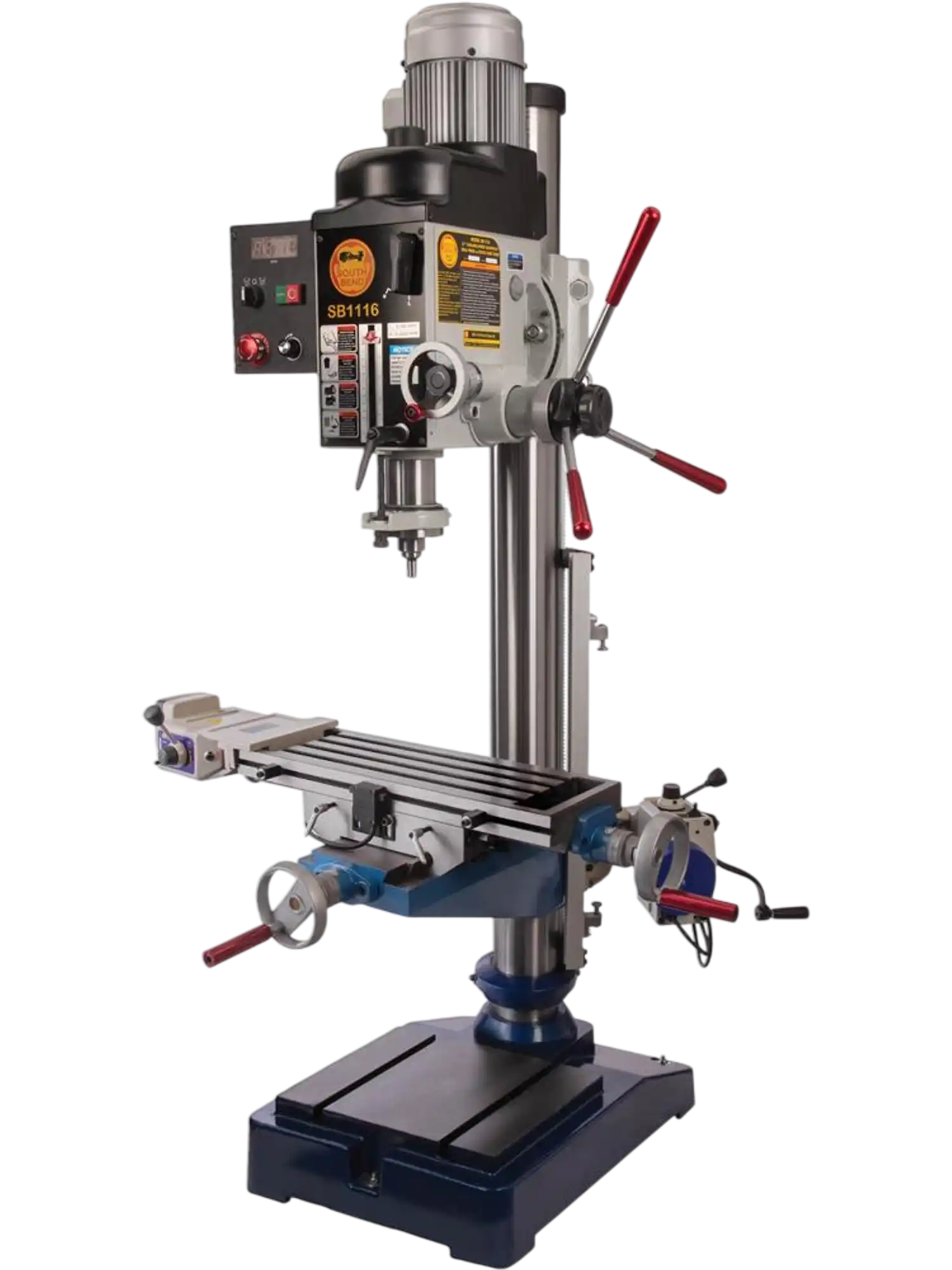

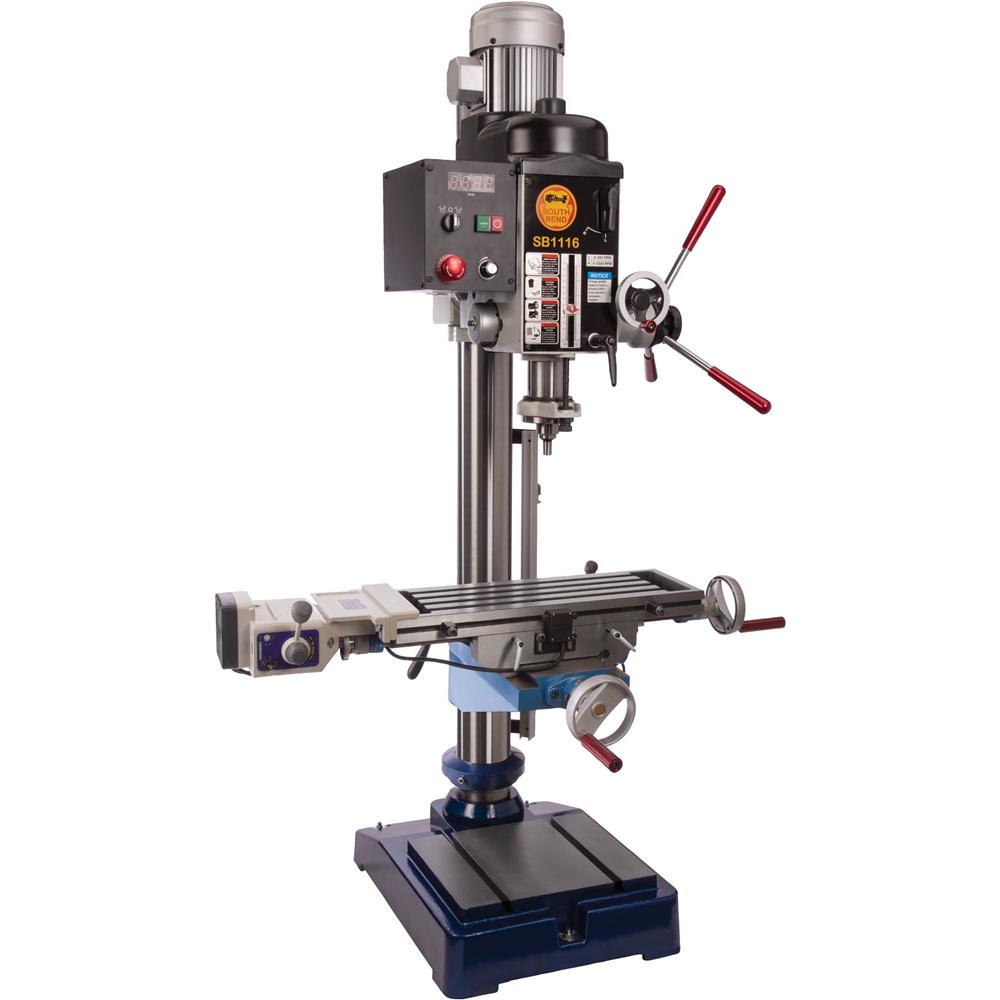

South Bend SB1116 Mill Drill 21" Variable-Speed Gearhead Drill Press with Cross-Slide Table New
Product Overview
The South Bend SB1116 is a professional-grade 21-inch variable-speed gearhead drill press with an integrated cross-slide table for accurate drilling, positioning, and light milling-style movement. Its 1-1/2 HP motor, geared head design, and 0–2500 RPM variable speed range deliver the torque and control needed for demanding shop work, especially when drilling larger holes in metal.
This machine features X- and Y-axis table travel, longitudinal and vertical power feed, coarse and fine downfeed controls, and a reversible spindle for added versatility. A digital speed display, rack-and-pinion table elevation, and head tilt and positioning functions help users make precise adjustments for repeatable results.
Built for serious metalworking, fabrication, and maintenance environments, it is a strong fit for machinists, toolrooms, and advanced workshops that need more capability than a standard belt-driven drill press. The large cast-iron construction and generous drilling capacity make it well suited for precision-focused users working with steel and other tough materials.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features
- 2-year limited warranty

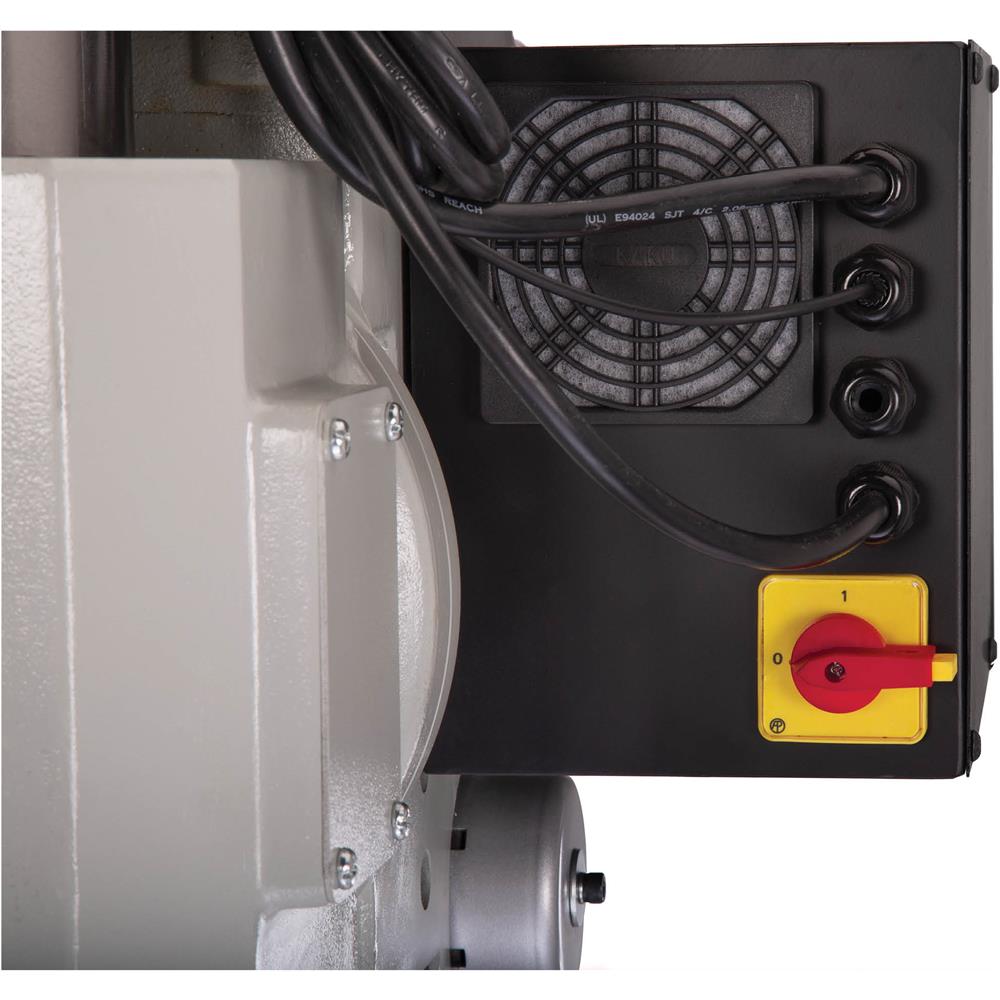

- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power

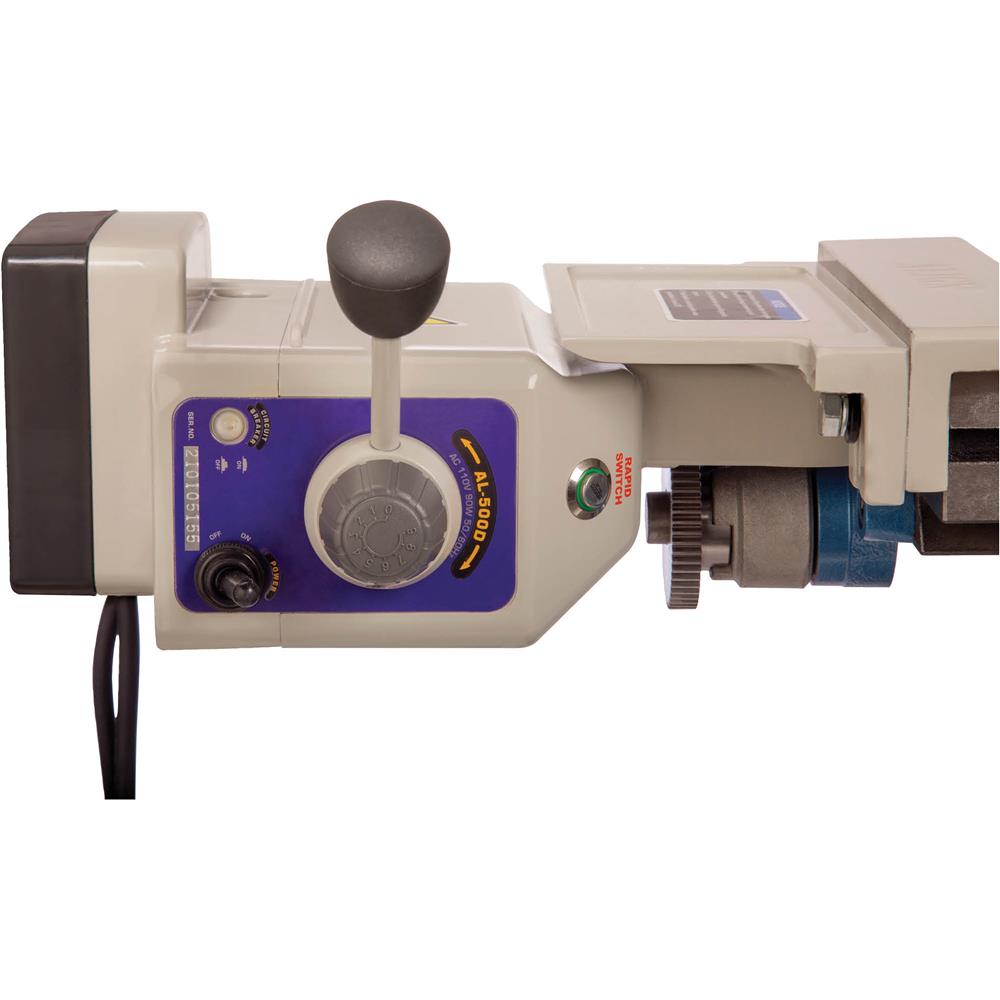

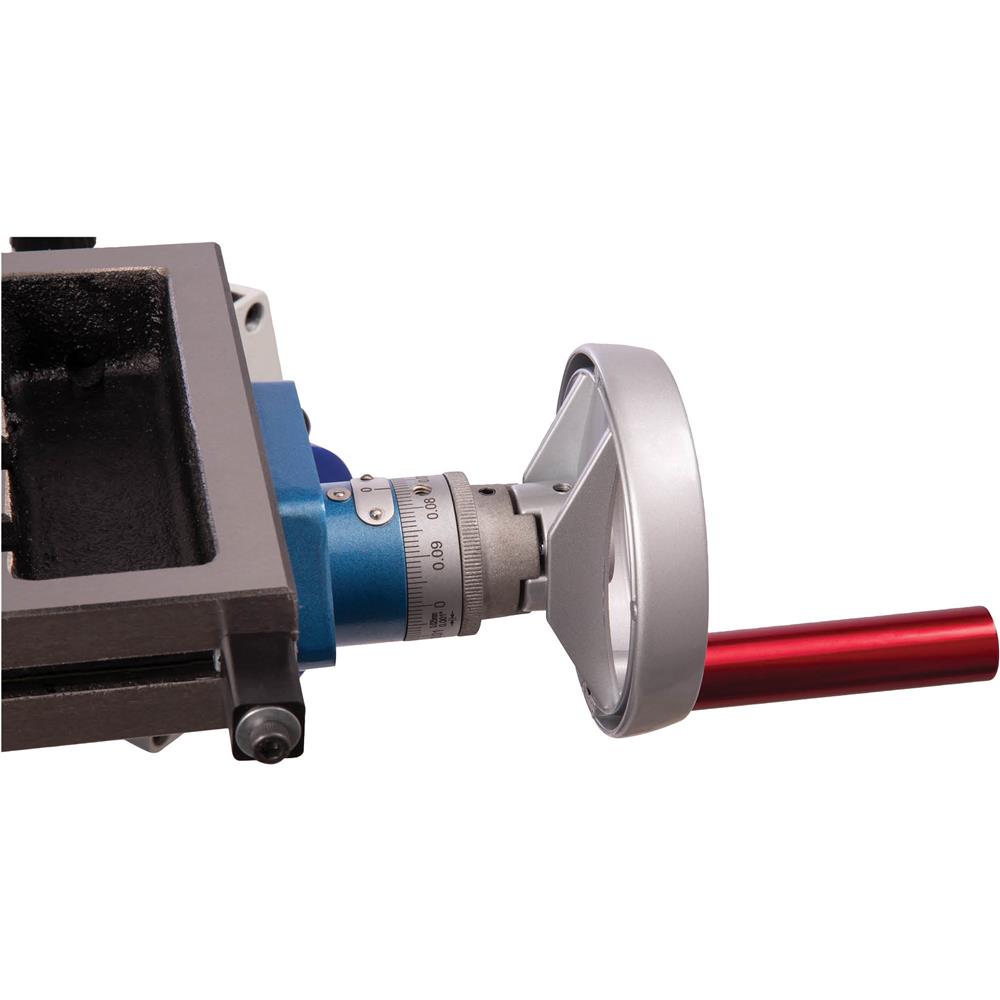

- Cast-iron cross slide table with X- and Y-axis power feeds
- Control panel with digital readout

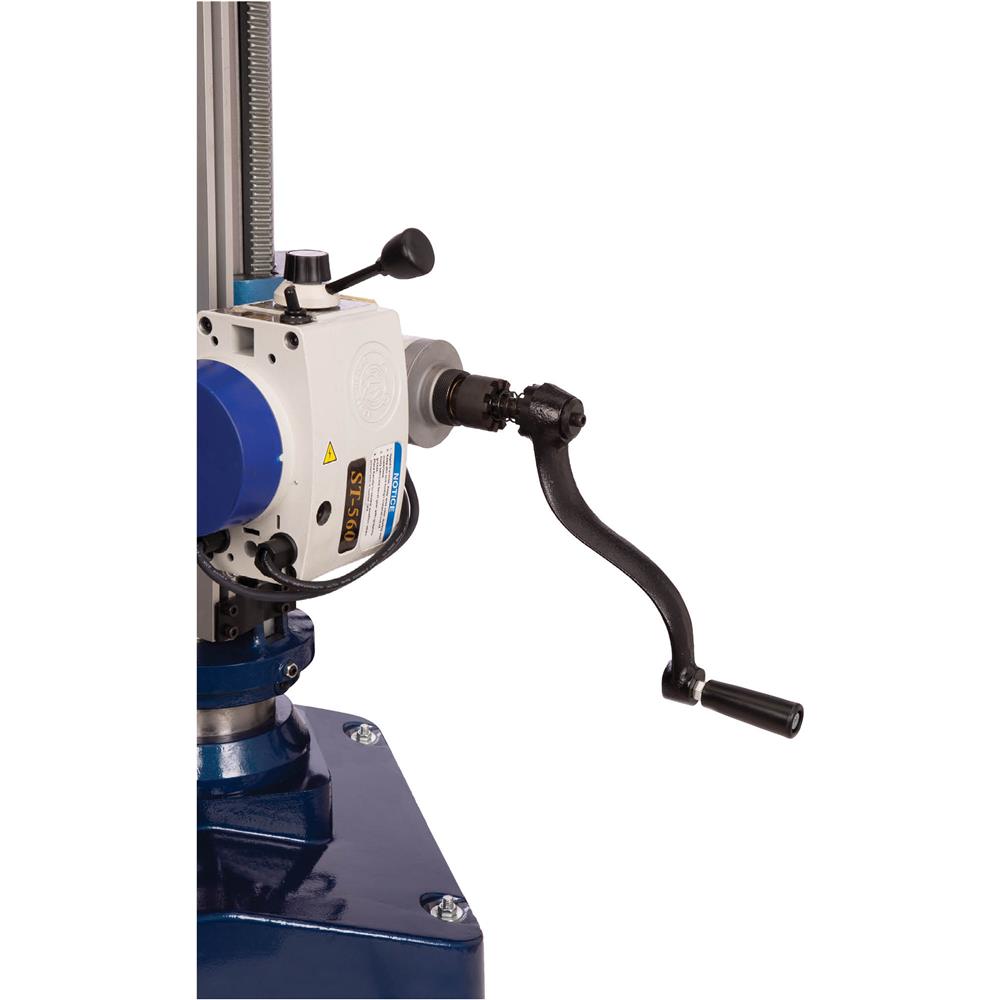

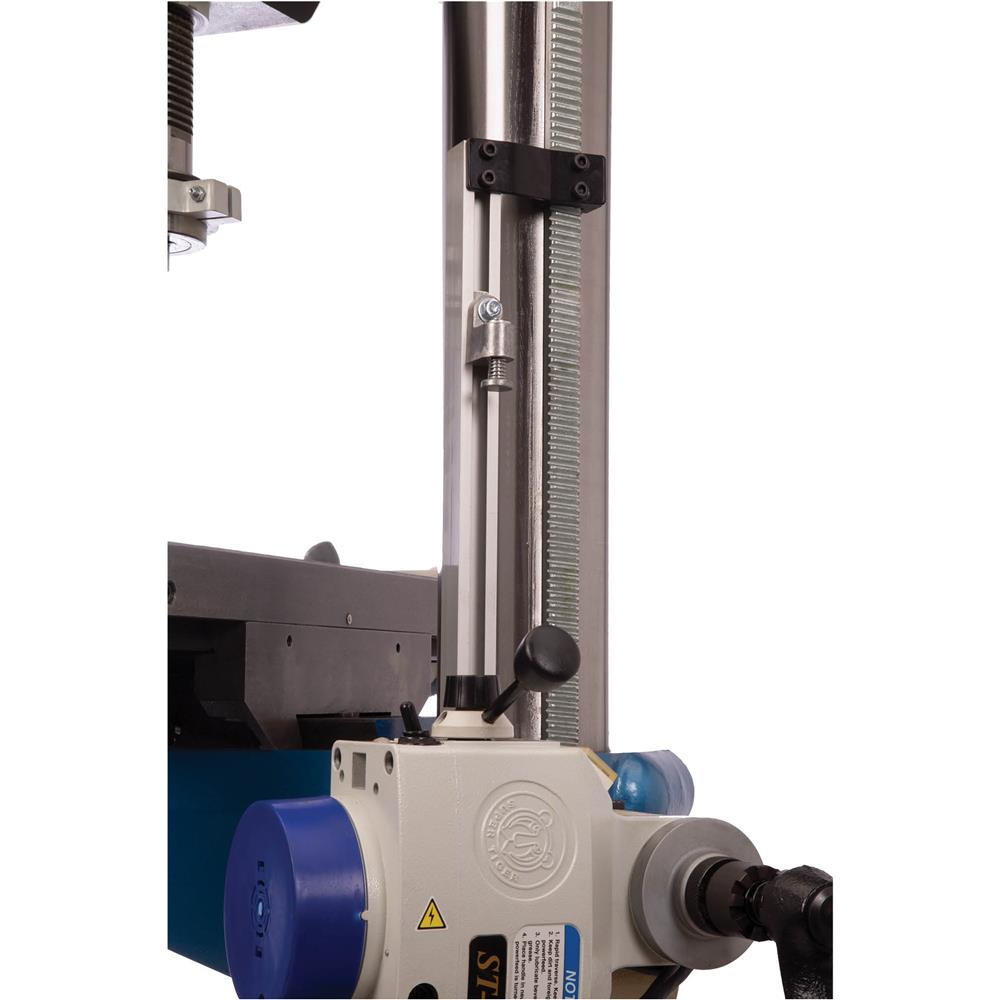

- Powered or hand crank-enabled rack-and-pinion table elevation

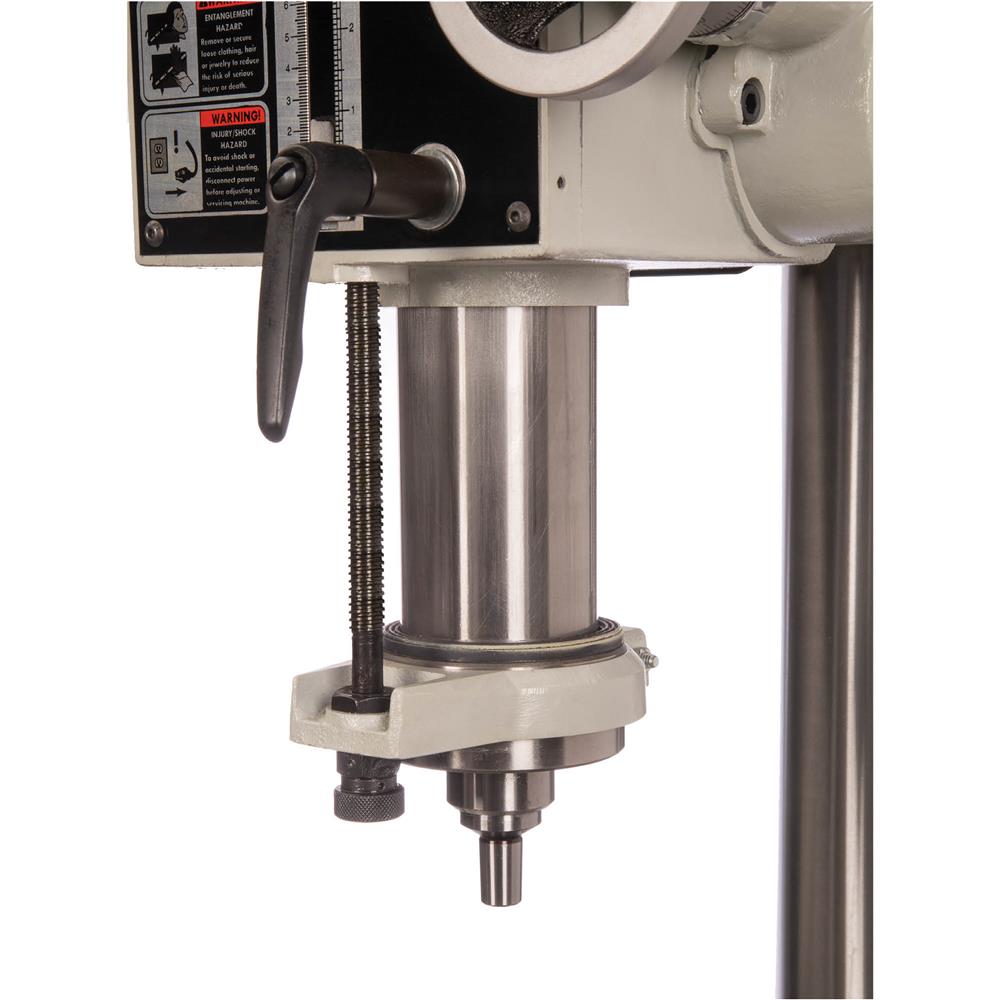

- Coarse and fine downfeed controls
- Red anodized spindle stroke and table elevation handles
- Cast-iron base with two 1/2" T-slots, 8-7/8" on center
- 360° table and head positioning around column

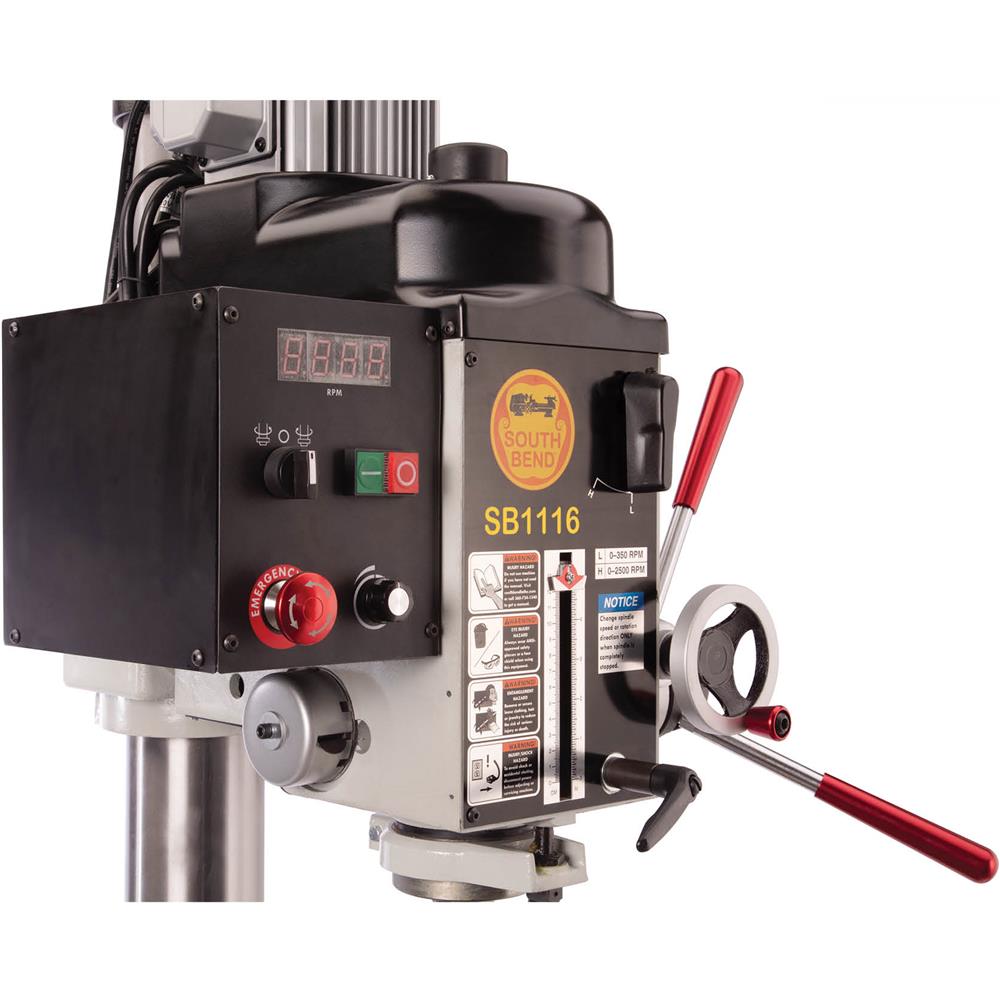

- Control panel with digital speed display
- Emergency stop button
- Forward/reverse spindle switch
Specifications
| Required power source | 220V, single-phase, min. 15A circuit |
| Motor | 1-1/2 HP, 220V |
| Swing | 20-3/4" |
| Spindle taper | R-8 |
| Spindle travel | 5" |
| Spindle speed | Variable, 0–2500 RPM |
| Drill chuck type and size | JT6, 1/16"–1/2" |
| Arbor type and size | JT6, R8 |
| Drilling capacity | 1-9/16" steel |
| Max. distance spindle to table | 17-3/8" |
| Max. distance spindle to column | 10-7/16" |
| Head tilt | 30° R/ 90° L |
| Vertical head travel | 13-3/8" |
| Table size | 23" x 7-1/2" |
| Longitudinal travel | 14-1/2" |
| Cross travel | 7-1/4" |
| Footprint | 26" x 18-1/2" |
| Overall dimensions | 42" W x 35" D x 69" H |
| Approximate shipping weight | 739 lbs. |
Warranty
This item comes with a 2 year factory warranty.
