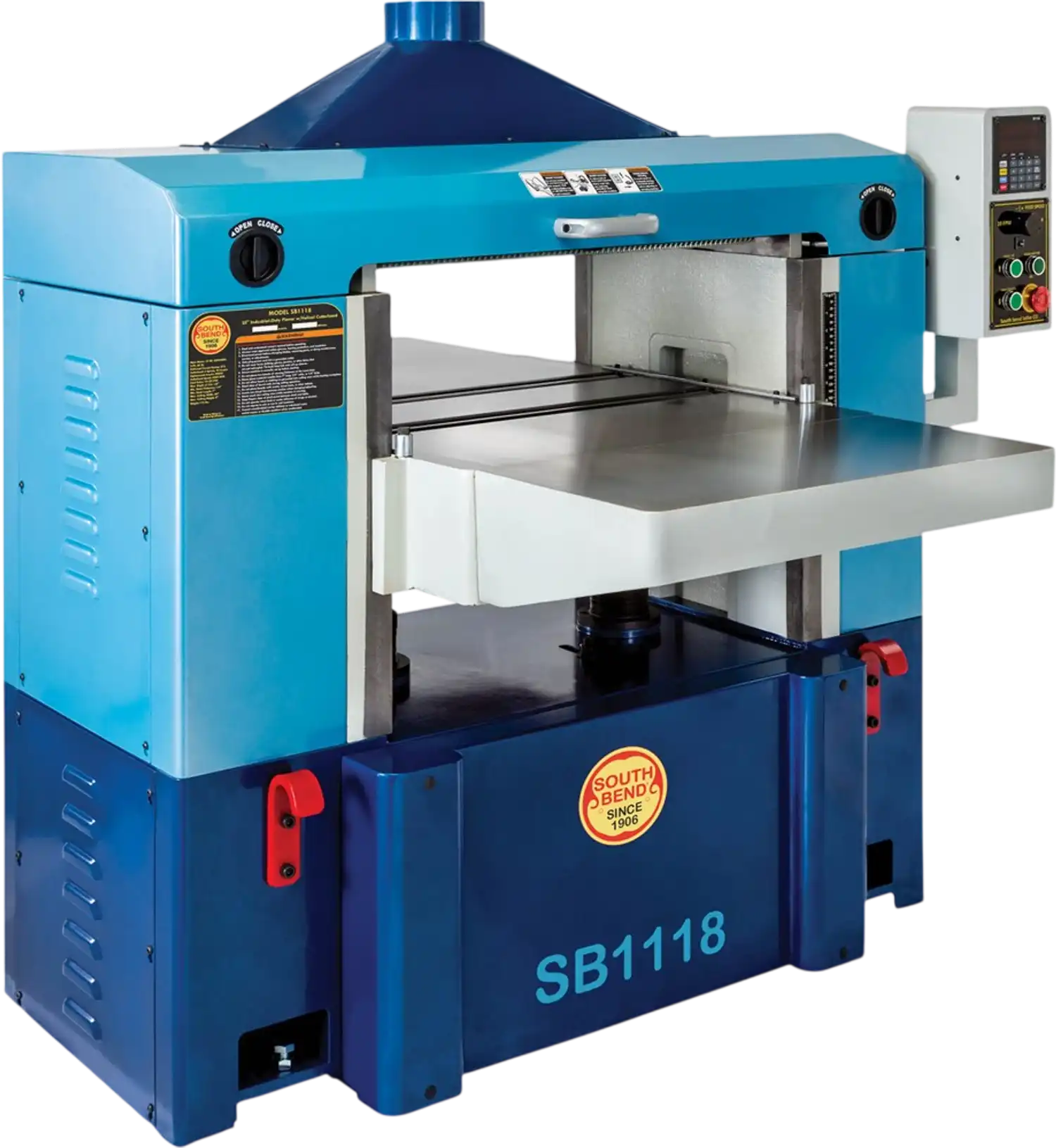

South Bend SB1118 Planer 25" Helical Cutterhead New
Product Overview

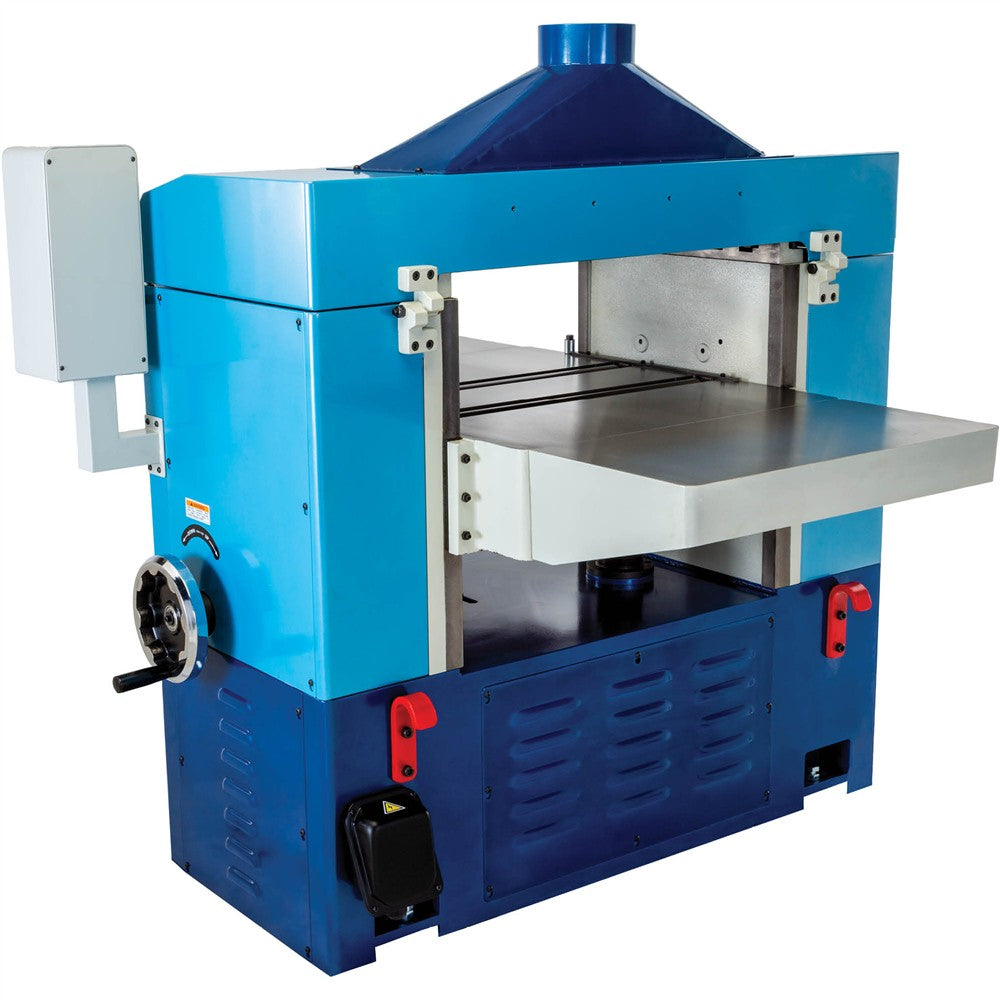

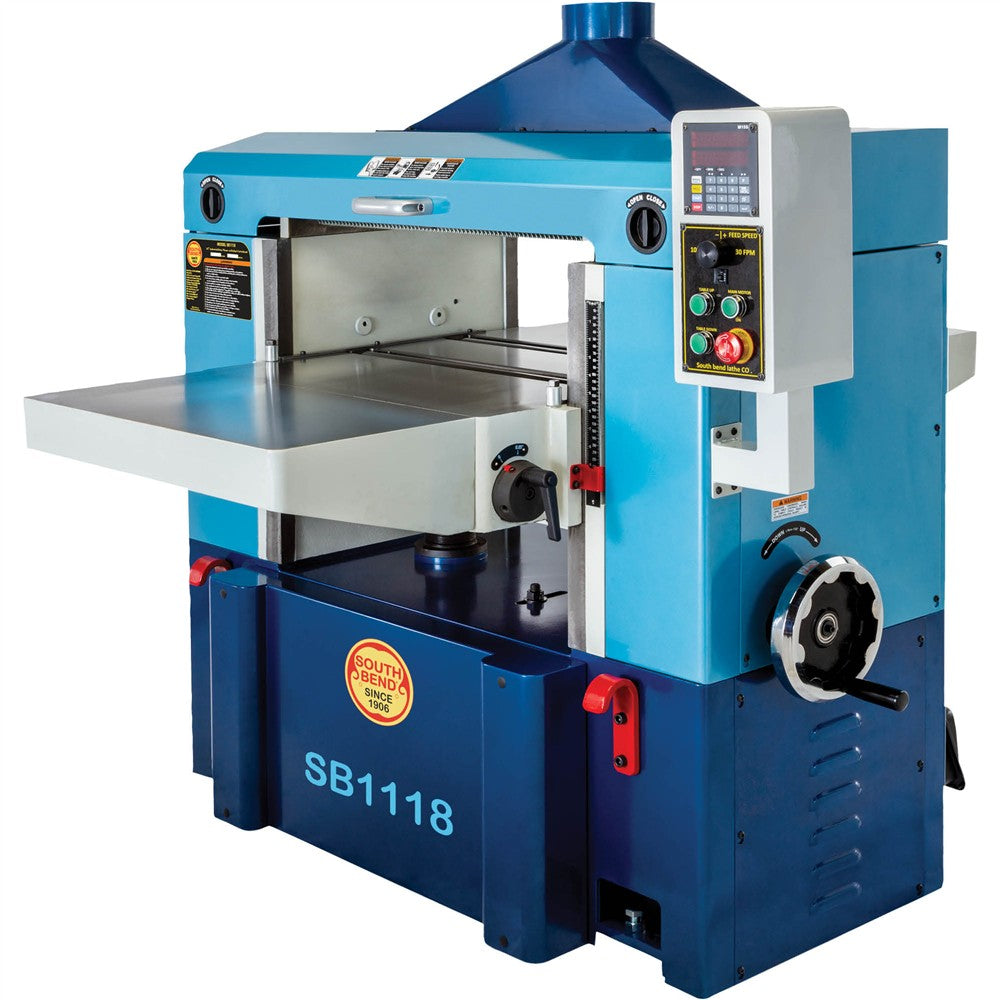

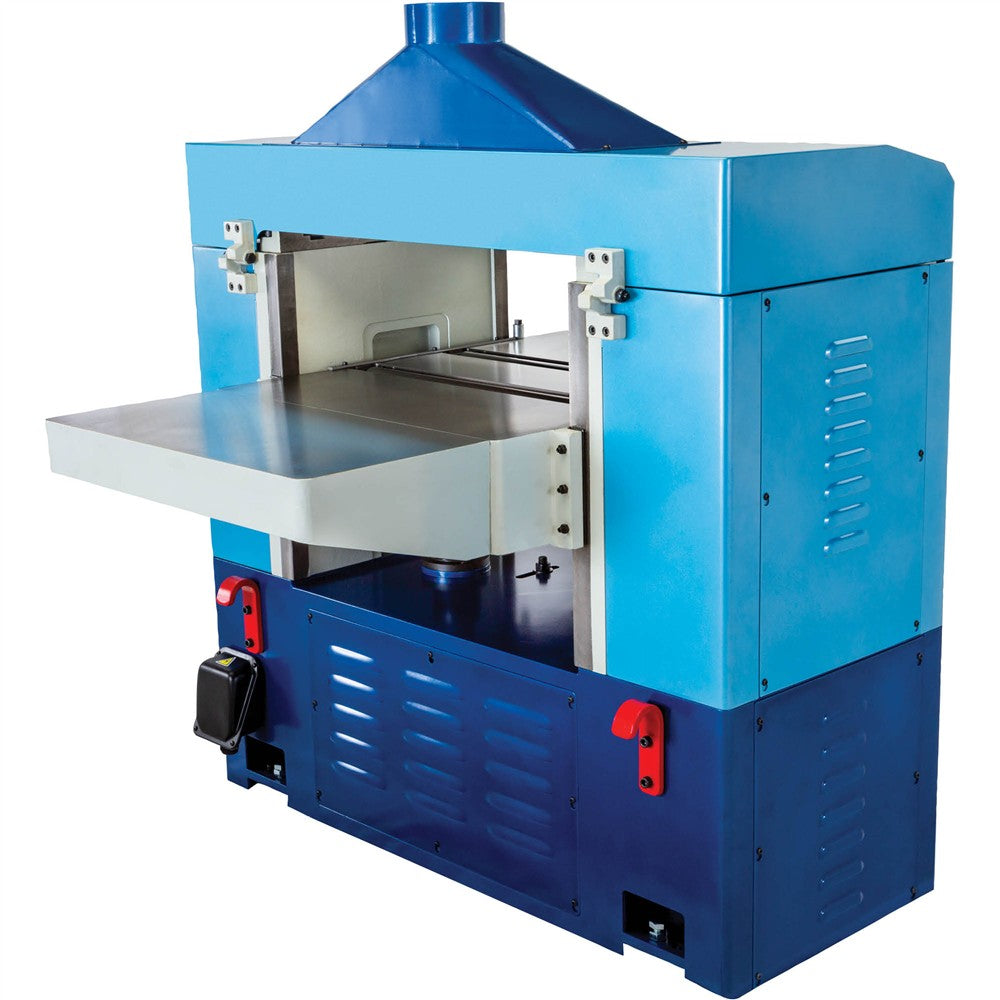

The South Bend SB1118 is a large-capacity industrial planer built for high-volume woodworking. It handles stock up to 25 inches wide and 9 inches thick, powered by a 15 HP motor for demanding production environments.

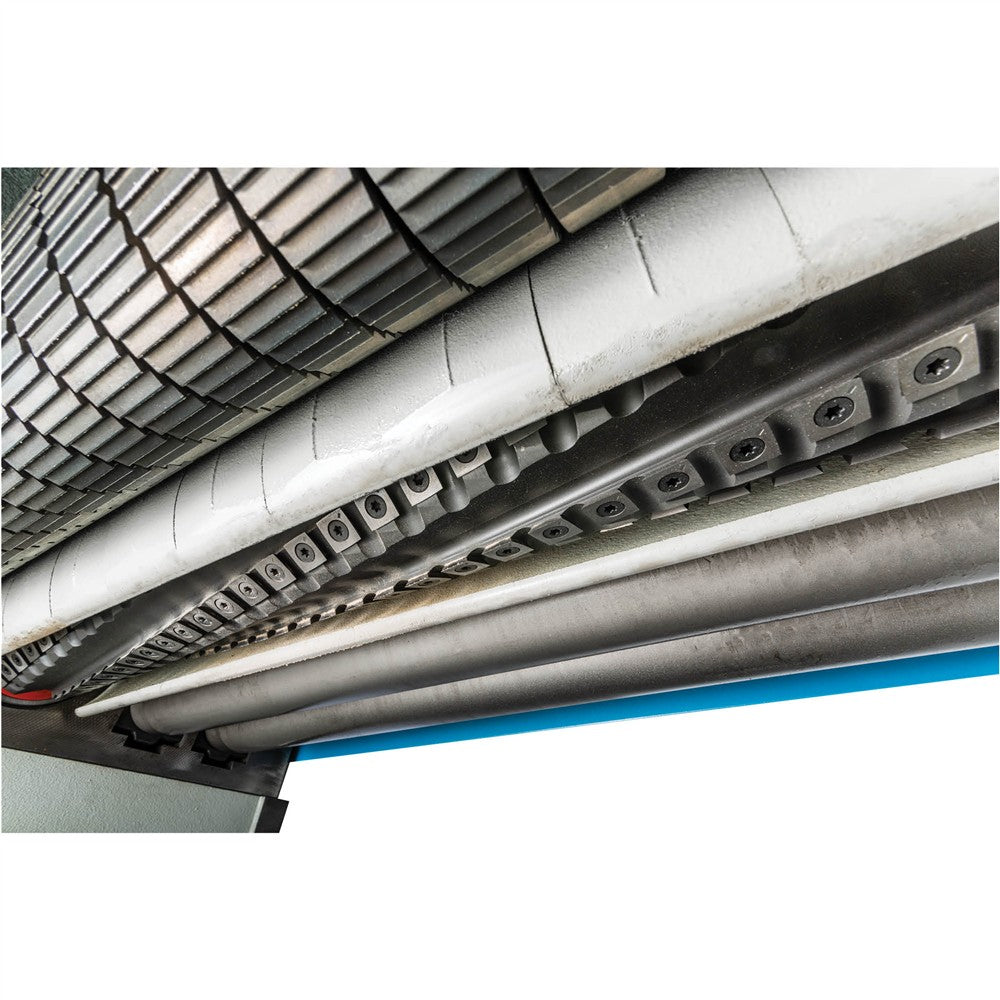

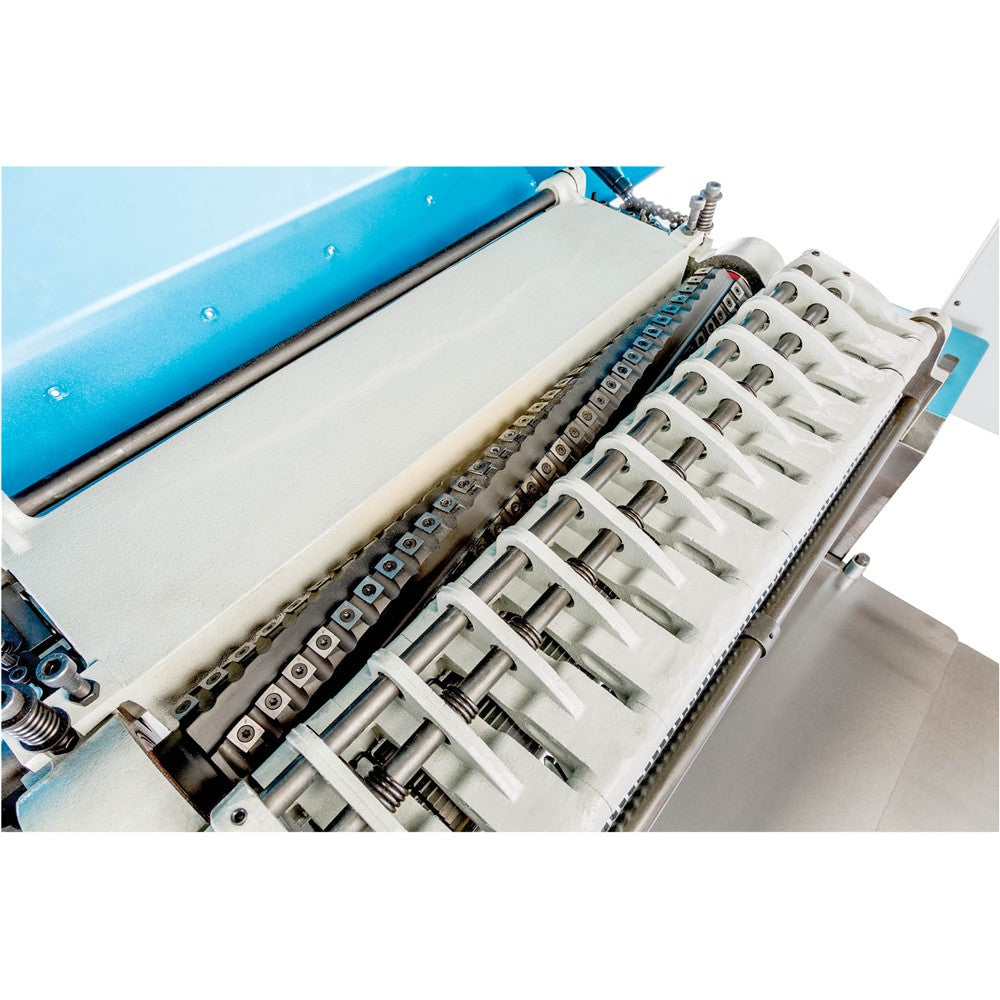

Its 6-row helical cutterhead uses 174 indexable carbide inserts to create a shearing cut that helps produce a smoother surface, reduce tearout, and improve results on figured woods. Variable feed speed and digital table height controls with presets make it easy to fine-tune cuts for both repeat work and changing material.
This machine is well suited for professional shops, cabinet makers, millwork operations, and other serious woodworkers who need consistent performance on large stock. Heavy cast-iron tables, pedestal-mounted controls, and precise height adjustment support efficient day-to-day use in busy commercial settings.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features

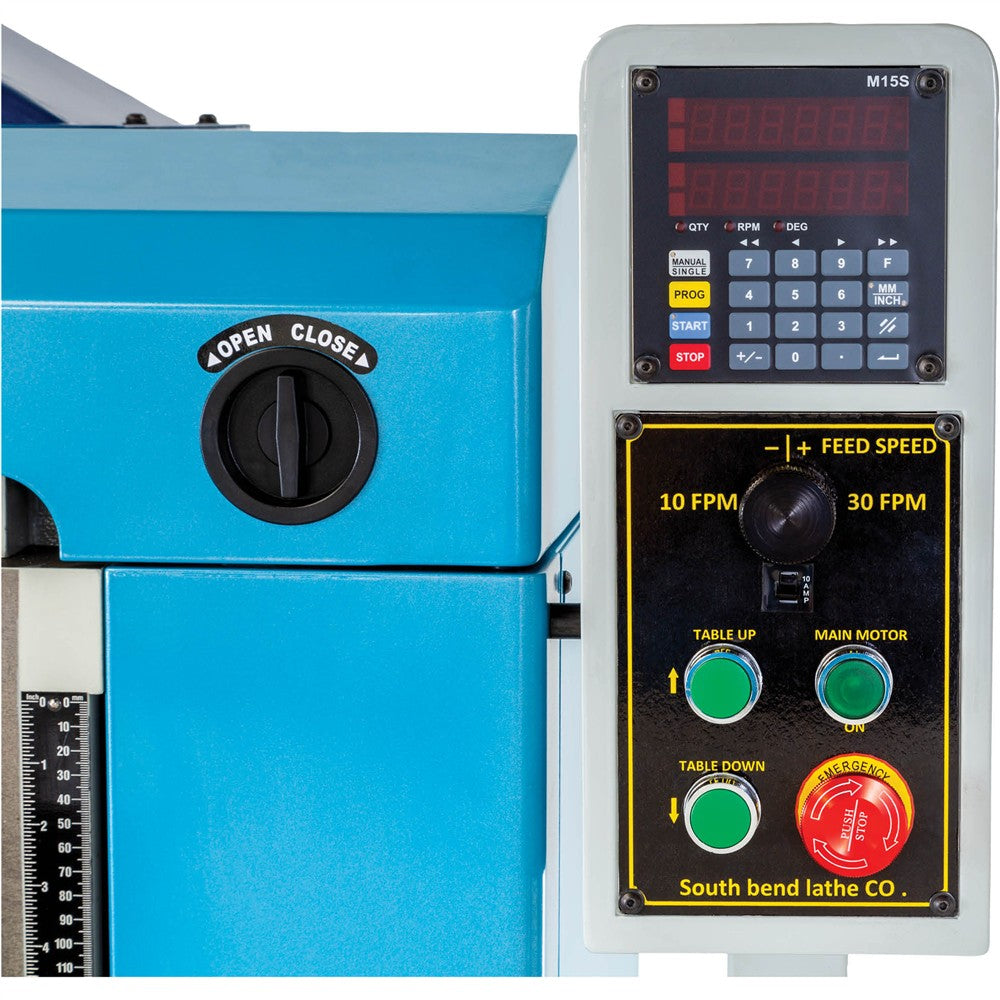

- Digitally controlled table elevation with memory presets and optional manual override
- Table positioning digital readout
- Variable-feed speed dial on control pedestal
- Heavy-duty precision-ground cast-iron extension wings
- Pedestal-mounted controls with magnetic switch and thermal overload protection
- Anti-kickback fingers
- 2-year limited warranty
Specifications
| Main motor | 15 HP, 220V/440V* (prewired 220V), 3-phase, 37A/18.5A |
| Feed motor | 1/2 HP |
| Table elevation motor | 3/4 HP |
| Maximum stock width | 25" |
| Maximum stock thickness | 9" |
| Minimum stock thickness | 1/4" |
| Minimum stock length | 10" |
| Maximum cutting depth | 1/8" |
| Cutterhead diameter | 3-1/2" |
| Cutterhead type | 6-Row helical with 174 inserts |
| Cutterhead speed | 4900 RPM |
| Insert size and type | 15 x 15 x 2.5mm, indexable carbide |
| Feed rate | Variable, 10–30 FPM |
| Table size with extensions | 25-1/8" x 69-5/8" |
| Dust port size | 6" |
| Footprint | 47-1/2" x 24-1/2" |
| Overall dimensions | 54-1/2" W x 57" D x 54-1/2" H |
| Approximate shipping weight | 2057 lbs. |
Warranty
This item comes with a 2 year factory warranty.
