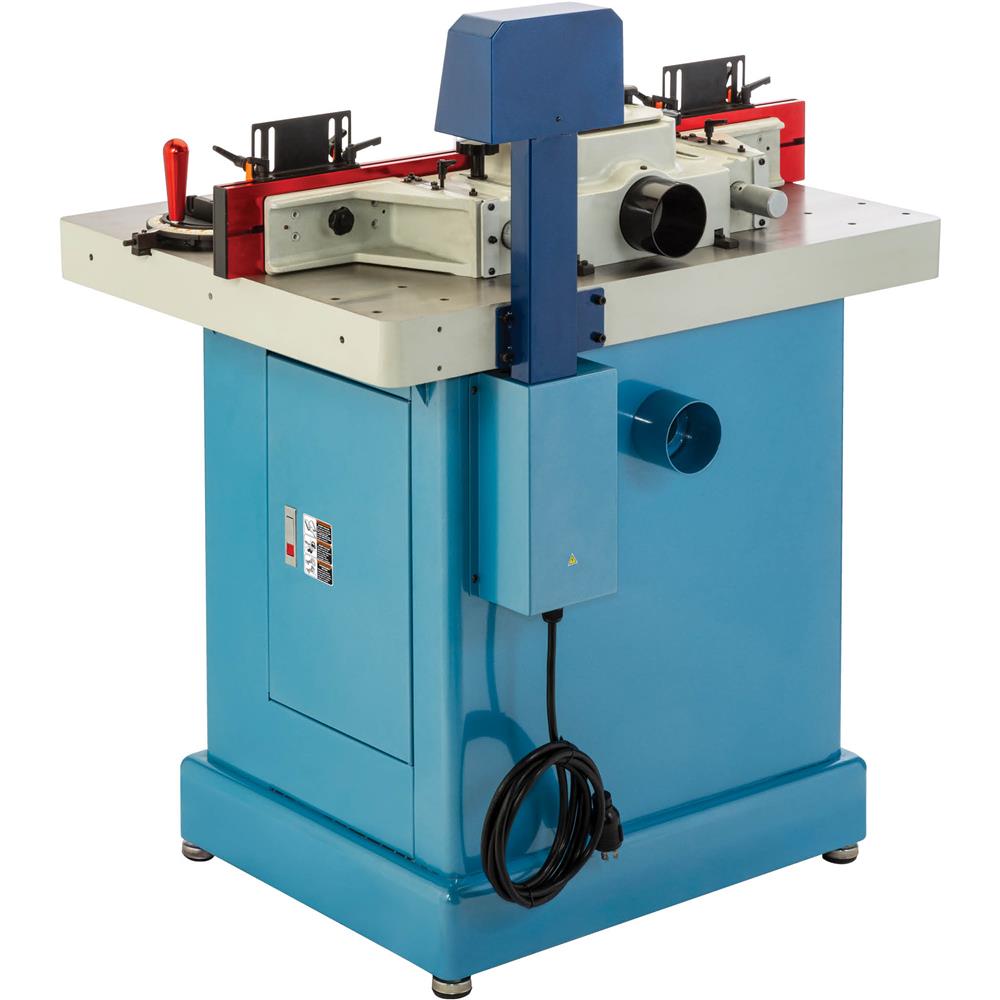

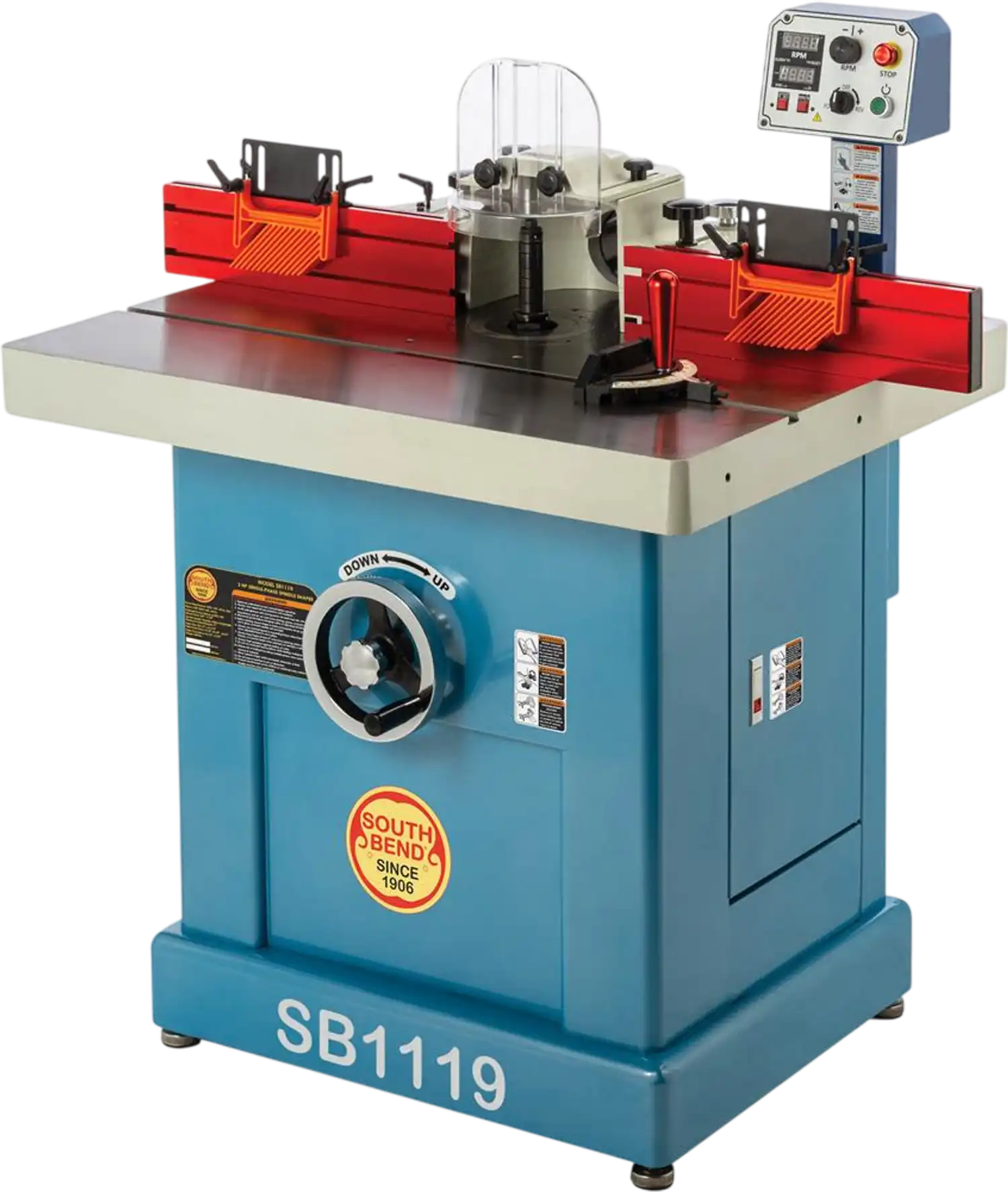

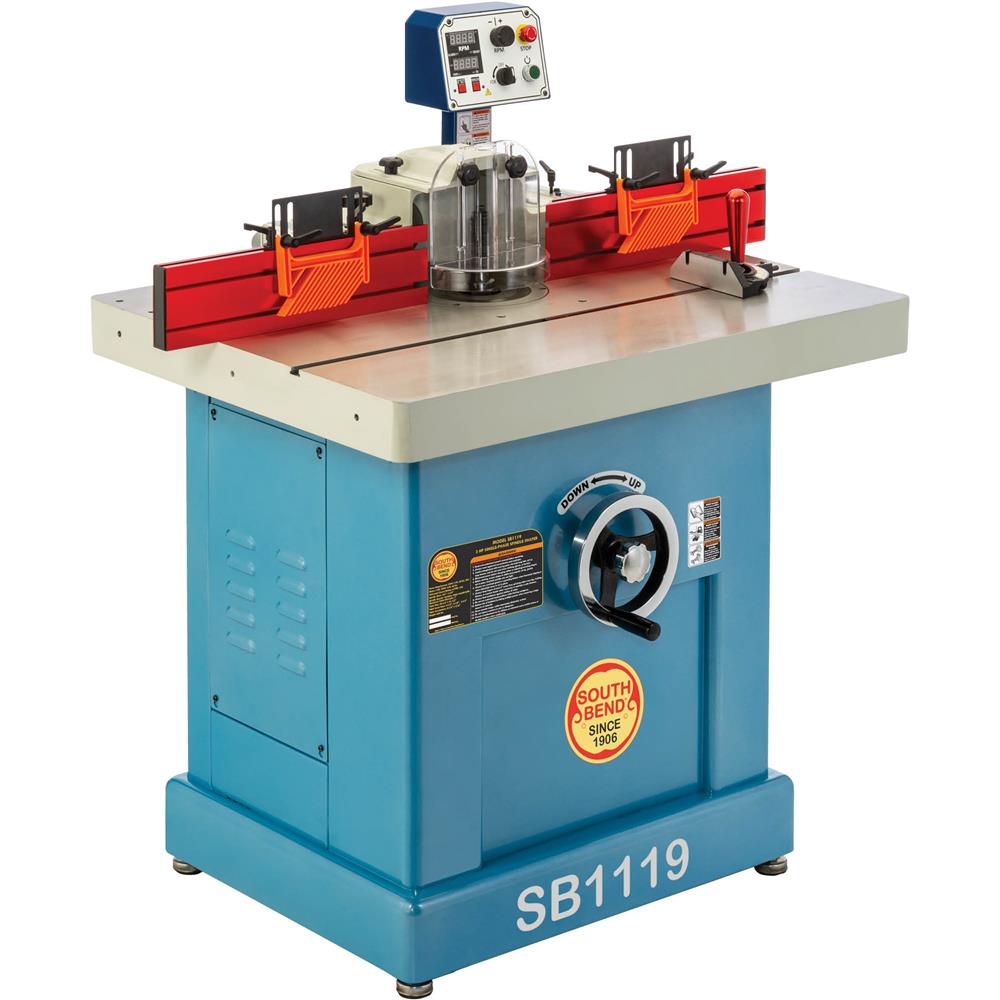

South Bend SB1119 Spindle Shaper 3 HP Single-Phase Variable-Speed New
Manufacturer: South Bend
SKU: SB1119
QTY
or
(888) 999-1522
$ 4,144.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 2 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 2 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
South Bend SB1119 Spindle Shaper 3 HP Single-Phase Variable-Speed New
Product Overview
The South Bend SB1119 spindle shaper is a heavy-duty woodworking machine built for shaping edges, profiles, and joinery with precision and consistent power. Its 3 HP single-phase motor and variable-speed range of 5,000 to 10,000 RPM make it well suited for demanding shop work while still running on 230V single-phase power.
A digital readout for spindle speed and height helps make accurate adjustments, while the micro-adjustable fence, featherboard attachments, and clear guard support controlled, repeatable results. The large precision-ground cast-iron table provides strong support for bigger workpieces, and the machine accepts cutters up to 7 inches in diameter for added versatility.
This model is a strong fit for professional woodworkers, cabinet shops, furniture makers, and serious custom shops that need industrial capacity in a single-phase setup. With dual dust ports, power feeder mounting locations, and a solid, production-ready design, it is made for users who value accuracy, output, and flexibility.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features
- 2-year limited warranty

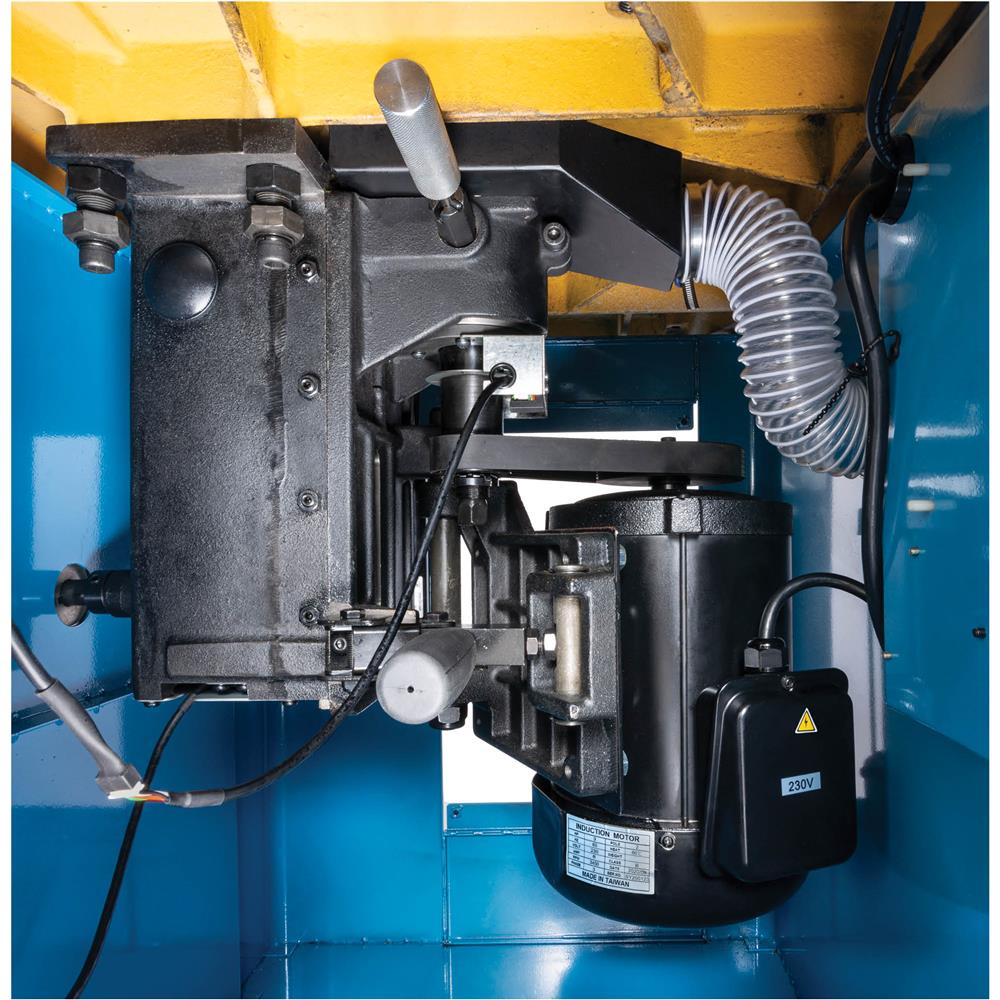

- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power

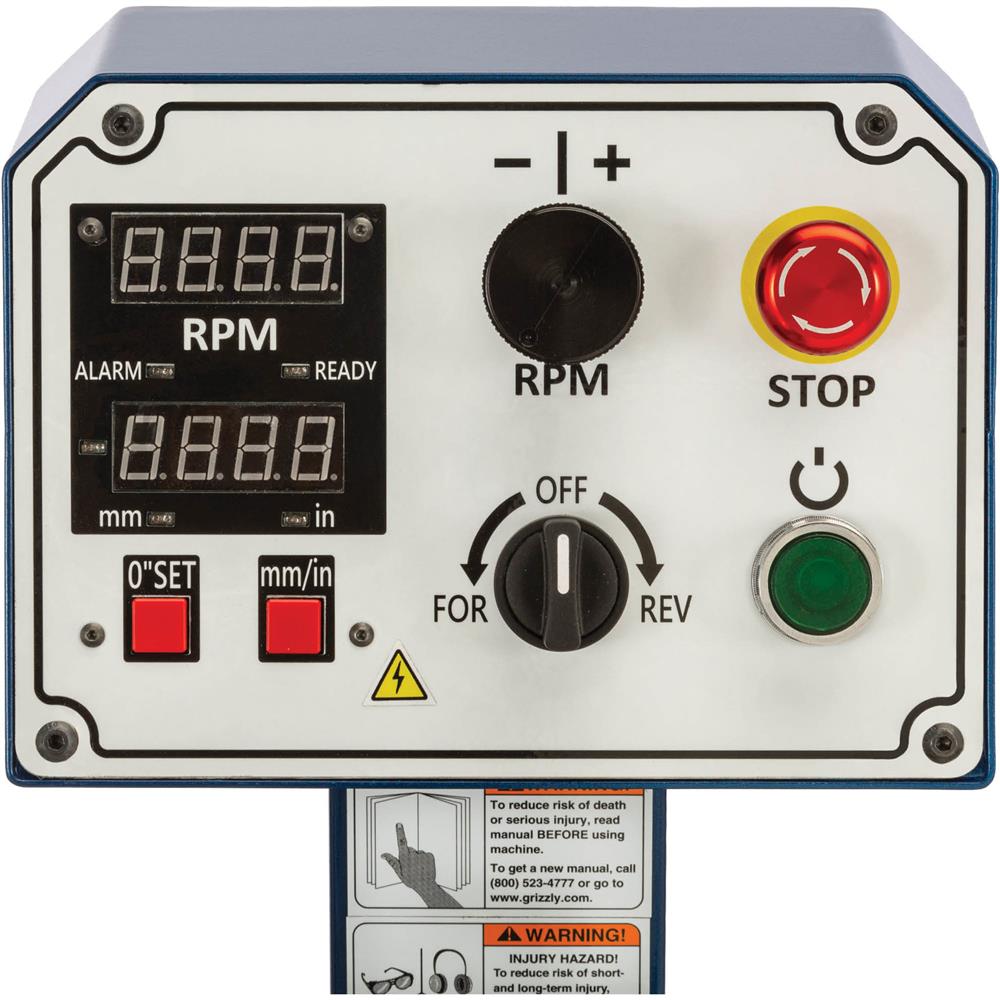

- DRO for spindle RPM and height positioning

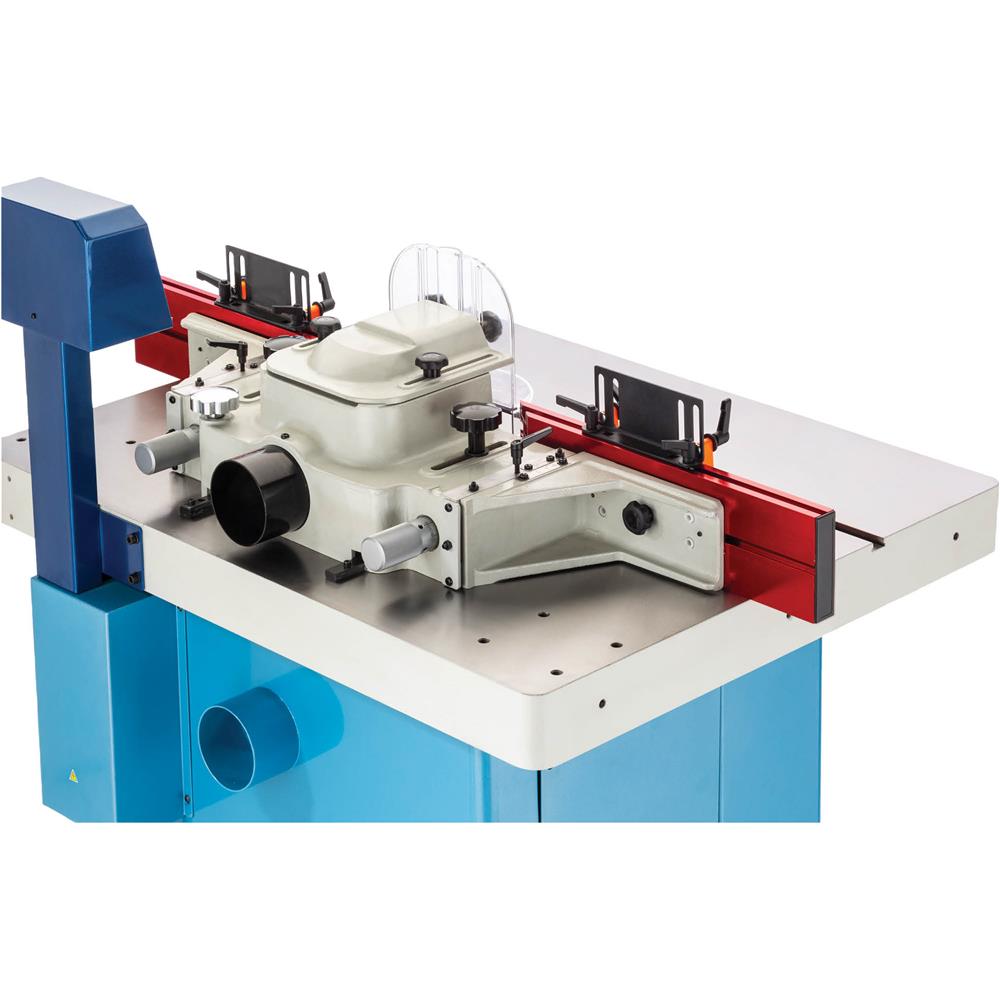

- 4-3/4" tall anodized aluminum fence with featherboard attachments
- Rack-and-pinion fence adjustment with 4" of travel
- Micro-adjustment knobs for fence alignment
- Power feeder attachment locations (power feeder not included)
- Variable speed, from 5000–10,000 RPM
- Fully adjustable clear guard

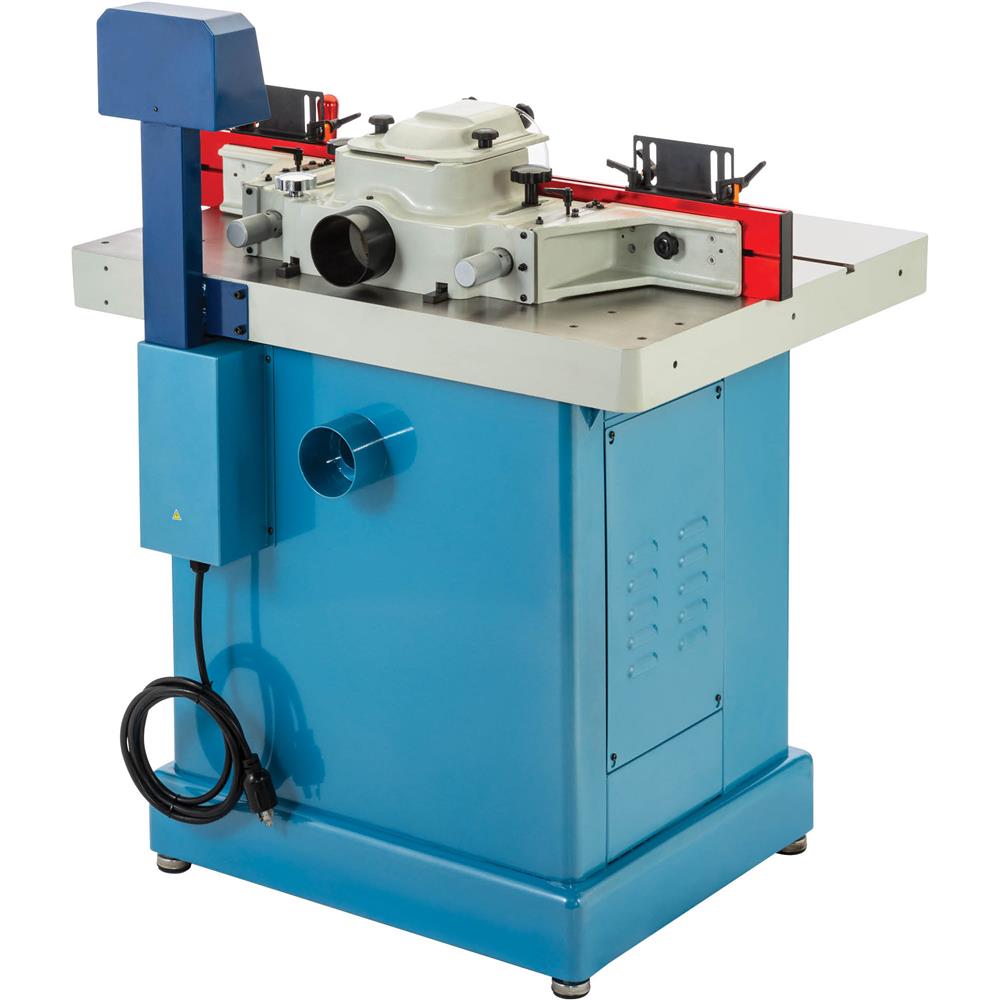

- Dual 4" dust ports
- Quick-release belt tensioner
Specifications
| Required power source | 230V, single-phase, minimum 20A circuit |
| Motor | 3 HP, 230V |
| Maximum cutter height | 5" |
| Maximum cutter diameter | 7" |
| Spindle diameters | 3/4", 1-1/4" |
| Spindle lengths | 3-7/8" and 5-7/8" |
| Spindle capacities under nut | 3-1/2" and 5-1/8" |
| Spindle speed | Variable, 5000–10,000 RPM |
| Spindle travel | 4" |

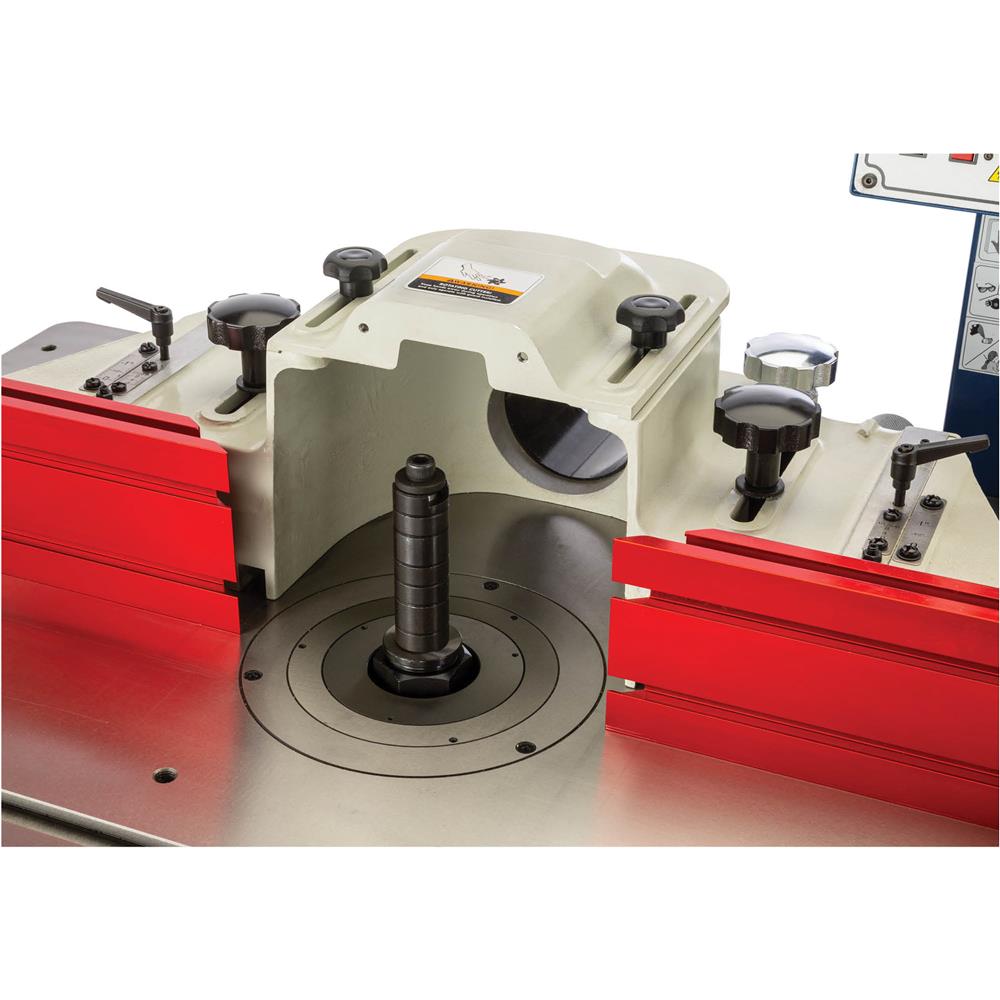

| Spindle openings | 2-1/2", 4-1/8", 5-3/4", 7" |
| Table counterbore | 8-1/4"dia., 3/16" depth |
| Table size | 31-1/2" x 39-1/4" |
| Floor-to-table height | 36-5/8" |
| Footprint | 25-1/2" x 31" |
| Dimensions | 39-1/2" W x 34" D x 51-1/2" H |
| Approximate shipping weight | 780 lbs. |
