South Bend SB1125 Drill Press 19-1/2" Variable Speed New
Product Overview
The South Bend SB1125 is a 19-1/2" floor drill press built for accurate, heavy-duty drilling in wood and metal. Its 1 HP motor and variable-speed drive provide smooth, high-torque performance, with spindle speeds from 50 to 2000 RPM shown on a digital display for easy adjustment.
Designed for versatility, it features 5-1/2" of spindle travel, an MT#3 spindle, and a 5/8" drill chuck to handle a wide range of drilling tasks. The large 16" x 20" precision-ground cast-iron table includes T-slots, swivels around the column, and raises with rack-and-pinion adjustment for flexible work positioning, including tall pieces.
This model is a strong fit for serious hobbyists, professional woodworkers, metalworkers, and fabrication shops that need dependable capacity and control. With drilling capacity up to 1-9/16" in mild steel, it is well suited for demanding shop use where power, adjustability, and stability matter.
Brand new
2 year factory warranty
Manufacturer direct shipping
Authorized South Bend dealer
Features
- 2-year limited warranty
- Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
- Variable-speed control from 50–400 and 300–2000 RPM
- 360° Table positioning around column

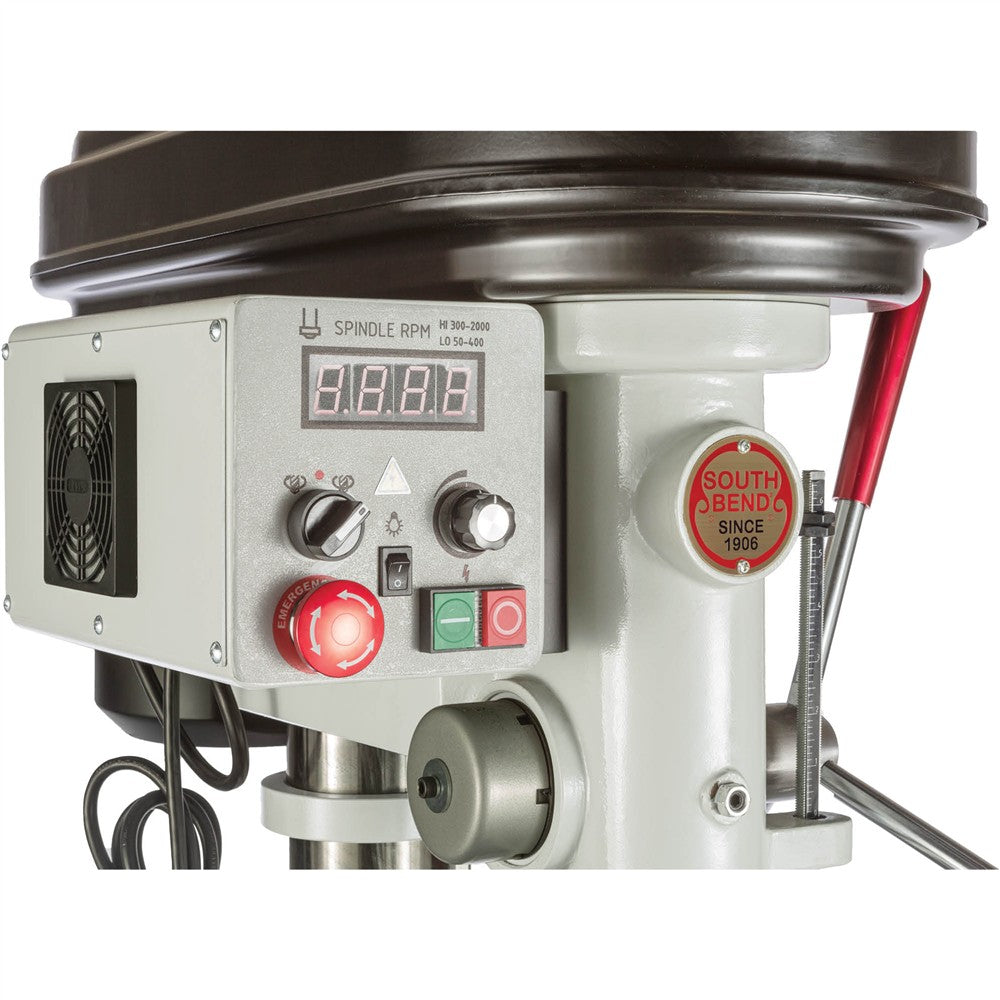

- Control panel with front-mounted E-stop button and forward/reverse switch
- 16" x 20" Precision-ground cast-iron table
- Rack-and-pinion table elevation
- Digital speed display

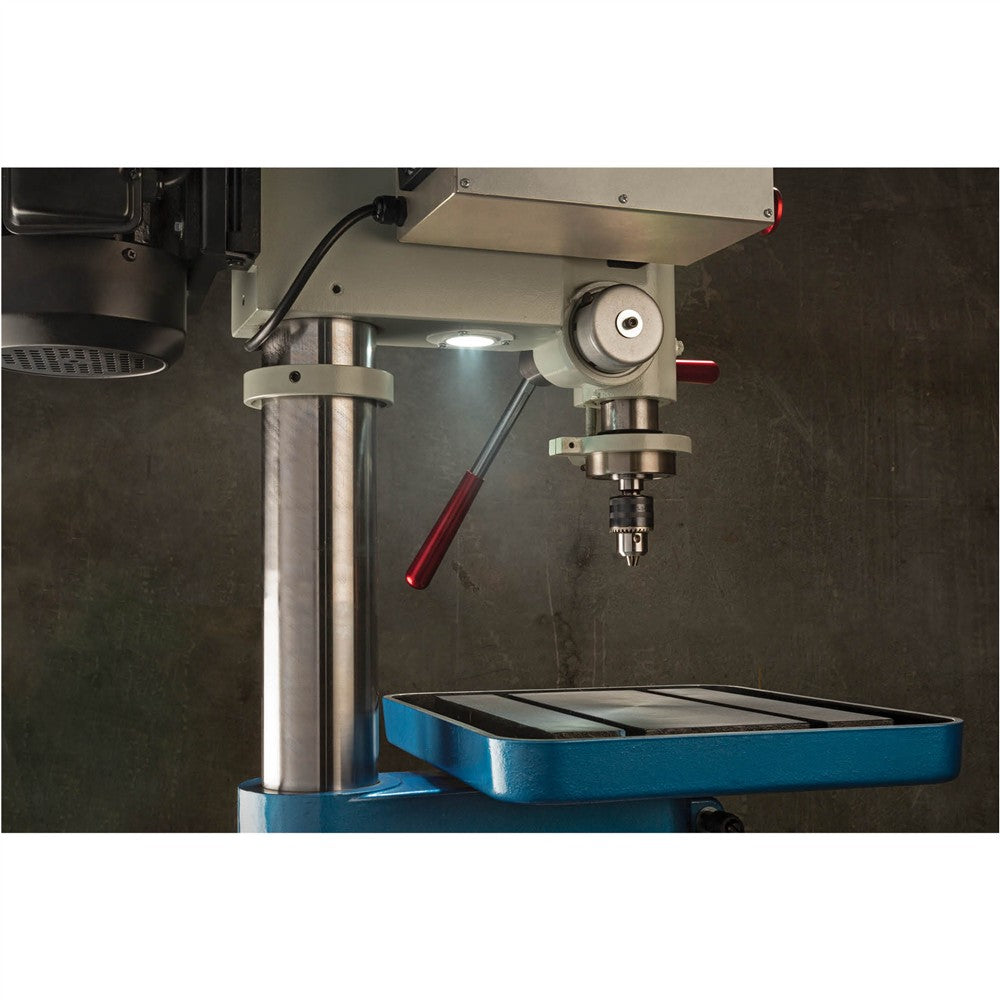

- Built-in LED light
Specifications
| Required power source | 220V, single-phase, min. 15A circuit |
| Motor | 1 HP, 220V |
| Swing | 19-1/2" |
| Spindle speed | Variable, 50–400, 300–2000 RPM |
| Spindle travel | 5-1/2" |
| Spindle taper | MT#3 |
| Maximum distance spindle to table | 31-1/2" |
| Drilling capacity | 1-9/16" mild steel |
| Table size | 16" x 20" |
| Table swivel | 30° R/L |
| Table T-slots | 2 @ 5/8" |
| Drill chuck type and size | JT6 key chuck, 3/64"–5/8" |
| Footprint | 17-1/2" x 25-1/2" |
| Overall dimensions | 21-1/2" W x 33" D x 68-1/2" |
| Approximate shipping weight | 514 lbs. |
Warranty
This item comes with a 2 year factory warranty.
