Super Handy GUO077 Portable 20 Ton Gas Powered Log Splitter New

Manufacturer: Super Handy

SKU: GUO077

Super Handy GUO077 Portable 20 Ton Gas Powered Log Splitter New

QTY

Quantity

(888) 999-1522

Add to compare

Add to wishlist

$ 773.00

FREE Shipping

This item ships for free. Freight shipments include liftgate at no additional charge.

Pay Over Time

Select Bread as your payment at checkout

In Stock

Ships (EST.) same or next business day

Manufacturer Direct

Extended Warranty

Factory Warranty

Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.

Extended Warranties

Extends factory warranty to 2, 3, or 5 total years
Covers functionality issues for 2, 3, or 5 years
Local repair options always available
Free replacement if repair is not possible
No deductibles or hidden fees
Full parts and labor coverage

Factory Warranty

(Included)

Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.

2 Years

$69.00

(Details)

Extends factory warranty to 2 total years
Covers functionality issues for 2 years
Local repair options always available
Free replacement if repair is not possible
No deductibles or hidden fees
Full parts and labor warranty

3 Years

$89.00

(Details)

Extends factory warranty to 3 total years
Covers functionality issues for 3 years
Local repair options always available
Free replacement if repair is not possible
No deductibles or hidden fees
Full parts and labor warranty

5 Years

$119.00

(Details)

Extends factory warranty to 5 total years
Covers functionality issues for 5 years
Local repair options always available
Free replacement if repair is not possible
No deductibles or hidden fees
Full parts and labor warranty

Warranty has been added in! Please click add to cart.

Exceptional Customer Service

Authorized Dealer

Product Overview

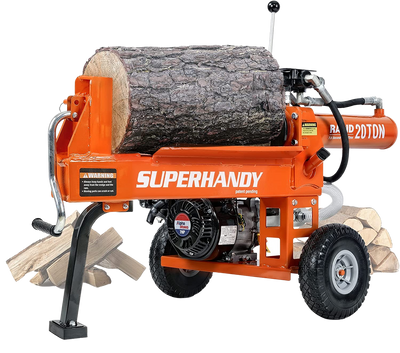

Built with a heavy duty 7HP gas motor, powering our 20-ton rated system, utilizes the highly ultra reliable and trusted 2-Stage Bucher Hydraulic Gear Pump. With Rapid Auto Return that easily splits logs up to 20.5" inches in length and up to 16" inches in diameter; All weighing 130lbs.

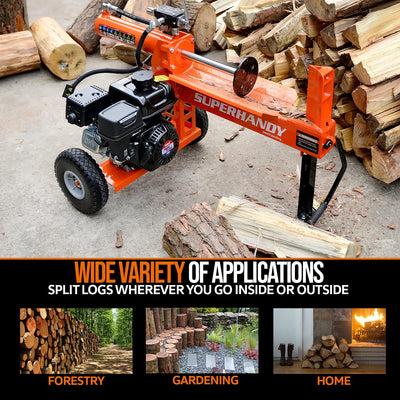

Our lightweight horizontal full beam and steel wedge log splitter design is built to be portable with fast and easy set up for anywhere nature takes you; Complete with 10” inch Sturdy transport wheels, allowing for smooth maneuvering for easy transportation from site to site.

1 year factory warranty

Brand new in box

Ships directly from Super Handy out of CA

Authorized Super Handy dealer

Similar Products

COMPARE SIMILAR ITEMS

Super Handy GUO077 Portable 20 Ton Gas Powered Log Splitter New

Overview Features Specifications Warranty Manuals Reviews

Features

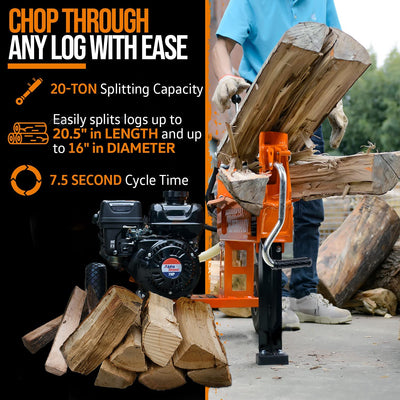

SPECS - Built with a heavy-duty 7HP gas engine, powering our 20-ton rated system, utilizes the highly ultra reliable and trusted 2-Stage Bucher Hydraulic Gear Pump. With Rapid Auto Return that easily splits logs up to 20" inches in length and up to 16" inches in diameter; All weighing 130lbs

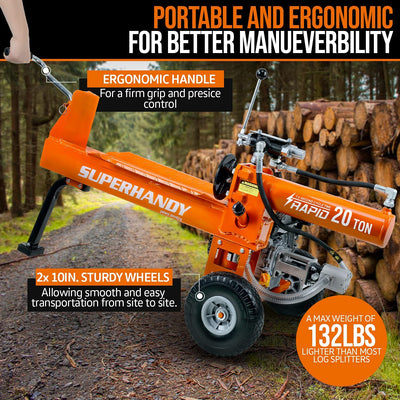

PORTABLE DESIGN - Our lightweight horizontal full beam and steel wedge log splitter design is built to be portable with fast and easy set up for anywhere nature takes you; Complete with 10” inch Sturdy transport wheels, allowing for smooth maneuvering for easy transportation from site to site

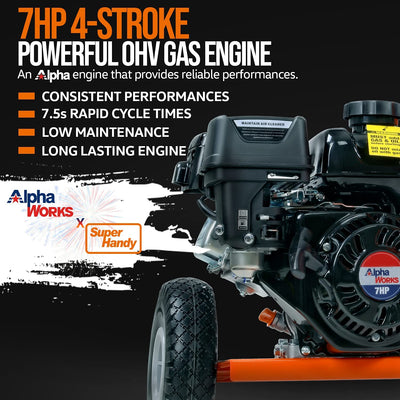

EFFICIENT - Our 7HP Gas Engine provides a smooth linear power curve to help avoid clunky performance during operation. A constant splitting force allows the wedge to smoothly slice through your wood pile with confidence; Effortlessly complete large splitting jobs with only a 7.5-second cycle time reset in-between log splits

PROPER USE - (POWER) unlike electric-powered splitters, gas-powered units produce greater consistent pounds per force square inch and are more versatile for portable applications due to lack of constraints of needing access to an electrical power source; It is recommended this splitter be used only outside with proper ventilation
SAFETY - Always operate the Log Splitter with eye and hand protection, utilize the controls and shut off/on switch as needed; This log splitter is gas powered and does not require electricity to operate; (NOTE: HYDRAULIC FLUID NOT INCLUDED, AW32 Recommended)

Specifications

Engine Oil Guide	SAE 15W-40 is recommended for general use. Other viscosities shown in the chart may be used when the average temperature in your area is within the indicated range.
Fuel Type	87 octane gasoline with NO ethanol content NOTE
Fuel Tank Capacity	0.74 Gallon (approx. 2.8L)
Wheel Diameter	10"
Net Weight	132 LB
Overall Dimensions(L x W x H)	46.38" x 25.59" x 34.05"（Assembled）
Low Oil Shut-off	Yes
Emissions	EPA/CARB
Maximum Exerted Splitting Force	20 (US tons)
Engine Specifications	7.0HP / 209CC
Starter Type	Recoil Start
Cycle Time	7.5 Seconds

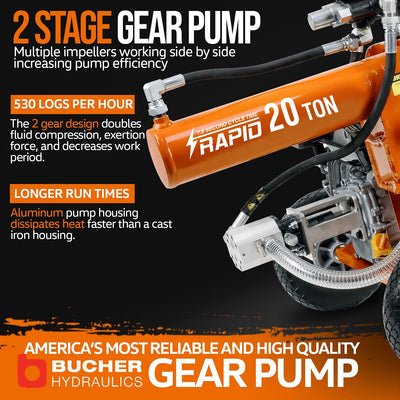

Gear Pump	11 GPM

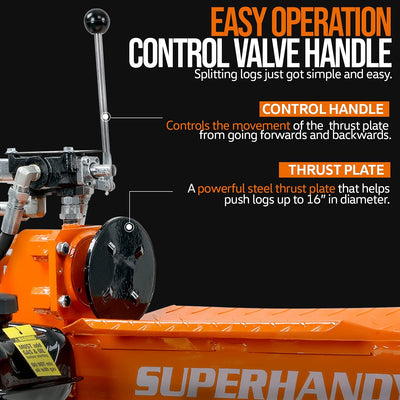

Control Valve	Detent (auto-return)

Max. Pressure	3000 PSI（21Mpa）
Hydraulic Cylinder	3.5"
Hydraulic Cylinder Stroke Length	16"
Max Log Length	20.5"
Max Log Width	16"
Hydraulic Fluid Type	AW32, AW46
Hydraulic Fluid Tank Capacity	1.6 Gallon (6L)
Engine Oil Capacity	0.145Gallon (0.55L)

Package Contents

Log Splitter

Instruction Manual

Warranty

Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.

Manuals & Documentation

User Manual

Customer Reviews (59)

initial problem

After second log somehow pump stayed on and stalled motor. Would not restart even after releasing the pressure. Hard to pull waited 2 days had to change the spark plug. Running ok now

Super Handy GUO077 Portable 20 Ton Gas Powered Log Splitter New

What an amazing tool!!!!!

Not a bad little wood splitter but!

All in all satisfied with purchase, works great and easy to put together. Only issues were lower hose leaked and was hard to get it to stop. Also the wedge the ram pushes the wood to split, appears that the weld on both sides cracked and not sure how long this will last without a repair.

Overall Good Product

Price wise its great. Not a piece of wood that wouldn't split with this thing. However, I do wish the plunger would go all the way to the axe. Sometimes its about 4 inches short of the axe & does not go all the way through so I have to run it through a second time with an extra piece of wood (something small) to help. Other than that, I really like this product and will recommend to others in the future.

Extremely Happy Customer

This review might be a little long but stay with it. A good friend of mine purchased this splitter a couple years ago and was extremely happy with it. After checking out many options, and reading the customer reviews, I made the purchase. It arrived on time with only slight damage. The plastic funnel was shattered. I contacted support and after sending them pictures of this $4.00 item, a new one is in transit. You need the long narrow spout on the funnel so I purchased one at Harbor Freight as I wanted to split some wood.
As many reviews indicated, the instructions are not user friendly. It took me a couple hours assembling the unit paying careful attention to making sure the connections were very tight to eliminate any leaking.
I used the unit today. It started on the 2nd pull. I split close to a full cord or hard and soft wood (hemlock) without any issues. Overall, I can't say enough about this unit.
My only recommendation is to read and carefully follow all the instructions including before actually trying to split wood, having the hydraulic pump go back and forth 10 to 15 times then adding more hydraulic fluid.
