Thinkcar Platinum S10 Pro Diagnostic Tablet 10-Inch Bi-Directional OBD2 Scanner New
Product Overview

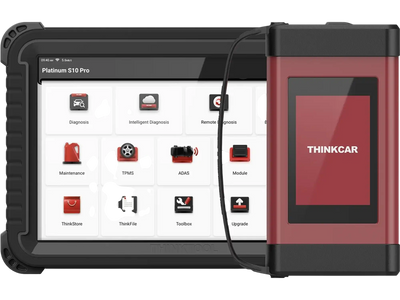

The Thinkcar Platinum S10 Pro is a 10-inch professional diagnostic tablet designed for advanced vehicle diagnostics and service work. It provides OE-level full-system diagnostics, ECU coding, bi-directional active tests, online programming, and 28 maintenance reset functions. The tablet runs on Android 10 and includes wireless Bluetooth VCI connectivity, Wi-Fi updates, and support for 100+ passenger vehicle makes. Optional coverage is available for heavy-duty vehicles, TPMS, ADAS, and EV functions. It is built for repair shops that need broad coverage, modern hardware, and professional-level diagnostic capability.
Brand new
1 year limited warranty
Manufacturer direct shipping from California
Authorized Thinkcar dealer
Features

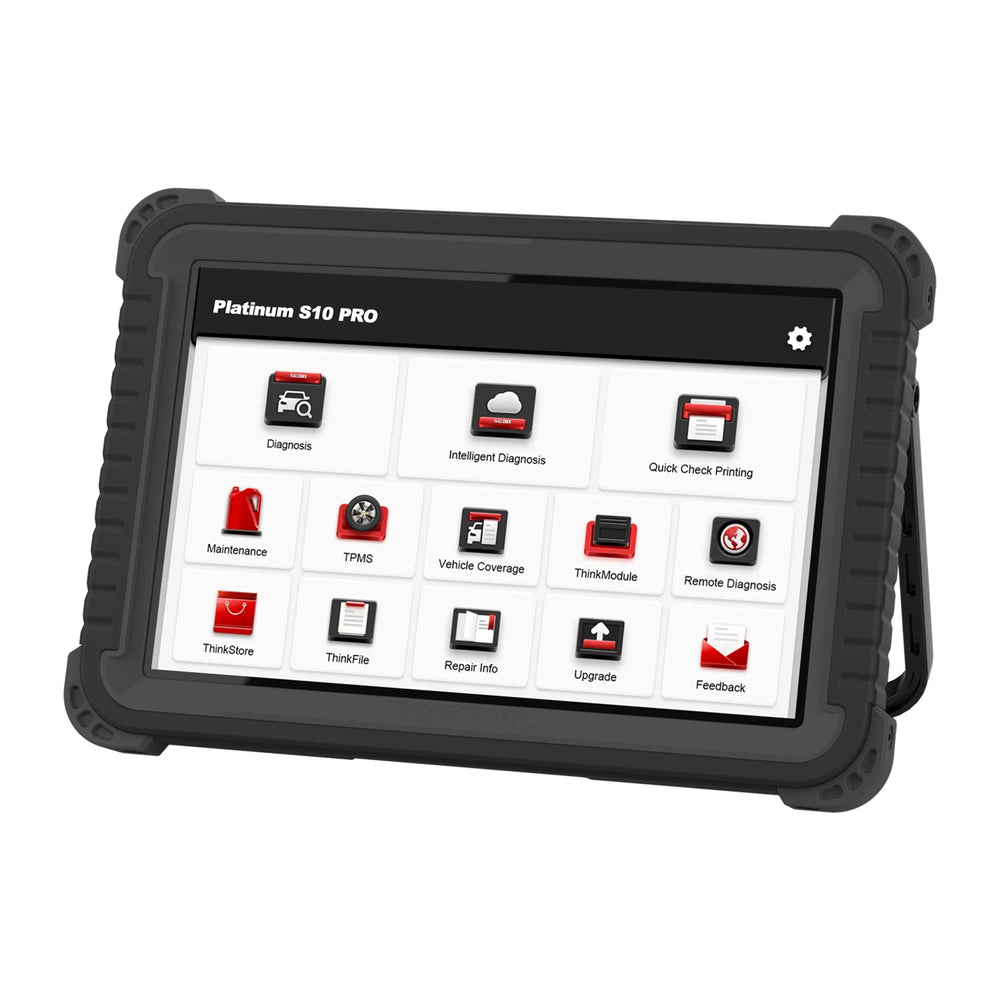

- 10-Inch HD Touchscreen | Android 10 | 4GB RAM | 128GB Storage
- ECU Coding & Online Programming | OE-Level Bi-Directional Active Tests
- 28 Maintenance Reset Functions | Topology Mapping | Auto VIN
- 6,000mAh Battery | 10 Hours Continuous Operation
- Bluetooth 5.0 VCI | Wi-Fi One-Click Updates
- Optional Heavy Duty Coverage | Optional TPMS & ADAS Modules
- Supports 100+ Vehicle Makes | Passenger & Hybrid 12V Vehicles
Specifications
| Model | PLATINUM S10 PRO |
| Maintenance Resets | 28 |
| Read & Clear DTCs | Yes |
| VIN Identification | Yes |
| OBD2 & EOBD | Yes |
| Live Data | Yes - Live Data Stream + Graphing |
| Bi-Directional Control | Yes – Active Tests (Tool/Vehicle Dependent) |

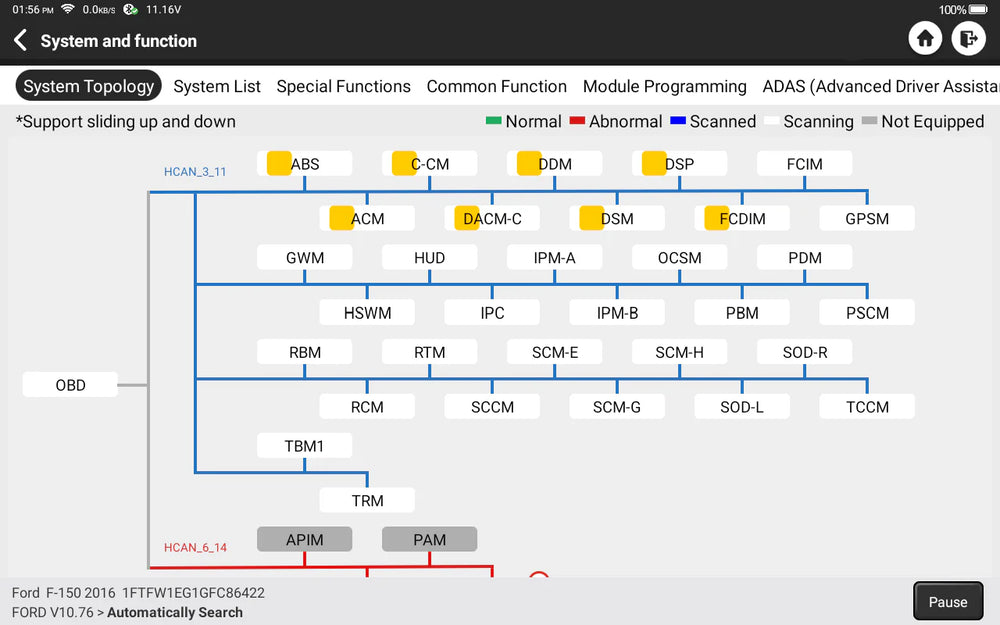

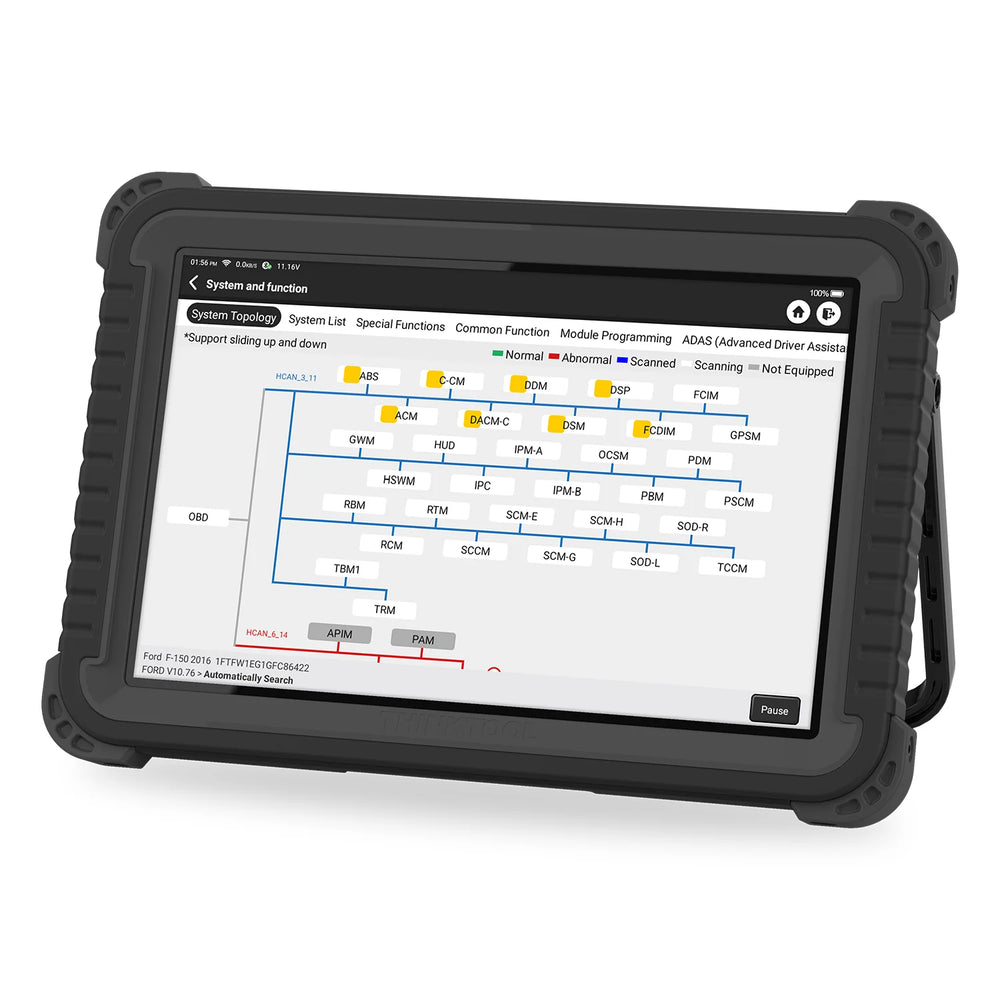

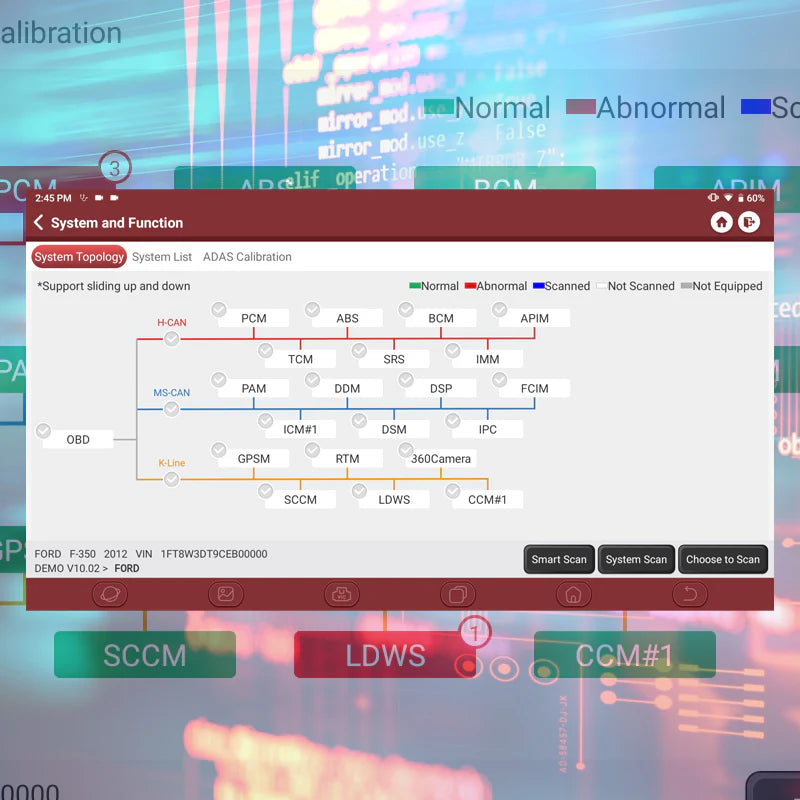

| Topology | Yes – Topology Mapping Supported |
| ADAS | Supported (Calibration frame/software may be required) |
| TPMS | Supported (May require optional TPMS tools/modules) |
| Screen Size | 10.0 Inches |
| Operating System | Android 10 |
| Processor | Octa-Core 2.0 GHz |
| RAM | 4 GB |
| Storage | 128 GB |
| Battery | 6000 mAh |
| VCI | Bluetooth VCI (Wireless) |
| Camera | Rear 8.0 MP |
| Supported Protocols | CAN, ISO 9141-2, KWP 2000, J1850 VPW, J1850 PWM |
| WiFi | Yes (WLAN 802.11b/g/n) |
| Bluetooth | Bluetooth 5.0 |
| USB Type | USB Type C |
| Supported Languages | English, French, Spanish, German, Russian, Italian, Japanese, Portuguese |
| Supported Vehicle Brands | Supports 100+ Passenger Vehicle Makes (OBD2 Compliant) |

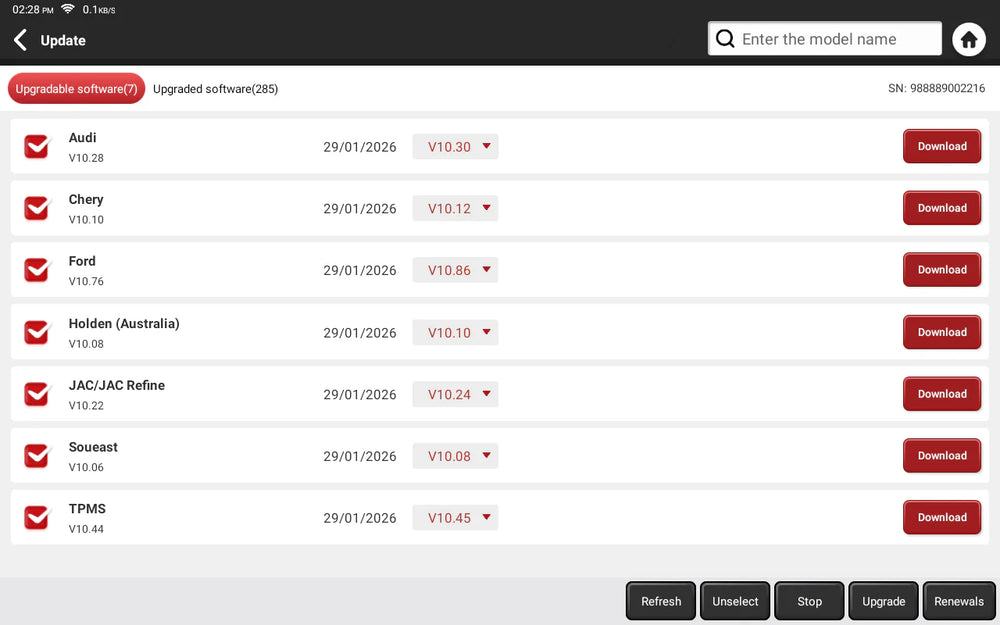

| Internet Required for Updates | Yes – WiFi required for updates & online programming |
| Activation Required | Yes |
| Activation Method | Online activation via WiFi (Device serial required) |
| Renewal Policy | Passenger software updates are included free for 1 year from the activation date. Renewal is optional after expiration. |
Package Contents
Diagnostic Tablet
THINKLINK VCI
Power Adapter
USB-C Charging Cable
Protective Carrying Case
Activation Card
User Manual
Warranty
This item comes with a 1 year limited warranty.
