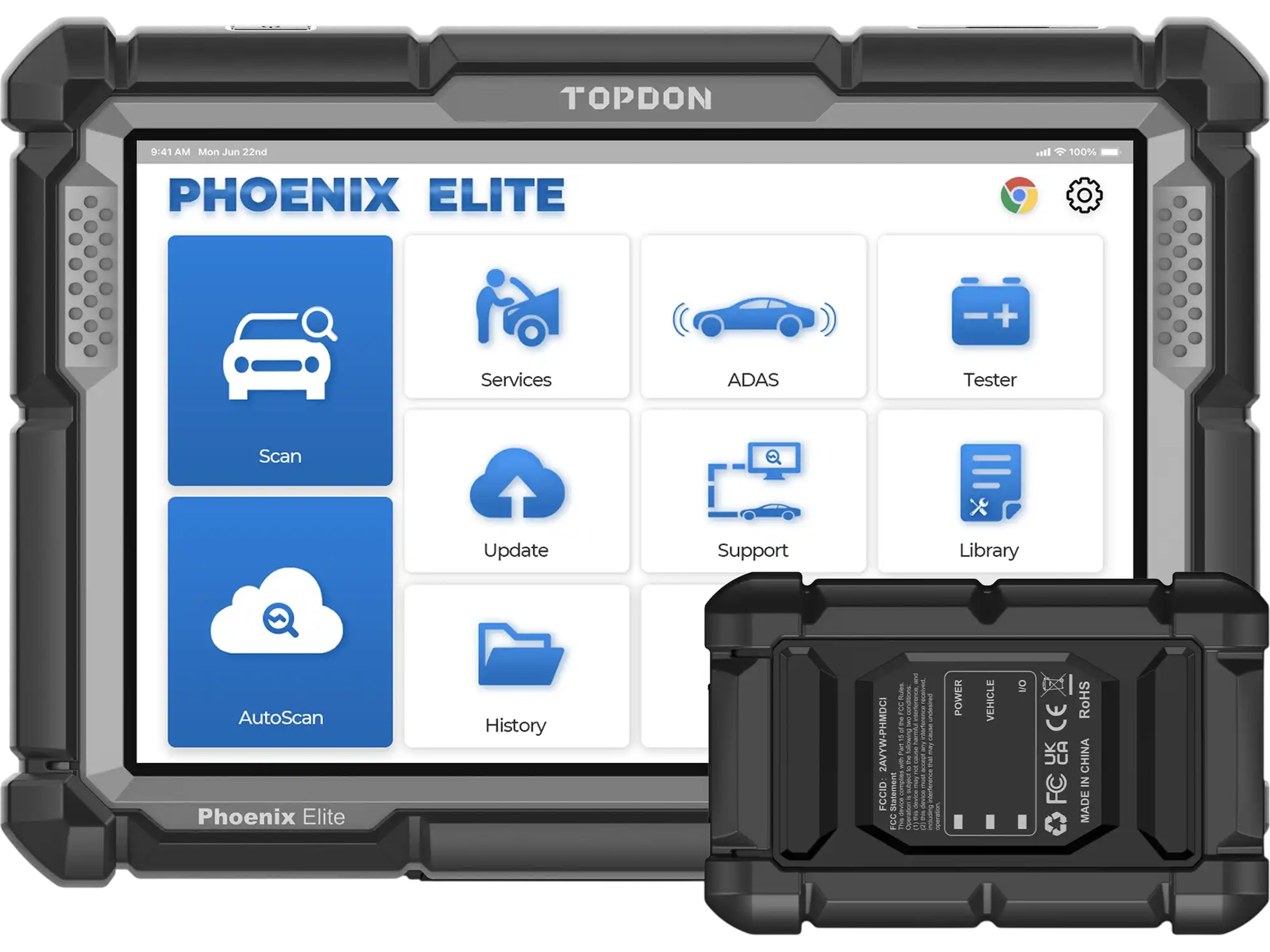

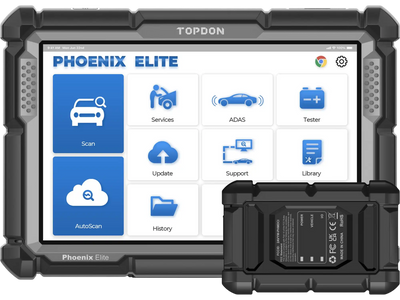

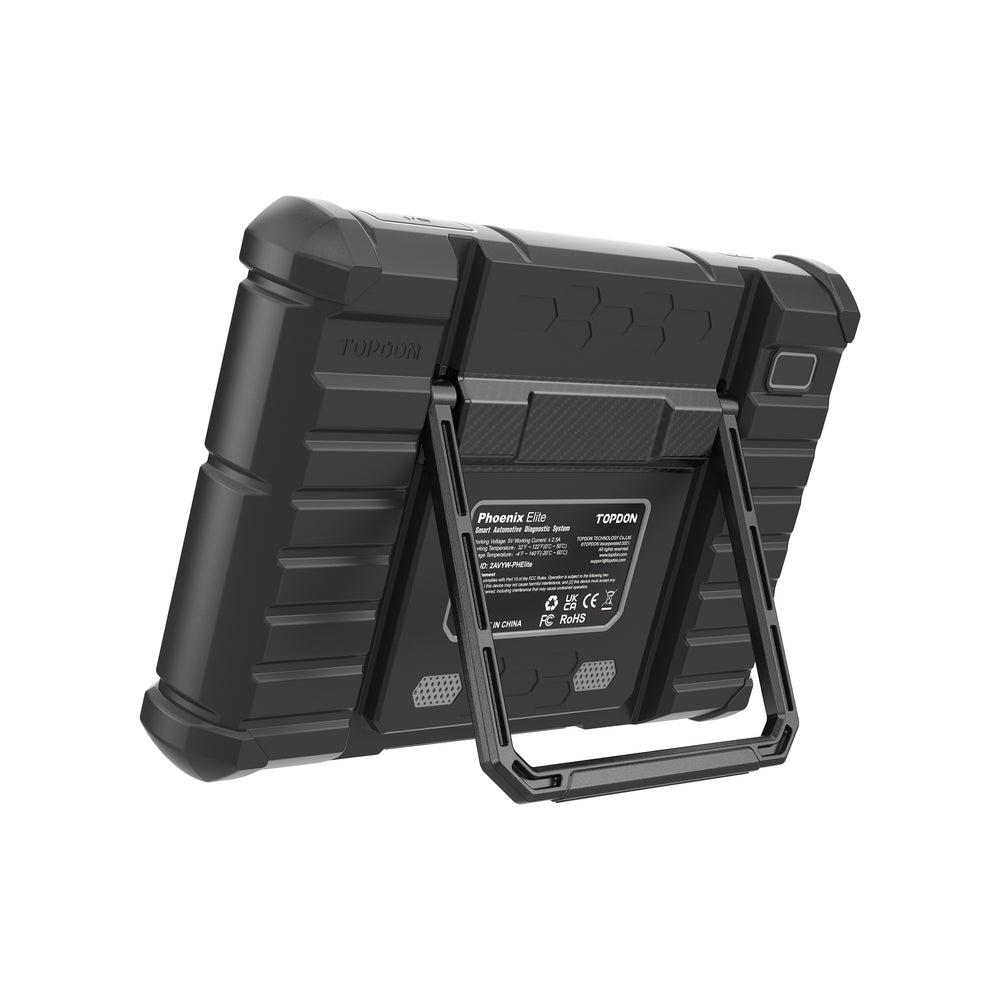

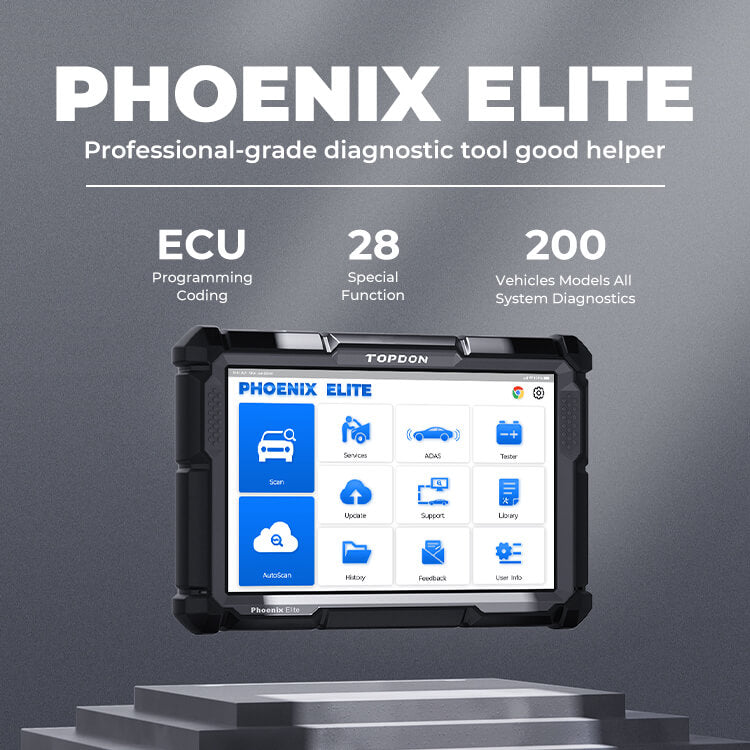

Topdon Phoenix Elite Diagnostic Scan Tool 10.1" CANFD New
Product Overview
The Phoenix Elite is a professional-grade diagnostic scanner designed for OE-level vehicle diagnostics and advanced service functions. It features a 10.1" LCD display, a 4-core 2.0 GHz processor, and Android 10 operating system for fast, responsive operation. The tool supports active tests, coding, initializations, memory resets, and cloud-based programming for select makes. Its topology mapping helps technicians quickly identify communication issues across vehicle systems. The Phoenix Elite features wireless VCI and CAN-FD capabilities. Auto VIN and pre-scan/post-scan reporting streamline workflow in professional repair environments.
Brand new
2 year limited warranty
Manufacturer direct shipping from New Jersey
Authorized Topdon dealer
Features
- Connect to the Newest Vehicles - Vehicle communication is enhanced with most of the latest communication protocols. The Phoenix Elite comes equipped with wireless VCI and CAN-FD capabilities.

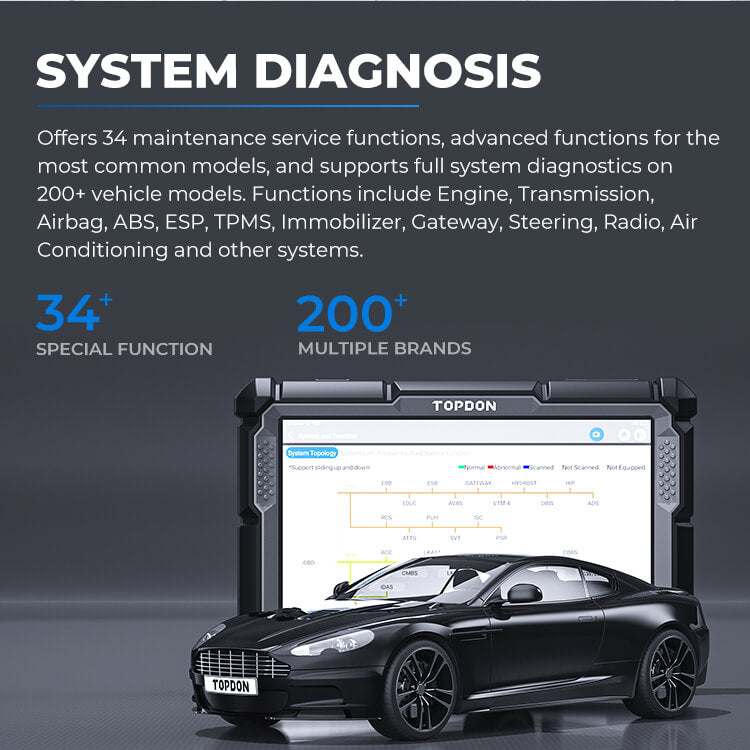

- All Data on One Screen - Topology mapping shows related vehicle systems and the CAN network. Diagnose communication issues instantly with color-coded mapping of each module’s communication status. The Phoenix Elite also offers active tests, special functions, coding, initialization, and memory resets.
- Guided Functions for VAG Vehicles - Step-by-step guided diagnostics procedures based on code for VW and Audi Vehicles.

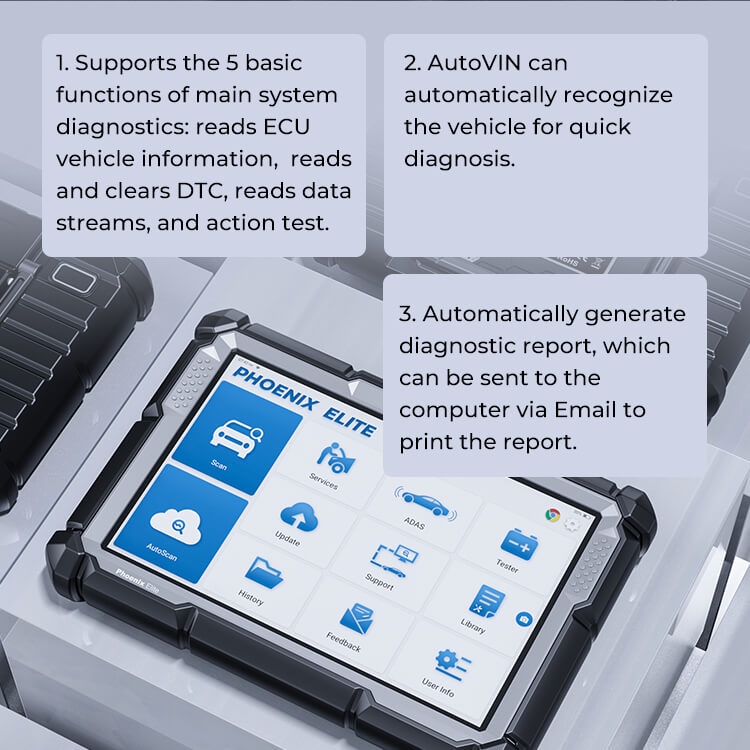

- Vehicle Auto VIN and Autodetect - The Phoenix Elite automatically captures the vehicle’s VIN number and finds all relevant information about the vehicle. Use this feature to save time and prevent mistakes.
- Pre-Scan and Post-Scan Reporting - The Pre-Scan and Post-Scan features allow the technician the ability to record the codes prior to repair. This will enable copies to be given to insurance companies and customers for repair approval. When the repairs are completed, the Post-Scan report can be recorded showing all codes are clear, showing off the vehicle's clean bill of health.
- Expand Your Capabilities with ADAS Calibration - The Phoenix Elite goes beyond diagnostics by introducing ADAS capabilities. Download the ADAS upgrades and pair with a Phoenix ADAS system to turn your Phoenix Elite into a calibration station, creating a new revenue stream for your shop.
Specifications
| CPU | MT6761, 4-Core 2.0GHz |
|---|---|
| RAM | 4G |
| ROM | 64G |
| Battery Capacity | 12600mAh/3.8V |
| Android Version | Android 10.0 |
| Screen Size | 10.1" |
| Screen Resolution | 1280×800 |
| Wi-Fi | 2.4 & 5 GHz |
| Camera | Rear 8.0 MP |
| Weight | 1.55 kg (3.42 lbs) |
| Communication | MDCI |
| Product Dimensions | 10.94 x 13.78 x 1.89 in |
| Working Temperature Fahrenheit | 32℉ to 122℉ |
| Storage Temperature Fahrenheit | -4℉ to 140°F |

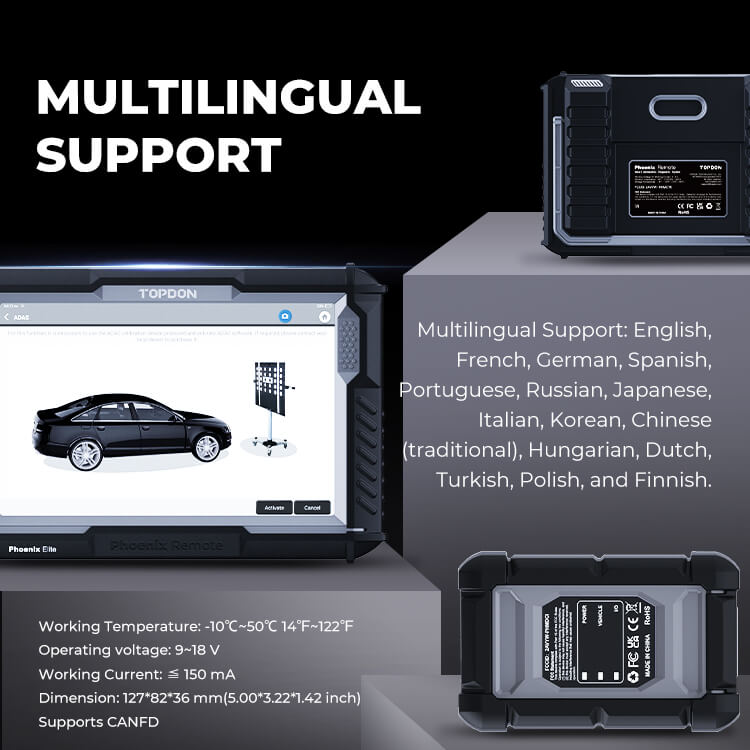

| Languages Supported | English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian |

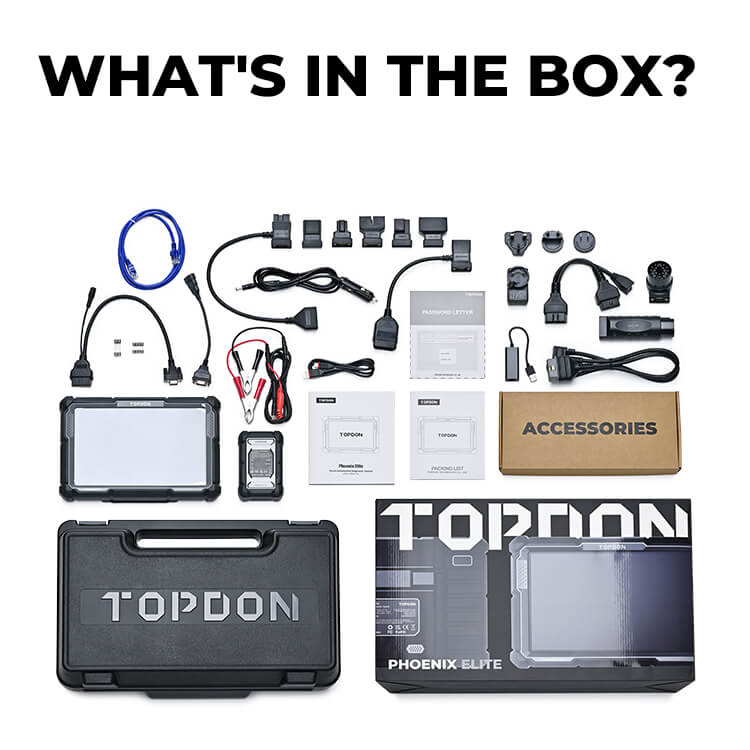

Package Contents
Phoenix Elite
Phoenix MDCI (VCI Dongle)
OBDI Adapter BOX Transfer Line
OBDII Extension Cable
Cigarette Lighter Cable
Type-C to USB Cable
Battery Clamps/Cable Set
Power Adapter
User Manual
10 x Non-16pin Adapter Cable Kit
4 x Fuse (φ5 x 20mm)
2 x Fuse (φ6 x 30mm)
BMW F-Chassis Programming Cable
