TOPDON TC005 Dual-Lens Handheld Thermal Camera New
Product Overview

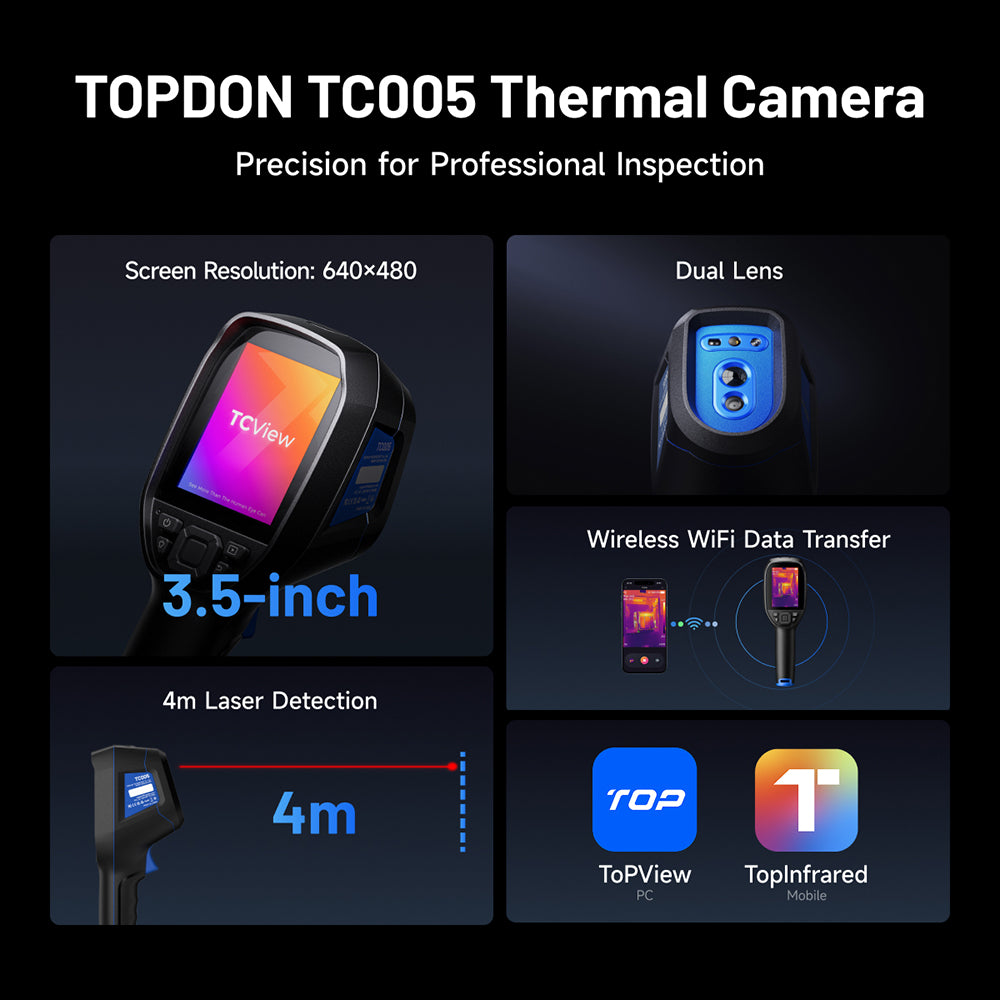

The TOPDON TC005 handheld thermal camera combines a 256×192 infrared sensor with a 2-megapixel visible-light camera to help you locate problem areas with both thermal detail and visual context. TISR image processing supports 512×384 imaging, while the 3.5" display makes findings easier to review on-site. Integrated laser distance measurement reaches up to 4 meters, and 64 GB of internal storage provides room for inspection images. Wi-Fi connectivity to the TopInfrared mobile app and USB connectivity to TopView PC software support image transfers, thermal analysis, and inspection reporting. For field use, the TC005 offers up to 8.5 hours of battery life, a 2-hour recharge time, an integrated LED light, IP54-rated housing, and 2-meter drop resistance.
Brand new
1 year limited warranty
Manufacturer direct shipping from New Jersey
Authorized Topdon dealer
Features

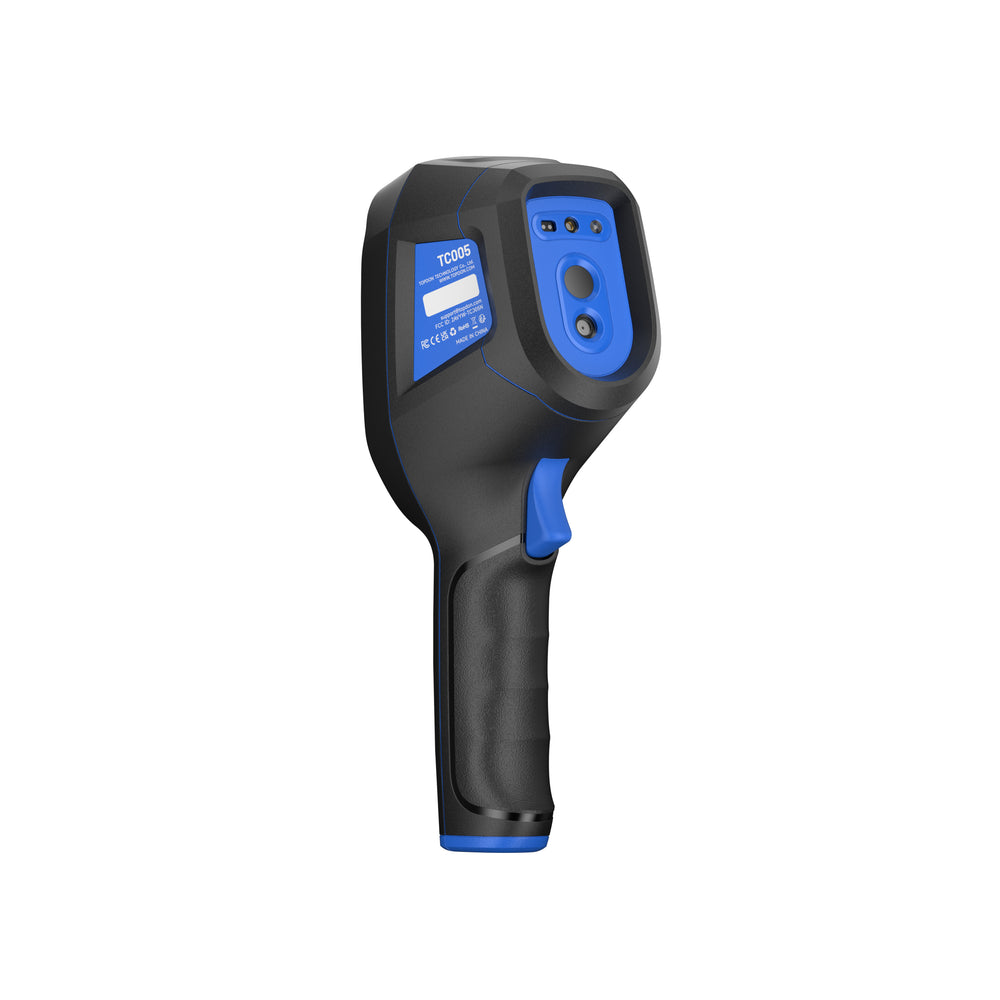

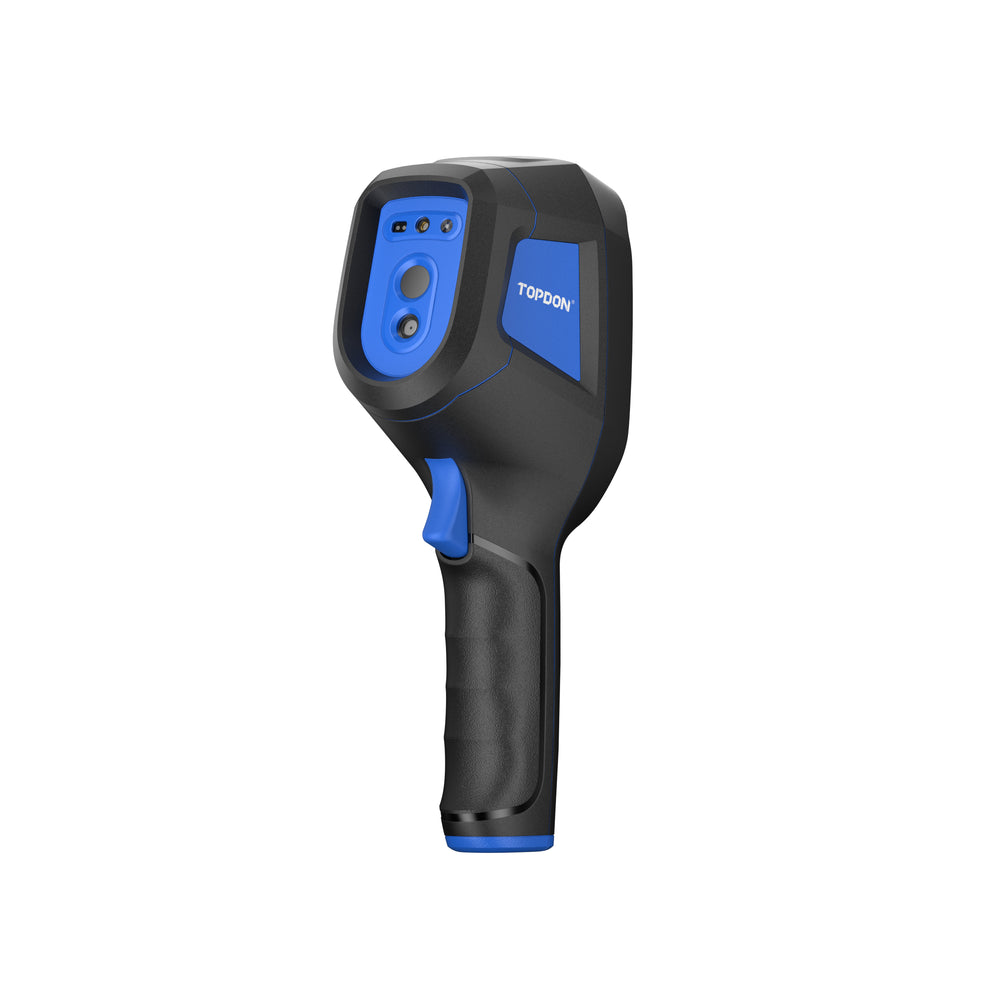

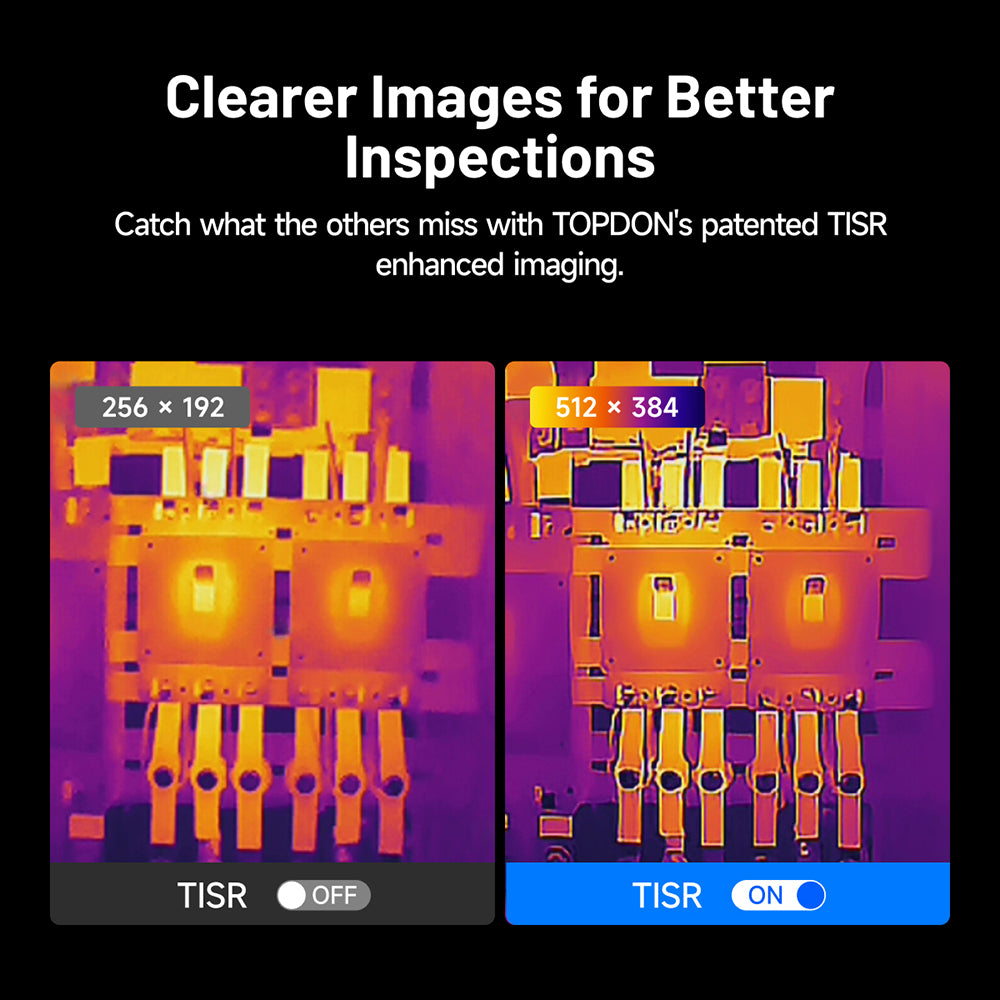

- Dual-Lens Imaging for Clearer Diagnostics: The TC005 combines a 256×192 infrared sensor (TISR-enhanced to 512×384) with a built-in 2 megapixel visible-light camera to deliver both thermal detail and real-world context. By pairing thermal data with a clear visual image, it’s easier to identify problem areas and understand exactly what you're looking at during inspections.

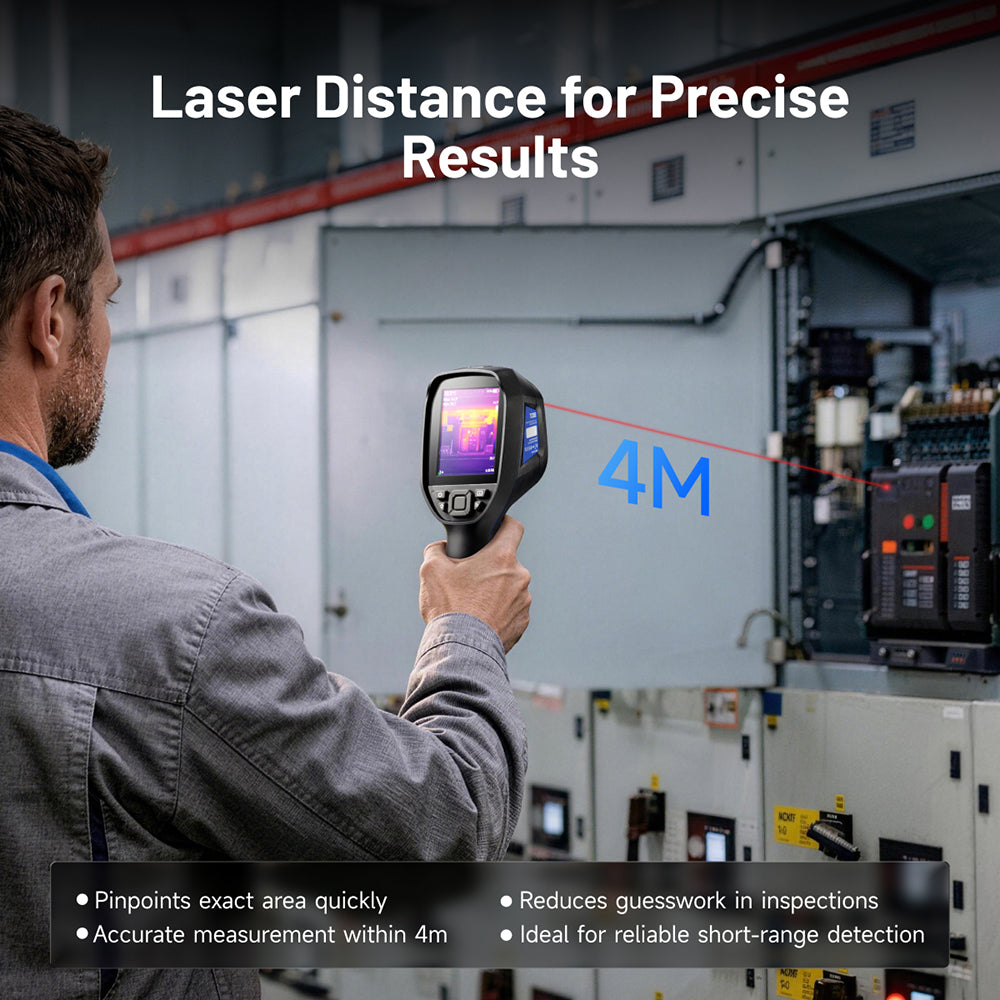

- Laser Distance Measurement for Greater Accuracy: With an integrated laser distance measurement up to 4 meters, the TC005 provides precise targeting and measurable reference points. This built-in feature helps ensure consistent measurements without the need for external tools.

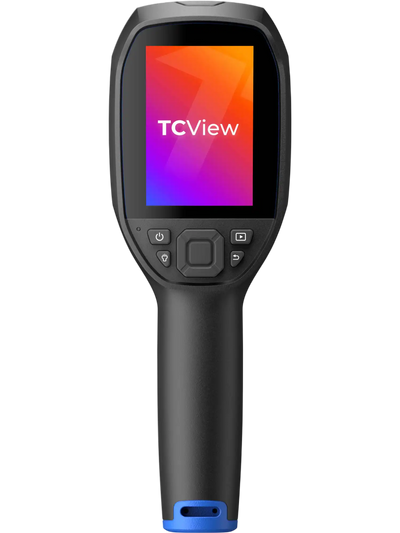

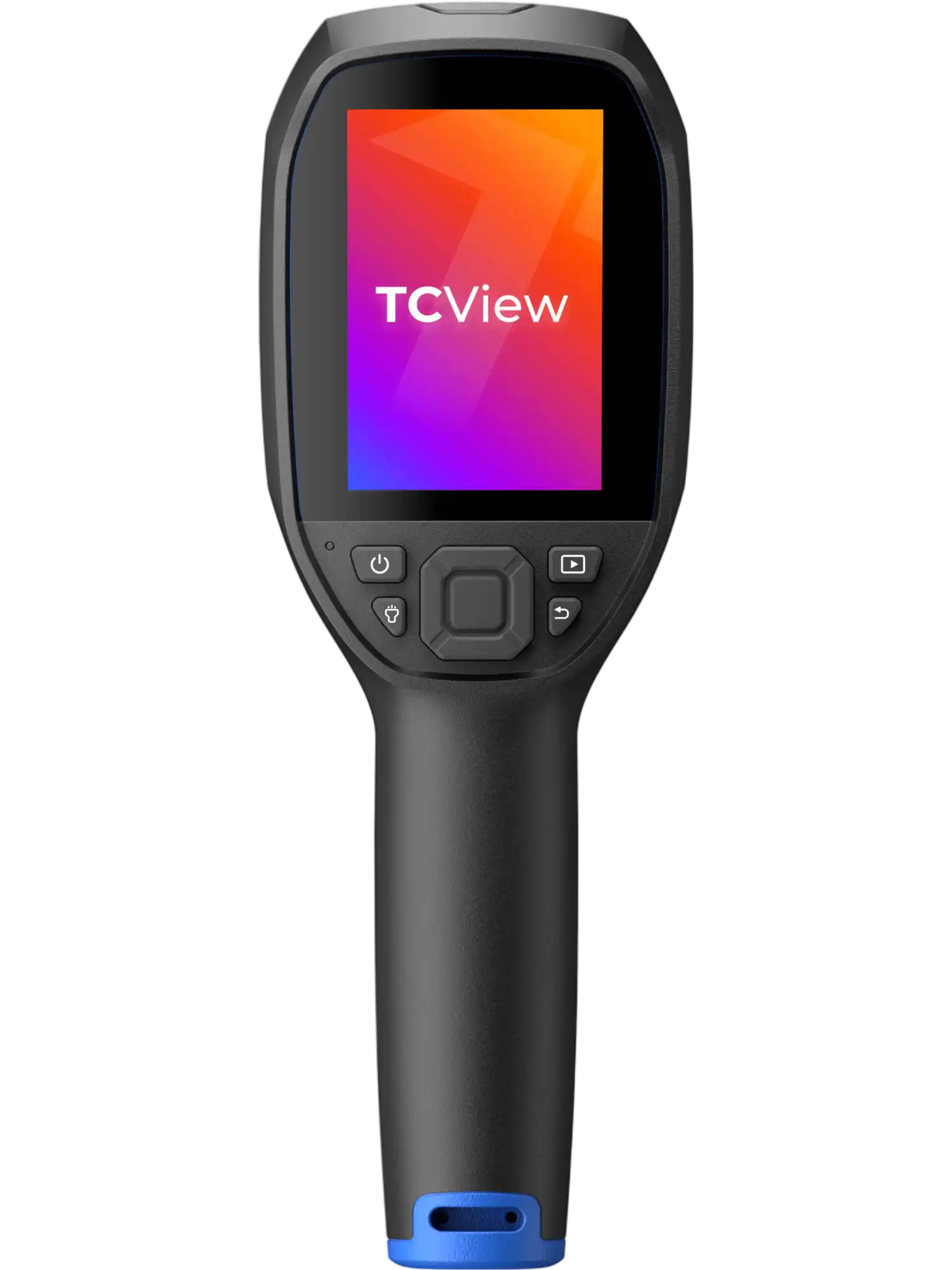

- Larger Display for Clearer Evaluation: A 3.5-inch display provides a larger, clearer viewing experience, making it easier to interpret thermal data and verify findings on-site without second-guessing.
- Expanded Storage for Complete Documentation: With 64 GB of internal storage, the TC005 allows extensive image capture and organized data retention, supporting professional documentation and reporting.

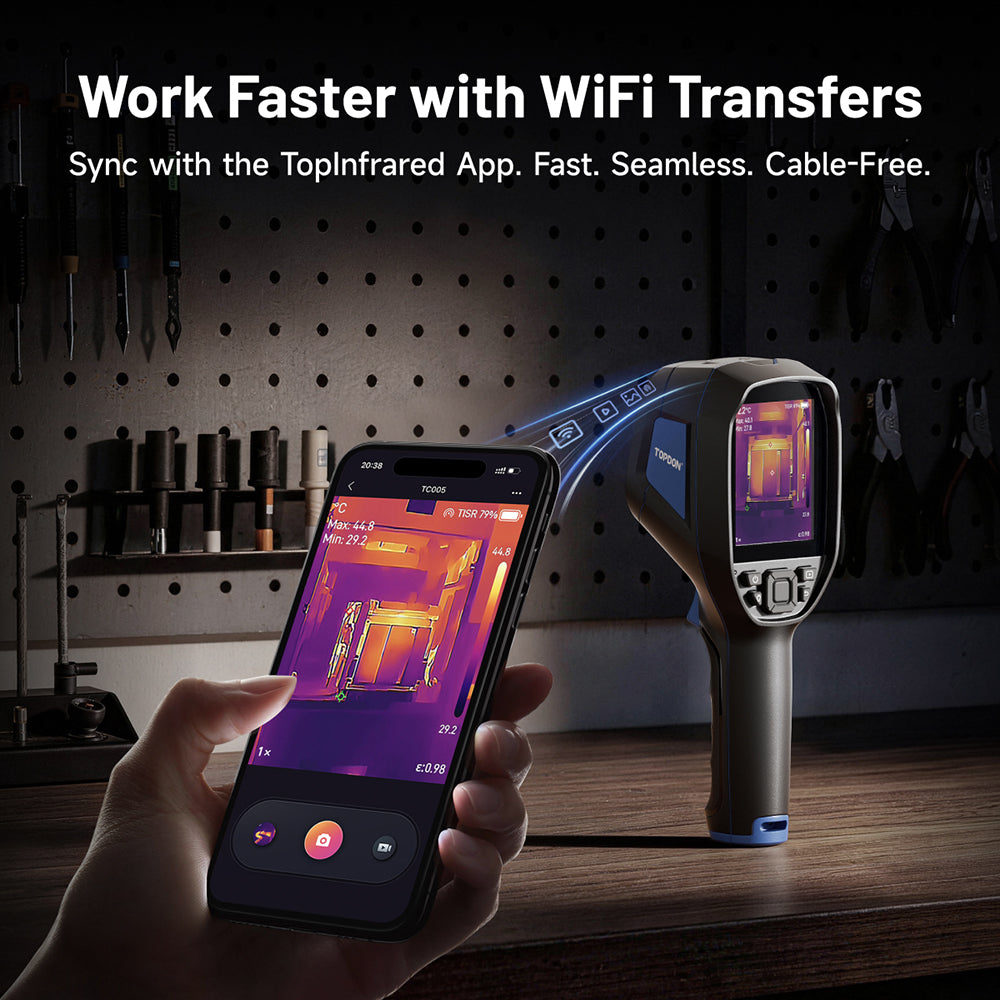

- Professional Analysis & Reporting: The TC005 connects via Wifi to the TopInfrared mobile app and via USB to TopView PC software, allowing for image transfer, advanced thermal analysis, and fast generation of professional inspection reports.

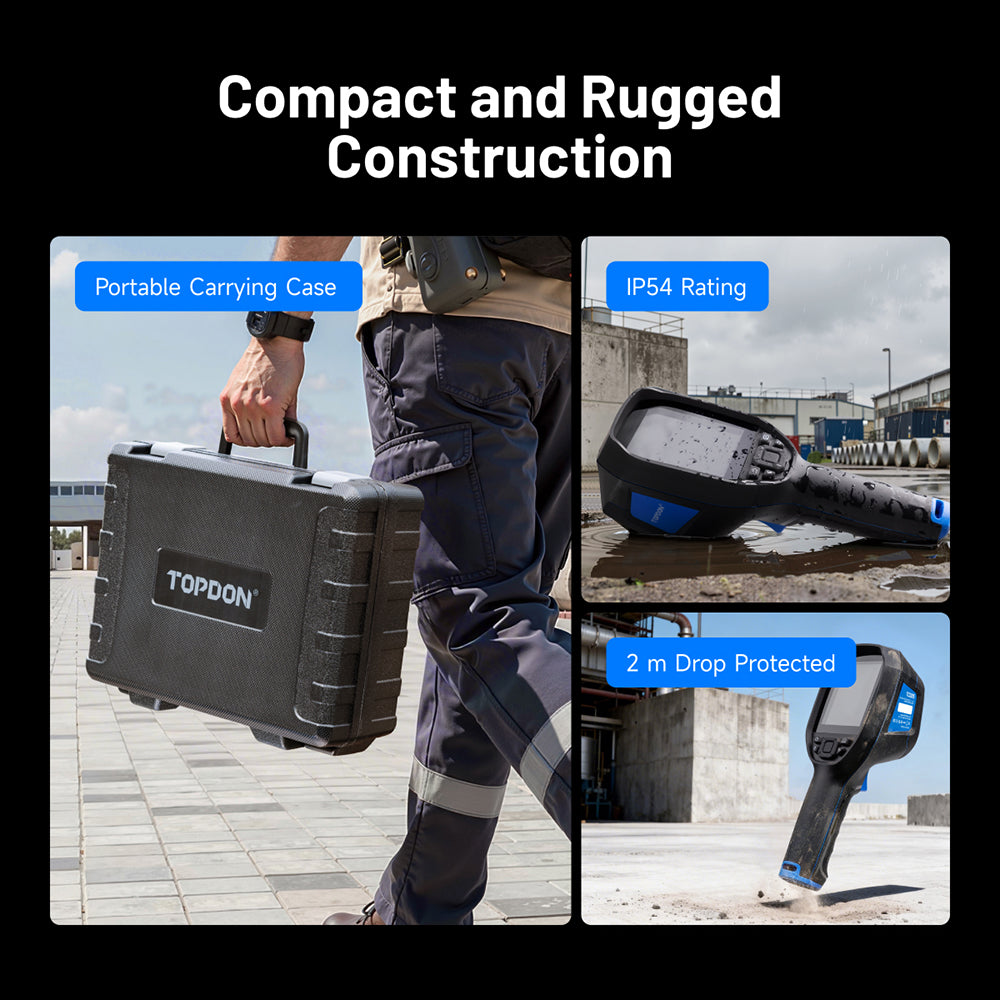

- Built for Professional Field Demands: The TC005 operates up to 8.5 hours on a full charge and recharges in just 2 hours, minimizing downtime on long inspections. Its IP54-rated housing, 2-meter drop resistance, and integrated LED light support reliable performance in demanding environments, while the carrying case keeps it protected wherever it goes.
Specifications
| System | Linux |
|---|---|
| Operating System | iOS/Android/Windows devices/Standalone use |
| Battery Capacity | 5000mAh |
| Display Screen | 3.5 inch, 640x840 screen |
| Operating Voltage | 5V |
| Charging Time | 4h |
| Battery Life | 8.5h |
| ROM | 64GB eMMC |
| Calibration Temperature Measurement Distance | 0.2m~5m |
| Identification Distance | 0.1~40m |
| Recognition Distance | 40~80m |
| Detection Distance | 80~320m |
| Measurement Accuracy | ±2°C or ±2% |
| Infrared Light Resolution | 256x192 |
| Focal Range | 4.3mm |
| FOV | 40°X30° |
| Spectral Range | 8 – 14μm |
| NETD | <40mK |
| Temperature Resolution | 0.1℃ |
| Frame Rate | 25Hz |
|---|---|
| Measurement Range | -20 to 550 °C (-4 to 1022℉) |
| Professional Function | Industrial |
| Digital Zoom | 1x/2x/4x |

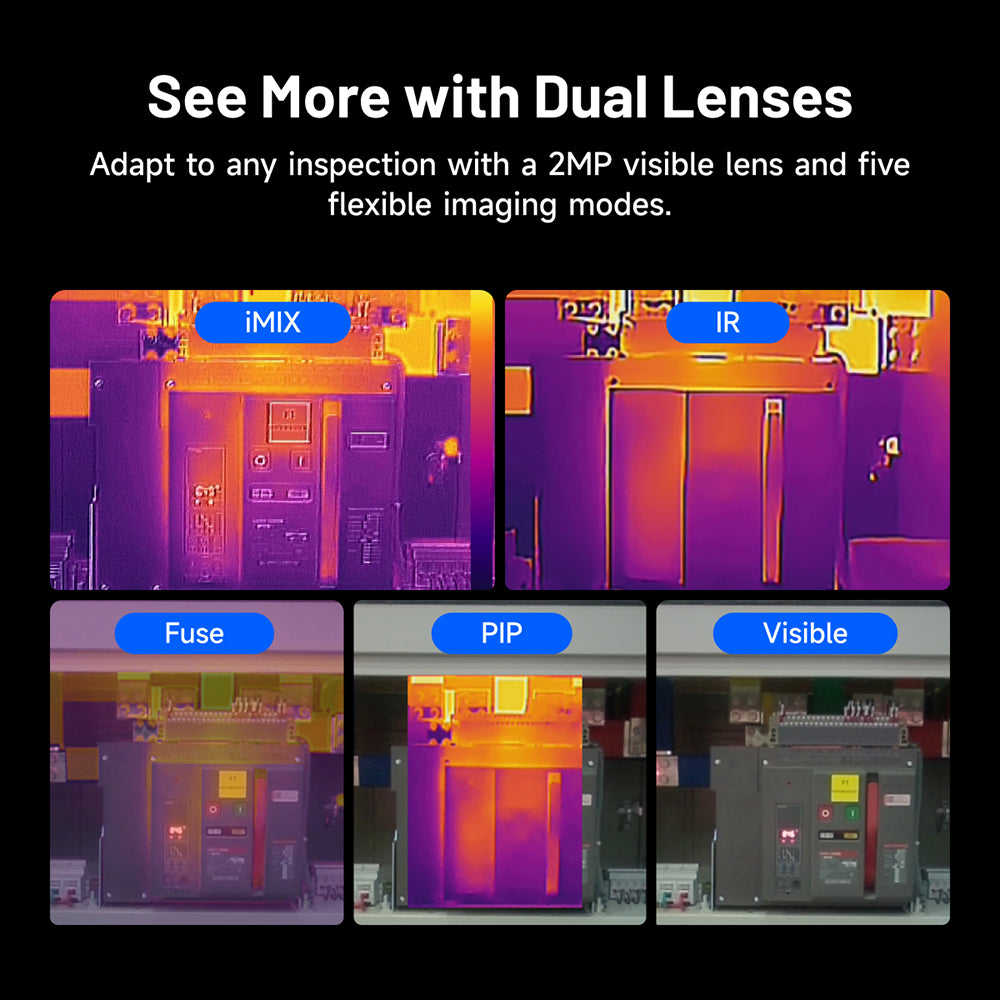

| Image Modes | Thermal Imaging,Dual Fusion, Visible, Image-in-Image |
| Measuring Modes | Center spot/hot spot/cold spot |
| Visible Light Camera Lens | 2 megapixels |
| Pseudo Color Bar | 7 colors (white hot, black hot, lava, iron, rainbow, rainbowHC, RdGy) |

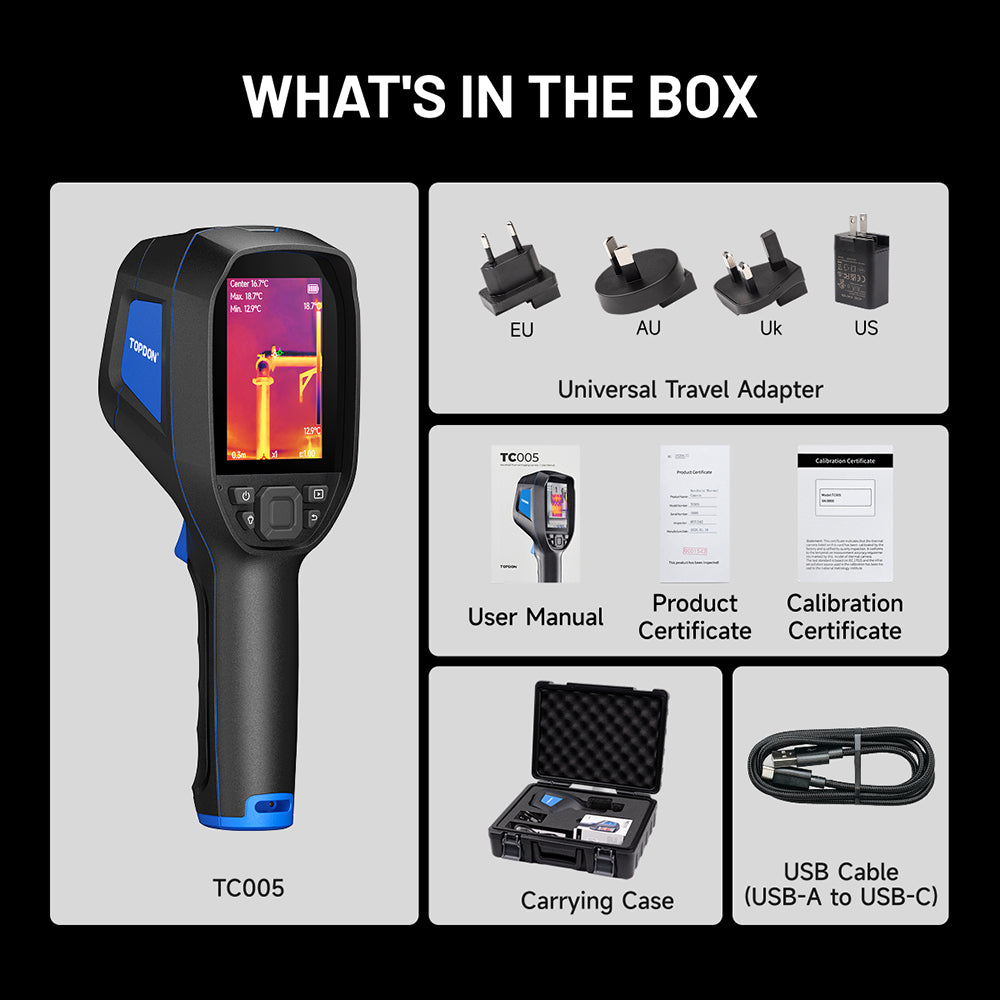

Package Contents
TC005 Thermal Camera
Universal Travel Adapter
USB Cable (USB-A to USB-C)
User Manual
Carrying Case
Product Certificate
Calibration Certificate
Warranty
This item comes with a 1 year limited warranty.
