TOPDON TS005 Advanced Thermal Monocular Camera 35mm New
Product Overview

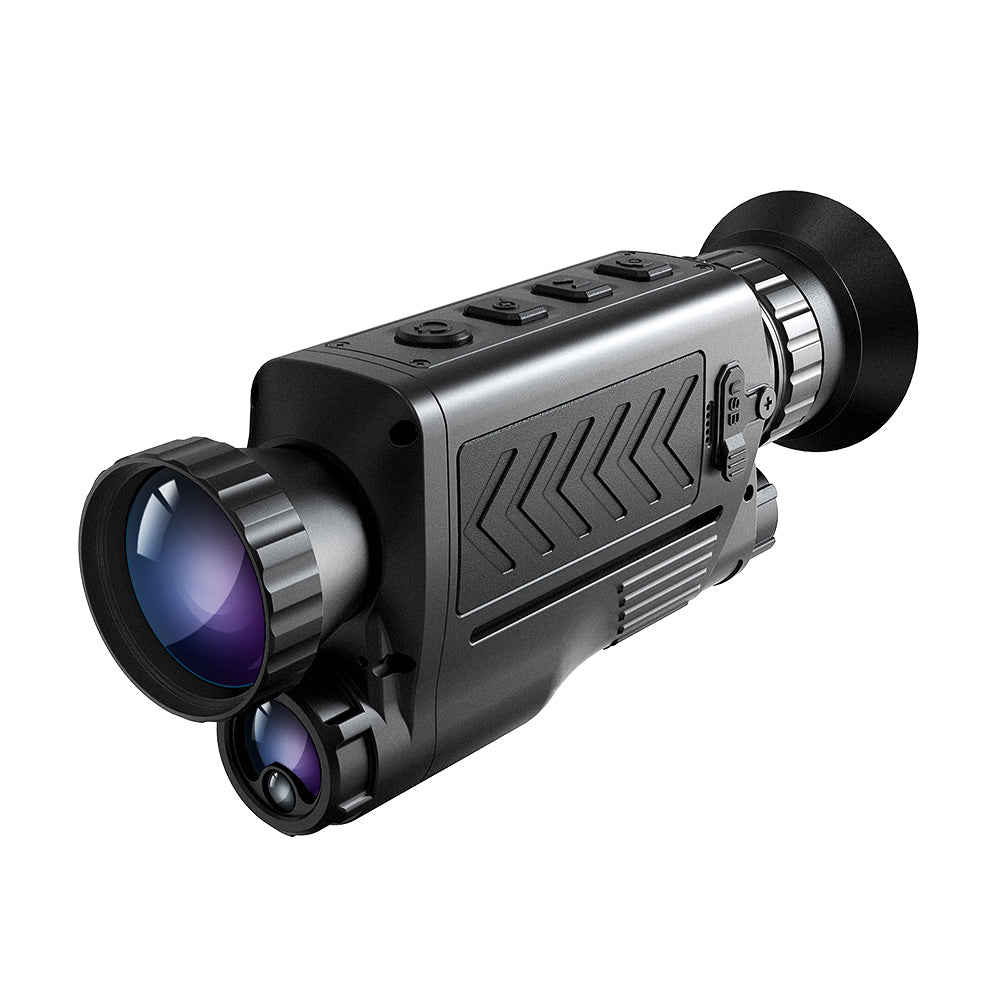

The TOPDON TS005 thermal monocular combines an adjustable 35mm lens with heat detection at distances up to 1,400 yards for nighttime wildlife observation, search and rescue, and property monitoring. A built-in laser rangefinder measures distances up to 650 yards, while up to 8x digital zoom helps you examine distant subjects more closely. Its 384 × 288 infrared resolution, thermal sensitivity below 35mK, and 50Hz frame rate support detailed thermal imaging and smooth tracking on a 1024 × 768 OLED display. Five selectable color palettes and an adjustable eyepiece let you tailor your view, while 64GB of built-in memory provides storage for photos and video with audio. An IP65-rated aluminum alloy housing, silent adjustments, and the choice of one-handed or tripod-mounted operation support use in demanding outdoor environments.
Brand new
1 year limited warranty
Manufacturer direct shipping from New Jersey
Authorized Topdon dealer
Features

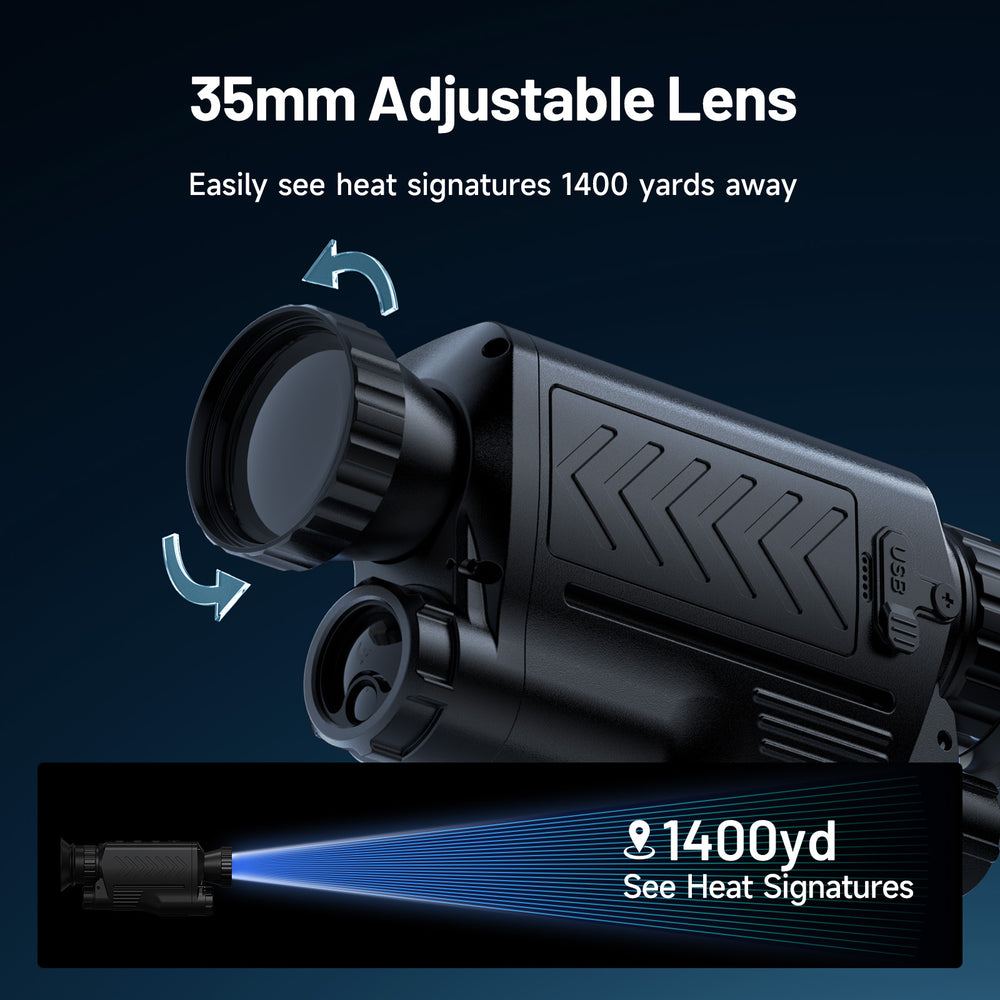

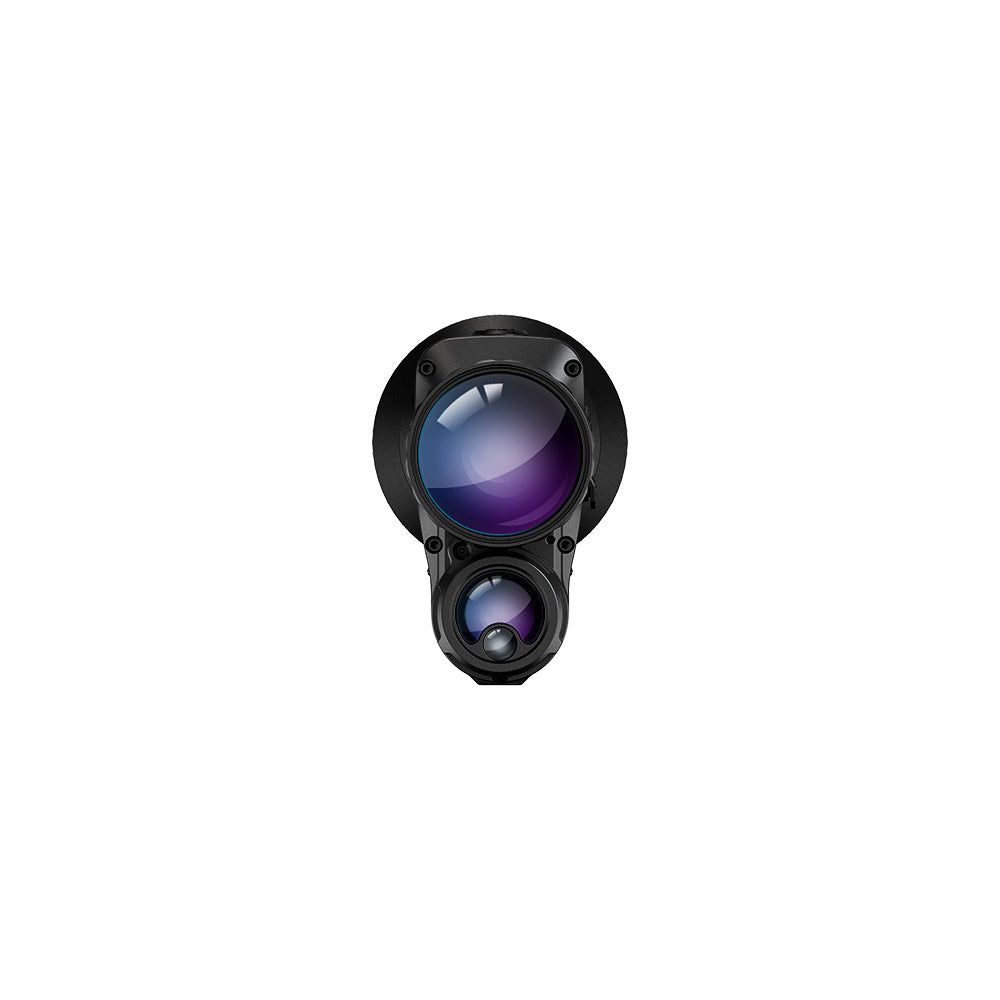

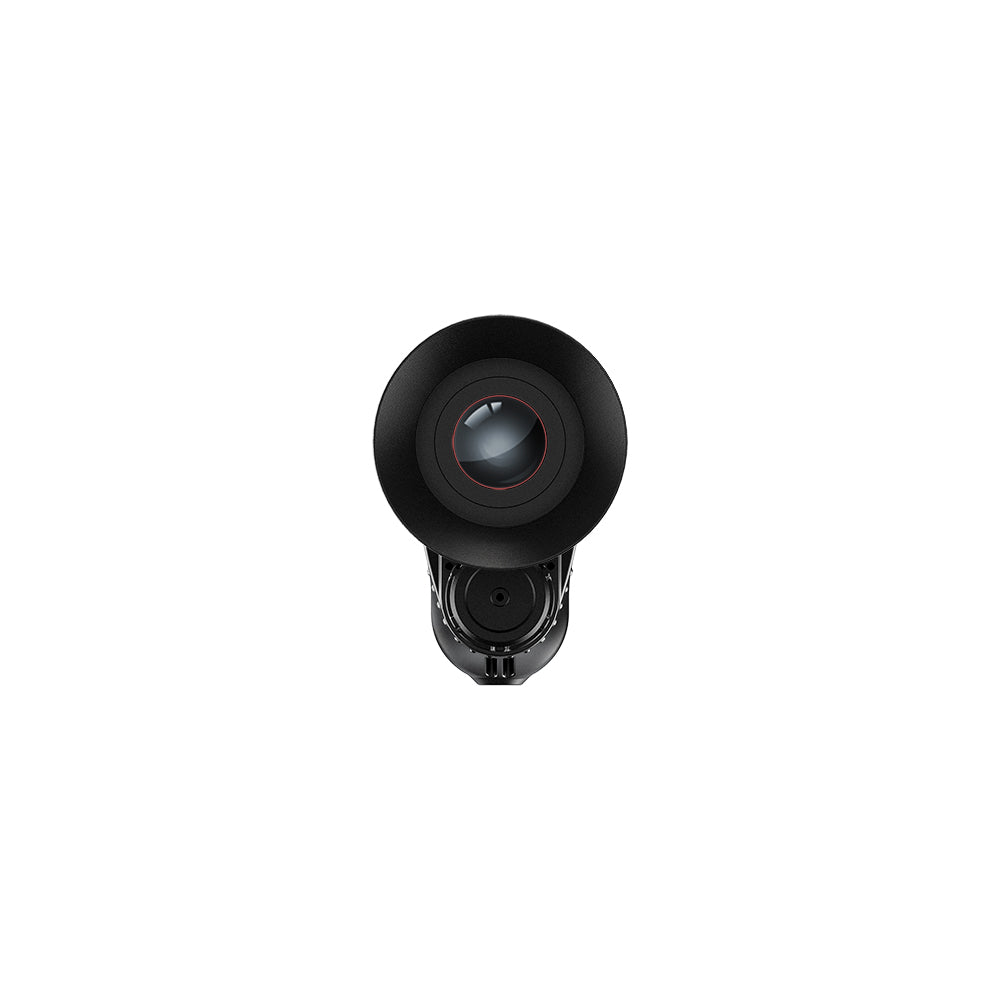

- Adjust, Focus, Conquer the Night: Push the limits of your sight with an adjustable 35mm lens designed to easily spot thermal signals from greater distances than ever before. Coupled with an adjustable eyepiece, the TS005 is perfect for nighttime viewing, offering unparalleled clarity for all users, including those with myopia.
- Pinpoint Precision, Even at Great Distances: Effortlessly identify heat variations up to 1400 yards with the 35mm telephoto lens. The built-in laser rangefinder, reaching up to 650 yards, allows you to accurately spot and measure targets—even in challenging conditions like fog, rain, or snow. Its adjustable crosshair ensures precise results without compromising eye safety.

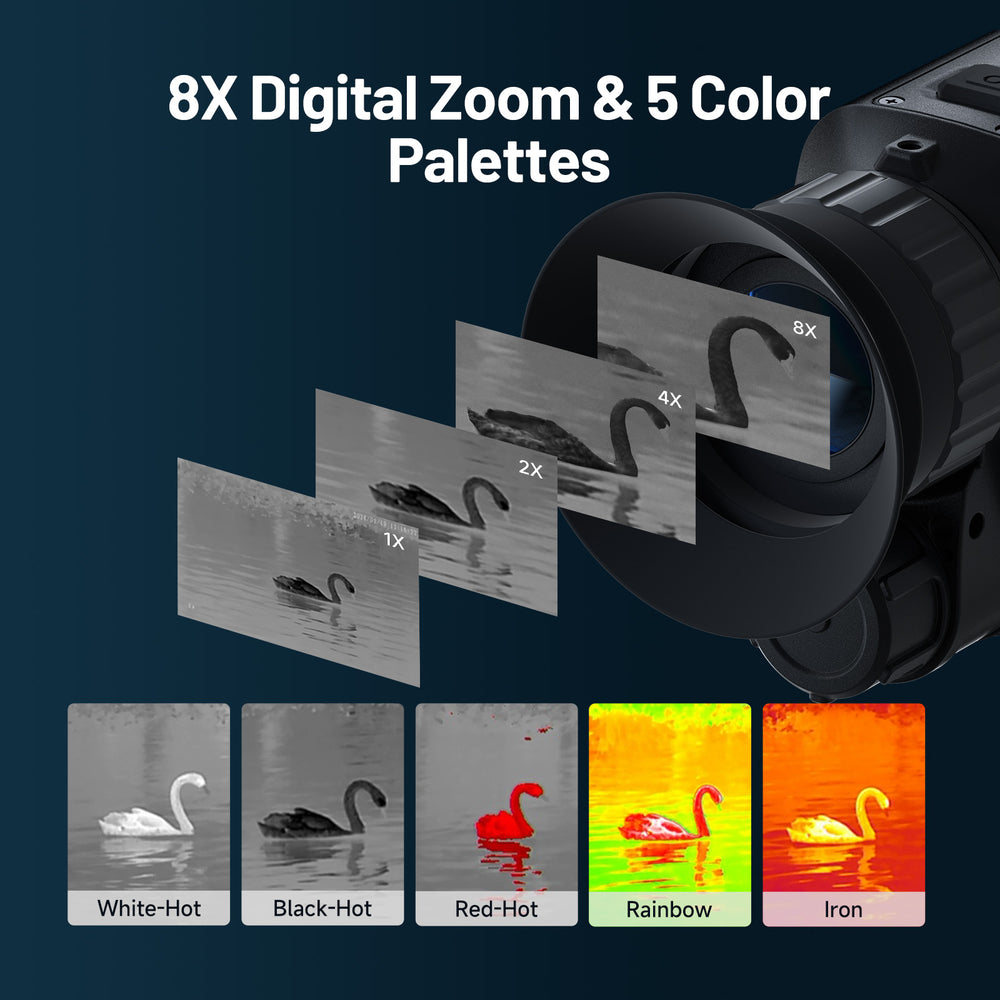

- Capture Your Night Up Close: Maximize your vision with up to 8x digital zoom, allowing you to observe distant wildlife with incredible clarity as if they were right in front of you. Its narrow 10.4° * 7.9° field of view is tailored for long-range observation, ensuring you catch every detail from a distance.

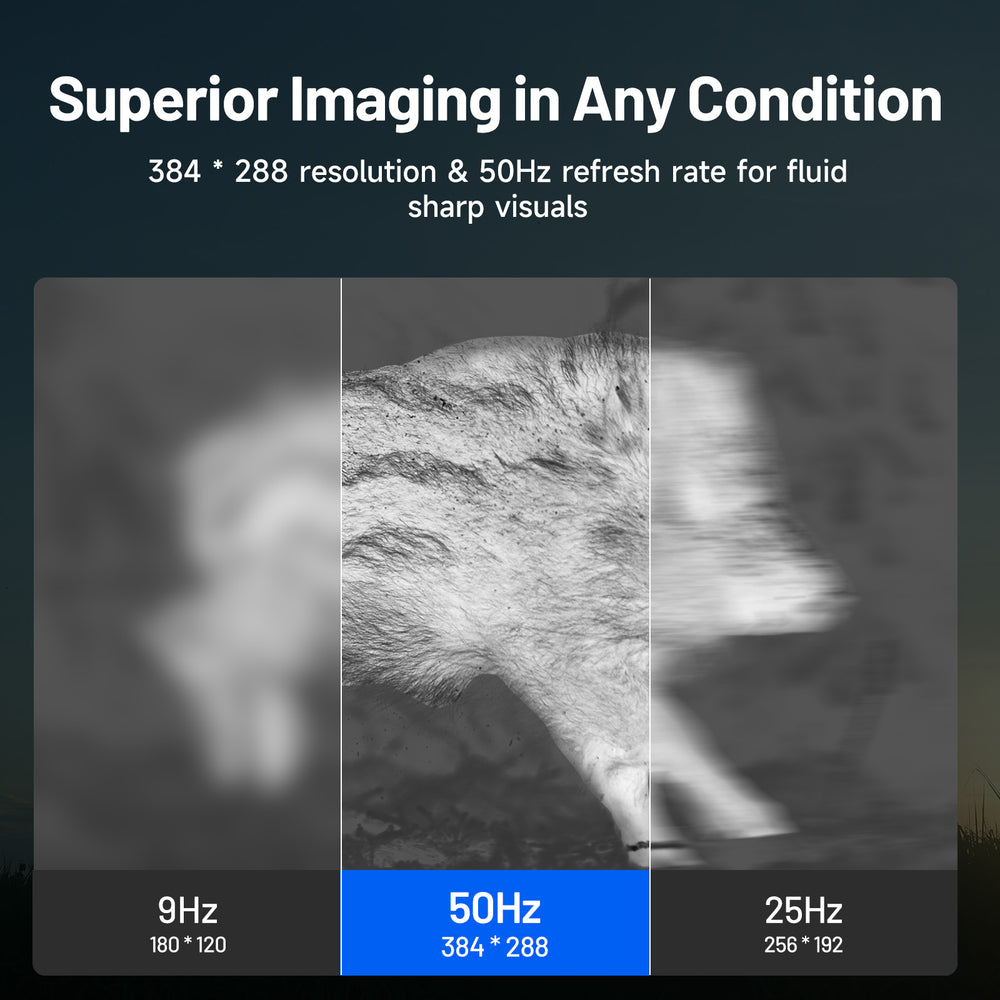

- Superior Imaging for Any Challenge: Equipped with a 384x288 IR resolution and high sensitivity (NETD < 35mK), the TS005 delivers sharp thermal images at a fast 50Hz frame rate, ensuring smooth, uninterrupted tracking of moving targets. Stay focused on what matters most for every critical moment.
- Every Detail, Perfectly Rendered: Coming with a 1024 * 768 OLED screen and an advanced 12μm sensor, the thermal monocular brings every scene into sharp focus, delivering the finest details in any situation.
- Tailored Vision for Any Condition: With five color palettes—Red-Hot, Iron, Rainbow, White-Hot, and Black-Hot—you can optimize your view for specific tasks, from detecting objects in the darkest conditions to enhancing recognition in complex terrains.

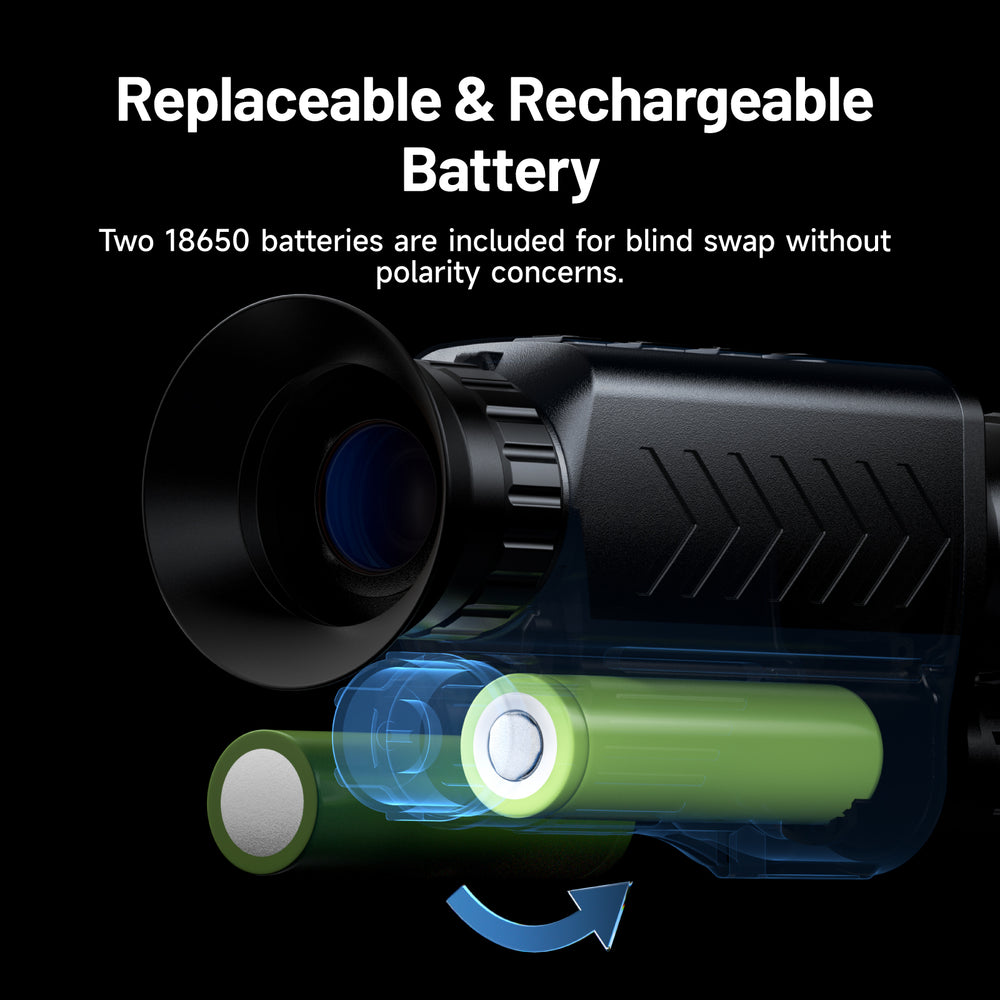

- Effortless Power, Whenever You Need It: Experience seamless operation with two replaceable 18650 batteries. You can carry extras for quick swaps without worrying about polarity, even in low light, ensuring continuous operations.
- Rechargeable Battery, Non-Stop Observation: Power through your outdoor activities with two batteries offering up to 6 hours of runtime on a single charge. Easily recharge via the USB-C port using power banks or portable energy solutions, so your device is always ready for action.

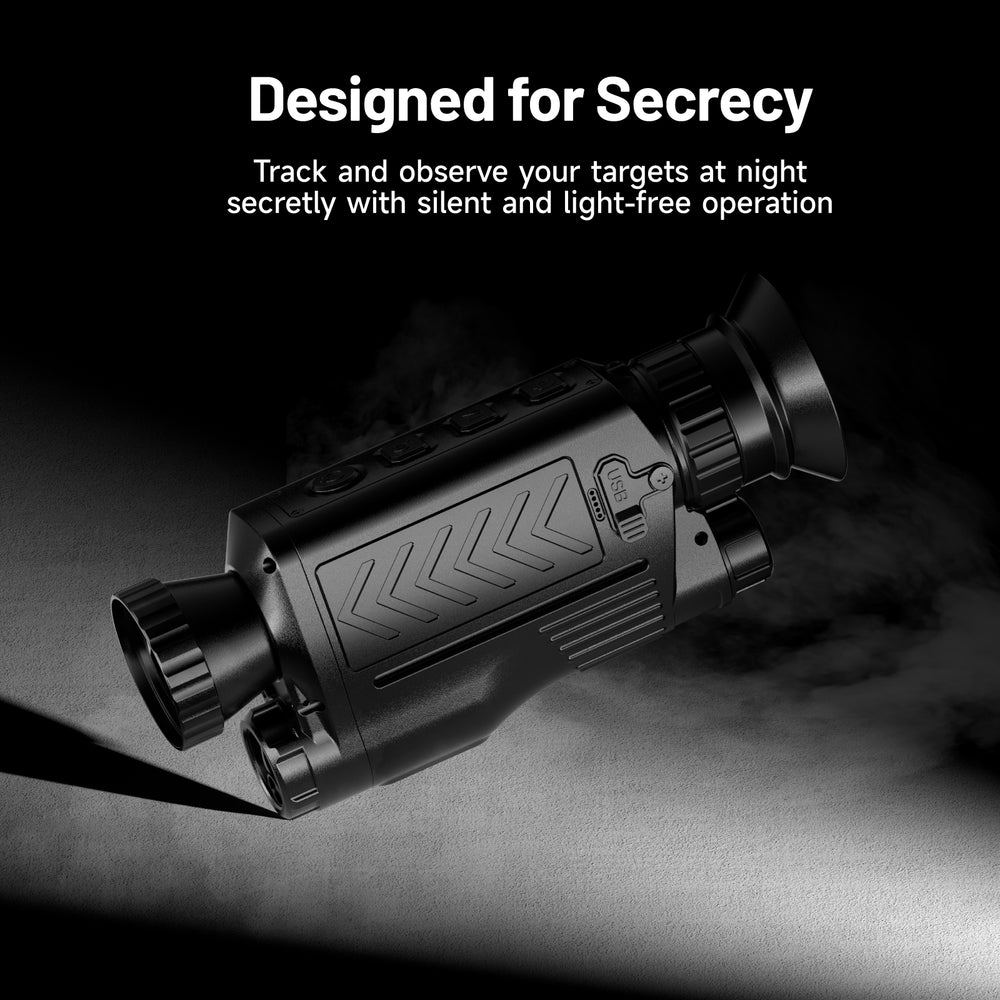

- Operate in Silence, Observe in Darkness: Stay hidden in the night with a device designed for secrecy. With no indicator lights and silent adjustments, the TS005 lets you track and observe your target without ever giving away your position.

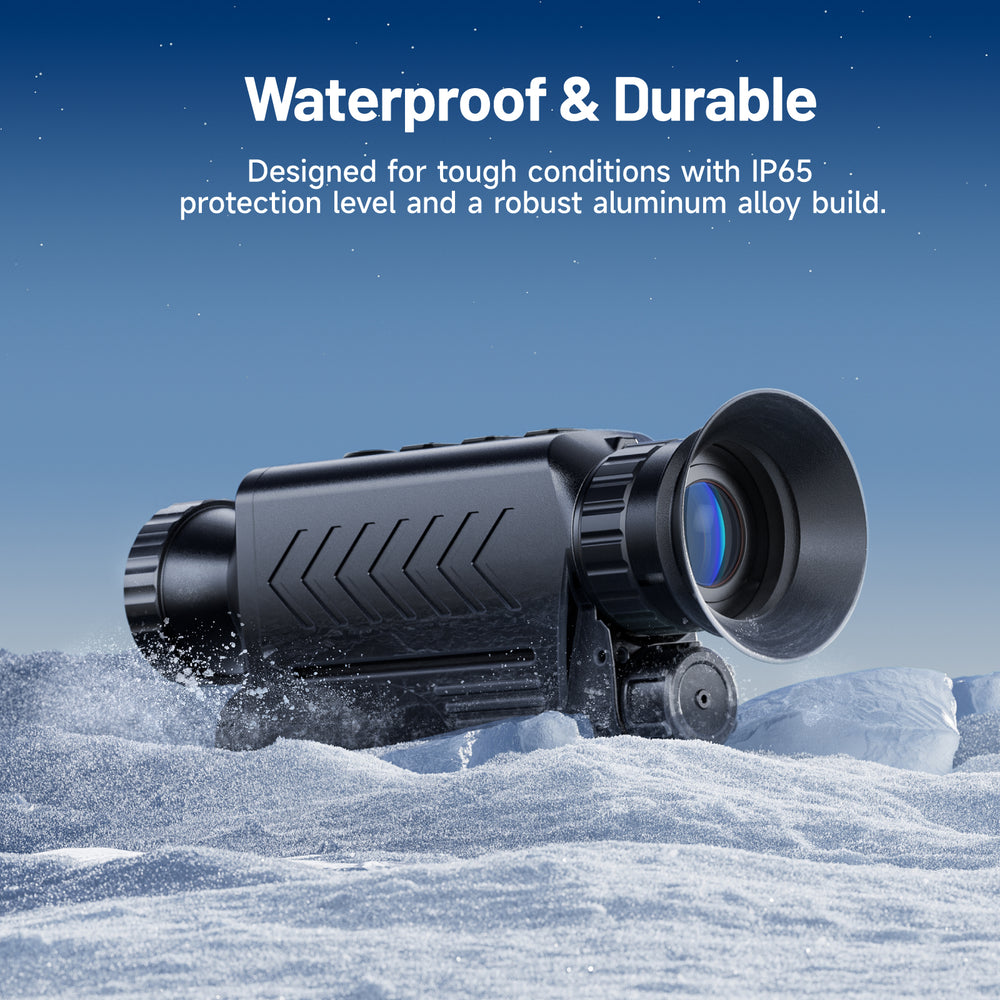

- Built for Rugged Reliability: The TS005 features a robust aluminum alloy housing that resists shocks, drops, and corrosion, while its matte black anodized finish ensures long-lasting durability. Perfect for professionals who need gear that matches their demanding environments.

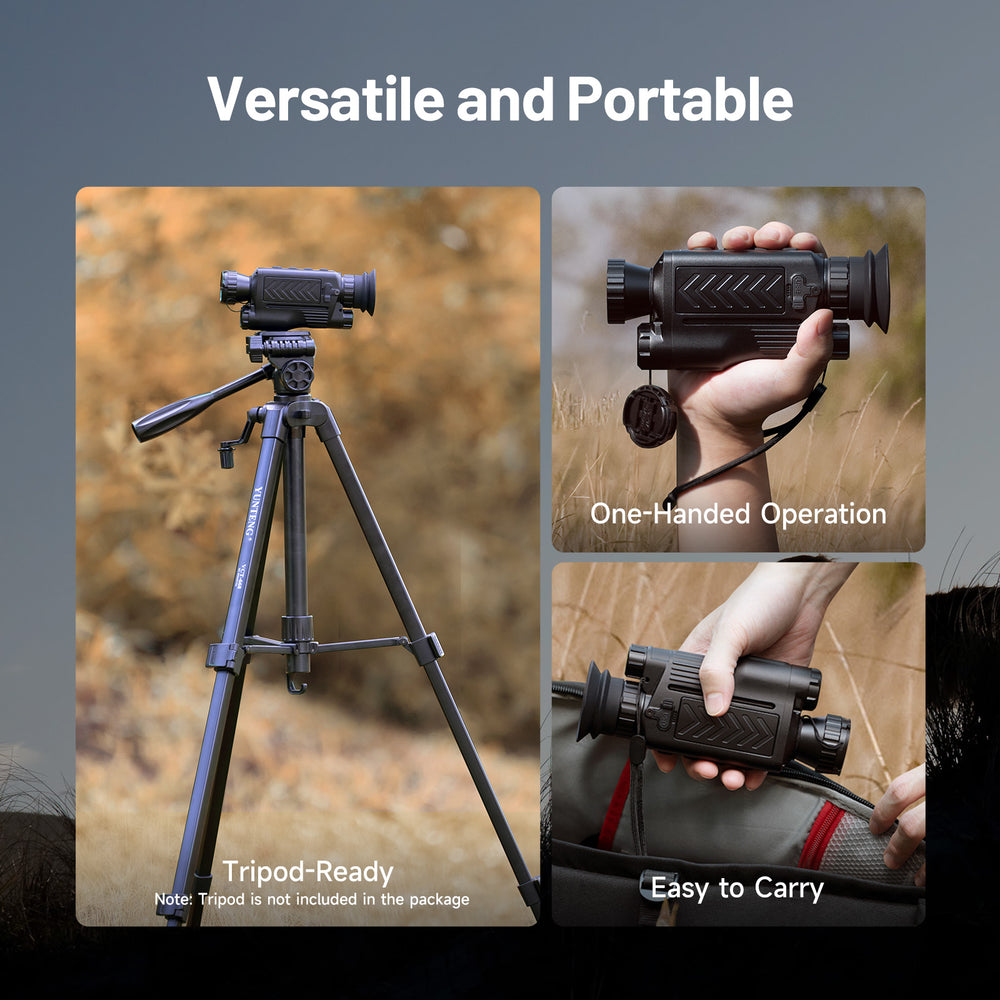

- Control How You Observe: Designed for versatility, the TS005 gives you the freedom to operate with one hand or attach it to a tripod for more stable observations. Choose your preferred method and stay focused on the task at hand.
- Record, Review, Relive: With 64GB built-in memory, you can store over 2 million high-definition images or record hours of video with clear audio. From critical tasks to once-in-a-lifetime encounters, every detail is securely saved, ready for review and sharing with others.
- Navigate with Confidence: The user-friendly UI paired with a built-in compass transforms your device into a reliable guide. Easily identify your direction at a glance, ensuring you never lose your way, even in the most challenging environments.
- Prepared for Every Encounter: Wildlife Observing, Search & Rescue, Farm Monitoring, Cabin Security, Outdoor Adventure, Law Enforcement
Specifications
| Working Temperature Fahrenheit | -4℉ to 131℉ |
|---|---|
| Working Temperature Celsius | -20℃ to 55℃ |
| Spectral Range | 12μm |
| Product Width (inches) | 13.39 |
| Product Weight (lbs) | 0.88 |
| Product Length (inches) | 6.70 |
| Product Height (inches) | 3.10 |
| IR Resoltuion | 384*288 |
| IP Rating | IP65 |
| Image Frequency | 50Hz |
| Heat Sensitivity | <35mK |
| Focal Length | 35mm (Adjustable) |
| Field of View | 10.4° * 7.9° |
| Display Size | 1024*768 OLED |
|---|---|
| Battery Life | 3 hours |
Package Contents
TS005 Thermal Monocular
Carrying Bag
Quick User Guide
USB Cable
Video Cable
2 x Batteries
Battery Charger
Warranty
This item comes with a 1 year limited warranty.
